Aggregation And Composition In C#

In today's discussion, we will discuss Aggregation and Composition in detail using C#. So, let's get started. Let me go ahead and create simple console App for demo purpose.

  1. namespace CSharpStuffs
  2. {
  3.    public class Patient
  4.     {
  5.         public string PatientName { getset; }
  6.         public string AdmissionDate { getset; }
  7.         public string ReleaseDate { getset; }
  8.
  9.         public DoctorInfo DoctorInfo { getset; }
  10.         public LifeInsurance Insurance { getset; }
  11.         }
  12.   }
  1. namespace CSharpStuffs
  2. {
  3.    public class LifeInsurance
  4.    {
  5.        public string PolicyName;
  6.        public string CompanyName;
  7.    }
  8. }
Once, the class gets created, It's time to feed the value via constructor. Hence, the following is the final code for the same.
  1. namespace CSharpStuffs
  2. {
  3.    public class Patient
  4.     {
  5.         public string PatientName { getset; }
  6.         public string AdmissionDate { getset; }
  7.         public string ReleaseDate { getset; }
  8.
  9.         public DoctorInfo DoctorInfo { getset; }
  10.         public LifeInsurance Insurance { getset; }
  11.
  12.        public Patient(string patientName,string admissionDate,string releaseDate,string doctorName,string doctorSpeciality, string workingAt)
  13.        {
  14.            PatientName = patientName;
  15.            AdmissionDate = admissionDate;
  16.            ReleaseDate = releaseDate;
  17.
  18.            //Composition comes into picture now
  19.            //It also means when we construct Patient, we also constructed DoctorInfo
  20.            //Hence, scope of Doctorinfo is dependent on Patient
  21.            DoctorInfo = new DoctorInfo
  22.            {
  23.                DoctorName = doctorName,
  24.                DoctorSpeciality = doctorSpeciality,
  25.                WorkingAt = workingAt
  26.            };
  27.
  28.        }
  29.
  30.        //Overrideenn ToString() for convience
  31.        public override string ToString()
  32.        {
  33.            string result = PatientName + " " +
  34.                            AdmissionDate + " " +
  35.                            ReleaseDate + " ";
  36.            //Filling Other objects
  37.            if (DoctorInfo != null)
  38.            {
  39.                result += DoctorInfo.DoctorName + " "
  40.                          + DoctorInfo.DoctorSpeciality + " "
  41.                          + DoctorInfo.WorkingAt;
  42.            }
  43.            if (Insurance != null)
  44.            {
  45.                result += " "+ Insurance.PolicyName + " "
  46.                          + Insurance.CompanyName;
  47.            }
  48.            return result;
  49.        }
  50.     }
  51. }
You will also notice that here, I have used Composition concept. Composition is tied with actual object which is patient here and hence DoctorInfo also got constructed.

Now, main program looks like the following:
  1. using System;
  2.
  3. namespace CSharpStuffs
  4. {
  5.     class Program
  6.     {
  7.         static void Main(string[] args)
  8.         {
  9.             Patient patient = new Patient("Tim","12-08-2015","20-08-2015","Cook","Physician","Fortis");
  10.             Console.WriteLine(patient.ToString());
  11.             Console.ReadLine();
  12.         }
  13.     }
  14. }
And, when I run the program, it will produce the following output.

run

However, I can modify the main program to add more info to this via aggregation as shown below.
  1. using System;
  2.
  3. namespace CSharpStuffs
  4. {
  5.     class Program
  6.     {
  7.         static void Main(string[] args)
  8.         {
  9.             Patient patient = new Patient("Tim","12-08-2015","20-08-2015","Cook","Physician","Fortis");
  10.             Console.WriteLine(patient.ToString());
  11.
  12.
  13.             //Now, we can add insurance by aggregation
  14.             patient.Insurance = new LifeInsurance
  15.             {
  16.                 CompanyName = "HDFC",
  17.                 PolicyName = "LIFE-AXA"
  18.             };
  19.             Console.WriteLine(patient.ToString());
  20.             Console.ReadLine();
  21.         }
  22.     }
  23. }

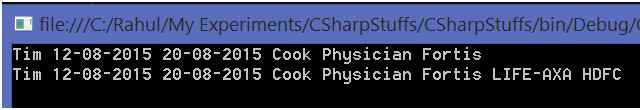

With the above change in place, it will display the following info.

display

Therefore, in a nutshell, Aggregation is the stuff which can be added at later point of time to the object, but composition gets constructed with object creation itself.

Thanks!
