Saving Records By ExecuteNonQuery() in FSharp

Introduction:

ExecuteNonQuery() is a method of the Command Class in .NET. It does not return a record. Generally, it is used to store a record from the front end to the DataBase.
We create a DataBase and create an F# application to use ExecuteNonQuery().

In this example, DataBase name is STUDENT and STUDENT_DATAIL is Table name. It has four columns as Roll_No, F_Name, L_Name and Course. Write the following SQL command to create DataBase and Table and creating StoredProcedure.

Creating DataBase and Table:

create database STUDENT

use STUDENT

create table STUDENT_DETAIL
(
Roll_No int,
F_Name varchar(20),
L_Name varchar(20),
Course varchar(10)
)

Creating Stored Procedure:

CREATE PROCEDURE MYSTOREPROCEDURE
(
 @Roll_No int,
 @F_Name varchar(20),
 @L_Name varchar(20),
 @Course varchar(10)
)
AS
BEGIN
INSERT INTO student_DETAIL VALUES(@Roll_No, @F_Name, @L_Name, @Course)
END

Creating F# Application:

Now we create a F# application. For doing it, follow given steps,

Step 1: Take a F# application.



Step 2: We go-to Solution Explorer and Right Click on References.

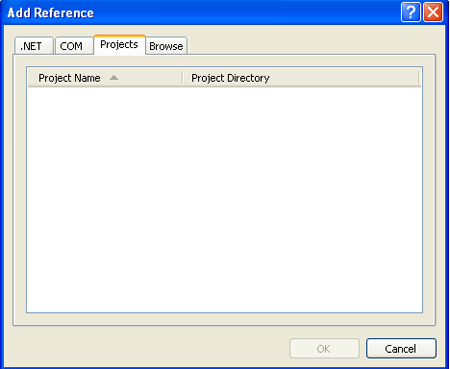

Step 3: Click on Add References. Then a pop-up window with caption Add Reference will open as in the below figure.

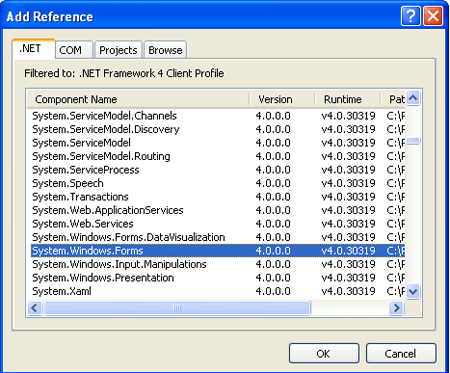

Step 4: Click at .Net on Add Reference window and select System.Windows.Forms, System.Drawing and System.Data with holding down Ctrl key and Click on Ok.



Step 5: Now we write F# code using ExecuteNonQuery() to store record into DataBase. Here in this example, I am storing record into STUDENT_RECORD table to which we have created earlier (Look at Above SQL statement).

// Learn more about F# at http://fsharp.net
//importing namespace
open System
open System.Drawing
open System.Data.SqlClient
open System.Windows.Forms
open System.Data
//connection string
let constring = @"Data Source=SERVER_NAME;Initial Catalog=STUDENT;Integrated Security=True"
//Creating user controls
let form = new Form()
let txt1 = new TextBox(Top = 10, Left = 70)
let txt2 = new TextBox(Top = 30, Left = 70)
let txt3 = new TextBox(Top = 50, Left = 70)
let txt4 = new TextBox(Top = 70, Left = 70)
let btn = new Button(Top = 100)
let lbl1 = new Label(Top = 10, Left = 0, Height = 20)
let lbl2 = new Label(Top = 30, Left = 0, Height = 20)
let lbl3 = new Label(Top = 50, Left = 0, Height = 20)
let lbl4 = new Label(Top = 70, Left = 0, Height = 20)
//form caption
form.Text <- "Saving Record Into DataBase"

btn.Text <- "Save"
lbl1.Text <- "ID"
lbl2.Text<- "First Name"
lbl3.Text <- "Last Name"
lbl4.Text <- "Course"
//Adding user control
form.Controls.Add(txt1)
form.Controls.Add(txt2)
form.Controls.Add(txt3)
form.Controls.Add(txt4)
form.Controls.Add(lbl1)
form.Controls.Add(lbl2)
form.Controls.Add(lbl3)
form.Controls.Add(lbl4)
form.Controls.Add(btn)
//creating SqlConnection
let con = new SqlConnection(constring)
//open connection
con.Open()
let com = new SqlCommand()
com.Connection <- con
com.CommandType <- CommandType.StoredProcedure
om.CommandText <- "MYSTOREPROCEDURE"

btn.Click.Add( fun _ ->
com.Parameters.AddWithValue("@Roll_No", txt1.Text ) |> ignore// passing values
com.Parameters.AddWithValue("@F_Name", txt2.Text ) |> ignore
com.Parameters.AddWithValue("@L_Name", txt3.Text ) |> ignore
com.Parameters.AddWithValue("@Course", txt4.Text ) |> ignore

com.ExecuteNonQuery() |> ignore //ExecutrNonQuery
MessageBox.Show("Saved") |> ignore //passing message
txt1.Clear() //clear TextBox1
txt2.Clear() //"  "
txt3.Clear() // " "
txt4.Clear() // " "
txt1.Focus() |> ignore)// setting focus

Application.Run(form)

Step 6: Now we run our application.

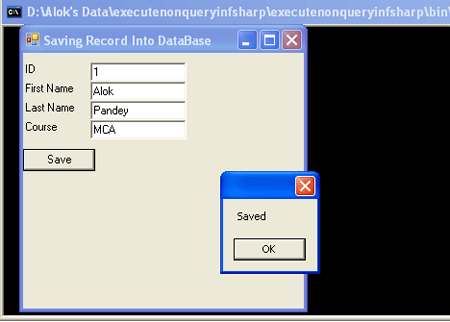

We fill the form and Click on Save (Button). Then, a MessageBox will be shown with message "Saved".



We Click on Ok Button and do some other entries in TextBoxes.

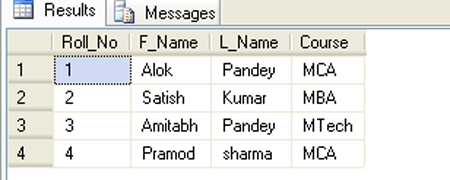

Now we check the saved record. We open SQL Server and write the following SQL statements

SELECT * FROM STUDENT_DETAIL

We look that all record are saved in DataBase.
