TabStrip In Kendo UI For ASP.NET MVC

This is a sample program to show TabStrip in Kendo UI.

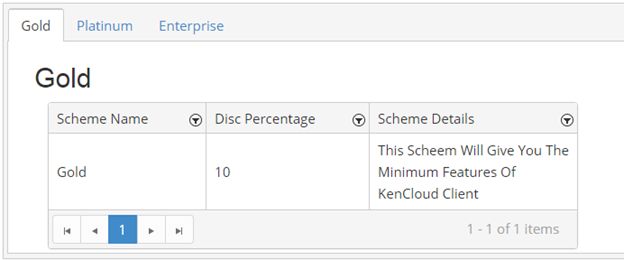

Gold

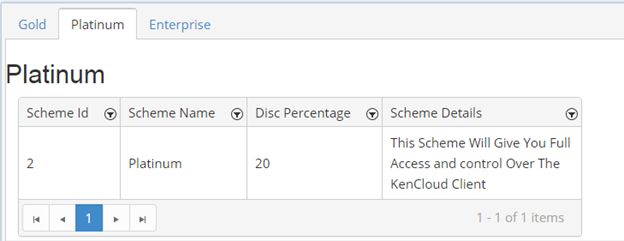

Platinum

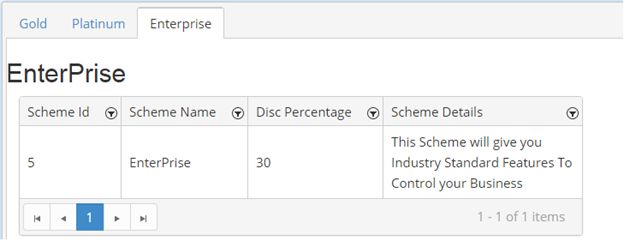

Table

Steps

  • We need one Controller.
  • We need one Index Action.
  • Three different Action and Views to call inside the Index Action view.

Add a Controller

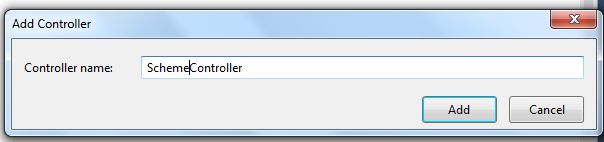

Add controller

Add a View to the Controller.

Index Action Method - Right click and Add View.

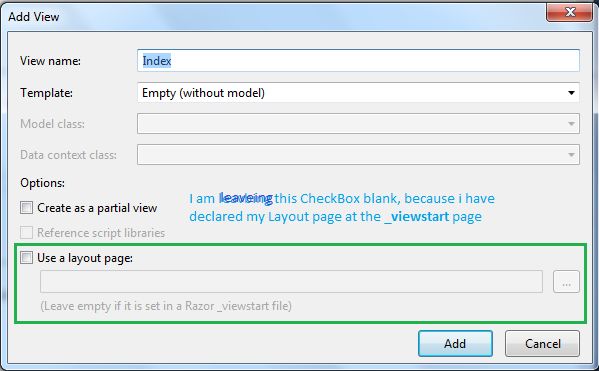

Add view

Before designing the Index view add a View Model to the Project named ClsSchemeViewModel.

Right Click Model Folder and Add Class.

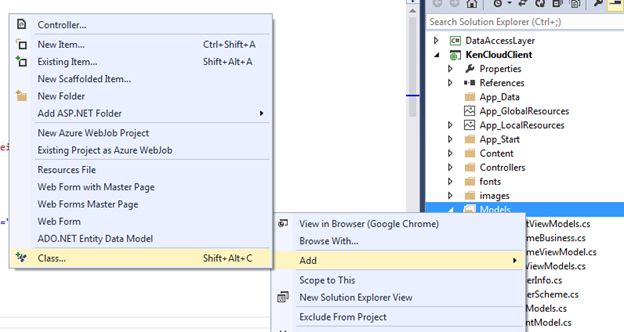

Add class

Model class

  1. using System;
  2. using System.Collections.Generic;
  3. using System.Linq;
  4. using System.Web;
  5.
  6. namespace KenCloudClient.Models
  7. {
  8.     public class ClsSchemeViewModel
  9.     {
  10.         public int SchemeId
  11.         {
  12.             set;
  13.             get;
  14.         }
  15.
  16.         public string SchemeName
  17.         {
  18.             set;
  19.             get;
  20.         }
  21.
  22.         public decimal DiscPercentage
  23.         {
  24.             set;
  25.             get;
  26.         }
  27.
  28.         public string SchemeDetails
  29.         {
  30.             set;
  31.             get;
  32.         }
  33.     }
  34. }
Design the View Page for Index Action
  1. @model KenCloudClient.Models.ClsSchemeViewModel
  2.
  3. @{
  4.     ViewBag.Title = "Index";
  5. }
  6.
  7. <h2>Scheme Details</h2>
  8.
  9. <div class="container">
  10.     <div class="row">
  11.         @(Html.Kendo().TabStrip()
  12.           .Name("tabstrip")
  13.                   .HtmlAttributes(new { style="heigh:300px;width=800px;"})
  14.           .Items(tabstrip =>
  15.           {
  16.               tabstrip.Add().Text("Gold")
  17.                   .Selected(true)
  18.                   .Content(@<text>
  19.                     <div class="col-lg-11" style="float:left;">
  20.                         @Html.Action("Gold")
  21.                     </div>
  22.
  23.                 </text>);
  24.
  25.               tabstrip.Add().Text("Platinum")
  26.                   .Content(@<text>
  27.                     <div class="row">
  28.                         @Html.Action("Platinum")
  29.                     </div>
  30.
  31.                 </text>);
  32.
  33.               tabstrip.Add().Text("Enterprise")
  34.                   .Content(@<text>
  35.                     <div class="row">
  36.                         @Html.Action("Enterprise")
  37.                     </div>
  38.
  39.                 </text>);
  40.           })
  41.         )
  42.     </div>
  43. </div>
  44.
  45. <style type="text/css">
  46.     #forecast {
  47.         width: 360px;
  48.         height: 337px;
  49.         margin: 30px auto;
  50.         padding: 80px 15px 0 15px;
  51.         background: url('@Url.Content("~/Content/web/tabstrip/forecast.png")') transparent no-repeat 0 0;
  52.     }
  53.
  54.     .sunny, .cloudy, .rainy {
  55.         display: inline-block;
  56.         margin: 20px 0 20px 10px;
  57.         width: 128px;
  58.         height: 128px;
  59.         background: url('@Url.Content("~/Content/web/tabstrip/weather.png")') transparent no-repeat 0 0;
  60.     }
  61.
  62.     .cloudy{
  63.         background-position: -128px 0;
  64.     }
  65.
  66.     .rainy{
  67.         background-position: -256px 0;
  68.     }
  69.
  70.     .weather {
  71.         width: 800px;
  72.         padding: 40px 0 0 0;
  73.         float:left;
  74.     }
  75.
  76.     #forecast h2 {
  77.         font-weight: lighter;
  78.         font-size: 5em;
  79.         padding: 0;
  80.         margin: 0;
  81.     }
  82.
  83.     #forecast h2 span {
  84.         background: none;
  85.         padding-left: 5px;
  86.         font-size: .5em;
  87.         vertical-align: top;
  88.     }
  89.
  90.     #forecast p {
  91.         margin: 0;
  92.         padding: 0;
  93.     }
  94. </style>

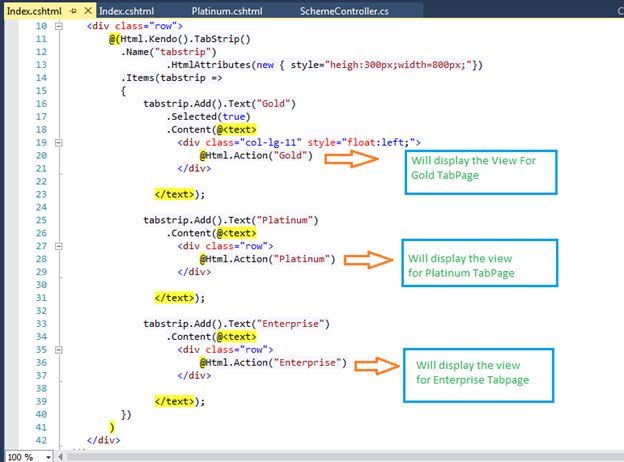

Explanation to the View Page

View Page

At The Controller

Declare ActionResult for Tab Item like Gold, Platinum, and Enterprise.
  1. using System;
  2. using System.Collections.Generic;
  3. using System.Linq;
  4. using System.Web;
  5. using System.Web.Mvc;
  6. using KenCloudClient.Models;
  7.
  8. namespace KenCloudClient.Controllers
  9. {
  10.     public class SchemeController : Controller
  11.     {
  12.         ClsSchemeBusiness ClsBusiness = new ClsSchemeBusiness();
  13.
  14.         // GET: Scheme
  15.         public ActionResult Index()
  16.         {
  17.             return View();
  18.         }
  19.
  20.         public ActionResult Gold()
  21.         {
  22.             #region -- Action Method for Gold --
  23.
  24.             var data = ClsBusiness.GetGoldScheme().ToList();
  25.
  26.             ViewBag.GoldData = data;
  27.
  28.             return View();
  29.
  30.             #endregion
  31.         }
  32.         public ActionResult Platinum()
  33.         {
  34.             #region -- Action Method For Platinum --
  35.
  36.             var data = ClsBusiness.GetPlatinumScheme().ToList();
  37.
  38.             ViewBag.PlatinumData = data;
  39.
  40.             return View();
  41.
  42.             #endregion
  43.         }
  44.         public ActionResult EnterPrise()
  45.         {
  46.             #region -- Action Method For EnterPrise --
  47.
  48.             var data = ClsBusiness.GetEnterPriseScheme().ToList();
  49.
  50.             ViewBag.EnterPriseData = data;
  51.
  52.             return View();
  53.
  54.             #endregion
  55.         }
  56.
  57.     }
  58. }
Add three different view pages for the TabPages.

These Views will display inside each TabPages.

Gold.cshtml
  1. @{
  2.     Layout = "";
  3. }
  4.
  5. <h2>Gold</h2>
  6.
  7. <div class="col-lg-7" style=" float:left;">
  8.     @{
  9.         if (ViewBag.GoldData != null)
  10.         {
  11.             // Specify the type of the grid
  12.              @(Html.Kendo().Grid((IEnumerable<KenCloudClient.Models.ClsSchemeViewModel>)ViewBag.GoldData)
  13.                 .Name("GoldGrid")
  14.                 .Columns(columns =>
  15.                 {
  16.                     columns.Bound(p => p.SchemeId).Visible(false);
  17.                     columns.Bound(p => p.SchemeName).Width(200);
  18.                     columns.Bound(p => p.DiscPercentage).Width(200);
  19.                     columns.Bound(p => p.SchemeDetails).Width(300);
  20.                 })
  21.                 .Pageable()
  22.                 .Selectable(X => X.Mode(GridSelectionMode.Single))
  23.                 .Filterable()
  24.                 .DataSource(data => data.Ajax().PageSize(5).ServerOperation(false))
  25.                 .Events(ev => ev.Change("onchange"))
  26.             )
  27.         }
  28.     }
  29.
  30. </div>
Platinum.cshtml
  1. @{
  2.     Layout = "";
  3. }
  4.
  5. <h2>Platinum</h2>
  6.
  7. <div class="col-lg-7" style=" float:left;">
  8.     @{
  9.         if (ViewBag.PlatinumData != null)
  10.         {
  11.             // Specify the type of the grid
  12.             @(Html.Kendo().Grid((IEnumerable<KenCloudClient.Models.ClsSchemeViewModel>)ViewBag.PlatinumData)
  13.                 .Name("PlatinumGrid")
  14.                 .Columns(columns =>
  15.                 {
  16.                     columns.Bound(p => p.SchemeId);
  17.                     columns.Bound(p => p.SchemeName);
  18.                     columns.Bound(p => p.DiscPercentage);
  19.                     columns.Bound(p => p.SchemeDetails);
  20.                 })
  21.                 .Pageable()
  22.                 .Selectable(X => X.Mode(GridSelectionMode.Single))
  23.                 .Filterable()
  24.                 .DataSource(data => data.Ajax().PageSize(5).ServerOperation(false))
  25.                 .Events(ev => ev.Change("onchange"))
  26.             )
  27.         }
  28.     }
  29.
  30. </div>
Enterprise.cshtml
  1. @{
  2.     Layout = "";
  3. }
  4.
  5. <h2>EnterPrise</h2>
  6.
  7.
  8. <div class="col-lg-7" style=" float:left;">
  9.     @{
  10.         if (ViewBag.EnterPriseData != null)
  11.         {
  12.             // Specify the type of the grid
  13.             @(Html.Kendo().Grid((IEnumerable<KenCloudClient.Models.ClsSchemeViewModel>)ViewBag.EnterPriseData)
  14.                 .Name("EnterPriseGrid")
  15.                 .Columns(columns =>
  16.                 {
  17.                     columns.Bound(p => p.SchemeId);
  18.                     columns.Bound(p => p.SchemeName);
  19.                     columns.Bound(p => p.DiscPercentage);
  20.                     columns.Bound(p => p.SchemeDetails);
  21.                 })
  22.                 .Pageable()
  23.                 .Selectable(X => X.Mode(GridSelectionMode.Single))
  24.                 .Filterable()
  25.                 .DataSource(data => data.Ajax().PageSize(5).ServerOperation(false))
  26.                 .Events(ev => ev.Change("onchange"))
  27.             )
  28.         }
  29.     }
  30.
  31. </div>
Business Logic Code at ClsSchemeBusiness.cs
  1. using System;
  2. using System.Collections.Generic;
  3. using System.Linq;
  4. using System.Web;
  5. using KenCloudClient.Models;
  6. namespace KenCloudClient.Models
  7. {
  8.     public class ClsSchemeBusiness
  9.     {
  10.         internal List < ClsSchemeViewModel > GetGoldScheme()
  11.         {
  12.             using(KenClientModel ObjContext = new KenClientModel())
  13.             {
  14.                 var SchemeData = ObjContext.SysSchemes.ToList();
  15.                 var Temp = (from A in SchemeData where A.SchemeName == "Gold"
  16.                     select new ClsSchemeViewModel
  17.                     {
  18.                         SchemeId = A.SchemeId,
  19.                             SchemeName = A.SchemeName,
  20.                             DiscPercentage = Convert.ToDecimal(A.DiscPercentage),
  21.                             SchemeDetails = A.SchemeDetails
  22.                     }).ToList();
  23.                 return Temp;
  24.             }
  25.         }
  26.         internal List < ClsSchemeViewModel > GetPlatinumScheme()
  27.         {
  28.             using(KenClientModel ObjContext = new KenClientModel())
  29.             {
  30.                 var SchemeData = ObjContext.SysSchemes.ToList();
  31.                 var Temp = (from A in SchemeData where A.SchemeName == "Platinum "
  32.                     select new ClsSchemeViewModel
  33.                     {
  34.                         SchemeId = A.SchemeId,
  35.                             SchemeName = A.SchemeName,
  36.                             DiscPercentage = Convert.ToDecimal(A.DiscPercentage),
  37.                             SchemeDetails = A.SchemeDetails
  38.                     }).ToList();
  39.                 return Temp;
  40.             }
  41.         }
  42.         internal List < ClsSchemeViewModel > GetEnterPriseScheme()
  43.         {
  44.             using(KenClientModel ObjContext = new KenClientModel())
  45.             {
  46.                 var SchemeData = ObjContext.SysSchemes.ToList();
  47.                 var Temp = (from A in SchemeData where A.SchemeName == "EnterPrise "
  48.                     select new ClsSchemeViewModel
  49.                     {
  50.                         SchemeId = A.SchemeId,
  51.                             SchemeName = A.SchemeName,
  52.                             DiscPercentage = Convert.ToDecimal(A.DiscPercentage),
  53.                             SchemeDetails = A.SchemeDetails
  54.                     }).ToList();
  55.                 return Temp;
  56.             }
  57.         }
  58.     }
  59. }
That is all!
Thank you.




Similar Articles
