Bind Nested GridView in ASP.Net

This article shows how to bind a nested GridView and work with it. The following is the procedure.

Step 1

First we create two tables in a database as in the following:

  1. create table TeamLeader(
  2.    id int identity(1,1) Primary key,
  3.    Name nvarchar(30),
  4.    Age int,
  5.    Branch nvarchar(10)
  6. )
And:
  1. Create  table TeamMember(
  2.    iid int identity(1,1) primary key,
  3.    TLid int CONSTRAINT FKTeamMemberPKTeamMember REFERENCES TeamLeader(id),
  4.    MemberName [nvarchar](50),
  5.    Age int,
  6.    Branch nvarchar(50)
  7. )
Step 2

Insert some data into the table like the following:

Insert some data into table

Table

Step 3

Now create a website, add a webpage and copy the design code as in the following:
  1. <%@ Page Language="C#" AutoEventWireup="true" CodeFile="Example.aspx.cs" Inherits="Example" %>
  2.
  3. <!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">
  4. <html xmlns="http://www.w3.org/1999/xhtml">
  5. <head runat="server">
  6.     <title></title>
  7. </head>
  8. <body>
  9.     <form id="form1" runat="server">
  10.     <div>
  11.         <asp:GridView ID="GVLeader" runat="server" AutoGenerateColumns="false" AlternatingRowStyle-BackColor="lightgreen"
  12.             DataKeyNames="id" OnRowCommand="GVLeader_RowCommand">
  13.             <Columns>
  14.                 <asp:TemplateField HeaderText="Team Leader Name">
  15.                     <ItemTemplate>
  16.                         <asp:Label ID="Label1" runat="server" Text='<%# Eval("Name") %>'></asp:Label>
  17.                     </ItemTemplate>
  18.                 </asp:TemplateField>
  19.                 <asp:TemplateField HeaderText="Age">
  20.                     <ItemTemplate>
  21.                         <asp:Label ID="Label2" runat="server" Text='<%# Eval("Age") %>'></asp:Label>
  22.                     </ItemTemplate>
  23.                 </asp:TemplateField>
  24.                 <asp:TemplateField HeaderText="Branch">
  25.                     <ItemTemplate>
  26.                         <asp:Label ID="Label3" runat="server" Text='<%# Eval("Branch") %>'></asp:Label>
  27.                     </ItemTemplate>
  28.                 </asp:TemplateField>
  29.                 <asp:TemplateField HeaderText="Team Member" ControlStyle-BackColor="#EBEBEB">
  30.                     <ItemTemplate>
  31.                         <asp:Button ID="Button1" runat="server" Text="See Member" CommandName='<%#Eval("id") %>' CommandArgument='<%#
  32.             Container.DataItemIndex%>' />
  33.                         <asp:GridView ID="GVMember" AutoGenerateColumns="false" runat="server" AutoGenerateEditButton="true"
  34.                             DataKeyNames="iid" OnRowCancelingEdit="GVMember_RowCancelingEdit" OnRowEditing="GVMember_RowEditing"
  35.                             OnRowUpdating="GVMember_RowUpdating">
  36.                             <Columns>
  37.                                 <asp:TemplateField HeaderText="Name">
  38.                                     <ItemTemplate>
  39.                                         <asp:Label ID="Label4" runat="server" Text='<%#Eval("MemberName") %>'></asp:Label>
  40.                                     </ItemTemplate>
  41.                                     <EditItemTemplate>
  42.                                         <asp:TextBox ID="TextBox4" runat="server" Text='<%#Eval("MemberName") %>'></asp:TextBox>
  43.                                     </EditItemTemplate>
  44.                                 </asp:TemplateField>
  45.                                 <asp:TemplateField HeaderText="Age">
  46.                                     <ItemTemplate>
  47.                                         <asp:Label ID="Label5" runat="server" Text='<%#Eval("Age") %>'></asp:Label>
  48.                                     </ItemTemplate>
  49.                                     <EditItemTemplate>
  50.                                         <asp:TextBox ID="TextBox5" runat="server" Text='<%#Eval("Age") %>'></asp:TextBox>
  51.                                     </EditItemTemplate>
  52.                                 </asp:TemplateField>
  53.                                 <asp:TemplateField HeaderText="Branch">
  54.                                     <ItemTemplate>
  55.                                         <asp:Label ID="Label6" runat="server" Text='<%#Eval("Branch") %>'></asp:Label>
  56.                                     </ItemTemplate>
  57.                                     <EditItemTemplate>
  58.                                         <asp:TextBox ID="TextBox6" runat="server" Text='<%#Eval("Branch") %>'></asp:TextBox>
  59.                                     </EditItemTemplate>
  60.                                 </asp:TemplateField>
  61.                             </Columns>
  62.                         </asp:GridView>
  63.                     </ItemTemplate>
  64.                 </asp:TemplateField>
  65.             </Columns>
  66.         </asp:GridView>
  67.     </div>
  68.     </form>
  69. </body>
  70. </html>

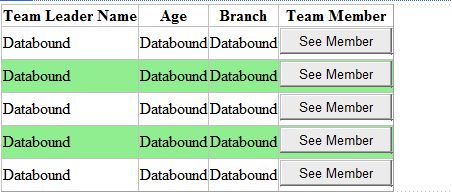

Your design will look like the following:

Design View

Write the following code in the aspx.cs page:
  1. using System;
  2. using System.Collections.Generic;
  3. using System.Linq;
  4. using System.Web;
  5. using System.Web.UI;
  6. using System.Web.UI.WebControls;
  7. using System.Data.SqlClient;
  8. using System.Data;
  9.
  10. public partial class Example : System.Web.UI.Page
  11. {
  12.     SqlConnection con = new SqlConnection("data source=RAHUL-PC\\RAHUL_PC;initial catalog=Example;Integrated security=true;"); //Create sqlconnection
  13.
  14.     SqlDataAdapter da;
  15.     DataTable dt, dt1;
  16.
  17.     protected void Page_Load(object sender, EventArgs e)
  18.     {
  19.         if (!IsPostBack)
  20.         {
  21.             LoadGVLeader();
  22.         }
  23.     }
  24.     protected void GVLeader_RowCommand(object sender, GridViewCommandEventArgs e)
  25.     {
  26.         int id = int.Parse(e.CommandName.ToString());
  27.         int rowindex = int.Parse(e.CommandArgument.ToString());
  28.         GridView GVMember = (GridView)GVLeader.Rows[rowindex].FindControl("GVMember");
  29.         Button btn = ((Button)GVLeader.Rows[rowindex].FindControl("Button1"));
  30.         if (btn.Text == "See Member")
  31.         {
  32.             btn.Text = "Cancel";
  33.             GVMember.DataSource = LoadGVMember(id);
  34.             GVMember.DataBind();
  35.             GVMember.Visible = true;
  36.         }
  37.         else
  38.         {
  39.             btn.Text = "See Member";
  40.             GVMember.Visible = false;
  41.         }
  42.
  43.     }
  44.     public void LoadGVLeader()
  45.     {
  46.         da = new SqlDataAdapter("Select * from TeamLeader", con);
  47.         dt = new DataTable();
  48.         da.Fill(dt);
  49.         GVLeader.DataSource = dt;
  50.         GVLeader.DataBind();
  51.     }
  52.     protected DataTable LoadGVMember(int id)
  53.     {
  54.         da = new SqlDataAdapter("select * from TeamMember where TLid=" + id, con);
  55.         dt1 = new DataTable();
  56.         da.Fill(dt1);
  57.         return dt1;
  58.     }
  59.     protected void GVMember_RowEditing(object sender, GridViewEditEventArgs e)
  60.     {
  61.         GridView Gv = (GridView)sender;
  62.         GridViewRow gvrow = (GridViewRow)Gv.Parent.Parent;
  63.         int id = int.Parse(GVLeader.DataKeys[gvrow.RowIndex].Value.ToString());
  64.         Gv.EditIndex = e.NewEditIndex;
  65.         Gv.DataSource = LoadGVMember(id);
  66.         Gv.DataBind();
  67.     }
  68.     protected void GVMember_RowCancelingEdit(object sender, GridViewCancelEditEventArgs e)
  69.     {
  70.         GridView Gv = (GridView)sender;
  71.         GridViewRow gvrow = (GridViewRow)Gv.Parent.Parent;
  72.         int id = int.Parse(GVLeader.DataKeys[gvrow.RowIndex].Value.ToString());
  73.         Gv.EditIndex = -1;
  74.         Gv.DataSource = LoadGVMember(id);
  75.         Gv.DataBind();
  76.     }
  77.     protected void GVMember_RowUpdating(object sender, GridViewUpdateEventArgs e)
  78.     {
  79.         GridView Gv = (GridView)sender;
  80.         GridViewRow gvrow = (GridViewRow)Gv.Parent.Parent;
  81.         int id = int.Parse(GVLeader.DataKeys[gvrow.RowIndex].Value.ToString());
  82.         int iid = int.Parse(Gv.DataKeys[e.RowIndex].Value.ToString());
  83.         string Name = ((TextBox)(Gv.Rows[e.RowIndex].FindControl("TextBox4"))).Text.Trim();
  84.         string Age = ((TextBox)(Gv.Rows[e.RowIndex].FindControl("TextBox5"))).Text.Trim();
  85.         string Branch = ((TextBox)(Gv.Rows[e.RowIndex].FindControl("TextBox6"))).Text.Trim();
  86.         da = new SqlDataAdapter("Update TeamMember set MemberName='" + Name + "',Age='" + Age + "',Branch='" + Branch + "' where iid=" + iid, con);
  87.         dt1 = new DataTable();
  88.         da.Fill(dt1);
  89.         Gv.EditIndex = -1;
  90.         Gv.DataSource = LoadGVMember(id);
  91.         Gv.DataBind();
  92.     }
  93. }

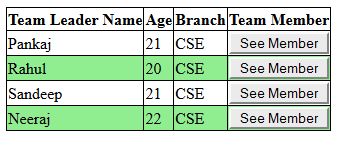

Now run the website and you will see the following output:

Grid view

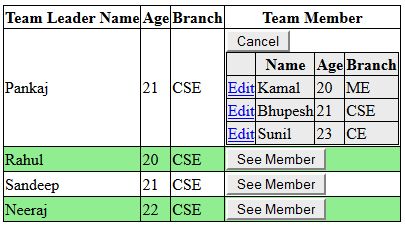

When you click on “See Member", then you will see the following:

See Member

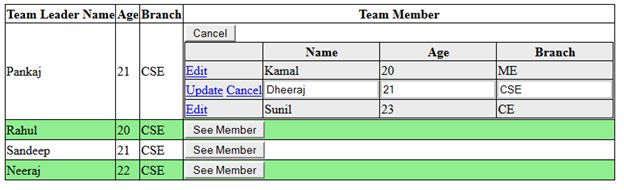

Now you can update the team member result on an Edit button click.

edit button click

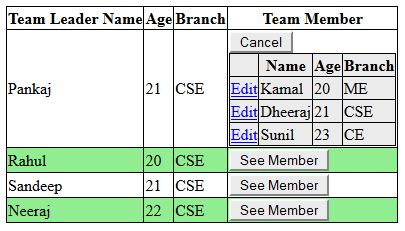

And after clicking Update, the following is the result:

update member
