Update Data to XML Using LINQ to XML

Introduction

Today, in this article let's play around with one of the interesting and most useful concepts in LINQ to XML.

Question: What is update data to XML using LINQ to XML?

In simple terms "It provides flexibility to update data in XML with the help of a LINQ query."

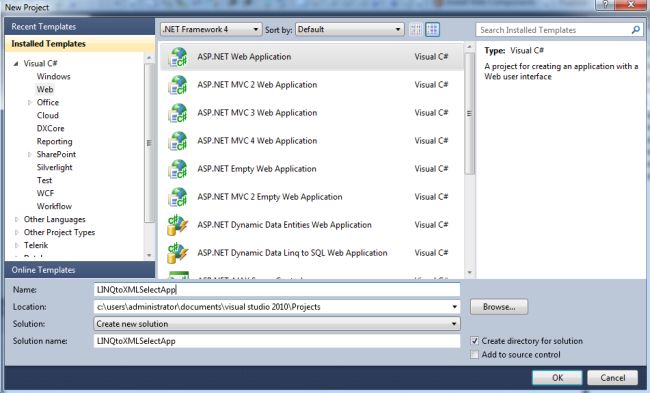

Step 1: Create a new "ASP.NET Web Application"


Step 2: The complete code of Employee.xml looks like this

  1. <?xml version="1.0" encoding="utf-8"?>
  2. <Employees>
  3.   <Employee>
  4.     <Id>1</Id>
  5.     <FirstName>Vijay</FirstName>
  6.     <LastName>Prativadi</LastName>
  7.     <Age>26</Age>
  8.   </Employee>
  9.   <Employee>
  10.     <Id>2</Id>
  11.     <FirstName>Sandeep</FirstName>
  12.     <LastName>Reddy</LastName>
  13.     <Age>28</Age>
  14.   </Employee>
  15. </Employees>
Step 3: The complete code of webform1.aspx looks like this
  1. <%@ Page Language="C#" AutoEventWireup="true" CodeBehind="WebForm1.aspx.cs" Inherits="LINQtoXMLUpdateApp.WebForm1" %>
  2. <!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">
  3. <html xmlns="http://www.w3.org/1999/xhtml">
  4. <head id="Head1" runat="server">
  5.     <title></title>
  6. </head>
  7. <body>
  8.     <form id="form1" runat="server">
  9.     <center>
  10.         <div>
  11.             <table>
  12.                 <tr>
  13.                     <td colspan="2" align="center">
  14.                         <asp:Label ID="Label1" runat="server" Text="Update Data using LINQ-to-XML" Font-Bold="true"
  15.                             Font-Size="Large" Font-Names="Verdana" ForeColor="Maroon"></asp:Label>
  16.                     </td>
  17.                 </tr>
  18.                 <tr>
  19.                     <td>
  20.                         <asp:Label ID="Label6" runat="server" Text="Please Enter Id" Font-Size="Large" Font-Names="Verdana"
  21.                             Font-Italic="true"></asp:Label>
  22.                     </td>
  23.                     <td>
  24.                         <asp:TextBox ID="TextBox4" runat="server"></asp:TextBox>
  25.                     </td>
  26.                 </tr>
  27.                 <tr>
  28.                     <td>
  29.                         <asp:Label ID="Label2" runat="server" Text="Please Enter FirstName" Font-Size="Large"
  30.                             Font-Names="Verdana" Font-Italic="true"></asp:Label>
  31.                     </td>
  32.                     <td>
  33.                         <asp:TextBox ID="TextBox1" runat="server"></asp:TextBox>
  34.                     </td>
  35.                 </tr>
  36.                 <tr>
  37.                     <td>
  38.                         <asp:Label ID="Label3" runat="server" Text="Please Enter LastName" Font-Size="Large"
  39.                             Font-Names="Verdana" Font-Italic="true"></asp:Label>
  40.                     </td>
  41.                     <td>
  42.                         <asp:TextBox ID="TextBox2" runat="server"></asp:TextBox>
  43.                     </td>
  44.                 </tr>
  45.                 <tr>
  46.                     <td>
  47.                         <asp:Label ID="Label4" runat="server" Text="Please Enter Age" Font-Size="Large" Font-Names="Verdana"
  48.                             Font-Italic="true"></asp:Label>
  49.                     </td>
  50.                     <td>
  51.                         <asp:TextBox ID="TextBox3" runat="server"></asp:TextBox>
  52.                     </td>
  53.                 </tr>
  54.                 <tr>
  55.                     <td colspan="2" align="center">
  56.                         <asp:Button ID="Button1" runat="server" Text="Update Data" Font-Names="Verdana" Width="213px"
  57.                             BackColor="Orange" Font-Bold="True" OnClick="Button1_Click" />
  58.                     </td>
  59.                 </tr>
  60.                 <tr>
  61.                     <td colspan="2" align="center">
  62.                         <asp:Label ID="Label5" runat="server" Font-Bold="true" Font-Names="Verdana"></asp:Label>
  63.                     </td>
  64.                 </tr>
  65.             </table>
  66.         </div>
  67.     </center>
  68.     </form>
  69. </body>
  70. </html>

Step 4: The complete code of webform1.aspx.cs looks like this

  1. using System;
  2. using System.Collections.Generic;
  3. using System.Linq;
  4. using System.Web;
  5. using System.Web.UI;
  6. using System.Web.UI.WebControls;
  7. using System.Xml.Linq;
  8. namespace LINQtoXMLUpdateApp
  9. {
  10.     public partial class WebForm1 : System.Web.UI.Page
  11.     {
  12.         protected void Page_Load(object sender, EventArgs e)
  13.         {
  14.         }
  15.         protected void Button1_Click(object sender, EventArgs e)
  16.         {
  17.             if (string.IsNullOrEmpty(TextBox4.Text) || string.IsNullOrEmpty(TextBox1.Text)|| string.IsNullOrEmpty(TextBox2.Text) || string.IsNullOrEmpty(TextBox3.Text))
  18.             {
  19.                 Label5.Text = "Please Enter Some Values";
  20.                 Label5.ForeColor = System.Drawing.Color.Red;
  21.             }
  22.             else
  23.             {
  24.                 XDocument document = XDocument.Load(Server.MapPath("Employee.xml"));
  25.                 var updateQuery = from r in document.Descendants("Employee")where r.Element("Id").Value == TextBox4.Textselect r;
  26.                 foreach (var query in updateQuery)
  27.                 {
  28.                     query.Element("FirstName").SetValue(TextBox1.Text);
  29.                     query.Element("LastName").SetValue(TextBox2.Text);
  30.                     query.Element("Age").SetValue(TextBox3.Text);
  31.                 }
  32.                 document.Save(Server.MapPath("Employee.xml"));
  33.                 Label5.Text = "Data Updated Successfully";
  34.                 Label5.ForeColor = System.Drawing.Color.Green;
  35.                 TextBox4.Text = string.Empty;
  36.                 TextBox1.Text = string.Empty;
  37.                 TextBox2.Text = string.Empty;
  38.                 TextBox3.Text = string.Empty;
  39.             }
  40.         }
  41.     }
  42. }
Step 5: The output of the application looks like this

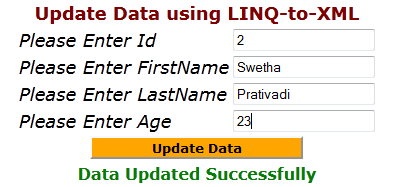

Step 6: The data updating to XML output of the application looks like this


Step 7: The data updated to XML looks like this

  1. <?xml version="1.0" encoding="utf-8"?>
  2. <Employees>
  3.   <Employee>
  4.     <Id>1</Id>
  5.     <FirstName>Vijay</FirstName>
  6.     <LastName>Prativadi</LastName>
  7.     <Age>26</Age>
  8.   </Employee>
  9.   <Employee>
  10.     <Id>2</Id>
  11.     <FirstName>Swetha</FirstName>
  12.     <LastName>Prativadi</LastName>
  13.     <Age>23</Age>
  14.   </Employee>
  15. </Employees>
I hope this article is useful for you.
