Update Data using Code First Approach Fluent API

This article shows how to access a SQL Server database with the Entity Framework Code First Approach and later we will also look at how to do a update data operation.

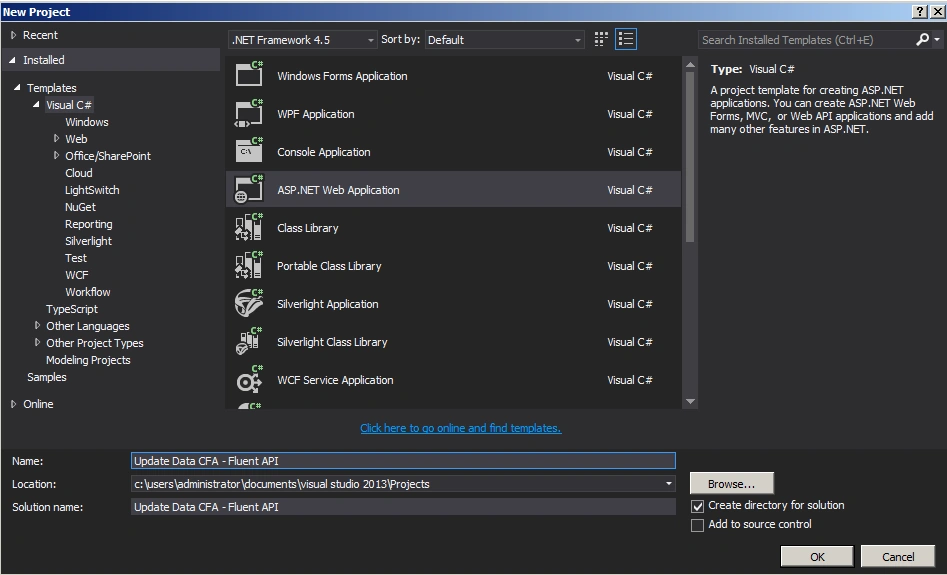

Create an ASP.Net web application as in the following.

Employee.cs

  1. using System;
  2. using System.Collections.Generic;
  3. using System.Linq;
  4. using System.Web;
  6. namespace Update_Data_CFA___Fluent_API
  7. {
  8. public class Employee
  9. {
  10. public Employee()
  11. {
  12. }
  14. public int Id { get; set; }
  15. public string FirstName { get; set; }
  16. public string LastName { get; set; }
  17. public int Age { get; set; }
  18. }
  19. }

Employeecontext.cs

  1. using System;
  2. using System.Collections.Generic;
  3. using System.Data.Entity;
  4. using System.Linq;
  5. using System.Web;
  7. namespace Update_Data_CFA___Fluent_API
  8. {
  9. public class EmployeeContext: DbContext
  10. {
  11. public EmployeeContext()
  12. : base("EmployeeConn")
  13. {
  14. Database.SetInitializer<EmployeeContext>(new CreateDatabaseIfNotExists<EmployeeContext>());
  15. }
  17. protected override void OnModelCreating(DbModelBuilder modelBuilder)
  18. {
  19. //Set primary key to Employee table
  20. modelBuilder.Entity<Employee>().HasKey(m => m.Id).Property(m => m.Id).IsRequired();
  22. //First Name is required and Max Length is 50
  23. modelBuilder.Entity<Employee>().Property(p => p.FirstName).IsRequired().HasMaxLength(50);
  25. //Last Name is required and Max Length is 50
  26. modelBuilder.Entity<Employee>().Property(p => p.LastName).IsRequired().HasMaxLength(50);
  28. //Age is required
  29. modelBuilder.Entity<Employee>().Property(p => p.Age).IsRequired();
  30. }
  32. public DbSet<Employee> Employees { get; set; }
  33. }
  34. }

Web.config

  1. <connectionStrings>
  2. <add name="EmployeeConn"
  3. connectionString="Data Source=WIN-B4KJ8JI75VF;Initial Catalog=EmployeeDB;Integrated Security=true"
  4. providerName="System.Data.SqlClient"/>
  5. </connectionStrings>
Webform1.aspx
  1. <%@ Page Language="C#" AutoEventWireup="true" CodeBehind="WebForm1.aspx.cs" Inherits="Update_Data_CFA___Fluent_API.WebForm1" %>
  3. <!DOCTYPE html>
  5. <html xmlns="http://www.w3.org/1999/xhtml">
  6. <head runat="server">
  7. <title></title>
  8. </head>
  9. <body>
  10. <form id="form1" runat="server">
  11. <div>
  12. <table>
  13. <tr>
  14. <td>
  15. <asp:Label ID="Label1" runat="server" Text="Update Data CFA - Fluent API" Font-Bold="true"></asp:Label>
  16. </td>
  17. </tr>
  18. </table>
  19. <br />
  20. <br />
  21. <table>
  22. <tr>
  23. <td>
  24. <asp:Label ID="Label6" runat="server" Text="Please Enter Id: " ForeColor="Brown"
  25. Font-Bold="true" Font-Italic="true"></asp:Label>
  26. </td>
  27. <td>
  28. <asp:TextBox ID="TextBox4" runat="server"></asp:TextBox>
  29. </td>
  30. </tr>
  31. <tr>
  32. <td>
  33. <asp:Label ID="Label2" runat="server" Text="Please Enter FirstName: " ForeColor="Brown"
  34. Font-Bold="true" Font-Italic="true"></asp:Label>
  35. </td>
  36. <td>
  37. <asp:TextBox ID="TextBox1" runat="server"></asp:TextBox>
  38. </td>
  39. </tr>
  40. <tr>
  41. <td>
  42. <asp:Label ID="Label3" runat="server" Text="Please Enter LastName: " ForeColor="Brown"
  43. Font-Bold="true" Font-Italic="true"></asp:Label>
  44. </td>
  45. <td>
  46. <asp:TextBox ID="TextBox2" runat="server"></asp:TextBox>
  47. </td>
  48. </tr>
  49. <tr>
  50. <td>
  51. <asp:Label ID="Label4" runat="server" Text="Please Enter Age: " ForeColor="Brown"
  52. Font-Bold="true" Font-Italic="true"></asp:Label>
  53. </td>
  54. <td>
  55. <asp:TextBox ID="TextBox3" runat="server"></asp:TextBox>
  56. </td>
  57. </tr>
  58. <tr>
  59. <td colspan="2">
  60. <asp:Button ID="Button1" runat="server" Text="Update Data"
  61. BackColor="Orange" Font-Bold="true" OnClick="Button1_Click" />
  62. <br />
  63. <br />
  64. </td>
  65. </tr>
  66. </table>
  67. <br />
  68. <br />
  69. <table>
  70. <tr>
  71. <td colspan="3">
  72. <asp:Label ID="Label5" runat="server" ForeColor="Red" Font-Bold="true"></asp:Label>
  73. </td>
  74. </tr>
  75. </table>
  76. </div>
  77. </form>
  78. </body>
  79. </html>

Webform1.aspx.cs

  1. using System;
  2. using System.Collections.Generic;
  3. using System.Linq;
  4. using System.Web;
  5. using System.Web.UI;
  6. using System.Web.UI.WebControls;
  8. namespace Update_Data_CFA___Fluent_API
  9. {
  10. public partial class WebForm1 : System.Web.UI.Page
  11. {
  12. protected void Page_Load(object sender, EventArgs e)
  13. {
  15. }
  17. protected void Button1_Click(object sender, EventArgs e)
  18. {
  19. EmployeeContext empContext = new EmployeeContext();
  20. var empId = int.Parse(TextBox4.Text);
  21. var emp = empContext.Employees.Where(a => a.Id.Equals(empId)).SingleOrDefault();
  22. emp.FirstName = TextBox1.Text;
  23. emp.LastName = TextBox2.Text;
  24. emp.Age = int.Parse(TextBox3.Text);
  25. empContext.SaveChanges();
  26. }
  27. }
  28. }

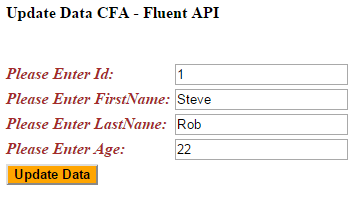

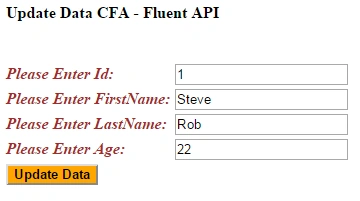

The output of the application looks as in the following.

Summary: In this operation we saw how to access a SQL Server database with the Entity Framework Code First Approach and how to do a update data operation. Happy coding.

Delete Data using Code First Approach Fluent API

In this operation we will see how to access a SQL Server database with the Entity Framework Code First Approach and later we will also look at how to do a delete data operation.

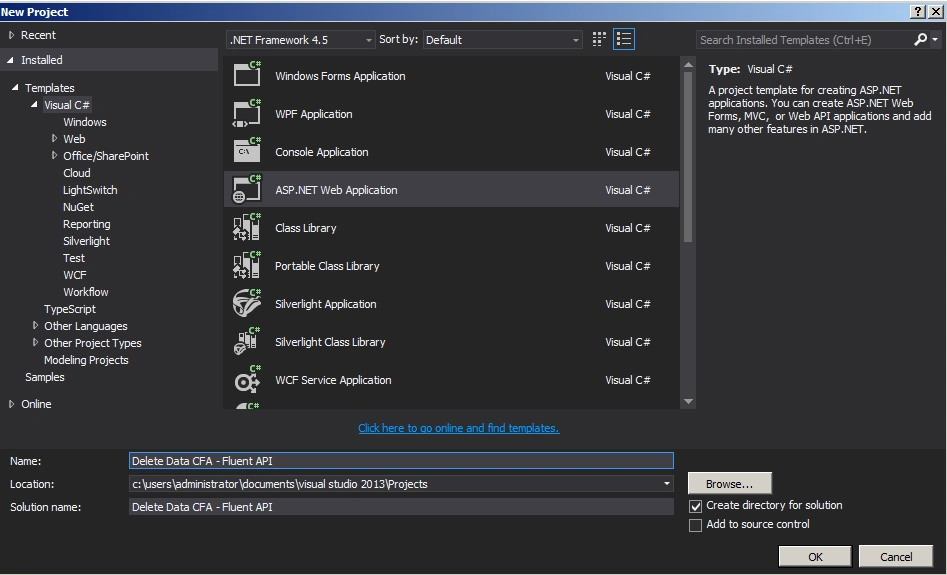

Create an ASP.Net web application as in the following.

Employee.cs

  1. using System;
  2. using System.Collections.Generic;
  3. using System.Linq;
  4. using System.Web;
  6. namespace Delete_Data_CFA___Fluent_API
  7. {
  8. public class Employee
  9. {
  10. public Employee()
  11. {
  12. }
  14. public int Id { get; set; }
  15. public string FirstName { get; set; }
  16. public string LastName { get; set; }
  17. public int Age { get; set; }
  18. }
  19. }

Employeecontext.cs

  1. using System;
  2. using System.Collections.Generic;
  3. using System.Data.Entity;
  4. using System.Linq;
  5. using System.Web;
  7. namespace Delete_Data_CFA___Fluent_API
  8. {
  9. public class EmployeeContext: DbContext
  10. {
  11. public EmployeeContext()
  12. : base("EmployeeConn")
  13. {
  14. Database.SetInitializer<EmployeeContext>(new CreateDatabaseIfNotExists<EmployeeContext>());
  15. }
  17. protected override void OnModelCreating(DbModelBuilder modelBuilder)
  18. {
  19. //Set primary key to Employee table
  20. modelBuilder.Entity<Employee>().HasKey(m => m.Id).Property(m => m.Id).IsRequired();
  22. //First Name is required and Max Length is 50
  23. modelBuilder.Entity<Employee>().Property(p => p.FirstName).IsRequired().HasMaxLength(50);
  25. //Last Name is required and Max Length is 50
  26. modelBuilder.Entity<Employee>().Property(p => p.LastName).IsRequired().HasMaxLength(50);
  28. //Age is required
  29. modelBuilder.Entity<Employee>().Property(p => p.Age).IsRequired();
  30. }
  32. public DbSet<Employee> Employees { get; set; }
  33. }
  34. }

Web.config

  1. <connectionStrings>
  2. <add name="EmployeeConn"
  3. connectionString="Data Source=WIN-B4KJ8JI75VF;Initial Catalog=EmployeeDB;Integrated Security=true"
  4. providerName="System.Data.SqlClient"/>
  5. </connectionStrings>

Webform1.asp

  1. <%@ Page Language="C#" AutoEventWireup="true" CodeBehind="WebForm1.aspx.cs" Inherits="Delete_Data_CFA___Fluent_API.WebForm1" %>
  3. <!DOCTYPE html>
  5. <html xmlns="http://www.w3.org/1999/xhtml">
  6. <head runat="server">
  7. <title></title>
  8. </head>
  9. <body>
  10. <form id="form1" runat="server">
  11. <div>
  12. <table>
  13. <tr>
  14. <td>
  15. <asp:Label ID="Label1" runat="server" Text="Delete Data CFA - Fluent API" Font-Bold="true"></asp:Label>
  16. </td>
  17. </tr>
  18. </table>
  19. <br />
  20. <br />
  21. <table>
  22. <tr>
  23. <td>
  24. <asp:Label ID="Label6" runat="server" Text="Please Enter Id: " ForeColor="Brown"
  25. Font-Bold="true" Font-Italic="true"></asp:Label>
  26. </td>
  27. <td>
  28. <asp:TextBox ID="TextBox1" runat="server"></asp:TextBox>
  29. </td>
  30. </tr>
  31. <tr>
  32. <td colspan="2">
  33. <asp:Button ID="Button1" runat="server" Text="Delete Data"
  34. BackColor="Orange" Font-Bold="true" OnClick="Button1_Click" />
  35. <br />
  36. <br />
  37. </td>
  38. </tr>
  39. </table>
  40. <br />
  41. <br />
  42. <table>
  43. <tr>
  44. <td colspan="3">
  45. <asp:Label ID="Label5" runat="server" ForeColor="Red" Font-Bold="true"></asp:Label>
  46. </td>
  47. </tr>
  48. </table>
  49. </div>
  50. </form>
  51. </body>
  52. </html>

Webform1.aspx.cs

  1. using System;
  2. using System.Collections.Generic;
  3. using System.Linq;
  4. using System.Web;
  5. using System.Web.UI;
  6. using System.Web.UI.WebControls;
  8. namespace Delete_Data_CFA___Fluent_API
  9. {
  10. public partial class WebForm1 : System.Web.UI.Page
  11. {
  12. protected void Page_Load(object sender, EventArgs e)
  13. {
  15. }
  17. protected void Button1_Click(object sender, EventArgs e)
  18. {
  19. EmployeeContext empContext = new EmployeeContext();
  20. var empID = int.Parse(TextBox1.Text);
  21. var emp = empContext.Employees.Where(a => a.Id.Equals(empID)).SingleOrDefault();
  22. empContext.Employees.Remove(emp);
  23. empContext.SaveChanges();
  24. }
  27. }
  28. }

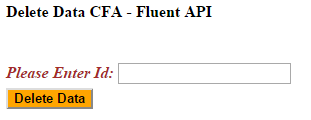

The output of the application looks as in the following.

Summary: In this operation we saw how to access a SQL Server database with the Entity Framework Code First Approach and how to do a delete data operation. Happy coding!
