Reorder Views in SharePoint 2010 Programmatically Using VS 2012

Introduction

Today, in this article let's play around with one of the interesting and most useful concepts in SharePoint 2010.

Question: What is reorder views?

In simple terms "This enables views to be reordered in any list in a SharePoint server".

Step 1: Open SharePoint 2010 Central Administration and navigate to a specific site.



Step 2: Open up Visual Studio 2012 and create a "SharePoint Visual Web Part" project, as in:



Open-Sharepoint2010- visual- webpart.png

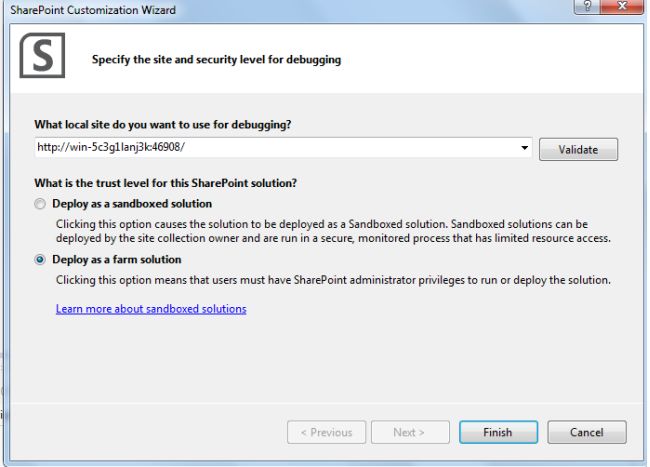

Step 3: Select "Deploy as a farm solution" as in the following and click the "Finish" button.





 Step 4: The complete code of visualwebpart1usercontrol.ascx looks like this:



<%@ Assembly Name="$SharePoint.Project.AssemblyFullName$" %>

<%@ Assembly Name="Microsoft.Web.CommandUI, Version=14.0.0.0, Culture=neutral, PublicKeyToken=71e9bce111e9429c" %>

<%@ Register TagPrefix="SharePoint" Namespace="Microsoft.SharePoint.WebControls"

    Assembly="Microsoft.SharePoint, Version=14.0.0.0, Culture=neutral, PublicKeyToken=71e9bce111e9429c" %>

<%@ Register TagPrefix="Utilities" Namespace="Microsoft.SharePoint.Utilities" Assembly="Microsoft.SharePoint, Version=14.0.0.0, Culture=neutral, PublicKeyToken=71e9bce111e9429c" %>

<%@ Register TagPrefix="asp" Namespace="System.Web.UI" Assembly="System.Web.Extensions, Version=3.5.0.0, Culture=neutral, PublicKeyToken=31bf3856ad364e35" %>

<%@ Import Namespace="Microsoft.SharePoint" %>

<%@ Register TagPrefix="WebPartPages" Namespace="Microsoft.SharePoint.WebPartPages"

    Assembly="Microsoft.SharePoint, Version=14.0.0.0, Culture=neutral, PublicKeyToken=71e9bce111e9429c" %>

<%@  Control Language="C#" AutoEventWireup="true" CodeBehind="VisualWebPart1.ascx.cs"

    Inherits="ReorderViewsApp.VisualWebPart1.VisualWebPart1" %>

<center>

    <div>

        <table style="font-family: Verdana; text-align: center">

            <tr>

                <td colspan="4">

                    <asp:label id="Label1" runat="server" text="ReOrder View - SharePoint 2010 via Visual Studio 2012"

                        font-bold="true" forecolor="Maroon" font-size="Large"></asp:label>

                </td>

            </tr>

            <tr>

                <td>

                    <asp:label id="Label3" runat="server" text="Please Enter ListName:"></asp:label>

                </td>

                <td>

                    <asp:textbox id="TextBox3" runat="server"></asp:textbox>

                </td>

            </tr>

            <tr>

                <td>

                    <asp:label id="Label2" runat="server" text="Please Enter View Name to ReOrder:"></asp:label>

                </td>

                <td>

                    <asp:textbox id="TextBox1" runat="server"></asp:textbox>

                </td>

                <td>

                    <asp:label id="Label5" runat="server" text="Position:"></asp:label>

                </td>

                <td>

                    <asp:textbox id="TextBox2" runat="server" width="68px" height="16px"></asp:textbox>

                </td>

            </tr>

            <tr>

                <td colspan="4">

                    <asp:button id="Button1" runat="server" text="ReOrder View" forecolor="Orange" font-bold="true"

                        backcolor="Black" onclick="Button1_Click" width="155px" />

                </td>

            </tr>

            <tr>

                <td colspan="4">

                    <asp:label id="Label4" runat="server" font-bold="true"></asp:label>

                </td>

            </tr>

        </table>

    </div>

</center>


Step 5: The complete code of visualwebpart1usercontrol.ascx.cs looks like this:



using Microsoft.SharePoint;

using System;

using System.ComponentModel;

using System.Web.UI.WebControls.WebParts;namespace ReorderViewsApp.VisualWebPart1

{

    [ToolboxItemAttribute(false)]

    public partial class VisualWebPart1 : WebPart

    {

        // Uncomment the following SecurityPermission attribute only when doing Performance Profiling using

        // the Instrumentation method, and then remove the SecurityPermission attribute when the code is ready

        // for production. Because the SecurityPermission attribute bypasses the security check for callers of

        // your constructor, it's not recommended for production purposes.

        // [System.Security.Permissions.SecurityPermission(System.Security.Permissions.SecurityAction.Assert, UnmanagedCode = true)]

        public VisualWebPart1()

        {

        }

        protected override void OnInit(EventArgs e)

        {

            base.OnInit(e);InitializeControl();

        }

        protected void Page_Load(object sender, EventArgs e)

        {

            TextBox3.Focus();

        }

        protected void Button1_Click(object sender, EventArgs e)

        {

            reorderView();}private void reorderView()

            {

                if (string.IsNullOrEmpty(TextBox1.Text) || string.IsNullOrEmpty(TextBox2.Text)||string.IsNullOrEmpty(TextBox3.Text))

                {

                    Label4.Text = "Please Enter Some Values";

                    Label4.ForeColor = System.Drawing.Color.Red;

                }

                else{SPWeb web = SPContext.Current.Web;

                    SPList list = web.Lists[TextBox3.Text];

                    SPView view = list.DefaultView;view.ViewFields.MoveFieldTo(TextBox1.Text, int.Parse(TextBox2.Text));

                    view.Update();

                    Label4.Text = TextBox1.Text + " - is Now ReOrdered to " + TextBox2.Text;

                    Label4.ForeColor = System.Drawing.Color.Green;

                    TextBox1.Text = string.Empty;

                    TextBox2.Text = string.Empty;

                    TextBox3.Text = string.Empty;

                }

            }

    }

}


Step 6: Deploy the solution file and add the new webpart to a SharePoint site.



Step 7: The output of the application looks like this:







Step 8: The output of employee list application looks like this:









Step 9: Data entering output of the application looks like this:







Step 10: Employee list view rearranged output of the application looks like this:





I hope this article is useful for you.
