Let's Play around with Pivot Control in Windows Phone 7 via WCF Service


Introduction

Today, in this article let' dig out with one more wonderful concept in windows phone whereby communicating with WCF Service to perform some expected arithmetic operation. Once Implemented, it gives flexibility to the user to access phone pivot features and perform expected operation in much easy manner.

Question Arises: What is Pivot Control?

In Simple Terms "It is a simple light-weighted control which enables phone user to manage or navigate across different pages very easily. It enables the tasks to be turned on easily. It can be viewed from left to right or right to left depends upon screen touch scrolling by the user."

So, let's get it started off!!!

Step 1: The Complete Code of IService1.cs looks like this:

using System;
using System.Collections.Generic;
using System.Linq;
using System.Runtime.Serialization;
using System.ServiceModel;
using System.ServiceModel.Web;
using System.Text;

namespace Pivot_WCF
{
    // NOTE: You can use the "Rename" command on the "Refactor" menu to change the interface name "IService1" in both code and config file together.
    [ServiceContract]
    public interface IService1
    {
        [OperationContract]
        double Add(double a, double b);

        [OperationContract]
        double Sub(double a, double b);

        [OperationContract]
        double Mul(double a, double b);

        [OperationContract]
        double Div(double a, double b);

    }
}


Step 2: The Complete Code of Service1.svc.cs looks like this:

using System;
using System.Collections.Generic;
using System.Linq;
using System.Runtime.Serialization;
using System.ServiceModel;
using System.ServiceModel.Web;
using System.Text;

namespace Pivot_WCF
{
    // NOTE: You can use the "Rename" command on the "Refactor" menu to change the class name "Service1" in code, svc and config file together.
    public class Service1 : IService1
    {

        public double Add(double a, double b)
        {
            return a + b;
        }

        public double Sub(double a, double b)
        {
            return a - b;
        }

        public double Mul(double a, double b)
        {
            return a * b;
        }

        public double Div(double a, double b)
        {
            return a / b;
        }
    }
}

Step 3: The Complete Code of Web.Config looks like this:

<?xml version="1.0"?>
<configuration>

  <system.web>
    <
compilation debug="true" targetFramework="4.0" />
  </system.web>
  <
system.serviceModel>
    <
behaviors>
      <
serviceBehaviors>
        <
behavior>
          <!--
To avoid disclosing metadata information, set the value below to false and remove the metadata endpoint above before deployment -->
          <
serviceMetadata httpGetEnabled="true"/>
          <!-- To receive exception details in faults for debugging purposes, set the value below to true.  Set to false before deployment to avoid disclosing exception information -->
          <
serviceDebug includeExceptionDetailInFaults="false"/>
        </behavior>
      </
serviceBehaviors>
    </
behaviors>
    <
serviceHostingEnvironment multipleSiteBindingsEnabled="true" />
  </system.serviceModel>
  <
system.webServer>
    <
modules runAllManagedModulesForAllRequests="true"/>
  </system.webServer>

</configuration>

Step 4: The Complete Code of MainPage.xaml looks like this:

 <phone:PhoneApplicationPage
    x:Class="Pivot_Control_Application.MainPage"
    xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
    xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
    xmlns:phone="clr-namespace:Microsoft.Phone.Controls;assembly=Microsoft.Phone"
    xmlns:shell="clr-namespace:Microsoft.Phone.Shell;assembly=Microsoft.Phone"
    xmlns:controls="clr-namespace:Microsoft.Phone.Controls;assembly=Microsoft.Phone.Controls"
    xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
    xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
    mc:Ignorable="d" d:DesignWidth="480" d:DesignHeight="768"
    d:DataContext="{d:DesignData SampleData/MainViewModelSampleData.xaml}"
    FontFamily="{StaticResource PhoneFontFamilyNormal}"
    FontSize="{StaticResource PhoneFontSizeNormal}"
    Foreground="{StaticResource PhoneForegroundBrush}"
    SupportedOrientations="Portrait"  Orientation="Portrait"
    shell:SystemTray.IsVisible="True">

    <!--LayoutRoot is the root grid where all page content is placed-->
    <Grid x:Name="LayoutRoot" Background="Transparent">
        <!--Pivot Control-->
        <controls:Pivot Title="Vijay's Pivot Application via WCF Service" FontFamily="Verdana" FontSize="22">
            <!--Pivot item one-->
            <controls:PivotItem Header="Addition">
                <!--Double line list with text wrapping-->
                <StackPanel x:Name="stackpanel1" Width="500" FlowDirection="LeftToRight" >

                    <TextBlock x:Name="textBlock1" FontFamily="Verdana" FontSize="22" Text="Please Enter First Number" Height="60" Width="293" />
                    <TextBox Width="266" x:Name="textbox1"></TextBox>
                     <TextBlock x:Name="textBlock2" Text="Please Enter Second Number" FontFamily="Verdana" FontSize="22" Height="57" Width="322" />
                    <TextBox  x:Name="textbox2" Width="254" />
                    <Button Content="Addition" FontFamily="Verdana" FontSize="22" x:Name="btnAdd1" Width="249" Click="btnAdd1_Click"/>
                    <TextBlock x:Name="textBlock3" FontFamily="Verdana" Foreground="Red" FontSize="22"  Width="352" Height="54" />

                </StackPanel>

            </controls:PivotItem>

            <!--Pivot item two-->
            <controls:PivotItem Header="Substract">
                <!--Triple line list no text wrapping-->
                <StackPanel x:Name="stackpanel2" Width="500" FlowDirection="LeftToRight" >

                    <TextBlock x:Name="textBlock4" FontFamily="Verdana" FontSize="22" Text="Please Enter First Number" Height="60" Width="293" />
                    <TextBox Width="266" x:Name="textbox3"></TextBox>
                    <TextBlock x:Name="textBlock5" Text="Please Enter Second Number" FontFamily="Verdana" FontSize="22" Height="57" Width="322" />
                    <TextBox  x:Name="textbox4" Width="254" />
                    <Button Content="Substraction"  FontFamily="Verdana" FontSize="22" x:Name="btnSub1" Width="249" Click="btnSub1_Click"/>
                    <TextBlock x:Name="textBlock6" FontFamily="Verdana" Foreground="Red" FontSize="22"  Width="352" Height="54" />

                </StackPanel>

            </controls:PivotItem>

            <controls:PivotItem Header="Multiply">
                <!--Triple line list no text wrapping-->
                <StackPanel x:Name="stackpanel3" Width="500" FlowDirection="LeftToRight" >

                    <TextBlock x:Name="textBlock7" FontFamily="Verdana" FontSize="22" Text="Please Enter First Number" Height="60" Width="293" />
                    <TextBox Width="266" x:Name="textbox5"></TextBox>
                    <TextBlock x:Name="textBlock8" Text="Please Enter Second Number" FontFamily="Verdana" FontSize="22" Height="57" Width="322" />
                    <TextBox  x:Name="textbox6" Width="254" />
                    <Button Content="Multiplication" FontFamily="Verdana" FontSize="22" x:Name="btnMul1" Width="249" Click="btnMul1_Click"/>
                    <TextBlock x:Name="textBlock9" FontFamily="Verdana" Foreground="Red" FontSize="22"  Width="352" Height="54" />

                </StackPanel>

            </controls:PivotItem>

            <controls:PivotItem Header="Divide">

                <StackPanel x:Name="stackpanel4" Width="500" FlowDirection="LeftToRight" >

                    <TextBlock x:Name="textBlock10" FontFamily="Verdana" FontSize="22" Text="Please Enter First Number" Height="60" Width="293" />
                    <TextBox Width="266" x:Name="textbox7"></TextBox>
                    <TextBlock x:Name="textBlock11" Text="Please Enter Second Number" FontFamily="Verdana" FontSize="22" Height="57" Width="322" />
                    <TextBox  x:Name="textbox8" Width="254" />
                    <Button Content="Division" FontFamily="Verdana" FontSize="22" x:Name="btnDiv1" Width="249" Click="btnDiv1_Click" />
                    <TextBlock x:Name="textBlock12" FontFamily="Verdana" Foreground="Red" FontSize="22"  Width="352" Height="54" />

                </StackPanel>

            </controls:PivotItem>

        </controls:Pivot>

    </Grid>

    <!--Sample code showing usage of ApplicationBar-->
    <!--<phone:PhoneApplicationPage.ApplicationBar>
        <shell:ApplicationBar IsVisible="True" IsMenuEnabled="True">
            <shell:ApplicationBarIconButton IconUri="/Images/appbar_button1.png" Text="Button 1"/>
            <shell:ApplicationBarIconButton IconUri="/Images/appbar_button2.png" Text="Button 2"/>
            <shell:ApplicationBar.MenuItems>
                <shell:ApplicationBarMenuItem Text="MenuItem 1"/>
                <shell:ApplicationBarMenuItem Text="MenuItem 2"/>
            </shell:ApplicationBar.MenuItems>
        </shell:ApplicationBar>
    </phone:PhoneApplicationPage.ApplicationBar>-->

</phone:PhoneApplicationPage>

Step 5: The Complete Code of MainPage.xaml.cs looks like this:

using System;
using System.Collections.Generic;
using System.Linq;
using System.Net;
using System.Windows;
using System.Windows.Controls;
using System.Windows.Documents;
using System.Windows.Input;
using System.Windows.Media;
using System.Windows.Media.Animation;
using System.Windows.Shapes;
using Microsoft.Phone.Controls;
using Pivot_Control_Application.ServiceReference1;

namespace Pivot_Control_Application
{
    public partial class MainPage : PhoneApplicationPage
    {
        // Constructor
        public MainPage()
        {
            InitializeComponent();

        }

        // Load data for the ViewModel Items
        private void MainPage_Loaded(object sender, RoutedEventArgs e)
        {

        }

        static void add_Call(object sender, AddCompletedEventArgs e)
        {
            MessageBox.Show(" Addition Result is: " + e.Result.ToString());
        }

        private void btnAdd1_Click(object sender, RoutedEventArgs e)
        {
            textBlock3.Text = "";
            if (string.IsNullOrEmpty(textbox1.Text) || string.IsNullOrEmpty(textbox2.Text))
            {
                textBlock3.Text = "Please Enter Some Values";
            }
            else
            {
                Service1Client objClient = new Service1Client();
                objClient.AddCompleted += new EventHandler<AddCompletedEventArgs>(add_Call);
                objClient.AddAsync(Convert.ToDouble(textbox1.Text), Convert.ToDouble(textbox2.Text));
                textbox1.Text = "";
                textbox2.Text = "";
            }
        }

        static void sub_Call(object sender, SubCompletedEventArgs e)
        {
            MessageBox.Show(" Substraction Result is: " + e.Result.ToString());
        }

        private void btnSub1_Click(object sender, RoutedEventArgs e)
        {
            textBlock6.Text = "";
            if (string.IsNullOrEmpty(textbox3.Text) || string.IsNullOrEmpty(textbox4.Text))
            {
                textBlock6.Text = "Please Enter Some Values";
            }
            else
            {
                Service1Client objClient = new Service1Client();
                objClient.SubCompleted += new EventHandler<SubCompletedEventArgs>(sub_Call);
                objClient.SubAsync(Convert.ToDouble(textbox3.Text), Convert.ToDouble(textbox4.Text));
                textbox3.Text = "";
                textbox4.Text = "";
            }
        }

        static void mul_Call(object sender, MulCompletedEventArgs e)
        {
            MessageBox.Show(" Multiplication Result is: " + e.Result.ToString());
        }

        private void btnMul1_Click(object sender, RoutedEventArgs e)
        {
            textBlock9.Text = "";
            if (string.IsNullOrEmpty(textbox5.Text) || string.IsNullOrEmpty(textbox6.Text))
            {
                textBlock9.Text = "Please Enter Some Values";
            }
            else
            {
                Service1Client objClient = new Service1Client();
                objClient.MulCompleted += new EventHandler<MulCompletedEventArgs>(mul_Call);
                objClient.MulAsync(Convert.ToDouble(textbox5.Text), Convert.ToDouble(textbox6.Text));
                textbox5.Text = "";
                textbox6.Text = "";
            }
        }

        static void div_Call(object sender, DivCompletedEventArgs e)
        {
            MessageBox.Show(" Division Result is: " + e.Result.ToString());
        }

        private void btnDiv1_Click(object sender, RoutedEventArgs e)
        {
            textBlock12.Text = "";
            if (string.IsNullOrEmpty(textbox7.Text) || string.IsNullOrEmpty(textbox8.Text))
            {
                textBlock12.Text = "Please Enter Some Values";
            }
            else
            {
                Service1Client objClient = new Service1Client();
                objClient.DivCompleted += new EventHandler<DivCompletedEventArgs>(div_Call);
                objClient.DivAsync(Convert.ToDouble(textbox7.Text), Convert.ToDouble(textbox8.Text));
                textbox7.Text = "";
                textbox8.Text = "";
            }
        }
    }
}

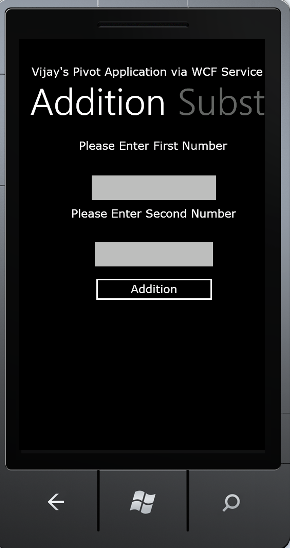

Step 6: The Output of the Application looks like this:

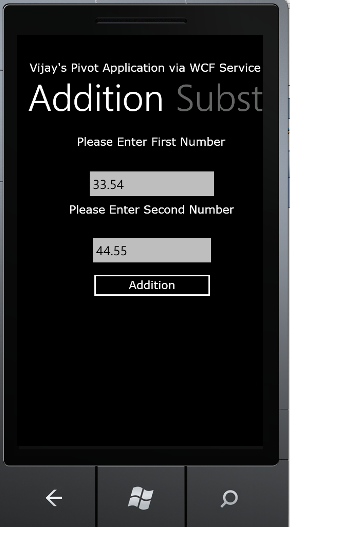

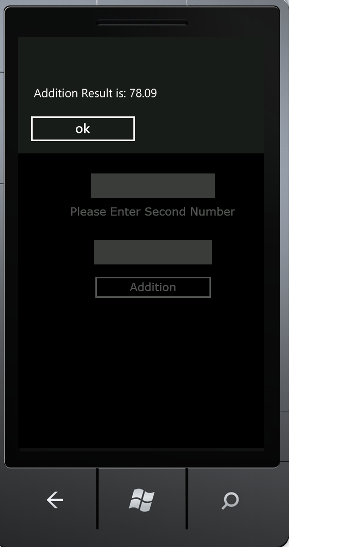

Step 7: The Addition Operation Output Application looks like this:

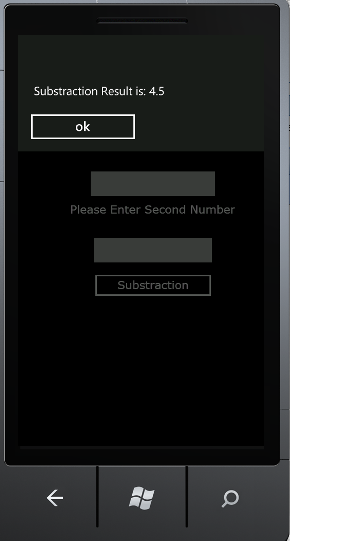

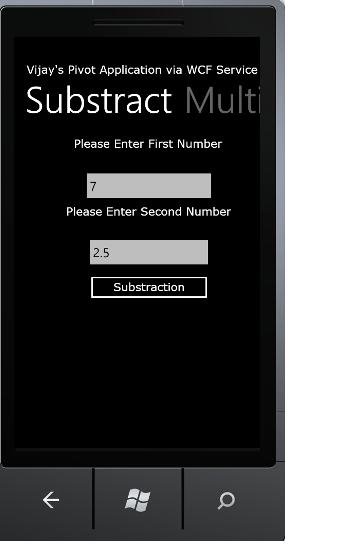

Step 8: The Subtraction Operation Output Application looks like this:

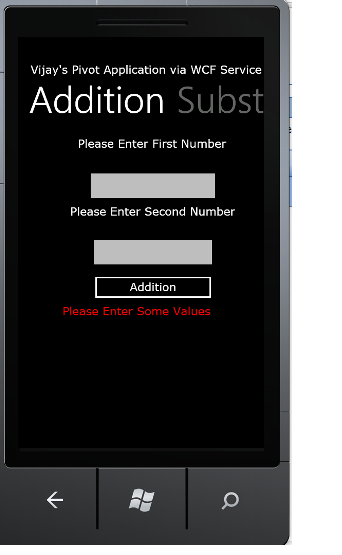

Step 9: The Nothing Entered Output Application looks like this:


I hope this article is useful for you.
