Delete Data Using EDMF to Cloud Database With Azure

Introduction

Today, in this article let's play around with one of the interesting and most useful concept in Azure.

Question: What is delete data from cloud database using Azure?

In simple terms "It enables to delete data from cloud database and maintain with help of azure".

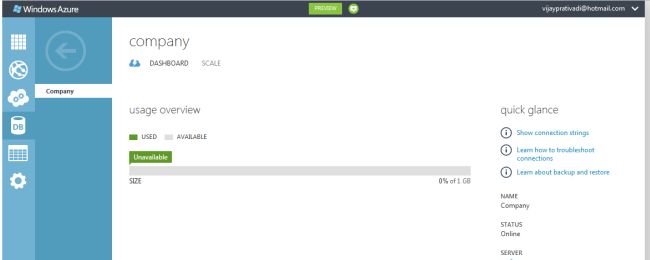

Step 1: Create a cloud database named "Company"


Step 2: With the help of manage URL navigate to specific server page

Manage URL: etc6zpqnyc.database.windows.net

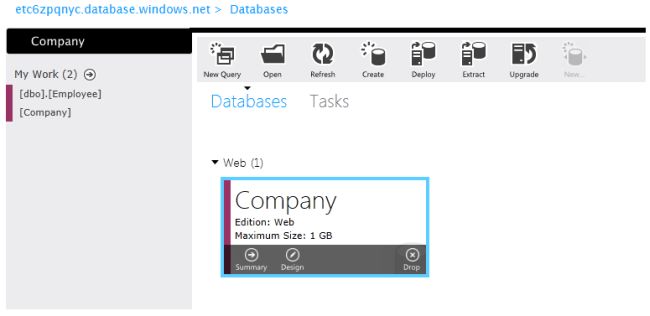

Step 3: Company database showing up in the database server page

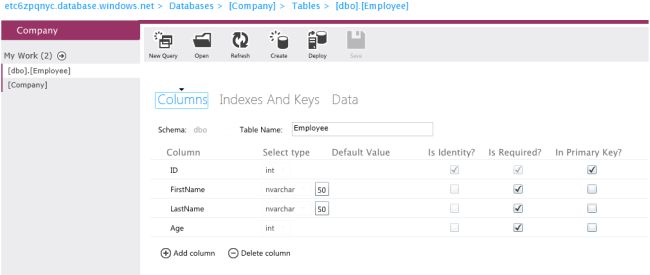

Step 4: Create an employee table. The design mode of employee table looks like this

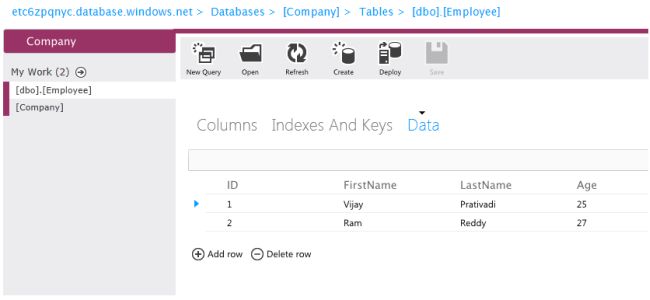

Step 5: Insert some data into the table

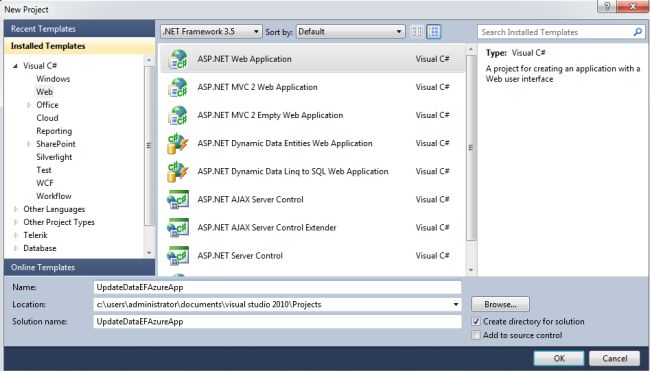

Step 6: Open visual studio 2010 and create an "ASP.NET Web Forms Application", as in:

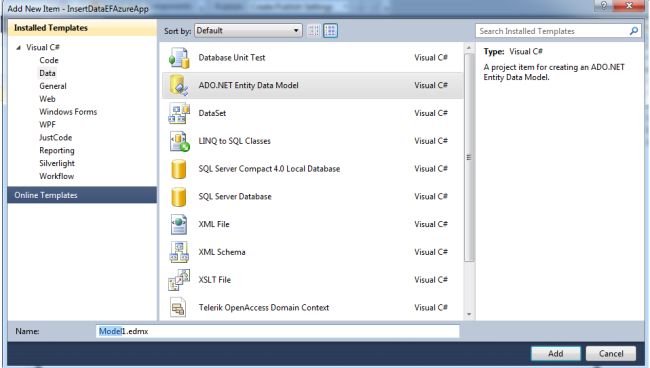

Step 7: Add an EDMF item to the project.

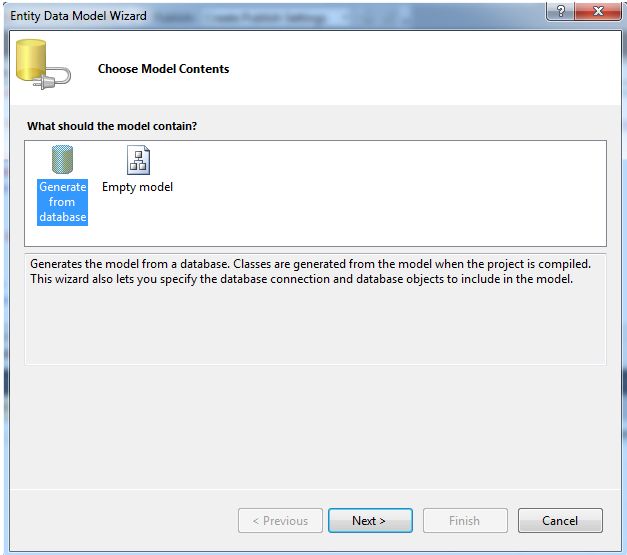

Step 8: Choose "Generate from database" and click the "Next" button, as in:

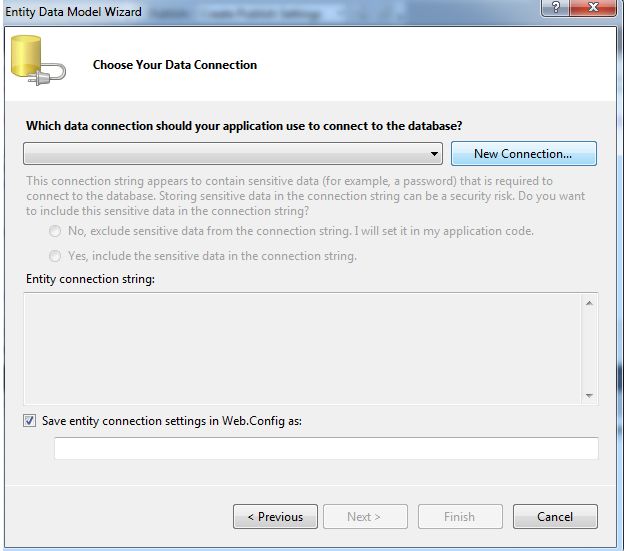

Step 9: Add a new connection.

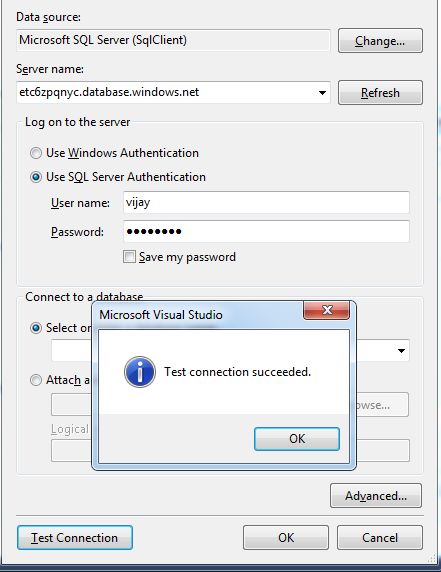

Step 10: Give the necessary server details for the connection and click on ok.

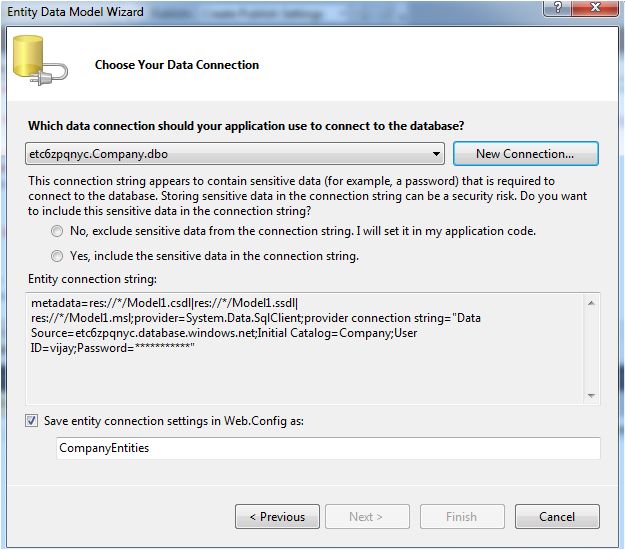

Step 11: The Connection is established; click the "Next" button.

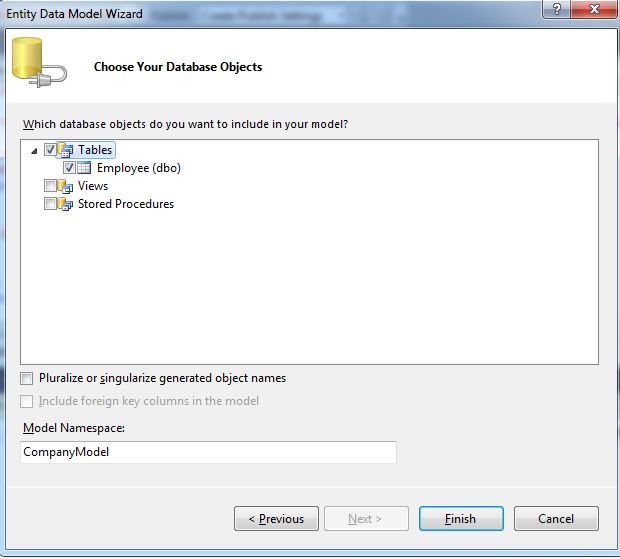

Step 12: Choose the required table and click the "Finish" button.


Step 13: The created EDMF and design of data looks like this:


Step 14: The complete code of default.aspx looks like this:

<%@ Page Language="C#" AutoEventWireup="true" CodeBehind="Default.aspx.cs" Inherits="DeleteDataEFAzureApp._Default" %>
<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">
<html xmlns="http://www.w3.org/1999/xhtml">
<head id="Head1" runat="server">
    <title></title>
</head>
<body>
    <form id="form1" runat="server">
    <center>
        <div>
            <table>
                <tr>
                    <td colspan="2">
                        <asp:Label ID="Label1" runat="server" Text="Delete Data from Cloud Database with Azure"
                            Font-Bold="true" Font-Size="Large" Font-Names="Verdana" ForeColor="Maroon"></asp:Label>
                    </td>
                </tr>
                <tr>
                    <td>

                        <asp:Label ID="Label6" runat="server" Text="Please Enter Id" Font-Size="Large" Font-Names="Verdana"
                            Font-Italic="true"></asp:Label>
                    </td>

                    <td>
                        <asp:TextBox ID="TextBox4" runat="server"></asp:TextBox>
                    </td>
                </tr>
                <tr>
                    <td colspan="2" align="center">
                        <asp:Button ID="Button2" runat="server" Text="Delete Data from Cloud Database" Font-Names="Verdana"
                            Width="301px" BackColor="Orange" Font-Bold="True" OnClick="Button2_Click" />
                    </td>
                </tr>
                <tr>
                    <td colspan="2" align="center">
                        <asp:Label ID="Label5" runat="server" Font-Bold="true" Font-Names="Verdana" ForeColor="Maroon"></asp:Label>
                    </td>
                </tr>
            </table>
        </div>
    </center>
    </form>
</body>
</html>

Step 15: The complete code of default.aspx.cs looks like this:

using System;
using System.Collections.Generic;
using System.Linq;
using System.Web;
using System.Web.UI;
using System.Web.UI.WebControls;
namespace DeleteDataEFAzureApp
{
    public partial class _Default : System.Web.UI.Page
    {
        protected void Page_Load(object sender, EventArgs e)
        {
            TextBox4.Focus();
        }
        protected void Button2_Click(object sender, EventArgs e)
        {
            if (string.IsNullOrEmpty(TextBox4.Text))
            { Label5.Text = "Please Enter Some Values";
                Label5.ForeColor = System.Drawing.Color.Red;
            }
            else
            {
                CompanyEntities objCompany = new CompanyEntities();
                Employee deleteQuery; var id = int.Parse(TextBox4.Text);
                deleteQuery = (from r in objCompany.Employees where r.ID == id select r).First();
                objCompany.DeleteObject(deleteQuery);
                objCompany.SaveChanges(); Label5.Text = "Data Deleted Successfully";


                Label5.ForeColor = System.Drawing.Color.Green; TextBox4.Text = string.Empty;
            }
        }
    }
}

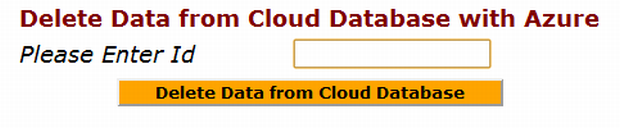

Step 16: The output of the application looks like this:

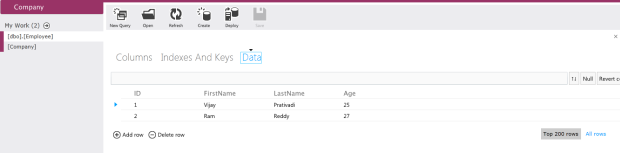

Step 17: The output of table data before deleting the application looks like this:

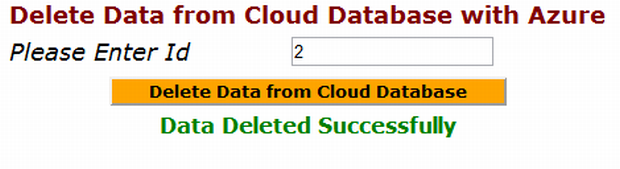

Step 18: Data entering output of the application looks like this:

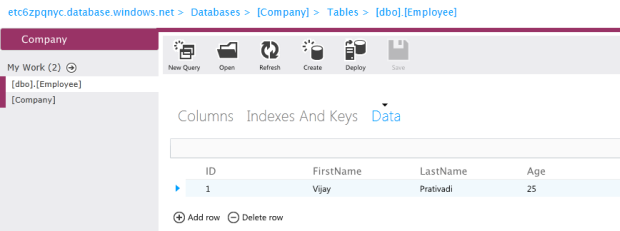

Step 19: Deleted data showing on the cloud output of the application looks like this:
