Calculated Field in SharePoint 2010 Programmatically Using VS 2012


Introduction

Today, in this article let's play around with one of the interesting and most useful concepts in SharePoint 2010.

Question: What is a calculated field?


In simple terms "You can have any type of numeric calculations for any field in a list or to perform any string data manipulations".

Step 1: Open SharePoint 2010 Central Administration and navigate to a specific site.

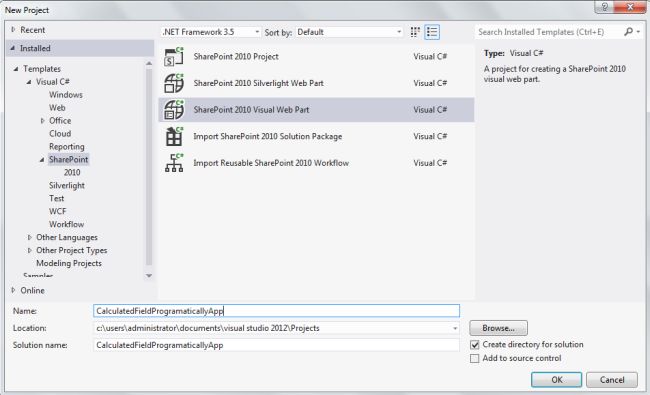

Step 2: Open up Visual Studio 2012 and try to create a "SharePoint Visual Web Part" project, as in:

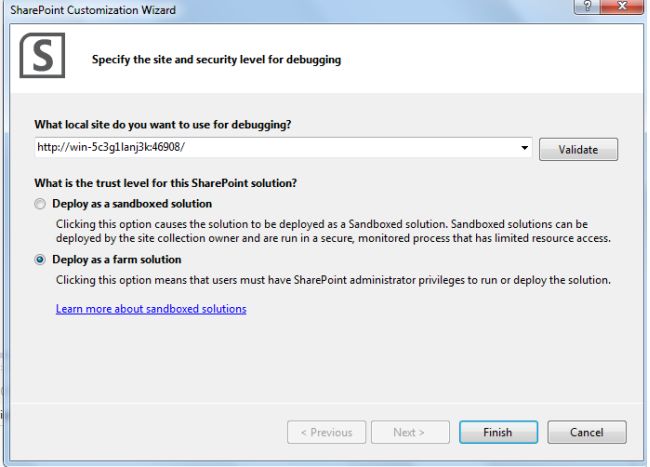

Step 3: Select "Deploy as a farm solution" as in the following and click the "Finish" button.





 Step 4: The complete code of visualwebpart1usercontrol.ascx looks like this:



<%@ Assembly Name="$SharePoint.Project.AssemblyFullName$" %>

<%@ Assembly Name="Microsoft.Web.CommandUI, Version=14.0.0.0, Culture=neutral, PublicKeyToken=71e9bce111e9429c" %>

<%@ Register TagPrefix="SharePoint" Namespace="Microsoft.SharePoint.WebControls"

    Assembly="Microsoft.SharePoint, Version=14.0.0.0, Culture=neutral, PublicKeyToken=71e9bce111e9429c" %>

<%@ Register TagPrefix="Utilities" Namespace="Microsoft.SharePoint.Utilities" Assembly="Microsoft.SharePoint, Version=14.0.0.0, Culture=neutral, PublicKeyToken=71e9bce111e9429c" %>

<%@ Register TagPrefix="asp" Namespace="System.Web.UI" Assembly="System.Web.Extensions, Version=3.5.0.0, Culture=neutral, PublicKeyToken=31bf3856ad364e35" %>

<%@ Import Namespace="Microsoft.SharePoint" %>

<%@ Register TagPrefix="WebPartPages" Namespace="Microsoft.SharePoint.WebPartPages"

    Assembly="Microsoft.SharePoint, Version=14.0.0.0, Culture=neutral, PublicKeyToken=71e9bce111e9429c" %>

<%@  Control Language="C#" AutoEventWireup="true" CodeBehind="VisualWebPart1.ascx.cs"

    Inherits="CalculatedFieldProgramaticallyApp.VisualWebPart1.VisualWebPart1" %>

<div style="text-align: center;">

    <table>

        <tr>

            <td colspan="2">

                <asp:label id="Label1" runat="server" text="Calculated Column in SharePoint 2010 using VS 2012"

                    font-bold="true" font-size="Large" font-names="Verdana" forecolor="Maroon"></asp:label>

            </td>

        </tr>

        <tr>

            <td>

                <asp:label id="Label2" runat="server" text="Please Enter List Name" font-size="Large"

                    font-names="Verdana" font-italic="true"></asp:label>

            </td>

            <td>

                <asp:textbox id="TextBox1" runat="server"></asp:textbox>

            </td>

        </tr>

        <tr>

            <td>

                <asp:label id="Label3" runat="server" text="Please Enter Calculated Field Name" font-size="Large"

                    font-names="Verdana" font-italic="true"></asp:label>

            </td>

            <td>

                <asp:textbox id="TextBox2" runat="server"></asp:textbox>

            </td>

        </tr>

        <tr>

            <td>

                <asp:label id="Label4" runat="server" text="Please Enter Calculated Field Formula"

                    font-size="Large" font-names="Verdana" font-italic="true"></asp:label>

            </td>

            <td>

                <asp:textbox id="TextBox3" runat="server"></asp:textbox>

            </td>

        </tr>

        <tr>

            <td colspan="2">

                <asp:button id="Button2" runat="server" text="Create List Fields" font-names="Verdana"

                    width="166px" backcolor="Orange" font-bold="True" onclick="Button2_Click" />

            </td>

        </tr>

        <tr>

            <td colspan="2">

                <asp:label id="Label5" runat="server" font-bold="true" font-names="Verdana" forecolor="Maroon"></asp:label>

            </td>

        </tr>

    </table>

</div>


Step 5: The complete code of visualwebpart1usercontrol.ascx.cs looks like this:



using Microsoft.SharePoint;

using System;

using System.ComponentModel;

using System.Web.UI.WebControls.WebParts;namespace CalculatedFieldProgramaticallyApp.VisualWebPart1

{

    [ToolboxItemAttribute(false)]

    public partial class VisualWebPart1 : WebPart

    {

        // Uncomment the following SecurityPermission attribute only when doing Performance Profiling using

        // the Instrumentation method, and then remove the SecurityPermission attribute when the code is ready

        // for production. Because the SecurityPermission attribute bypasses the security check for callers of

        // your constructor, it's not recommended for production purposes.

        // [System.Security.Permissions.SecurityPermission(System.Security.Permissions.SecurityAction.Assert, UnmanagedCode = true)]

        public VisualWebPart1()

        {

        }

        protected override void OnInit(EventArgs e)

        {

            base.OnInit(e);

            InitializeControl();

        }

        protected void Page_Load(object sender, EventArgs e)

        {

            TextBox1.Focus();

        }

        protected void Button2_Click(object sender, EventArgs e)

        {

            if (string.IsNullOrEmpty(TextBox1.Text) || string.IsNullOrEmpty(TextBox2.Text))

            {

                Label5.Text = "Please Enter Some Values";

                Label5.ForeColor = System.Drawing.Color.Red;

            }

            else

            {

                SPWeb web = SPContext.Current.Web;

                SPList list = web.Lists[TextBox1.Text];

                SPFieldCalculated calc = (SPFieldCalculated)list.Fields.GetFieldByInternalName(list.Fields.Add(TextBox2.Text, SPFieldType.Calculated, true));

                calc.Formula = TextBox3.Text;calc.Currency = SPCurrencyFieldFormats.UnitedStates;calc.Update();

                SPView view = list.DefaultView;

                view.ViewFields.Add(TextBox2.Text);

                view.Update();

                Label5.Text = TextBox2.Text + " - Field Successfully Created";

                Label5.ForeColor = System.Drawing.Color.Green;

                TextBox1.Text = string.Empty;

                TextBox2.Text = string.Empty;

                TextBox3.Text = string.Empty;

            }

        }

    }

}



Step 6: Deploy the solution file and add the new webpart to a SharePoint site.

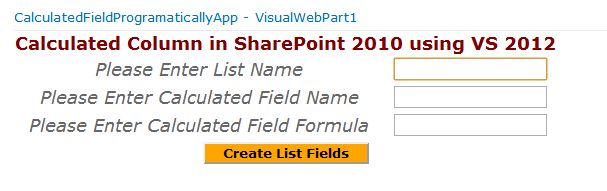

Step 7: The output of the application looks like this:

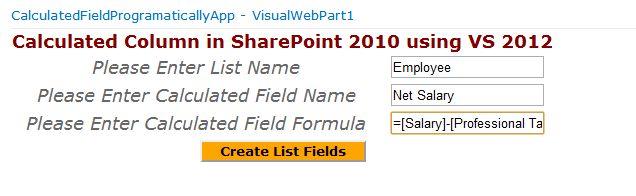

Step 8: Entering calculated field data output of the application looks like this:

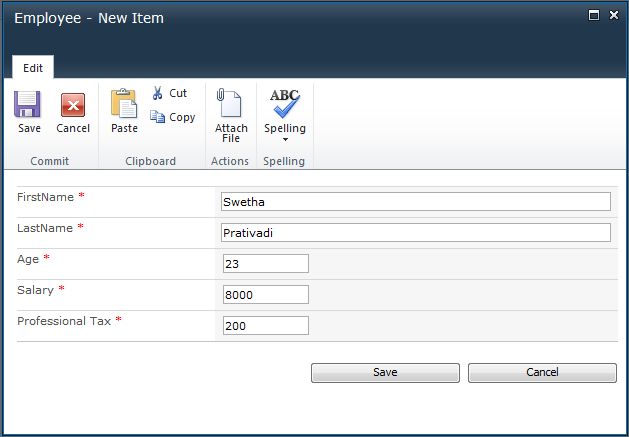

Step 9: Item adding to the list output of the application looks like this:





Step 10: Item added to the list output of the application looks like this:





I hope this article is useful for you.
