How to Allow User to Check Only One Row at a Time in Grid View

Introduction


Most developers use a Grid View to display records.

Allowing the user to select only one row from this Grid View.

Here is an example I will show you.
  • Using JavaScript
  • Using server event

Create Table State Master


SQL Server part
  1. CREATE TABLE [dbo].[StateMaster](
  2. [StateID] [int] IDENTITY(1,1) primary key NOT NULL,
  3. [StateName] [varchar](30) NULL,
  4. [StateCode] [varchar](50) NULL,
  5. [RecordStatus] [char](1) NULL,


Add Some Records


Web Forms Part
  • Create an ASP.NET WEBAPPLICATION
  • Add a web form
  • Name it "gridviewexample.aspx"
  • Add a Grid View to that form
  • Inside the Grid View add a column as in:

    <Columns></ Columns>
  • Inside the column add a TemplateField as in:

    <asp: TemplateField>
  • Inside the TemplateField add an Item template
  • Add a Checkbox control
  1. <asp:GridView ID="GridView1" AutoGenerateColumns="false" runat="server">
  2.             <Columns>
  3.                 <asp:TemplateField HeaderText ="StateName">
  4.                     <ItemTemplate>
  5. <asp:CheckBox ID="CheckBox1" Text='<%# Eval("StateName")%>' AutoPostBack="true"  runat="server" onclick="CheckBoxCheck(this);" />
  6.                     </ItemTemplate>
  7.                 </asp:TemplateField>
  8.             </Columns>
  9.  </asp:GridView>
You need to add a connection string above the Page load.
  1. SqlConnection con = new SqlConnection(ConfigurationManager.ConnectionStrings["Myconstr"].ToString());
And add a connection string in Web.config.

For making a connection with the database you need to add a connection string to the database; here is an example of that.

Just replace here with your database value.
  • Data source
  • Database
  • User id
  • Password
  1. <connectionStrings>
  2.     <add name="Myconstr" connectionString="data source=SAI-PC; Database=AllSampleCode;  user id=sa; password=Pass$123 ;" providerName="system.data.sqlclient"/>
  3.   </connectionStrings>
Binding Grid View on the Page Load event.
  1. protected void Page_Load(object sender, EventArgs e)
  2.     {
  3.
  4.         if (!IsPostBack)
  5.         {
  6.             getrecords();
  7.         }
  8.
  9.  }
Now to create a method for binding records for the Grid View.
  1. private void getrecords()
  2.         {
  3.
  4.      SqlCommand cmd = new SqlCommand("select StateID ,StateName from StateMaster ", con);
  5.             cmd.CommandType = CommandType.Text;
  6.             SqlDataAdapter da = new SqlDataAdapter();
  7.             da.SelectCommand = cmd;
  8.             DataTable dt = new DataTable();
  9.             da.Fill(dt);
  10.             GridView1.DataSource = dt;
  11.             GridView1.DataBind();
  12.
  13.         }
  14.
  15. Using JavaScript (Onclick)
In the head part of the .aspx page add the following JavaScript.

To see the details, use the Firefox add-on Firebug to debug it.
  1. <script type="text/javascript">
  2.         function CheckBoxCheck(rb) {
  3.             debugger;
  4.             var gv = document.getElementById("<%=GridView1.ClientID%>");
  5.             var chk = gv.getElementsByTagName("input");
  6.             var row = rb.parentNode.parentNode;
  7.             for (var i = 0; i < chk.length; i++) {
  8.                 if (chk[i].type == "checkbox") {
  9.                     if (chk[i].checked && chk[i] != rb) {
  10.                         chk[i].checked = false;
  11.                         break;
  12.                     }
  13.                 }
  14.             }
  15.         }
  16. </script>
Using Server event ( Checked Changed Event )
  1. <asp:GridView ID="GridView1" AutoGenerateColumns="false" runat="server">
  2.             <Columns>
  3.                 <asp:TemplateField HeaderText="StateName">
  4.                     <ItemTemplate>
  5.
  6.  <asp:CheckBox ID="CheckBox1" Text='<%# Eval("StateName")%>' AutoPostBack="true" runat="server"   OnCheckedChanged="CheckBox1_CheckedChanged" />
  7.                     </ItemTemplate>
  8.                 </asp:TemplateField>
  9.             </Columns>
  10.         </asp:GridView>
  11.
  12. protected void CheckBox1_CheckedChanged(object sender, EventArgs e)
  13.         {
  14.
  15.             CheckBox chk = (CheckBox)sender;
  16.             GridViewRow gv = (GridViewRow)chk.NamingContainer;
  17.             int rownumber = gv.RowIndex;
  18.
  19.             if (chk.Checked)
  20.             {
  21.                 int i;
  22.                 for (i = 0; i <= GridView1.Rows.Count - 1; i++)
  23.                 {
  24.                     if (i != rownumber)
  25.                     {
  26.         CheckBox chkcheckbox = ((CheckBox)(GridView1.Rows[i].FindControl("CheckBox1")));
  27.         chkcheckbox.Checked = false;
  28.                     }
  29.                 }
  30.             }
  31.
  32.
  33.         }

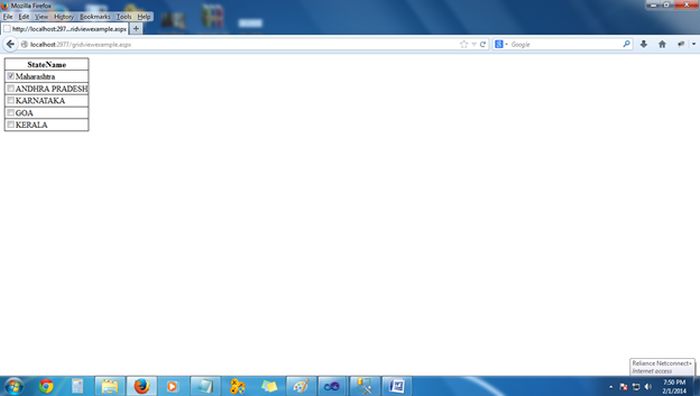

Final output


Happy coding.
