Creating Excel AddIn From Visual Studio 2013

Introduction

Today you will learn to create an application-level add-in for Microsoft Office Excel with the Visual Studio 2013. You can apply it also to create the projects for Excel 2010.

We'll proceed here with the following sections:

  • Project Creation
  • Code Implementation
  • Project Execution
  • Cleaning the Solution

Prerequisites

The following are some prerequisites:

  • Excel 2013 or Excel 2010
  • Microsoft Office Development in Visual Studio 2013

Let's proceed with the sections mentioned above.

Project Creation

Step 1: Open the Visual Studio 2013

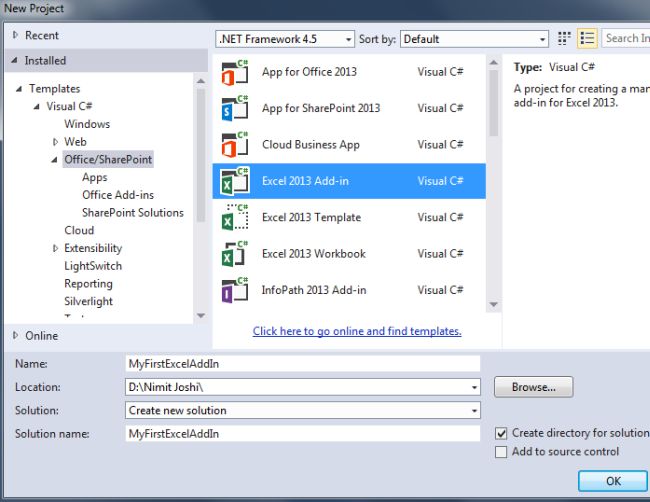

Step 2: Click on "New Project" and select the Excel 2013 as shown below:

Excel AddIn in Visual Studio 2013

Step 3: Enter the name for your Excel-Addin

Visual Studio creates the Excel-AddIn and ThisAddIn.cs file that opens automatically.

AddIn Class in Visual Studio 2013

Code Implementation

There are two methods named ThisAddIn_Startup() and ThisAddIn_Shutdown() created automatically. We need to implement some code to generate the text in the Excel file. Use the following procedure to do that.

Step 1: Modify your code in the ThisAddIn_Startup()

private void ThisAddIn_Startup(object sender, System.EventArgs e)

{

     this.Application.WorkbookBeforeSave += new Microsoft.Office.Interop.Excel.AppEvents_WorkbookBeforeSaveEventHandler(MyExcelAddIn_BeforeSave);

}

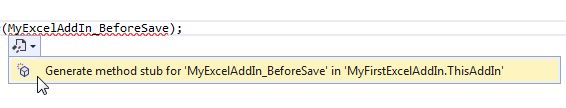

Step 2: Now generate the method as shown below:

Generate Method

Step 3: Modify your auto generated method with the following code:

private void MyExcelAddIn_BeforeSave(Excel.Workbook Wb, bool SaveAsUI, ref bool Cancel)

{

    Excel.Worksheet CurrentSheet = ((Excel.Worksheet)Application.ActiveSheet);

    Excel.Range SheetFirstRow = CurrentSheet.get_Range("A1");

    SheetFirstRow.EntireRow.Insert(Excel.XlInsertShiftDirection.xlShiftDown);

    Excel.Range NewSheetFirstRow = CurrentSheet.get_Range("A1");

    NewSheetFirstRow.Value2 = "Visual Studio 2013 by Nimit Joshi";

}

Project Execution

Step 1: Press F5 to start the execution. It will open your Excel Book. Select the Blank Workbook.

Excel WorkBook

Step 2: Just create some entry like Hello as in the following:

Excel Sheet 2013

Step 3: Save the Workbook.

Saving Excel WorkBook

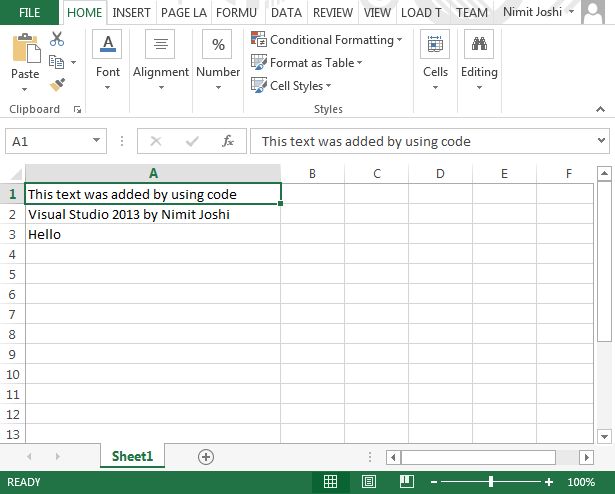

Step 4: You will see the auto generated code and your code will show on the Excel Workbook.

Excel WorkBook Generated by VS 2013

Cleaning the Solution

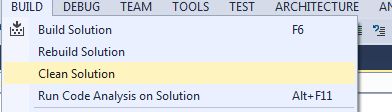

Clean Solution

Summary

This article will help you to create an Excel AddIn from the Visual Studio 2013. You can also generate some text and write your code in the Excel Workbook also. Thanks for reading.
