Slide Show Using Content Search Web Part in SharePoint 2013

Slide Show using Content Search Web Part

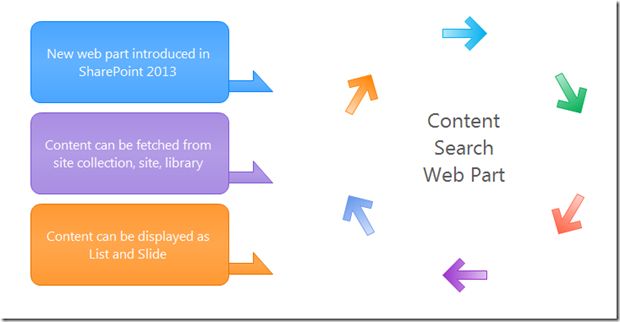

Content Search Web Part is a new web part introduced in SharePoint 2013.

New web part

Please note that Content Query Web Part is different and was pre-existing in SharePoint 2010 too.

What are the advantages?

The following are the advantages:

  1. Search Query Association
  2. Display Templates (HTML, JavaScript)
  3. Scope can be Site Collection, Site or Library level
  4. Styling Options

Please note that Search Crawl must be done to display fresh results using this web part.

Side Show Example

Step 1: Create Picture Library

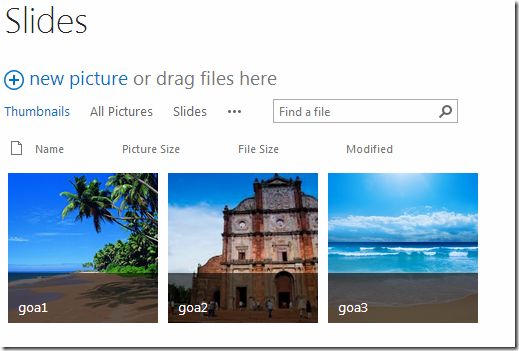

Create a Document Library of type picture library, change the name to Slides and add some pictures into it.

Slides

Step 2: Create Page

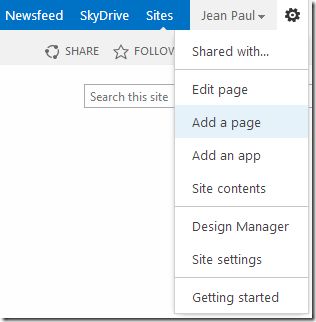

Add a new page and choose the Edit Page option.

Create Page

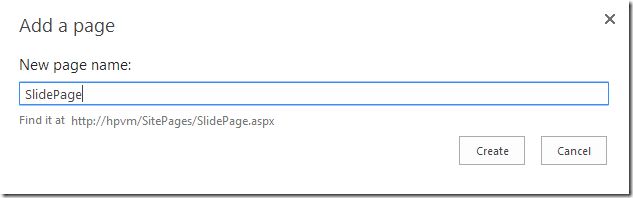

Enter the page name as SlidePage.

Page Name

Step 3: Insert Content Search Web Part

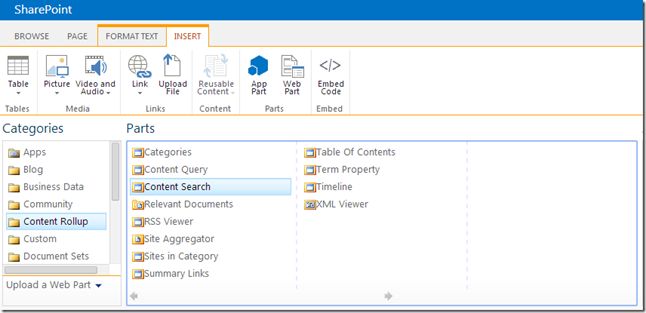

Choose the Insert tab and Web Part ribbon item; choose the Content Rollup category and then the Content Search web part.

Content Rollup category

Add the web part to the page.

Step 4: Configure Web Part

Choose the Edit Web Part option and click the Change query button.

Change Query Button

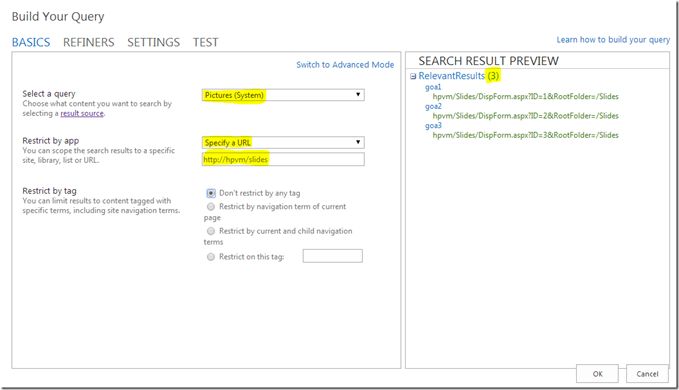

In the dialog box choose the following options.

dialog box

You are specifying:
  1. Pictures to be displayed
  2. Scoping to a URL
  3. Specifying our picture library URL

From the right pane you can verify the results. (It takes 15 minutes for the search crawl to refresh with new contents.)

Save the dialog.

From the web part properties make the following changes in the Display Templates section.

Display Templates

Click OK to save the web part. Save the changes to the page.

Step 5: Test the web part

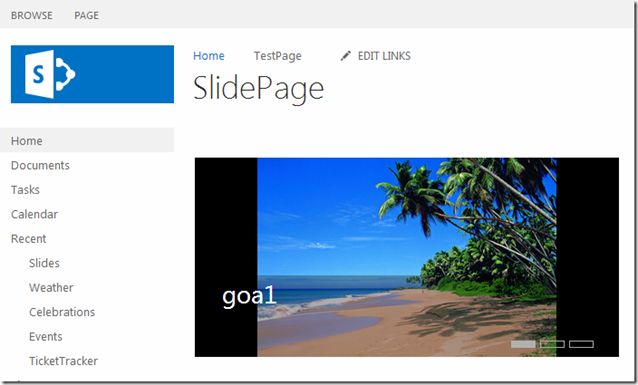

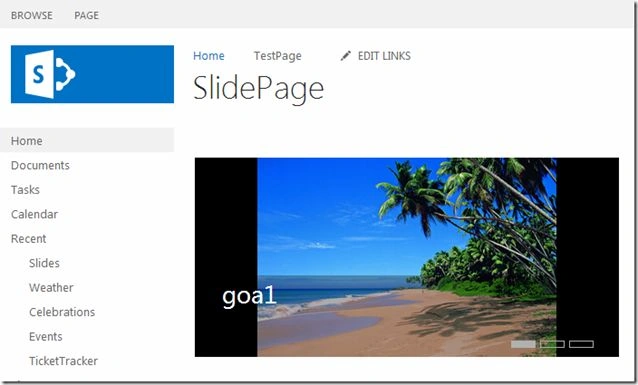

Refresh the slide page and you should see the following display.

Refresh the slide page

The slides will start changing after a few seconds.

Note

There can be a 15 minute delay for the Search Crawl to update the new picture documents. Please ensure you refresh the page after 15 minutes of upload.

Summary

In this article we have explored how to use a Content Search Web Part for doing a slide show.

References

Content Search Web Part in SharePoint 2013

Summary

This article was an overview of the Content Search Web Part. In future articles we will see how to use it.
