Delegates In C#

Dictionary meaning

    A person sent or authorized to represent others “or “A person designated to act for or represent another or others"

History of Delegate in C#

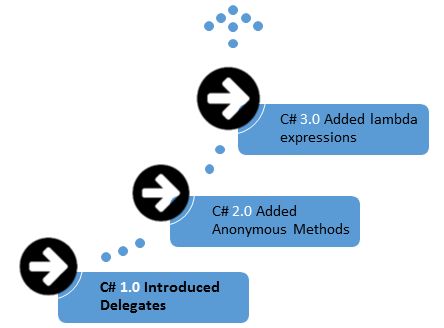

The diagram shows the history of delegates by C# version,

history of delegates

A delegate is a class that can hold a reference (source of information) to a method. We can say that delegate is like a pointer to a function.

Every delegate object is implicitly derived from class Delegate.

Declaration of Delegate

A delegate can be declared using delegate keyword followed by a function signature as shown below:

Signature of a Single Cast Delegate

    <access modifier> delegate <return type> <delegate-name>(< parameter list >)

Example
  1. public delegate void myDelegate(string myMessage);
Delegate class has four steps process for defining and using delegates – Declaration, Reference, Target and Invoke.

The first step is to declare the delegate with the return type and input parameters.
  1. // Delegates declaration
  2. public delegate int myDelegate(int a, int b);
  3. Which is having same signature as method below.
  4. public int Sum(int a, int b)
  5. {
  6.    return a + b;
  7. }
The second step is to create a delegate reference.
  1. // Create delegate reference
  2. DelegateClass.myDelegate objSum = null;
The third step is to target/point the delegate reference to an object instance.
  1. // Target the reference to the Sum method
  2. objSum = objMyclass.Sum;
The final step is to invoke the delegate like invoking a regular method.
  1. // Invoke the delegate
  2. Console.WriteLine("Sum of two integer is = " + objSum(10, 20));
  3. Console.ReadLine();
Finally the Sample Code
  1. namespace DelegatesProperties
  2. {
  3.     class DelegateClass
  4.     {
  5.         // Delegates declaration
  6.         public delegate int myDelegate(int a, int b);
  7.
  8.         // Methods to Target & called by delegate
  9.         public int Sum(int a, int b)
  10.         {
  11.             return a + b;
  12.         }
  13.     }
  14.
  15.     class Program
  16.     {
  17.
  18.         static void Main(string[] args)
  19.         {
  20.             DelegateClass objMyclass = new DelegateClass();
  21.
  22.             // Create delegate reference
  23.             DelegateClass.myDelegate objSum = null;
  24.
  25.             // Target/Point the reference to the Sum method
  26.             objSum = objMyclass.Sum;
  27.
  28.             // Invoke the delegate
  29.             if (objSum != null)
  30.             {
  31.                 Console.WriteLine("Sum of two integer is = " + objSum(10, 20));
  32.                 Console.ReadLine();
  33.             }
  34.         }
  35.     }
  36. }
Output

    Sum of two integer is 30;

Let’s do it with Anonymous Method:

  1. namespace DelegateAnonymous
  2. {
  3.     class DelegateClass
  4.     {
  5.         // Delegates declaration
  6.         public delegate int myDelegate(int a, int b);
  7.     }
  8.     class Program
  9.     {
  10.         static void Main(string[] args)
  11.         {
  12.             DelegateClass objMyclass = new DelegateClass();
  13.
  14.             // Create delegate reference
  15.             DelegateClass.myDelegate objSum = null;
  16.
  17.             // Point the reference to the Sum method
  18.             objSum = delegate (int a, int b) // Anonymous Method
  19.             {
  20.                 return a + b;
  21.             };
  22.
  23.             // Invoke the delegate
  24.             //objSum.Invoke(20, 10);
  25.
  26.             if (objSum != null)
  27.             {
  28.                 Console.WriteLine("Sum of two integer is = " + objSum(10, 20));
  29.                 Console.ReadLine();
  30.             }
  31.         }
  32.     }
  33. }
Output

    Sum of two integer is 30;

Output will be the same as before, this time we have made a little bit change to point the method. Here we use an anonymous method. Let’s take a look how:

  1. objSum = delegate (int a, int b) // Anonymous Method
  2. {
  3.    return a + b;
  4. };
And the Sum method no more exist in the DelegateClass.
  1. public int Sum(int a, int b)
  2. {
  3.    return a + b;
  4. }
Types of delegates
  1. Single cast delegate
  2. Multi cast delegate

Single Cast Delegate

A single cast delegate holds the reference of only single method. This type of delegate is derived from the System.Delegate class.

Note: Our previous example is a single cast delegate

Multi Cast Delegate

The delegate can point to multiple methods. Class MulticastDelegate derives from Delegate and represents a delegate that can invoke more than one method at once.

Internally, MulticastDelegate is implemented as a linked list of delegates.

Add/Remove Delegates

All delegate types declared in C# have implicit operators += and -=. The "+" operator adds a function to the delegate object and the "-" operator removes an existing function from a delegate object.

Sample Example:

  1. namespace MulticastDelegates
  2. {
  3.     class DelegateClass
  4.     {
  5.         // Delegates declaration
  6.         public delegate void myDelegate(int a, int b);
  7.
  8.         // Methods to Target & called by delegate
  9.         public void Sum(int a, int b)
  10.         {
  11.             Console.WriteLine("Sum of two integer is = " + (a + b));
  12.         }
  13.
  14.         public void Divide(int a, int b)
  15.         {
  16.             Console.WriteLine("Divide of two integer is = " + (a / b));
  17.         }
  18.
  19.         public void Multiply(int a, int b)
  20.         {
  21.             Console.WriteLine("Multiply of two integer is = " + (a * b));
  22.         }
  23.     }
  24.     class Program
  25.     {
  26.         static void Main(string[] args)
  27.         {
  28.             DelegateClass objMyclass = new DelegateClass();
  29.
  30.             // Create delegate reference
  31.             DelegateClass.myDelegate objSum = null;
  32.
  33.             // Point the reference to the Sum method
  34.             objSum += objMyclass.Sum;
  35.             objSum -= objMyclass.Divide;
  36.             objSum += objMyclass.Multiply;
  37.
  38.             // Invoke the delegate
  39.             if (objSum != null)
  40.             {
  41.                 objSum(20, 5);
  42.                 Console.ReadLine();
  43.             }
  44.         }
  45.     }
  46. }
Output

    Sum of two integer is 25;
    Divide of two integer is 4; not showing this time.
    Multiply of two integer is 100;

Key Notes:

  1. Delegates are reference type.
  2. Delegates are type-safe.
  3. Delegates encapsulates one or more methods.
  4. We can invoke all the methods the delegate is encapsulating with a single call
  5. Delegates allow methods to be passed as parameters.
  6. Invoking a delegate is like as invoking a regular method.
  7. Delegates are used in event handling for defining callback methods.
  8. Once a delegate is created, the method it is associated will never changes because delegates are immutable in nature.
  9. Delegates provide a way to execute methods at run-time.
  10. All delegates are implicitly derived from System.MulticastDelegate, class which is inheriting from System.Delegate class.
