ASP.NET MVC Real-Time App With SignalR

In this topic we will focus on how to display real time updates from databases with SignalR on existing ASP.NET MVC CRUD project.

The topic has the following two steps:

In the first step we will create a sample app to perform CRUD operations.
In the second step we will make the app real-time with SignalR.

Those who are not familiar with SignalR, visit my previous article on Overview of SignalR.

Step 1: At first we need to create a database named CRUD_Sample. In sample db we have to create a table named Customers.

CREATE TABLE [dbo].[Customers](
[Id] [bigint] IDENTITY(1,1) NOT NULL,
[CustName] [varchar](100) NULL,
[CustEmail] [varchar](150) NULL,
CONSTRAINT [PK_Customers] PRIMARY KEY CLUSTERED ([Id] ASC)
WITH (PAD_INDEX = OFF, STATISTICS_NORECOMPUTE = OFF, IGNORE_DUP_KEY = OFF, _ALLOW_ROW_LOCKS = ON, ALLOW_PAGE_LOCKS = ON) ON [PRIMARY]) ON [PRIMARY]
GO
SET ANSI_PADDING OFF
GO

Stored Procedures

USE [CRUD_Sample]
GO
/****** Object: StoredProcedure [dbo].[Delete_Customer] Script Date: 12/27/2015 1:44:05 PM ******/
SET ANSI_NULLS ON
GO
SET QUOTED_IDENTIFIER ON
GO
-- =============================================
-- Author: <Author,,Name>
-- Create date: <Create Date,,>
-- Description: <Description,,>
-- =============================================
CREATE PROCEDURE [dbo].[Delete_Customer]
-- Add the parameters for the stored procedure here
@Id Bigint
AS
BEGIN
-- SET NOCOUNT ON added to prevent extra result sets from
-- interfering with SELECT statements.
SET NOCOUNT ON;
-- Insert statements for procedure here
DELETE FROM [dbo].[Customers] WHERE [Id] = @Id
SELECT 1
END
GO
/****** Object: StoredProcedure [dbo].[Get_Customer] Script Date: 12/27/2015 1:44:05 PM ******/
SET ANSI_NULLS ON
GO
SET QUOTED_IDENTIFIER ON
GO
-- =============================================
-- Author: <Author,,Name>
-- Create date: <Create Date,,>
-- Description: <Description,,>
-- =============================================
CREATE PROCEDURE [dbo].[Get_Customer]
-- Add the parameters for the stored procedure here
@Count INT
AS
BEGIN
-- SET NOCOUNT ON added to prevent extra result sets from
-- interfering with SELECT statements.
SET NOCOUNT ON;
-- Insert statements for procedure here
SELECT top(@Count)* FROM [dbo].[Customers]
END
GO
/****** Object: StoredProcedure [dbo].[Get_CustomerbyID] Script Date: 12/27/2015 1:44:05 PM ******/
SET ANSI_NULLS ON
GO
SET QUOTED_IDENTIFIER ON
GO
-- =============================================
-- Author: <Author,,Name>
-- Create date: <Create Date,,>
-- Description: <Description,,>
-- =============================================
CREATE PROCEDURE [dbo].[Get_CustomerbyID]
-- Add the parameters for the stored procedure here
@Id BIGINT
AS
BEGIN
-- SET NOCOUNT ON added to prevent extra result sets from
-- interfering with SELECT statements.
SET NOCOUNT ON;
-- Insert statements for procedure here
SELECT * FROM [dbo].[Customers]
WHERE Id=@Id
END
GO
/****** Object: StoredProcedure [dbo].[Set_Customer] Script Date: 12/27/2015 1:44:05 PM ******/
SET ANSI_NULLS ON
GO
SET QUOTED_IDENTIFIER ON
GO
-- =============================================
-- Author: <Author,,Name>
-- Create date: <Create Date,,>
-- Description: <Description,,>
-- =============================================
CREATE PROCEDURE [dbo].[Set_Customer]
-- Add the parameters for the stored procedure here
@CustName Nvarchar(100)
,@CustEmail Nvarchar(150)
AS
BEGIN
-- SET NOCOUNT ON added to prevent extra result sets from
-- interfering with SELECT statements.
SET NOCOUNT ON;
-- Insert statements for procedure here
INSERT INTO [dbo].[Customers]([CustName],[CustEmail])
VALUES(@CustName,@CustEmail)
SELECT 1
END
GO
/****** Object: StoredProcedure [dbo].[Update_Customer] Script Date: 12/27/2015 1:44:05 PM ******/
SET ANSI_NULLS ON
GO
SET QUOTED_IDENTIFIER ON
GO
-- =============================================
-- Author: <Author,,Name>
-- Create date: <Create Date,,>
-- Description: <Description,,>
-- =============================================
CREATE PROCEDURE [dbo].[Update_Customer]
-- Add the parameters for the stored procedure here
@Id Bigint
,@CustNameNvarchar(100)
,@CustEmailNvarchar(150)
AS
BEGIN
-- SET NOCOUNT ON added to prevent extra result sets from
-- interfering with SELECT statements.
SET NOCOUNT ON;
-- Insert statements for procedure here
UPDATE [dbo].[Customers] SET[CustName] = @CustName,[CustEmail]= @CustEmail
WHERE [Id] = @Id
SELECT 1
END
GO

Getting Started with MVC Project

To create a sample application, we need to have Visual Studio 2012 or later installed and be able to run the server on a platform that supports .NET 4.5.

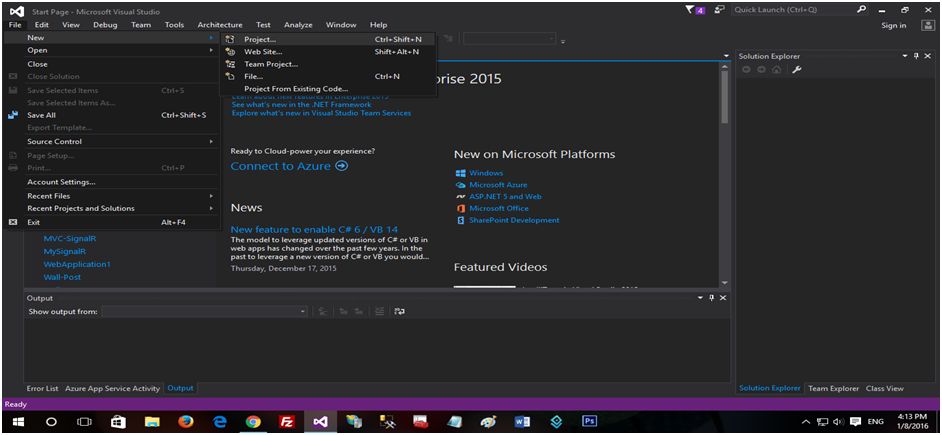

Step 1:

Getting Started withMVC

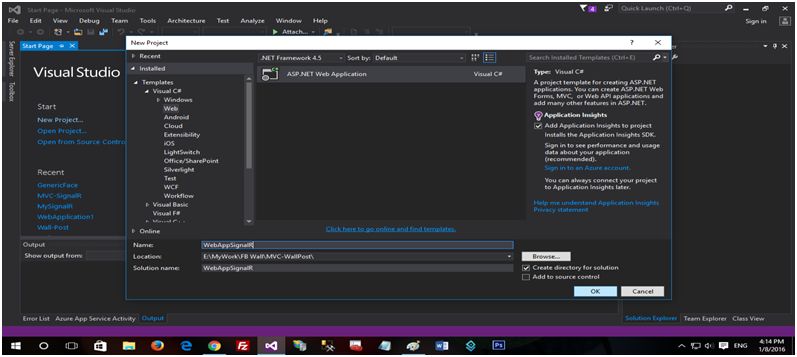

Step 2:

Web application

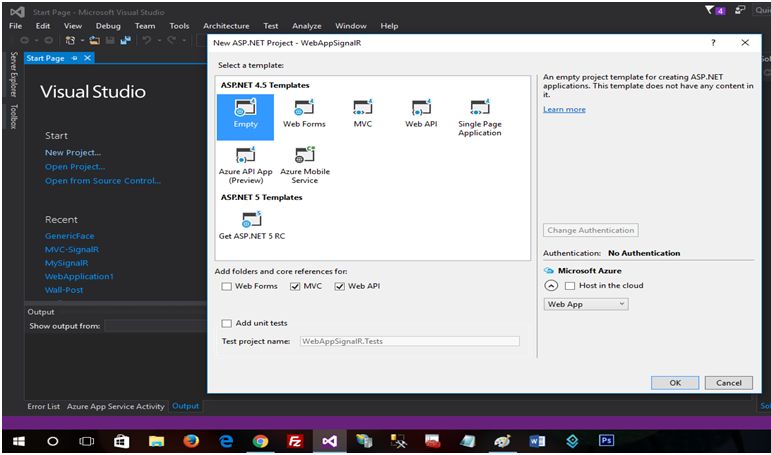

Step 3:

select template

Click OK and Visual Studio will create and load a new ASP.NET application project.

Use of Generic Repository

With a generic feature, we can reduce the amount of code we need for common scenarios.

namespace WebApplication1.Repository
{
interfaceIRepository < T > : IDisposablewhereT: class
{
IEnumerable < T > ExecuteQuery(stringspQuery, object[] parameters);
TExecuteQuerySingle(stringspQuery, object[] parameters);
intExecuteCommand(stringspQuery, object[] parameters);
}
}

interfaceIRepository<T>

Show an interface of a generic repository of type T, which is a LINQ to SQL entity. It provides a basic interface with operations like Insert, Update, Delete, GetById and GetAll.

IDisposable

The IDisposable Interface provides a mechanism for releasing unmanaged resources.

whereT : class

This is constraining the generic parameter to a class. Click for more.

The type of argument must be a reference type; this applies also to any class, interface, delegate, or array type.

namespace WebApplication1.Repository
{
public class GenericRepository < T > : IRepository < T > whereT: class
{
Customer_Entities context = null;
privateDbSet < T > entities = null;
public GenericRepository(Customer_Entities context)
{
this.context = context;
entities = context.Set < T > ();
}
///<summary>
/// Get Data From Database
///<para>Use it when to retive data through a stored procedure</para>
///</summary>
public IEnumerable < T > ExecuteQuery(stringspQuery, object[] parameters)
{
using(context = newCustomer_Entities())
{
returncontext.Database.SqlQuery < T > (spQuery, parameters).ToList();
}
}
///<summary>
/// Get Single Data From Database
///<para>Use it when to retive single data through a stored procedure</para>
///</summary>
public TExecuteQuerySingle(stringspQuery, object[] parameters)
{
using(context = newCustomer_Entities())
{
returncontext.Database.SqlQuery < T > (spQuery, parameters).FirstOrDefault();
}
}
///<summary>
/// Insert/Update/Delete Data To Database
///<para>Use it when to Insert/Update/Delete data through a stored procedure</para>
///</summary>
public intExecuteCommand(stringspQuery, object[] parameters)
{
int result = 0;
try
{
using(context = newCustomer_Entities())
{
result = context.Database.SqlQuery < int > (spQuery, parameters).FirstOrDefault();
}
}
catch
{}
return result;
}
private bool disposed = false;
protected virtualvoid Dispose(bool disposing)
{
if (!this.disposed)
{
if (disposing)
{
context.Dispose();
}
}
this.disposed = true;
}
public void Dispose()
{
Dispose(true);
GC.SuppressFinalize(this);
}
}
}

Use of middle-tire

namespace WebApplication1.Services
{
public partial class CustomerService
{
privateGenericRepository < Customer > CustRepository;
//CustomerRepositoryCustRepository;
public CustomerService()
{
this.CustRepository = newGenericRepository < Customer > (newCustomer_Entities());
}
public IEnumerable < Customer > GetAll(object[] parameters)
{
stringspQuery = "[Get_Customer] {0}";
returnCustRepository.ExecuteQuery(spQuery, parameters);
}
public CustomerGetbyID(object[] parameters)
{
stringspQuery = "[Get_CustomerbyID] {0}";
returnCustRepository.ExecuteQuerySingle(spQuery, parameters);
}
public int Insert(object[] parameters)
{
stringspQuery = "[Set_Customer] {0}, {1}";
returnCustRepository.ExecuteCommand(spQuery, parameters);
}
public int Update(object[] parameters)
{
stringspQuery = "[Update_Customer] {0}, {1}, {2}";
returnCustRepository.ExecuteCommand(spQuery, parameters);
}
public int Delete(object[] parameters)
{
stringspQuery = "[Delete_Customer] {0}";
returnCustRepository.ExecuteCommand(spQuery, parameters);
}
}
}

Use of Generic Repository in MVC-Application:

namespace WebApplication1.Controllers
{
public class HomeController: Controller
{
private CustomerServiceobjCust;
//CustomerRepositoryCustRepository;
public HomeController()
{
this.objCust = newCustomerService();
}
// GET: Home
public ActionResult Index()
{
int Count = 10;
object[] parameters = {
Count
};
var test = objCust.GetAll(parameters);
return View(test);
}
public ActionResult Insert()
{
return View();
}
[HttpPost]
public ActionResult Insert(Customer model)
{
if (ModelState.IsValid)
{
object[] parameters = {
model.CustName,
model.CustEmail
};
objCust.Insert(parameters);
}
return RedirectToAction("Index");
}
public ActionResult Delete(int id)
{
object[] parameters = {
id
};
this.objCust.Delete(parameters);
return RedirectToAction("Index");
}
public ActionResult Update(int id)
{
object[] parameters = {
id
};
return View(this.objCust.GetbyID(parameters));
}
[HttpPost]
public ActionResult Update(Customer model)
{
object[] parameters = {
model.Id,
model.CustName,
model.CustEmail
};
objCust.Update(parameters);
return RedirectToAction("Index");
}
protected override void Dispose(bool disposing)
{
base.Dispose(disposing);
}
}
}

Use of views in MVC-Application

Index

@model IList
<WebApplication1.Models.Customer>
@{
ViewBag.Title = "Index";
}
<linkhref="~/Content/bootstrap/css/bootstrap.min.css"rel="stylesheet"/>
<divclass="clearfix">
</div>
<divclass="clearfix">
</div>
<divclass="container">
<divclass="table-responsive">
@Html.ActionLink("New Customer", "Insert", "Home")
<tableclass="table table-bordered table-striped">
<thead>
<tr>
<th>ID</th>
<th>Name</th>
<th>Email ID</th>
<th>Delete</th>
<th>Update</th>
</tr>
</thead>
<tbody>
@if (Model != null)
{
foreach (var item in Model)
{
<tr>
<td>@item.Id</td>
<td>@item.CustName</td>
<td>@item.CustEmail</td>
<td>@Html.ActionLink("Delete", "Delete", "Home", new { id = @item.Id }, null)</td>
<td>@Html.ActionLink("Update", "Update", "Home", new { id = @item.Id }, null)</td>
</tr>
}
}
</tbody>
</table>
</div>
<divclass="clearfix">
</div>
</div>

Insert

@model WebApplication1.Models.Customer
@{
ViewBag.Title = "Insert";
}
<link href="~/Content/bootstrap/css/bootstrap.min.css"rel="stylesheet"/>
<div class="clearfix">
</div>
<div class="clearfix">
</div>
<div class="container">
<div class="table-responsive col-md-6 col-md-offset-3">
<table class="table table-bordered table-striped">
<tbody>
@using (Html.BeginForm("Insert", "Home", FormMethod.Post))
{
@*
<tr>
<td class="col-md-4">ID</td>
<td class="col-md-8">@Html.TextBoxFor(m =>m.Id)</td>
</tr>*@
<tr>
<td class="col-md-4">Name
</td>
<td class="col-md-8">@Html.TextBoxFor(m =>m.CustName)
</td>
</tr>
<tr>
<td class="col-md-4">Email ID
</td>
<td class="col-md-8">@Html.TextBoxFor(m =>m.CustEmail)
</td>
</tr>
<tr>
<td class="text-right"colspan="2">
<input type="submit"value="Save"class="btnbtn-primary"/>
</td>
</tr>
}
</tbody>
</table>
</div>
<div class="clearfix">
</div>
@Html.ActionLink("Home", "Index", "Home")
</div>

Update

@model WebApplication1.Models.Customer
@{
ViewBag.Title = "Update";
}
<link href="~/Content/bootstrap/css/bootstrap.min.css"rel="stylesheet"/>
<div class="clearfix">
</div>
<div class="clearfix">
</div>
<div class="container">
<div class="table-responsive">
<table class="table table-bordered table-striped">
<thead>
<tr>
<th>Name</th>
<th>Email ID</th>
<th>Update</th>
</tr>
</thead>
<tbody>
<tr>
@using (Html.BeginForm("Update", "Home", FormMethod.Post))
{
<td>@Html.TextBoxFor(m =>m.CustName)</td>
<td>@Html.TextBoxFor(m =>m.CustEmail)</td>
<td>
<inputtype="submit"value="Update"class="btnbtn-primary"/>
</td>
}
</tr>
</tbody>
</table>
</div>
</div>

Step 2:

Getting Started with SignalR

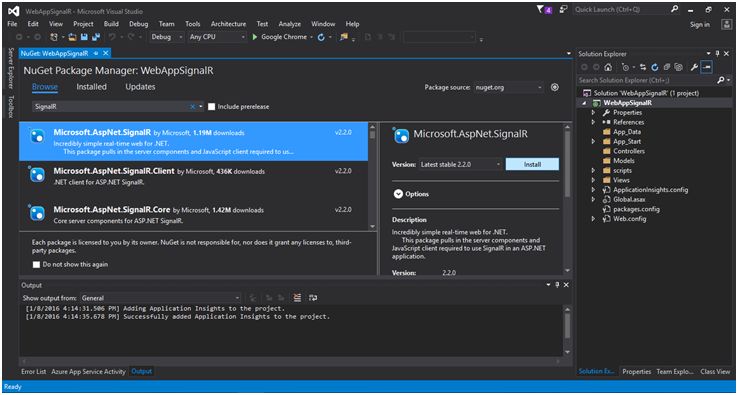

The first thing is getting a reference from NuGet.

Get it on NuGet!

Install-Package Microsoft.AspNet.SignalR

Register SignalR middleware

Once you have installed it let’s create OwinStartup Class.

The following code adds a simple piece of middleware to the OWIN pipeline, implemented as a function that receives a Microsoft.Owin.IOwinContext instance.

When the server receives an HTTP request, the OWIN pipeline invokes the middleware. The middleware sets the content type for the response and writes the response body.

Startup.cs

using System;
using System.Threading.Tasks;
using Microsoft.Owin;
using Owin;
[assembly: OwinStartup(typeof (WebAppSignalR.Startup))]
namespace WebAppSignalR
{
public class Startup
{
public void Configuration(IAppBuilder app)
{
app.MapSignalR();
}
}
}

Create &Use Hub classes

After finishing the previous process, let’s create a Hub. A SignalR Hub make remote procedure calls (RPCs) from a server to connected clients and from clients to the server.

CustomerHub.cs

using System;
using System.Collections.Generic;
using System.Linq;
using System.Web;
using Microsoft.AspNet.SignalR;
using Microsoft.AspNet.SignalR.Hubs;
namespace WebApplication1.Hubs
{
public class CustomerHub: Hub
{
[HubMethodName("broadcastData")]
public static void BroadcastData()
{
IHubContext context = GlobalHost.ConnectionManager.GetHubContext < CustomerHub > ();
context.Clients.All.updatedData();
}
}
}

Code Explanation

IHubContext context = GlobalHost.ConnectionManager.GetHubContext<CustomerHub>();

It gets the CustomerHub context:

context.Clients.All.updatedData();

It call the client part of SignalR and tell it to execute the JavaScript method updatedData().

Let’s Modify our Existing View

Now we will modify part of Index view as in the following, and we will display data with a partial view.

Index

@model IList < WebApplication1.Models.Customer > @
{
ViewBag.Title = "Index";
} < linkhref = "~/Content/bootstrap/css/bootstrap.min.css"
rel = "stylesheet" / > < divclass = "clearfix" > & nbsp; < /div> < divclass = "clearfix" > & nbsp; < /div> < divclass = "container" > < divclass = "table-responsive" > @Html.ActionLink("New Customer", "Insert", "Home") < hr / > < divid = "dataTable" > < /div> < /div> < divclass = "clearfix" > & nbsp; < /div> < /div>
@section JavaScript
{ < scriptsrc = "~/Scripts/jquery.signalR-2.2.0.min.js" > < /script> < scriptsrc = "/signalr/hubs" > < /script> < scripttype = "text/javascript" > $(function ()
{
// Reference the hub.
var hubNotif = $.connection.customerHub;
// Start the connection.
$.connection.hub.start().done(function ()
{
getAll();
});
// Notify while anyChanges.
hubNotif.client.updatedData = function ()
{
getAll();
};
});
function getAll()
{
var model = $('#dataTable');
$.ajax(
{
url: '/home/GetAllData',
contentType: 'application/html ; charset:utf-8',
type: 'GET',
dataType: 'html'
}).success(function (result)
{
model.empty().append(result);
}).error(function (e)
{
alert(e);
});
} < /script>
}

Partial View

<table class="table table-bordered table-striped">
<thead>
<tr>
<th>ID</th>
<th>Name</th>
<th>Email ID</th>
<th>Delete</th>
<th>Update</th>
</tr>
</thead>
<tbody> @if (Model != null) { foreach (var item in Model) {
<tr>
<td>@item.Id</td>
<td>@item.CustName</td>
<td>@item.CustEmail</td>
<td>@Html.ActionLink("Delete", "Delete", "Home", new { id = @item.Id }, null)</td>
<td>@Html.ActionLink("Update", "Update", "Home", new { id = @item.Id }, null)</td>
</tr> } } </tbody>
</table>

Let’s Modify our Existing Controller

Home Controller:

In our home controller we will add a method named GetAllData(). Here's the method.

[HttpGet]
public ActionResult GetAllData()
{
int Count = 10;
object[] parameters = {
Count
};
var test = objCust.GetAll(parameters);
return PartialView("_DataList", test);
}

Here we are returning a partial view with returned data list, and just returning empty.

// GET: Home
public ActionResult Index()
{
return View();
}

Home Controller

public class HomeController: Controller
{
private CustomerService objCust;
//CustomerRepositoryCustRepository;
public HomeController()
{
this.objCust = newCustomerService();
}
// GET: Home
public ActionResult Index()
{
return View();
}
[HttpGet]
public ActionResult GetAllData()
{
int Count = 10;
object[] parameters = {
Count
};
var test = objCust.GetAll(parameters);
return PartialView("_DataList", test);
}
public ActionResult Insert()
{
return View();
}
[HttpPost]
public ActionResult Insert(Customer model)
{
if (ModelState.IsValid)
{
object[] parameters = {
model.CustName,
model.CustEmail
};
objCust.Insert(parameters);
}
//Notify to all
CustomerHub.BroadcastData();
return RedirectToAction("Index");
}
public ActionResult Delete(int id)
{
object[] parameters = {
id
};
this.objCust.Delete(parameters);
//Notify to all
CustomerHub.BroadcastData();
return RedirectToAction("Index");
}
public ActionResult Update(int id)
{
object[] parameters = {
id
};
return View(this.objCust.GetbyID(parameters));
}
[HttpPost]
public ActionResult Update(Customer model)
{
object[] parameters = {
model.Id,
model.CustName,
model.CustEmail
};
objCust.Update(parameters);
//Notify to all
CustomerHub.BroadcastData();
returnRedirectToAction("Index");
}
protected override void Dispose(bool disposing)
{
base.Dispose(disposing);
}
}

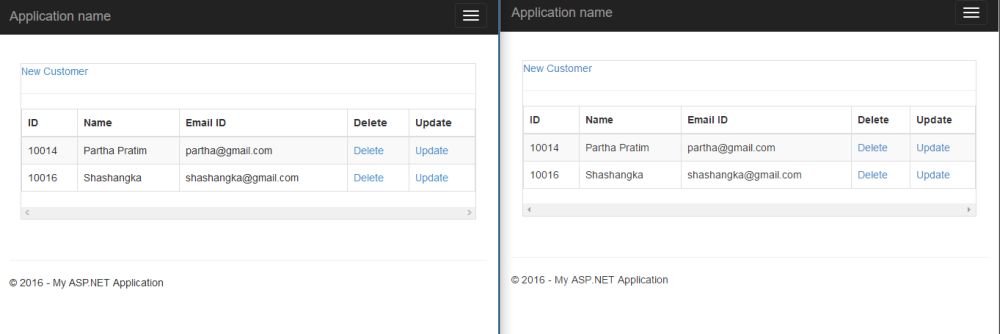

Output

run

I hope this will help someone.

37 Comments

Join the conversation! Your thoughts help the community grow.

inco bilgisayar6y ago
how can we do same sample in Separate Layers as UI-API-Domain (dbentities and services)
Shamim Uddin10y ago
Nice
Manav Pandya10y ago
Nice sir ...
Ntiyiso Mbhalati10y ago
I'm unable to download the solution, was it moved?
- Shashangka Shekhar10y ago
  M not sure. get it from here: http://shashangka.com/2016/01/11/asp-net-mvc-real-time-app-with-signalr
Sridhar Sharma10y ago
Nice Share
Anu V10y ago
Nice
Ankur Mistry10y ago
Really nice share
- Shashangka Shekhar10y ago
  Thanks
Arul R10y ago
Nice share
- Shashangka Shekhar10y ago
  Thanks :)
sreenivasa k10y ago
excellent
- Shashangka Shekhar10y ago
  Thanks :)
Gowtham K10y ago
Good One, Thanks for sharing:)
- Shashangka Shekhar10y ago
  Thanks
Mohammed Ibrahim10y ago
nice
- Shashangka Shekhar10y ago
  Thanks
Raja T10y ago
Nice,Thanks for sharing
- Shashangka Shekhar10y ago
  Thanks once again :)
Debasis Saha10y ago
Nice One..
- Shashangka Shekhar10y ago
  Thanks :)
Ankit Bansal10y ago
Really helpful..
- Shashangka Shekhar10y ago
  Thanks :)
Sabyasachi Mishra10y ago
Good one
- Shashangka Shekhar10y ago
  Thanks :)
Muhammad Aqib Shehzad10y ago
very nice and detailed article, thanks for sharing.
- Shashangka Shekhar10y ago
  Thanks :)
Santhakumar Munuswamy10y ago
Thanks for nice article
- Shashangka Shekhar10y ago
  Thanks
Muhammad Aqib Shehzad10y ago
good sharing.....
- Shashangka Shekhar10y ago
  Thanks
Humayun Kabir Mamun10y ago
Nice...
- Shashangka Shekhar10y ago
  thanks
Raja T10y ago
Nice,thanks for sharing
- Shashangka Shekhar10y ago
  thanks
Ehsan Sajjad10y ago
That's good, at least some one used other example than Chat application
- Shashangka Shekhar10y ago
  Thanks
