Perform Validation on Form Using Data Annotation in MVC4 Web API

Introduction

This article explains the Data Annotation property for doing validation. Here we create a simple form for displaying the validation using Data Annotation. We know that validation is very important for any form.

Use the following procedure to create a simple form.

Step 1

Create a Web API Application as in the following:

  • Start Visual Studio 2013.
  • From the Start Window select "New Project".
  • Select "Installed" -> "Templates" -> "Visual C#" -> "Web" -> "Visual Studio 2012" and select "ASP.NET MVC4 Web Application".

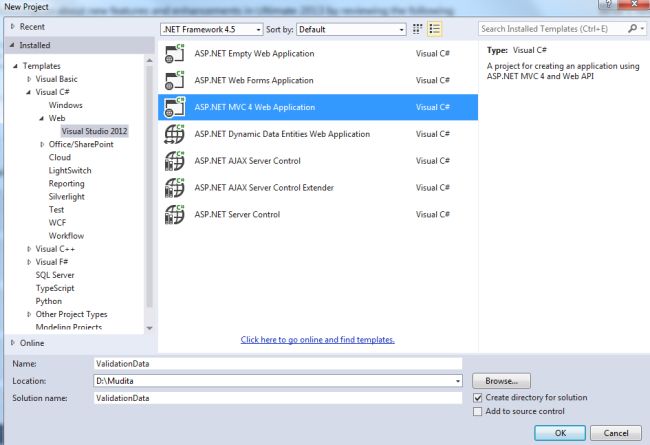

    Select MVC4 Web Application

  • Click on the "OK" button.
  • From the MVC4 project window select "Web API".

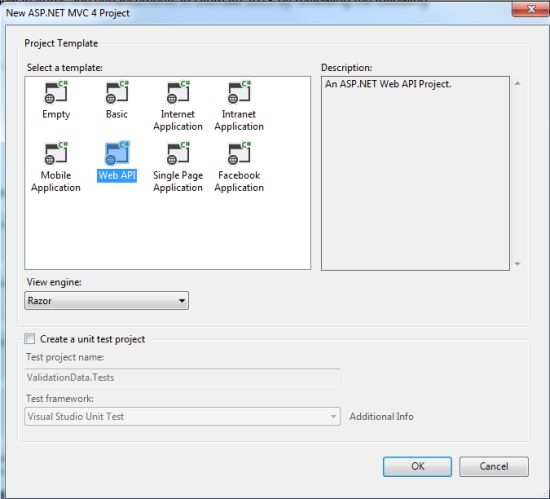

    Select Web API

  • Click on the "Create Project" button.

Step 2

Add a Model Class as in the following:

  • In the "Solution Explorer".
  • Right-click on the Model Folder.
  • Select "Add" -> "Class".
  • Select "Installed" -> "Visual C#" and select "Class".

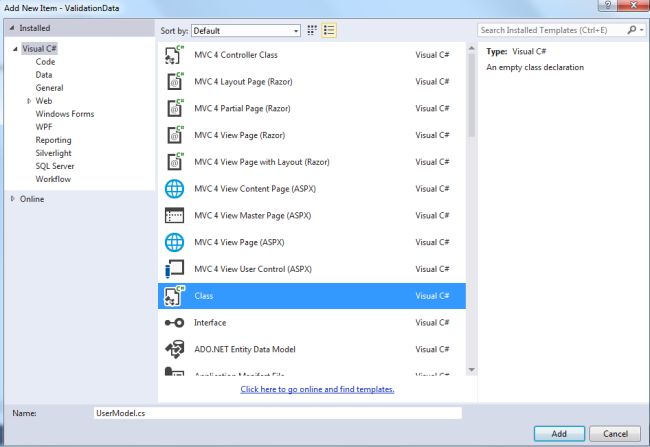

    Add Model Class

  • Click on the "Add" button.

Add the following code:

  1. using System;
  2. using System.Collections.Generic;
  3. using System.ComponentModel.DataAnnotations;
  4. using System.Linq;
  5. using System.Web;
  6. namespace ValidationData.Models
  7. {
  8.     public class UserModel
  9.     {
  10.         [Required(ErrorMessage = "Enter User Name")]
  11.         public string FirstName { get; set; }
  12.         [Required(ErrorMessage = "Enter User Last Name")]
  13.         public string LastName { get; set; }
  14.         [Required(ErrorMessage = "Enter USer Address")]
  15.         public string Address { get; set; }
  16.         [Required(ErrorMessage = "Enter User Age")]
  17.         [Range(18, 50, ErrorMessage = "Age Sholud more the 18 and Less Than 50")]
  18.         public int Age { get; set; }
  19.     }
  20. }

Step 3

Add a Controller:

  • In the "Solution Explorer".
  • Right-click on the Controller folder, select "Add" -> "Controller".
  • From the Template select "MVC Controller".

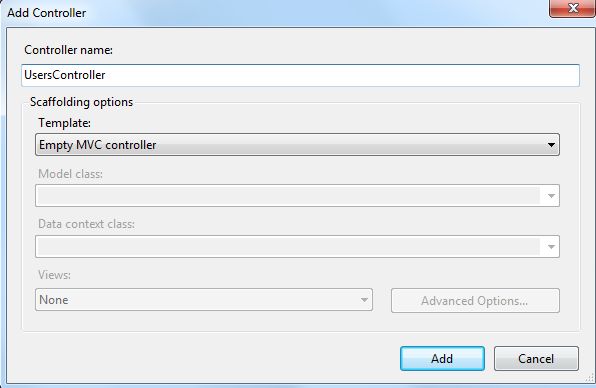

    Add Controller

  • Click on the "Add" button.

Add the following Code:

  1. using System;
  2. using System.Collections.Generic;
  3. using System.Linq;
  4. using System.Web;
  5. using System.Web.Mvc;
  6. using ValidationData.Models;
  7. namespace ValidationData.Controllers
  8. {
  9.     public class UsersController : Controller
  10.     {
  11.         //
  12.         // GET: /Users/
  13.         public ActionResult Index()
  14.         {
  15.             return View();
  16.         }
  17.         [HttpPost]
  18.         public ActionResult Detail(UserModel u)
  19.         {
  20.             if(!ModelState.IsValid)
  21.             {
  22.                 return View("Index");
  23.             }
  24.             else
  25.             {
  26.                 return Content("Valid User" + "FirstName" + u.FirstName + "LastName" + u.LastName + "Address" + u.Address + "Age" + u.Age);
  27.             }
  28.         }
  29.     }
  30. }

Step 4

Add a View:

  • In the "EmployeeController".
  • Right-click on the "Index" action Method.
  • Select "Add View."

    Select Add View

  • After the Add View dialog box has been opened select "Strongly Typed View" and select "Model class".

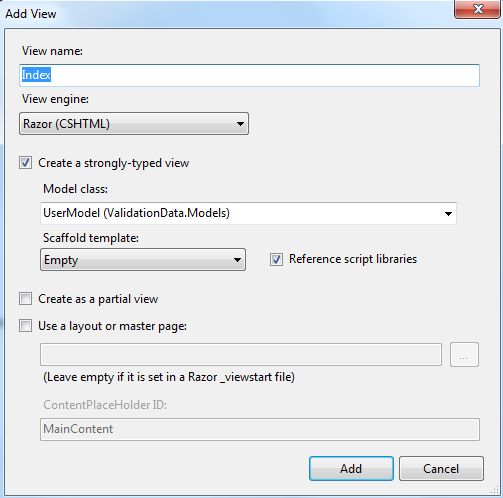

    Select View setting

  • Click on the "Add" button.

Add the following code:

  1. @model ValidationData.Models.UserModel
  2. @{
  3.     Layout = null;
  4. }
  5. <!DOCTYPE html>
  6. <html>
  7. <head>
  8.     <meta name="viewport" content="width=device-width" />
  9.     <title>Index</title>
  10. </head>
  11. <body>
  12.     <div>
  13.        @using (Html.BeginForm("Detail","Users",FormMethod.Post))
  14.        {
  15.            @Html.ValidationSummary(true)
  16.            <p>
  17.                @Html.LabelFor(m=>m.FirstName)
  18.                @Html.TextBoxFor(m=>m.FirstName)
  19.                @Html.ValidationMessageFor(m=>m.FirstName)
  20.            </p>
  21.            <p>
  22.                @Html.LabelFor(m=>m.LastName)
  23.                @Html.TextBoxFor(m=>m.LastName)
  24.                @Html.ValidationMessageFor(m=>m.LastName)
  25.            </p>
  26.            <p>
  27.                @Html.LabelFor(m=>m.Address)
  28.                @Html.TextBoxFor(m=>m.Address)
  29.                @Html.ValidationMessageFor(m=>m.Address)
  30.            </p>
  31.            <p>
  32.                @Html.LabelFor(m=>m.Age)
  33.                @Html.TextBoxFor(m=>m.Age)
  34.                @Html.ValidationMessageFor(m=>m.Age)
  35.            </p>
  36.            <input type="submit" value="Submit"/>
  37.        }
  38.     </div>
  39. </body>
  40. </html>
Step 5

Execute the application and change the URL to "http://localhost:5016/Users/Index".

Display Form

Leave the TextBoxes of FirstName and Address empty and enter an age less than 18. Then it displays the following validation message.

Display Validation Message
