Nested View in Backbone.js

Introduction

This article explains the Nested View in backbone.js. Here we will create an application using a Nested View. Views extended from it can be infinitely nested with each other using these methods such as "appendview" and "setView".

Now we will see how to create an application using a Nested View.

Step 1

Create a Web application as in the following:

  • Start Visual Studio 2013. From the Start window select "New Project".
  • Select "Installed" -> "Template" -> "Visual C#" -> "Web" -> "Visual Studio 2012" and select "ASP.NET Empty Web Application".

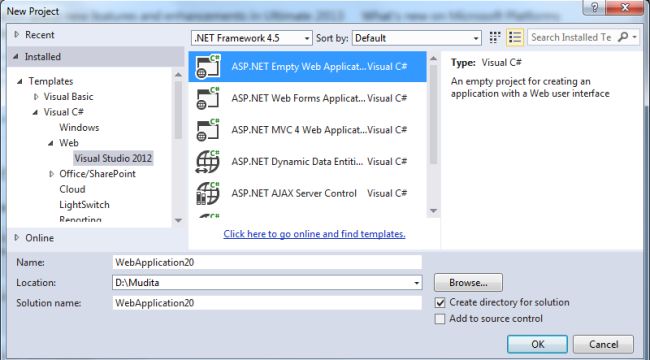

Add Web Application

  • Click on the "OK" button.

Step 2

Now add the HTML page.

  • In the Solution Explorer.
  • Right-click on the project then select "Add" -> "HTML page".

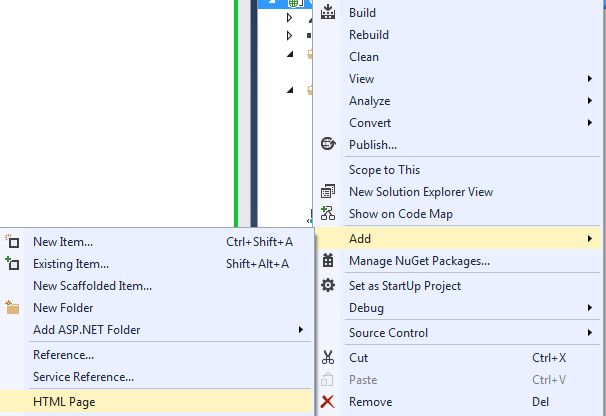

Add HTML Page

  • Change the name of the page.

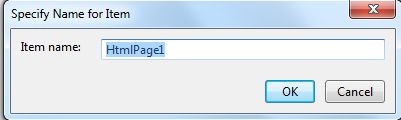

Change Name

  • Click on the add button.

Add the following code:

<!doctype html>

<html>

<head>

    <title>List</title>

    <script src="js/jquery.js"></script>

    <script src="js/underscore.js"></script>

    <script src="js/backbone.js"></script>

    <script src="js/backbone.viewmaster.js"></script>

    <script type="template" id="layout">

        <div class="header"></div>

        <hr>

        <h1>List</h1>

        <div class="addview-container"></div>

        <div class="list-container"></div>

        <div>You have <%= count %> lists</div>

        <hr>

        <div class="footer"></div>

    </script>

    <script type="template" id="addview">

        <input type="text" autofocus>

        <button>Add</button>

    </script>

    <script type="template" id="product">

        <span class="product"><%= text %></span>

        <button class="edit">EditList</button>

        <button class="done">Remove</button>

    </script>

    <script src="js/app.js"></script>

</head>

<body>

</body>

</html>



Step 3

Add a JavaScript file as in the following:

  • In the Solution Explorer.
  • Right-click on the "js" folder, select "Add" -> "New Item".
  • Select "JavaScript".

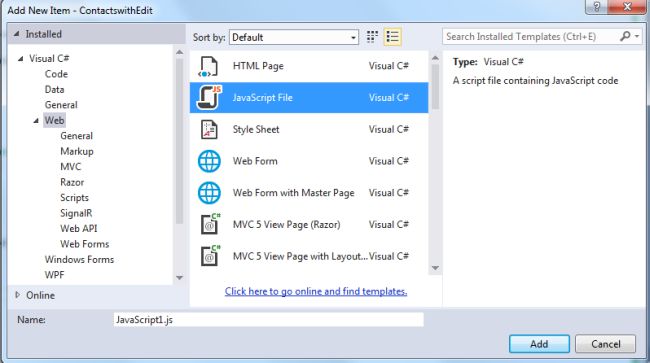

Add JavaScript file

Add the following code:

var AddListProduct = Backbone.Viewmaster.extend({

  template: function(context){

    return $("#addview").html();

  },

  events: {

    "click button""addList"

  },

  addList: function(e){

    e.preventDefault();

    this.collection.add(new Backbone.Model({

      text: this.$("input").val()

    }));

    this.$("input").val("");

  }

});

var ListProduct = Backbone.Viewmaster.extend({

  constructor: function(){

    Backbone.Viewmaster.prototype.constructor.apply(this, arguments);

    // Rerender view after edit

    this.listenTo(this.model, "change"this.render);

  },

  template: function(context){

    return _.template($("#product").html(), context);

  },

  events: {

    "click .done""done",

    "click .edit""edit"

  },

  done: function(){

    // When the task is completed  then destroy the model and remove the view

    this.model.destroy();

    this.remove();

  },

  edit: function() {

    var newContent = prompt("Edit list"this.model.get("text"));

    if (newContent !== nullthis.model.set("text", newContent);

  }

});

var ListProductList = Backbone.Viewmaster.extend({

  constructor: function(){

    Backbone.Viewmaster.prototype.constructor.apply(this, arguments);

    // On load display all products

    this.setProducts();

    // Add new product view on new product model

    this.listenTo(this.collection, "add"function(model) {

      // Create new view for the product

      this.appendView("ul"new ListProduct({

        model: model

      }));

      // Render the new productand put it to DOM tree

      this.refreshViews();

    });

    // Filter out products on 'search' broadcast events

    this.listenTo(this"search"function(searchString) {

      this.setProducts(this.collection.filterSearch(searchString));

      this.refreshViews();

    });

  },

  template: function() {

    return "<ul></ul>";

  },

  setProducts: function(products) {

    products = products || this.collection;

    this.setView("ul", products.map(function(model) {

      return new ListProduct({

        model: model

      });

    }));

  }

});

var Search = Backbone.Viewmaster.extend({

  template: function() {

    return "<input type=text placeholder=Search >";

  },

  events: {

    "keyup input"function(e) {

      // Bubble search event up to parent layout

      this.bubble("search", $(e.target).val());

    }

  }

});

var ListLayout = Backbone.Viewmaster.extend({

  constructor: function(){

    Backbone.Viewmaster.prototype.constructor.apply(this, arguments);

    // Nest Addlistitem inside List

    this.setView(".addview-container", AddListProduct);

    this.listProductList = new ListProductList({

      collection: this.collection

    });

    this.setView(".list-container"this.listProductList);

    // Add two search fields

    this.setView(".footer", Search);

     //Listen on bubbled search events from both Search views

    this.listenTo(this"search"function(searchString) {

      // Broadcast them to ListProductList view

      this.listProductList.broadcast("search", searchString);

    });

    // Render layout on when a todo is removed or added to update

    // the product count

    this.listenTo(this.collection, "add remove"this.render);

  },

  template: function(context){

    return _.template($("#layout").html(), context);

  },

  context: function() {

    return {

      count: this.collection.size()

    };

  }

});

$(document).ready(function() {

  // Collection containing all list of product

  var products = new Backbone.Collection();

  products.filterSearch = function(searchString) {

    // Do not filter anything on empty string

    if (!searchString.trim()) return null;

    return this.filter(function(product) {

      return product.get("text").indexOf(searchString) !== -1;

    });

  };

  // Initialize whole layout

  var layout = new ListLayout({

    collection: products

  });

  layout.render();

  $("body").append(layout.el);

});



Step 4

Execute the application, add new products to the list..

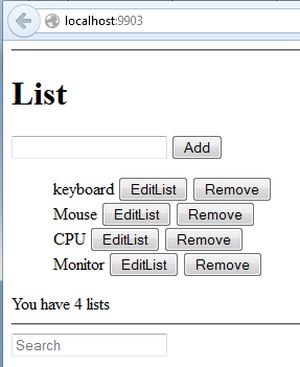

Add product in List

You can filter the product.

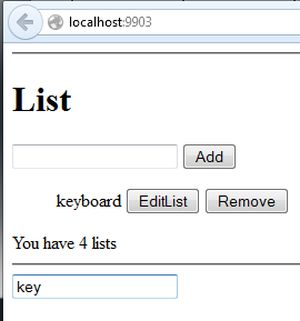

Search product
