Display Images Using Model Binder in Backbone.js

Introduction

In this article we will use the model binder in backbone.js. In this tutorial we will display images on a button click using model binding.

In this tutorial you will see a row of a table bound to the collection.

Here we need the following JavaScript files:

 <script type="text/javascript" src="js/underscore.js"></script>

    <script type="text/javascript" src="js/jquery.js"></script>

    <script type="text/javascript" src="js/backbone.js"></script>

    <script type="text/javascript" src="js/Backbone.ModelBinder.js"></script>

Now let's see how the collection binder works.

  1. First we need to create an application.
  • Start Visual Studio 2013.
  • From the Start window select "New Project".
  • Select "Installed" -> "Template" -> "Visual C#" -> "Web" -> "Visual Studio2012" and select as in the following:

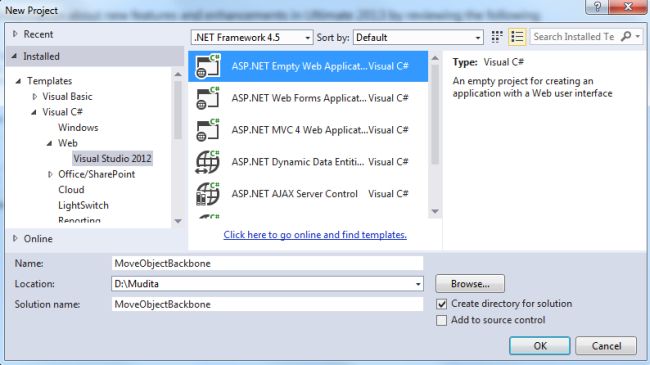

Create Web Application

  • Click on the "OK" button.
  1. Now add the HTML page to the project.
  • In the Solution Explorer.
  • Right-click on the project and select "Add" -> "HTML Page".

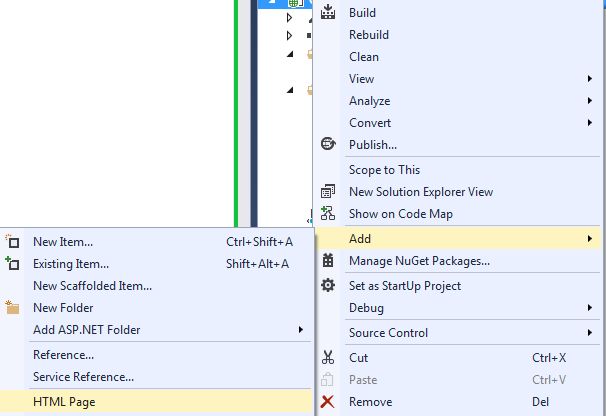

Add HTML Page

  • Change the Name.

Change Name

  • Then click on the "OK" button.

Add the following code:

<!DOCTYPE HTML PUBLIC "-//W3C//DTD XHTML 1.1//EN" "http://www.w3.org/TR/xhtml11/DTD/xhtml11.dtd">

<html xml:lang="en" xmlns="http://www.w3.org/1999/xhtml">

<head>

    <meta content="text/html;charset=UTF-8" http-equiv="Content-Type" />

    <title>Bind to img src attribute</title>

    <!-- include source files here... -->

    <script type="text/javascript" src="js/underscore.js"></script>

    <script type="text/javascript" src="js/jquery.js"></script>

    <script type="text/javascript" src="js/backbone.js"></script>

    <script type="text/javascript" src="js/Backbone.ModelBinder.js"></script>

    <script>

        $().ready(function () {

            model = new Backbone.Model();

            ImageArray = ['images/img1.png',

                      'images/img2.png'];

            model.bind('change'function () {

                $('#imgmodel').html(JSON.stringify(model.toJSON()));

            });

           model.trigger('change');

            ViewClass = Backbone.View.extend({

                _modelBinder: #ff0000,

                events: {

                    'click #button''_onButtonClick'

                },

                initialize: function () {

                    this._modelBinder = new Backbone.ModelBinder();

                },

                render: function () {

                    var html = '<button id="button">Click</button> Load images through model Binder.<br><br>';

                    var bindings = {};

                    var Nameofimage

                    for (var i = 0; i < ImageArray.length; i++) {

                        Nameofimage = 'image' + i;

                        html += 'Image ' + i + ' : ' + '<img name="' + Nameofimage + '"/><br>';

                        bindings[Nameofimage] = { selector: '[name=' + Nameofimage + ']', elAttribute: 'src' };

                    }

                    this.$el.html(html);

                    this._modelBinder.bind(this.model, this.el, bindings);

                    return this;

                },

                _onButtonClick: function () {

                    for (var i = 0; i < ImageArray.length; i++) {

                        var data = {};

                        data['image' + i] = ImageArray[i];

                        model.set(data);

                    }

                }

            });

           view = new ViewClass({ model: model });

            $('#viewContent').append(view.render().el);

        });

    </script>

</head>

<body>

    <br>

    Bind Images with the Model<br>

    <br>

    <br>

    Model data:

    <div id="imgmodel"></div>

    <hr>

    <br>

    <div id="viewContent"></div>

</body>

</html>



  1. Now execute the application:

Display Model bind page

Now click on the button. It will then display all the images bound to the model.

 display bind images
