Create HyperLink in WebGrid in Web API

Introduction

This article explains how to create a hyperlink in a Web Grid. Here we create a hyperlink for the Employee Name.

Use the following procedure to create a sample application.

Step 1

Create a Web Application as in the following:

  • Start Visual Studio 2012.
  • From the Start window select "Installed" -> "Visual C#" -> "Web".
  • Select "ASP.NET MVC4 Web Application" and click on the "Ok" button.

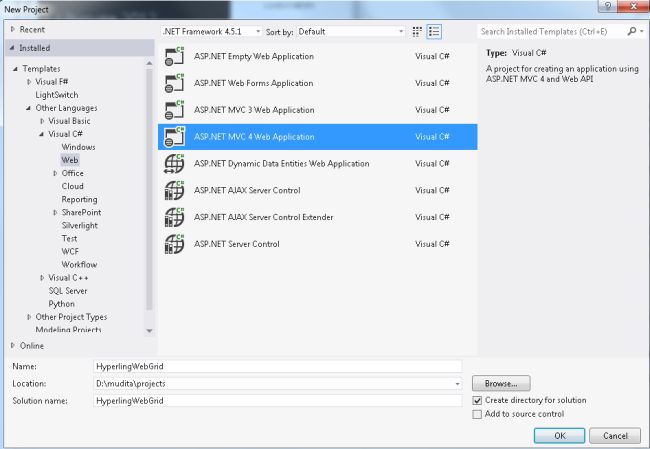

    Select MVC4 Application

  • From the "MVC4 Project" window select "Web API".

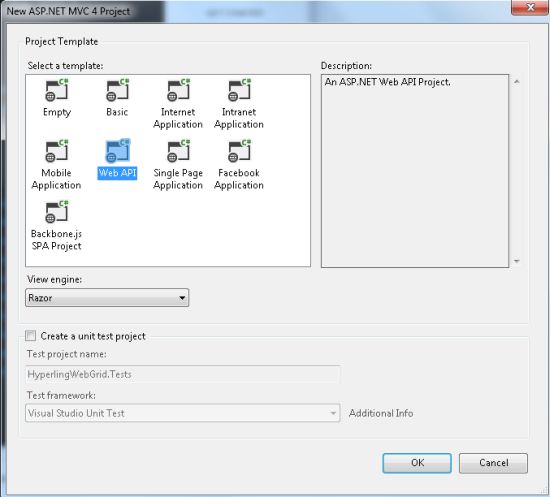

    Select Web API

  • Click on the "OK" button.

Step 2

Create a Model Class.

  • In the "Solution Explorer".
  • Right-click on the Model Folder.
  • Select "Add" -> "Class".
  • Select "Installed" -> "Visual C#" and select class.

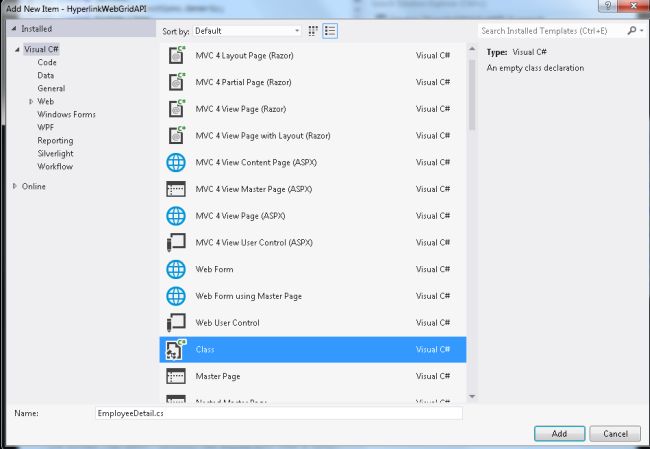

    Add model Class

  • Click on the "Add" button.

Add the following code:

  1. using System;
  2. using System.Collections.Generic;
  3. using System.Linq;
  4. using System.Web;
  5. namespace HyperlinkWebGridAPI.Models
  6. {
  7.     public class EmployeeDetail
  8.     {
  9.         public List<Employee> UserCollection { getset; }
  10.     }
  11.     public class Employee
  12.     {
  13.         public int Id { getset; }
  14.         public string Emp_Name { getset; }
  15.         public int Contact_No { getset; }
  16.         public string Emp_Address { getset; }
  17.     }
  18. }

Step 3

Now select the "HomeController".

  • In the "Solution Explorer".
  • Expand the Controller folder.
  • Select the "HomeController".

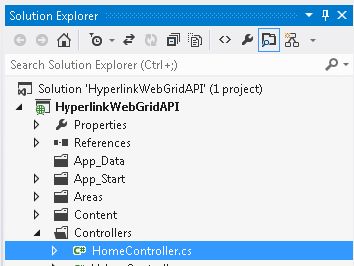

    Controller

Add the following code:

  1. using System;
  2. using System.Collections.Generic;
  3. using System.Linq;
  4. using System.Web;
  5. using System.Web.Mvc;
  6. using HyperlinkWebGridAPI.Models;
  7. namespace HyperlinkWebGridAPI.Controllers
  8. {
  9.     public class HomeController : Controller
  10.     {
  11.         public ActionResult Index()
  12.         {
  13.              EmployeeDetail obj = new EmployeeDetail();
  14.              List<Employee> empdtl = new List<Employee>();
  15.              empdtl.Add(new Employee { Id = 1, Emp_Name = "Name 1", Contact_No = 2345, Emp_Address = "Address 1" });
  16.              empdtl.Add(new Employee { Id = 2, Emp_Name = "Name 1", Contact_No = 567, Emp_Address = "Address 1" });
  17.              empdtl.Add(new Employee {Id = 3, Emp_Name = "Name 1", Contact_No = 4567, Emp_Address = "Address 1" });
  18.              empdtl.Add(new Employee { Id = 4, Emp_Name = "Name 1", Contact_No = 345, Emp_Address = "Address 1" });
  19.              empdtl.Add(new Employee { Id = 5, Emp_Name = "Name 1", Contact_No = 890, Emp_Address = "Address 1" });
  20.              obj.UserCollection = empdtl;
  21.              return View(obj);
  22.         }
  23.     }
  24. }

Step 4

Now write some HTML code in the "index.cshtml" file. This file exists:

  • In the "Solution Explorer".

  • Expand "Views" folder.

  • Select "Home" -> "index.cshtml".

Add the following code:

  1. @model HyperlinkWebGridAPI.Models.EmployeeDetail
  2. @{
  3.     ViewBag.Title = "create hyper ling in webgrid";
  4. }
  5. <style type="text/css">
  6. table {
  7.        font-family: verdana,arial,sans-serif;
  8.        font-size:11px;
  9.        color:#b6ff00;
  10.        border-width: 1px;
  11.        border-color: #666666;
  12.        border-collapse: collapse;
  13. }
  14. table th {
  15.        border-width: 1px;
  16.        padding: 8px;
  17.        border-style: solid;
  18.        border-color: #666666;
  19.        background-color: #dedede;
  20. }
  21. table td {
  22.        border-width: 1px;
  23.        padding: 8px;
  24.        border-style: solid;
  25.        border-color: #0026ff;
  26.        background-color: #ffffff;
  27. }
  28. </style>
  29. @using (Html.BeginForm("Index""Home"))
  30. {
  31.     var grid = new WebGrid(Model.UserCollection, columnNames: new[] { "Emp_Name""Contact_No" });
  32.     @grid.GetHtml(columns: grid.Columns(
  33.     grid.Column("Emp_Name", format: @<text>@Html.ActionLink((string)item.Emp_Name,"ActionName""Controllername"new { id = item.id }, null)</text>),
  34.                     grid.Column("Contact_No"),
  35.                     grid.Column("Emp_Address")
  36.                     ))
  37. }

Step 5

Execute the application, the output will display like this:

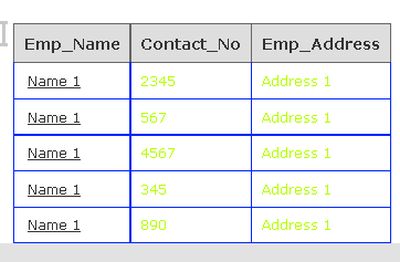

Output
