Create a Simple Data Entry Form in Web API

Introduction

This article shows how to create a simple Data Entry Form. Here we create a form for storing the details of a student.

The following is the procedure for creating the application.

Step 1

Create a Web API application as in the following:

  • Start Visual Studio 2012.
  • From the start window select "Installed" -> "Visual C#" -> "Web".
  • Select "ASP.NET MVC4 Web Application" and click on the "Ok" button.


  • From the "MVC4 Project" window select "Web API".


  • Click on the "Ok" button.

Step 2

  • In the "Solution Explorer".
  • Right-click on the Model folder.
  • Select "Add" -> "Class".
  • Select "Installed" -> "Visual C#" and select class.


  • Click on the "Add" button.

Add the following code:

  1. using System;
  2. using System.Collections.Generic;
  3. using System.ComponentModel.DataAnnotations;
  4. using System.Linq;
  5. using System.Web;
  6. namespace DatEntryAPI.Models
  7. {
  8.     public class StudentModel
  9.     {
  10.         [Required(ErrorMessage = "Id is required")]
  11.         public string Roll_no { getset; }
  12.         [Required(ErrorMessage = "Please fill the name of student")]
  13.         public string Std_Name { getset; }
  14.         [Required(ErrorMessage = "Please fill the address of student")]
  15.         public string Address { getset; }
  16.         [Required(ErrorMessage = "Select your gender")]
  17.         public bool? Gender { getset; }
  18.         [Required(ErrorMessage = "Fill the Contact Number")]
  19.         public int Std_Contact { getset; }
  20.     }
  21. }

Step 3

In the Controller add some code:

  • In the "Solution Explorer".
  • Expend the "Controller" folder.
  • Select the "HomeController".


Add the following code:

  1. using System;
  2. using System.Collections.Generic;
  3. using System.Linq;
  4. using System.Web;
  5. using System.Web.Mvc;
  6. using DatEntryAPI.Models;
  7. namespace DatEntryAPI.Controllers
  8. {
  9.     public class HomeController : Controller
  10.     {
  11.         [HttpGet]
  12.         public ActionResult StudentForm()
  13.         {
  14.             return View();
  15.         }
  16.         [HttpPost]
  17.         public ActionResult StudentForm(StudentModel student)
  18.         {
  19.             if (ModelState.IsValid)
  20.             {
  21.                 return View("Display", student);
  22.             }
  23.             else
  24.             {
  25.                 return View();
  26.             }
  27.         }
  28.     }
  29. }

Step 4

Create two Views using the following, one is "StudentForm.cshtml" and the other is "Display.cshtml".

  • In the "HomeController".
  • Right-click on the "StudentForm" action method.


  • Select "AddView". Click on the "Add" button.

Add the following code in the "StudentForm.cshtml".

  1. @model DatEntryAPI.Models.StudentModel
  2. @{
  3.     ViewBag.Title = "StudentForm";
  4. }
  5. <h2>StudentForm</h2>
  6. <div>
  7.   <fieldset>
  8.         <legend>Student Detail Form</legend>
  9.         @using (Html.BeginForm())
  10.         {
  11.            <div>
  12.                 <div class="editor-label ">
  13.                     @Html.LabelFor(std => std.Roll_no)
  14.                 </div>
  15.                 <div class="editor-field">
  16.                     @Html.TextBoxFor(std => std.Roll_no)
  17.                     @Html.ValidationMessageFor(std => std.Roll_no)
  18.                 </div>
  19.             </div>
  20.             <div>
  21.                 <div class="editor-label ">
  22.                     @Html.LabelFor(std => std.Std_Name)
  23.                 </div>
  24.                 <div class="editor-field">
  25.                     @Html.TextBoxFor(std => std.Std_Name)
  26.                     @Html.ValidationMessageFor(std => std.Std_Name)
  27.                 </div>
  28.             </div>
  29.             <div>
  30.                 <div class="editor-label ">
  31.                     @Html.LabelFor(std => std.Address)
  32.                 </div>
  33.                 <div class="editor-field">
  34.                     @Html.TextBoxFor(std => std.Address)
  35.                     @Html.ValidationMessageFor(std => std.Address)
  36.                 </div>
  37.             </div>
  38.             <div>
  39.                 <div class="editor-label ">
  40.                     @Html.LabelFor(std => std.Gender)
  41.                 </div>
  42.                 <div class="editor-field">
  43.                     @Html.DropDownListFor(std => std.Gender, new[] {
  44.                                 new SelectListItem(){Text = "Male" , Value=bool.TrueString},
  45.                                 new SelectListItem(){Text ="Female" , Value = bool.FalseString},
  46.                             }, "Select Your Gender")
  47.                     @Html.ValidationMessageFor(std => std.Gender)
  48.                 </div>
  49.             </div>
  50.             <div>
  51.                 <div class="editor-label ">
  52.                     @Html.LabelFor(std => std.Std_Contact)
  53.                 </div>
  54.                 <div class="editor-field">
  55.                     @Html.TextBoxFor(std => std.Std_Contact)
  56.                     @Html.ValidationMessageFor(std => std.Std_Contact)
  57.                 </div>
  58.             </div>
  59.             <p><input type = "submit" value="Submit Details" /></p>
  60.         }
  61.     </fieldset>
  62.     </div>

And add the following code in the "Display.cshtml":

  1. @model DatEntryAPI.Models.StudentModel
  2. @{
  3.     ViewBag.Title = "Display";
  4. }
  5. <h2>Display</h2>
  6. <fieldset>
  7.     <legend>Student</legend>
  8.     <div class="display-label">Name</div>
  9.     <div class="display-field">
  10.         @Html.DisplayFor(model => model.Std_Name)
  11.     </div>
  12.     <div class="display-label">Address</div>
  13.     <div class="display-field">
  14.         @Html.DisplayFor(model => model.Address)
  15.     </div>
  16.     <div class="display-label">Gender</div>
  17.     <div class="display-field">
  18.         @Html.DisplayFor(model => model.Gender)
  19.     </div>
  20.     <div class="display-label">ContactNumber</div>
  21.     <div class="display-field">
  22.         @Html.DisplayFor(model => model.Std_Contact)
  23.     </div>
  24. </fieldset>
  25. <p>
  26.     @Html.ActionLink("Back to List""StudentForm")
  27. </p>

Step 5

Change some code in the Route.config file.

  1. namespace DatEntryAPI
  2. {
  3.     public class RouteConfig
  4.     {
  5.         public static void RegisterRoutes(RouteCollection routes)
  6.         {
  7.             routes.IgnoreRoute("{resource}.axd/{*pathInfo}");
  8.             routes.MapRoute(
  9.                 name: "Default",
  10.                 url: "{controller}/{action}/{id}",
  11.                 defaults: new { controller = "Home", action = "StudentForm", id = UrlParameter.Optional }
  12.             );
  13.         }
  14.     }
  15. }

Step 6

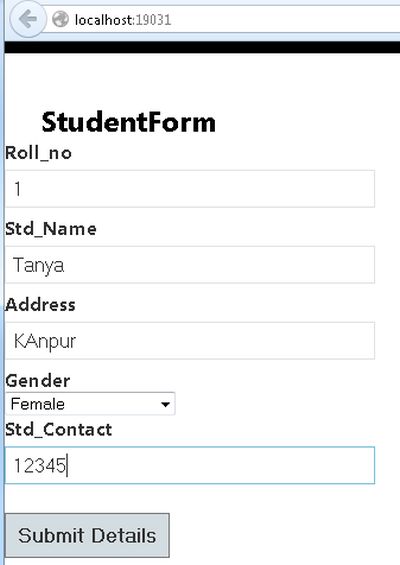

Execute the application:

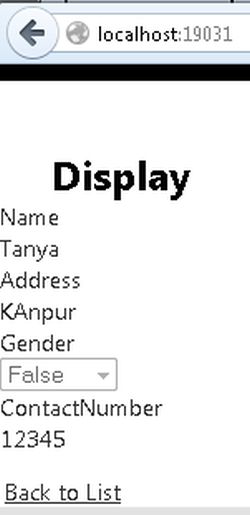

Click on the SubmitDetail button.
