Auto Refresh Partial View in ASP.Net Web API

Introduction

This article explains the Auto Refresh Partial View in the ASP .NET Web API. It is something that, used together, gives a way to refresh a partial view in a specified time period. Here we use three images that will change on refreshing the partial view in 2 seconds.

Follow these procedures for using Auto refresh Partial View in Web API.

Step 1

Create a web API Application.

  • Start Visual Studio 2012.

  • From the start window select "New Project".

  • In the Template Window select "Installed" -> "Visual C#" -> "Web".

  • Select "ASP.NET MVC 4 Web Application" and click on "OK".


  • From the "MVC4 Project" window select "Web API".


Step 2

Create a Model Class "Show.cs".

  • In the "Solution Explorer".

  • Right-click on the "Modelfolder" -> "Add" -> "Class".


  • Select the class and click on the "OK" button.

Add this code to this class.

  1. using System;
  2. using System.Collections.Generic;
  3. using System.Linq;
  4. using System.Web;
  5. namespace PageRefresh.Models
  6. {
  7.     public class Show
  8.     {
  9.         public int id { getset; }
  10.         public string Name_alter { getset; }
  11.         public string Image_src { getset; }
  12.     }
  13.     public class IRepository
  14.     {
  15.         public static List<Show> GetData()
  16.         {
  17.             List<Show> detail = new List<Show>
  18.             {
  19.                 new Show
  20.                 {
  21.                     id = 1,
  22.                     Name_alter = "Mudita",
  23.                     Image_src = "Images/Jellyfish.jpg"
  24.                 },
  25.                 new Show
  26.                 {
  27.                     id = 2,
  28.                     Name_alter = "Tayna",
  29.                     Image_src ="Images/Tulips.jpg"
  30.                 },
  31.                 new Show
  32.                 {
  33.                     id = 3,
  34.                     Name_alter = "Neeju",
  35.                     Image_src = "Images/Lighthouse.jpg"
  36.                 }
  37.             };
  38.             return detail;
  39.         }
  40.     }
  41. }

Step 3

 Open "HomeController".

  • In the "Solution Explorer".

  • Select "Controller folder" -> "Home Controller".

Add this code.

  1. using System;
  2. using System.Collections.Generic;
  3. using System.Linq;
  4. using System.Web;
  5. using System.Web.Mvc;
  6. using System.Web.UI;
  7. using PageRefresh.Models;
  8. namespace PageRefresh.Controllers
  9. {
  10.     public class HomeController : Controller
  11.     {
  12.        public ActionResult Index()
  13.         {
  14.             IEnumerable<Show> detail = IRepository.GetData();
  15.                return View(detail);
  16.         }
  17.          [OutputCache(NoStore = true, Location = OutputCacheLocation.Client, Duration = 2)]
  18.         public ActionResult GetPicture()
  19.         {
  20.             IEnumerable<Show> detail = IRepository.GetData();
  21.              int min = detail.Min(n => n.id);
  22.              int max = detail.Max(n => n.id);
  23.              int randomid = new Random().Next(min, (max + 1));
  24.              Show model = detail.FirstOrDefault(n => n.id == randomid);
  25.             return PartialView("Picture", model);
  26.         }
  27.     }
  28. }

Step 4

Create a view.

  • In the "HomeController".

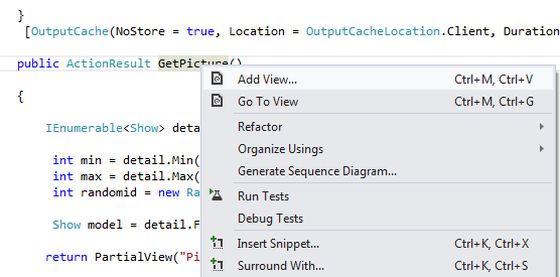

  • Right-click on the "GetPicture" Action Method and then select "AddView".


  • Change the name of the View to "Picture" and click on the "Add" button.


Add this line of code:

  1. @model PageRefresh.Models.Show
  2. <img src="@Model.Image_src" alt="@Model.Name_alter" title="@Model.Name_alter" width="400px" height="400px"/>

Step 5

Open the "index.cshtml" file.

  • In the "Solution Explorer".

  • Select "View" -> "Home" -> "index.cshtml".

Add this line of code:

  1. @model IEnumerable<PageRefresh.Models.Show>
  2. @{
  3.     Layout = null;
  4. }
  5.  <!DOCTYPE html>
  6.  <html>
  7.  <head>
  8.     <meta name="viewport" content="width=device-width" />
  9.     <title>Index</title>
  10.     <script src="@Url.Content("~/Scripts/jquery-1.8.2.min.js" )" type="text/javascript"></script>
  11. </head>
  12. <body>
  13.     <div id="pictures">
  14.         @Html.Partial("Picture", Model.FirstOrDefault())
  15.     </div>
  16. </body>
  17. </html>
  18. <script type="text/javascript">
  19.     $(function () {
  20.         setInterval(function () { $('#pictures').load('/Home/GetPicture'); }, 2000;
  21.     });
  22. </script>

Step 6

Now execute the application; "Press F5".


After 2 seconds a second image will display.


After 2 seconds:
