XmlParsing Using XmlPullParser in Android Studio

Introduction


In this article, you will learn about XML parsing with the pull parser

XML Parsing

XML parsing is a process of converting data from a server in a machine-readable form.

XML pull parser

The XML pull parser is an interface that defines the parsing functionality. It provides two key methods next() that provide access to high-level parsing events. The current event state of the parser can be determined by the geteventType() method. Initially, the parser lies in the START_DOCUMENT state.

The following are the events seen by next():
  • START_TAG:
    an XML start tag was read.

  • Text:
    Text content was read. The text content was retrieved using the getText() method.

  • END_TAG:
    A tag was read.

  • END_DOCUMENT:
    No more events are available.
Step 1

Create an XML file and write this:
  1. <RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
  2.     xmlns:tools="http://schemas.android.com/tools"
  3.     android:layout_width="match_parent"
  4.     android:layout_height="match_parent"
  5.     android:paddingLeft="@dimen/activity_horizontal_margin"
  6.     android:paddingRight="@dimen/activity_horizontal_margin"
  7.     android:paddingTop="@dimen/activity_vertical_margin"
  8.     android:paddingBottom="@dimen/activity_vertical_margin"
  9.     tools:context=".MainActivity">
  10.     <ListView
  11.
  12.             android:id="@android:id/list"
  13.
  14.             android:layout_width="fill_parent"
  15.
  16.             android:layout_height="wrap_content"/>
  17.
  18. </RelativeLayout>
Step 2

Create a Java file MainActivity.java and write this:
  1. import android.app.ListActivity;
  2. import android.app.ProgressDialog;
  3. import android.content.Context;
  4. import android.os.AsyncTask;
  5. import android.os.Bundle;
  6. import android.util.Log;
  7. import android.view.Menu;
  8.
  9. import org.apache.http.HttpEntity;
  10. import org.apache.http.HttpResponse;
  11. import org.apache.http.client.ClientProtocolException;
  12. import org.apache.http.client.methods.HttpPost;
  13. import org.apache.http.impl.client.DefaultHttpClient;
  14. import org.apache.http.util.EntityUtils;
  15. import org.w3c.dom.Document;
  16. import org.w3c.dom.Element;
  17. import org.w3c.dom.NodeList;
  18. import org.xmlpull.v1.XmlPullParser;
  19. import org.xmlpull.v1.XmlPullParserException;
  20. import org.xmlpull.v1.XmlPullParserFactory;
  21.
  22. import java.io.IOException;
  23. import java.io.StringReader;
  24. import java.io.UnsupportedEncodingException;
  25.
  26. public class MainActivity extends ListActivity {
  27.
  28.     private static String BASE_URL = "http://maps.googleapis.com/maps/api/geocode/xml?address=NewDelhi&sensor=false";
  29.
  30.     @Override
  31.     protected void onCreate(Bundle savedInstanceState) {
  32.         super.onCreate(savedInstanceState);
  33.         setContentView(R.layout.activity_main);
  34.         (new ProgressTask(MainActivity.this)).execute();
  35.     }
  36. @Override
  37.     public boolean onCreateOptionsMenu(Menu menu) {
  38.         // Inflate the menu; this adds items to the action bar if it is present.
  39.         getMenuInflater().inflate(R.menu.main, menu);
  40.         return true;
  41.     }
  42.
  43.     public class ProgressTask extends AsyncTask<String, Void, Boolean> {
  44.
  45.         private ProgressDialog dialog;
  46.         private Context context;
  47.
  48.         public ProgressTask(ListActivity activity) {
  49.             Log.i("1""Called");
  50.             context = activity;
  51.
  52.             dialog = new ProgressDialog(context);
  53.         }
  54.         protected void onPreExecute() {
  55.             this.dialog.setMessage("Progress start");
  56.             this.dialog.show();
  57.         }
  58.         @Override
  59.         protected void onPostExecute(final Boolean success) {
  60.             if (dialog.isShowing()) {
  61.                 dialog.dismiss();
  62.             }
  63.        }
  64.          protected Boolean doInBackground(final String... args) {
  65.             String xml = getXmlFromUrl(BASE_URL);
  66.  //            useParserType1(xml);
  67.             useParserType2(xml);
  68.             return null;
  69.        }
  70.      }
  71.
  72.    //DOM Parser
  73.     public void useParserType1(String xml){
  74.         XmlParsingType1 parser = new XmlParsingType1();
  75.         Document doc = parser.getDomElement(xml); // getting DOM element
  76.
  77.         NodeList GeocodeResponse = doc.getElementsByTagName("location");
  78.
  79.         for (int i = 0; i < GeocodeResponse.getLength(); i++) {
  80.             Element e = (Element) GeocodeResponse.item(i);
  81.             Log.i("xml", parser.getValue(e,"lat"));
  82.             Log.i("xml", parser.getValue(e,"lng"));
  83.         }
  84.     }
  85.
  86.     //XmlPull Parser
  87.     public void useParserType2(String xml){
  88.         try{
  89.         Boolean flagLocation = false;
  90.         Boolean flagLatitude = false;
  91.         Boolean flagLongitude = false;
  92.         XmlPullParserFactory factory = XmlPullParserFactory.newInstance();
  93.         factory.setNamespaceAware(true);
  94.         XmlPullParser xpp = factory.newPullParser();
  95.
  96.         xpp.setInput(new StringReader(xml));
  97.         int eventType = xpp.getEventType();
  98.         while (eventType != XmlPullParser.END_DOCUMENT) {
  99.             if(eventType == XmlPullParser.START_DOCUMENT) {
  100.
  101.             } else if(eventType == XmlPullParser.END_DOCUMENT) {
  102.
  103.             } else if(eventType == XmlPullParser.START_TAG) {
  104.
  105.                 if (xpp.getName().equalsIgnoreCase("location")) flagLocation=true;
  106.                 if (flagLocation && xpp.getName().equalsIgnoreCase("lat")) flagLatitude=true;
  107.                 if (flagLocation && xpp.getName().equalsIgnoreCase("lng")) flagLongitude=true;
  108.
  109.             } else if(eventType == XmlPullParser.END_TAG) {
  110.
  111.                 if (xpp.getName().equalsIgnoreCase("location")) flagLocation=false;
  112.                 if (flagLocation && xpp.getName().equalsIgnoreCase("lat")) flagLatitude=false;
  113.                 if (flagLocation && xpp.getName().equalsIgnoreCase("lng")) flagLongitude=false;
  114.
  115.             } else if(eventType == XmlPullParser.TEXT) {
  116.
  117.
  118.                 if (flagLatitude)
  119.                     Log.i("Latitude: ", xpp.getText());
  120.                 if (flagLongitude)
  121.                     Log.i("Longitude: ", xpp.getText());
  122.             }
  123.             eventType = xpp.next();
  124.         }
  125.
  126.         }catch (XmlPullParserException e){
  127.             e.printStackTrace();
  128.         }catch (IOException e){
  129.             e.printStackTrace();
  130.         }
  131.     }
  132.     public String getXmlFromUrl(String url) {
  133.         String xml = null;
  134.
  135.         try {
  136.             // defaultHttpClient
  137.             DefaultHttpClient httpClient = new DefaultHttpClient();
  138.             HttpPost httpPost = new HttpPost(url);
  139.
  140.             HttpResponse httpResponse = httpClient.execute(httpPost);
  141.             HttpEntity httpEntity = httpResponse.getEntity();
  142.             xml = EntityUtils.toString(httpEntity);
  143.
  144.         } catch (UnsupportedEncodingException e) {
  145.             e.printStackTrace();
  146.         } catch (ClientProtocolException e) {
  147.             e.printStackTrace();
  148.         } catch (IOException e) {
  149.             e.printStackTrace();
  150.         }
  151.         // return XML
  152.         return xml;
  153.     }
  154.
Step 3

Create another Java class file XMLParser.java and write this:
  1. import android.util.Log;
  2. import org.w3c.dom.Document;
  3. import org.w3c.dom.Element;
  4. import org.w3c.dom.Node;
  5. import org.w3c.dom.NodeList;
  6. import org.xml.sax.InputSource;
  7. import org.xml.sax.SAXException;
  8. import java.io.IOException;
  9. import java.io.StringReader;
  10. import javax.xml.parsers.DocumentBuilder;
  11. import javax.xml.parsers.DocumentBuilderFactory;
  12. import javax.xml.parsers.ParserConfigurationException;
  13.
  14. /**
  15.  * Created by naveen on 19/06/13.
  16.  */
  17. public class XmlParsingType1 {
  18.
  19.     public Document getDomElement(String xml){
  20.         Document doc = null;
  21.         DocumentBuilderFactory dbf = DocumentBuilderFactory.newInstance();
  22.
  23.         try {
  24.
  25.             DocumentBuilder db = dbf.newDocumentBuilder();
  26.
  27.             InputSource is = new InputSource();
  28.             is.setCharacterStream(new StringReader(xml));
  29.             doc = db.parse(is);
  30.
  31.         } catch (ParserConfigurationException e) {
  32.             Log.e("Error: ", e.getMessage());
  33.             return null;
  34.         } catch (SAXException e) {
  35.             Log.e("Error: ", e.getMessage());
  36.             return null;
  37.         } catch (IOException e) {
  38.             Log.e("Error: ", e.getMessage());
  39.             return null;
  40.         }
  41.         // return DOM
  42.         return doc;
  43.     }
  44.
  45.     public String getValue(Element item, String str) {
  46.         NodeList n = item.getElementsByTagName(str);
  47.         return this.getElementValue(n.item(0));
  48.     }
  49.
  50.     public final String getElementValue( Node elem ) {
  51.         Node child;
  52.         if( elem != null){
  53.             if (elem.hasChildNodes()){
  54.                 for( child = elem.getFirstChild(); child != null; child = child.getNextSibling() ){
  55.                     if( child.getNodeType() == Node.TEXT_NODE  ){
  56.                         return child.getNodeValue();
  57.                     }
  58.                 }
  59.             }
  60.         }
  61.         return "";
  62.     }

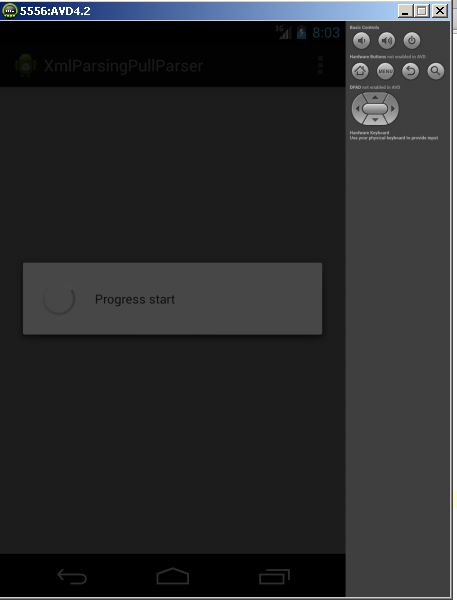

Output

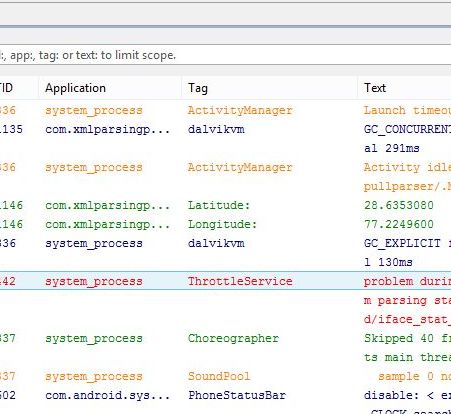

See Logcat
