Learn Table Layout in Android

Introduction


This article explains TableLayout in Android. Android Studio is used to create the sample application.
TableLayout arranges its children into row and column. The Table Layout consists of a TableRow object to arrange children in a row.

In this, you will first use a TableLayout in your XML file and use Textviews according to your needs. I took five TextViews in this example. First, you will use one TextView inside the first Table Row, three TextViews inside a second Table Row and one TextView inside a third TableRow object.

Step 1

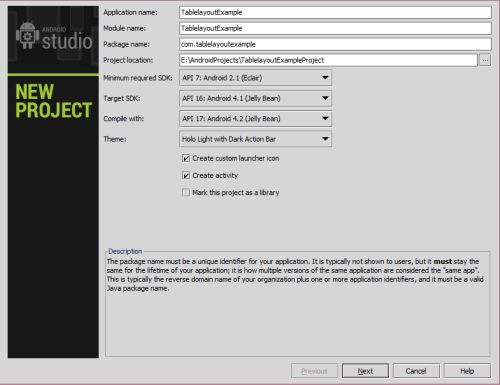

Create a project like this:


Step 2

In this, you will first use a TableLayout in your XML file and use Textviews according to your needs. I took five TextViews in this example. First, you will use one TextView inside the first Table Row, three TextViews inside a second Table Row and one TextView inside the third TableRow object.

Create an XML file and write this:
  1. <TableLayout
  2.         xmlns:android="http://schemas.android.com/apk/res/android"
  3.         android:layout_width="match_parent"
  4.         android:layout_height="match_parent"
  5.         android:shrinkColumns="*"
  6.         android:stretchColumns="*"
  7.         android:background="#faa">
  8.     <TableRow
  9.             android:layout_height="wrap_content"
  10.             android:layout_width="fill_parent"
  11.             android:gravity="center_horizontal">
  12.         <TextView
  13.                 android:layout_width="match_parent"
  14.                 android:layout_height="wrap_content"
  15.                 android:textSize="20dp"
  16.                 android:text="TextView1"
  17.                 android:layout_span="3"
  18.                 android:padding="16dip"
  19.                 android:background="#0ff"
  20.                 android:textColor="#000000"/>
  21.     </TableRow>
  22.
  23.     <TableRow
  24.             android:id="@+id/tableRow1"
  25.             android:layout_height="wrap_content"
  26.             android:layout_width="match_parent"
  27.             >
  28.         <TextView
  29.                 android:id="@+id/TextView02"
  30.                 android:text="TextView2"
  31.                 android:layout_weight="1"
  32.                 android:background="#0df"
  33.                 android:textColor="#000000"
  34.                 android:padding="28dip"
  35.                 android:gravity="center"/>
  36.         <TextView
  37.                 android:id="@+id/TextView04"
  38.                 android:text="textView3"
  39.                 android:layout_weight="1"
  40.                 android:background="#dff"
  41.                 android:textColor="#000000"
  42.                 android:padding="28dip"
  43.                 android:gravity="center"/>
  44.         <TextView
  45.                 android:id="@+id/TextView4"
  46.                 android:text="TextView4"
  47.                 android:layout_weight="1"
  48.                 android:background="#faa"
  49.                 android:textColor="#000000"
  50.                 android:padding="27dip"
  51.                 android:gravity="center"/>
  52.     </TableRow>
  53.
  54.     <TableRow
  55.             android:layout_height="wrap_content"
  56.             android:layout_width="fill_parent"
  57.             android:gravity="center_horizontal">
  58.         <TextView
  59.                 android:id="@+id/TextView05"
  60.                 android:text="Textview5"
  61.                 android:layout_weight="1"
  62.                 android:background="#d0d0ff"
  63.                 android:textColor="#000000"
  64.                 android:padding="20dip"
  65.                 android:gravity="center"/>
  66.
  67.         <TextView
  68.                 android:id="@+id/TextView04"
  69.                 android:text="Row 3 column 2"
  70.                 android:layout_weight="1"
  71.                 android:background="#fdadbe"
  72.                 android:textColor="#000000"
  73.                 android:padding="20dip"
  74.                 android:gravity="center"/>
  75.     </TableRow>
  76.
  77. </TableLayout>
  78. <TableLayout
  79.         xmlns:android="http://schemas.android.com/apk/res/android"
  80.         android:layout_width="match_parent"
  81.         android:layout_height="match_parent"
  82.         android:shrinkColumns="*"
  83.         android:stretchColumns="*"
  84.         android:background="#faa">
  85.     <TableRow
  86.             android:layout_height="wrap_content"
  87.             android:layout_width="fill_parent"
  88.             android:gravity="center_horizontal">
  89.         <TextView
  90.                 android:layout_width="match_parent"
  91.                 android:layout_height="wrap_content"
  92.                 android:textSize="20dp"
  93.                 android:text="TextView1"
  94.                 android:layout_span="3"
  95.                 android:padding="16dip"
  96.                 android:background="#0ff"
  97.                 android:textColor="#000000"/>
  98.     </TableRow>
  99.
  100.     <TableRow
  101.             android:id="@+id/tableRow1"
  102.             android:layout_height="wrap_content"
  103.             android:layout_width="match_parent"
  104.             >
  105.         <TextView
  106.                 android:id="@+id/TextView02"
  107.                 android:text="TextView2"
  108.                 android:layout_weight="1"
  109.                 android:background="#0df"
  110.                 android:textColor="#000000"
  111.                 android:padding="28dip"
  112.                 android:gravity="center"/>
  113.         <TextView
  114.                 android:id="@+id/TextView04"
  115.                 android:text="textView3"
  116.                 android:layout_weight="1"
  117.                 android:background="#dff"
  118.                 android:textColor="#000000"
  119.                 android:padding="28dip"
  120.                 android:gravity="center"/>
  121.         <TextView
  122.                 android:id="@+id/TextView4"
  123.                 android:text="TextView4"
  124.                 android:layout_weight="1"
  125.                 android:background="#faa"
  126.                 android:textColor="#000000"
  127.                 android:padding="27dip"
  128.                 android:gravity="center"/>
  129.     </TableRow>
  130.
  131.     <TableRow
  132.             android:layout_height="wrap_content"
  133.             android:layout_width="fill_parent"
  134.             android:gravity="center_horizontal">
  135.         <TextView
  136.                 android:id="@+id/TextView05"
  137.                 android:text="Textview5"
  138.                 android:layout_weight="1"
  139.                 android:background="#d0d0ff"
  140.                 android:textColor="#000000"
  141.                 android:padding="20dip"
  142.                 android:gravity="center"/>
  143.
  144.         <TextView
  145.                 android:id="@+id/TextView04"
  146.                 android:text="Row 3 column 2"
  147.                 android:layout_weight="1"
  148.                 android:background="#fdadbe"
  149.                 android:textColor="#000000"
  150.                 android:padding="20dip"
  151.                 android:gravity="center"/>
  152.     </TableRow>
  153.
  154. </TableLayout>
Step 3

Create a Java file and write this:
  1. package com.tablayoutexample;
  2. import android.os.Bundle;
  3. import android.app.Activity;
  4. import android.view.Menu;
  5.
  6. public class MainActivit extends Activity {
  7.
  8.     @Override
  9.     protected void onCreate(Bundle savedInstanceState) {
  10.         super.onCreate(savedInstanceState);
  11.         setContentView(R.layout.activity_main);
  12.     }
  13.
  14.     @Override
  15.     public boolean onCreateOptionsMenu(Menu menu) {
  16.         // Inflate the menu; this adds items to the action bar if it is present.
  17.         getMenuInflater().inflate(R.menu.main, menu);
  18.         return true;
  19.     }
  20.
  21. }
Step 4

Android Manifest.xml file
  1. <?xml version="1.0" encoding="utf-8"?>
  2. <manifest xmlns:android="http://schemas.android.com/apk/res/android"
  3.     package="com.tablayoutexample"
  4.     android:versionCode="1"
  5.     android:versionName="1.0" >
  6.
  7.     <uses-sdk
  8.         android:minSdkVersion="7"
  9.         android:targetSdkVersion="16" />
  10.
  11.     <application
  12.         android:allowBackup="true"
  13.         android:icon="@drawable/ic_launcher"
  14.         android:label="@string/app_name"
  15.         android:theme="@style/AppTheme" >
  16.         <activity
  17.             android:name="com.tablayoutexample.MainActivit"
  18.             android:label="@string/app_name" >
  19.             <intent-filter>
  20.                 <action android:name="android.intent.action.MAIN" />
  21.
  22.                 <category android:name="android.intent.category.LAUNCHER" />
  23.             </intent-filter>
  24.         </activity>
  25.     </application>
  26.
  27. </manifest>
Step 5
