Add Ribbon Control In Outlook 2013 Using Outlook 2013 Add-in In Visual Studio

Here I am describing how to add ribbon control inside Outlook mail.

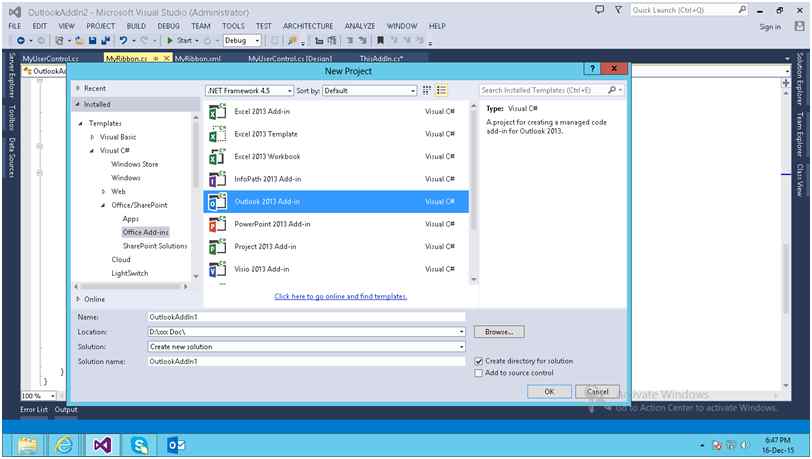

Step 1: Open Visual Studio 2013 and then click on Office Add-ins. After that click Outlook 2013 Add-in.

Outlook 2013 Add-in

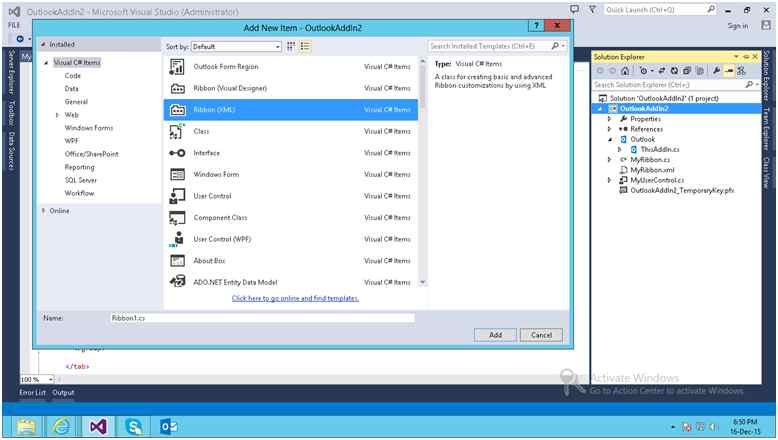

Step 2: Go to solution explorer and right click then add new items and new ribbon (XML).

ribbon

Step 3: Then write the same code inside XML file.

  1. <ribbon>
  2.     <tabs>
  3.         <tab id="TabAddIns" label="My Ribbon">
  4.             <group id="Group1" label="Ribbon Options">
  5.                 <button id="btnSettings" onAction="btnSettings_Click" imageMso="AdministrationHome" label="Settings" size="normal" />
  6.                 <button id="btnHelp" onAction="btnHelp_Click" imageMso="Help" label="Get Help and Support" size="normal" /> </group>
  7.             <group id="Group2">
  8.                 <button id="BtnMy" imageMso="HappyFace" onAction="BtnMy_Click" label="My Button" size="large" /> </group>
  9.         </tab>
  10.         <tab id="TabAddIns1" label="My Ribbon1">
  11.             <group id="Group11" label="Ribbon Options1">
  12.                 <button id="btnSettings1" onAction="btnSettings_Click" imageMso="AdministrationHome" label="Settings" size="normal" />
  13.                 <button id="btnHelp1" onAction="btnHelp_Click" imageMso="Help" label="Get Help and Support" size="normal" /> </group>
  14.         </tab>
  15.     </tabs>
  16. </ribbon>
Step 4: Then go to ribbon.cs file and write the same code.
  1. using System;
  2. using System.Collections.Generic;
  3. using System.IO;
  4. using System.Linq;
  5. using System.Reflection;
  6. using System.Runtime.InteropServices;
  7. using System.Text;
  8. using System.Windows.Forms;
  9. using Office = Microsoft.Office.Core;
  10. // TODO: Follow these steps to enable the Ribbon (XML) item:
  11. // 1: Copy the following code block into the ThisAddin, ThisWorkbook, or ThisDocument class.
  12. // protected override Microsoft.Office.Core.IRibbonExtensibility CreateRibbonExtensibilityObject()
  13. // {
  14. // return new MyRibbon();
  15. // }
  16. // 2. Create callback methods in the "Ribbon Callbacks" region of this class to handle user
  17. // actions, such as clicking a button. Note: if you have exported this Ribbon from the Ribbon designer,
  18. // move your code from the event handlers to the callback methods and modify the code to work with the
  19. // Ribbon extensibility (RibbonX) programming model.
  20. // 3. Assign attributes to the control tags in the Ribbon XML file to identify the appropriate callback methods in your code.
  21. // For more information, see the Ribbon XML documentation in the Visual Studio Tools for Office Help.
  22. namespace OutlookAddIn2
  23. {
  24.     [ComVisible(true)]
  25.     public class MyRibbon: Office.IRibbonExtensibility
  26.     {
  27.         private Office.IRibbonUI ribbon;
  28.         public MyRibbon()
  29.         {}
  30.         public void btnSettings_Click(Office.IRibbonControl control)
  31.         {
  32.             MessageBox.Show("Settings ");
  33.         }
  34.         public void BtnMy_Click(Office.IRibbonControl control)
  35.         {
  36.             MessageBox.Show("MyButton ");
  37.         }
  38.         public void btnHelp_Click(Office.IRibbonControl control)
  39.         {
  40.             MessageBox.Show("Help ");
  41.         }#region IRibbonExtensibility Members
  42.         public string GetCustomUI(string ribbonID)
  43.         {
  44.             return GetResourceText("OutlookAddIn2.MyRibbon.xml");
  45.         }#endregion# region Ribbon Callbacks
  46.         //Create callback methods here. For more information about adding callback methods, visit http://go.microsoft.com/fwlink/?LinkID=271226
  47.         public void Ribbon_Load(Office.IRibbonUI ribbonUI)
  48.         {
  49.             this.ribbon = ribbonUI;
  50.         }#endregion# region Helpers
  51.         private static string GetResourceText(string resourceName)
  52.         {
  53.             Assembly asm = Assembly.GetExecutingAssembly();
  54.             string[] resourceNames = asm.GetManifestResourceNames();
  55.             for (int i = 0; i < resourceNames.Length; ++i)
  56.             {
  57.                 if (string.Compare(resourceName, resourceNames[i], StringComparison.OrdinalIgnoreCase) == 0)
  58.                 {
  59.                     using(StreamReader resourceReader = new StreamReader(asm.GetManifestResourceStream(resourceNames[i])))
  60.                     {
  61.                         if (resourceReader != null)
  62.                         {
  63.                             return resourceReader.ReadToEnd();
  64.                         }
  65.                     }
  66.                 }
  67.             }
  68.             return null;
  69.         }#endregion
  70.     }
  71. }
Step 5: Then build it and run the application.

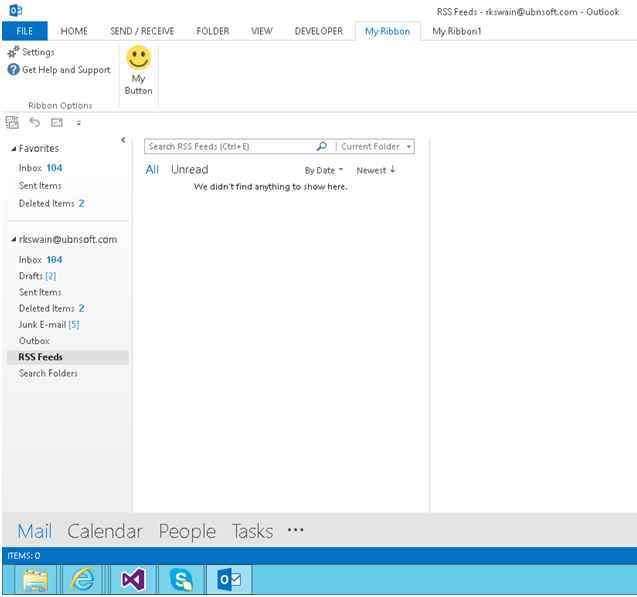

After that all custom ribbon will be shown on top of the outlook mailbox.

custom ribbon

Here I have described each line of the code plus posted all screenshots.

Please go through that and develop on your own.
