Table in LightSwitch 2012

Table In LightSwitch

A table is data arranged in rows and columns.

Here we will see how to create a table in LightSwitch using Visual Studio 2012.

The following is the procedure for creating a table in LightSwitch.

Step 1

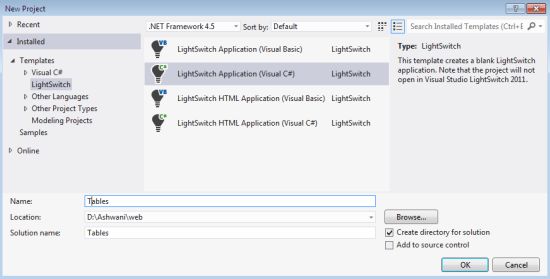

Open the LightSwitch in Visual Studio and create a new project "Table" and click "OK".

new project.jpg

Step 2

The New Project designer page appears.

Step 3

There are two ways by which we can create a new table.

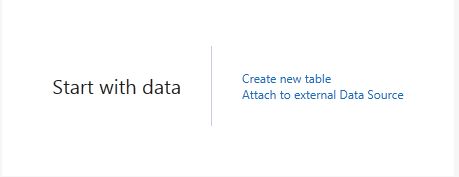

1. Click on "Create New Table" in the new project.

new table.jpg

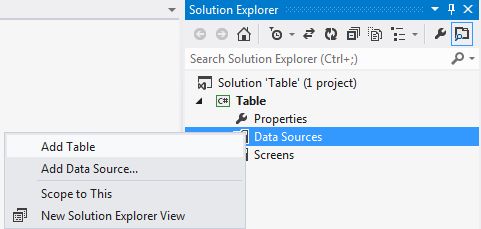

2. We can also create a new table by right-clicking on Data Source in the Solution Explorer and choose "Add Table".

add table.jpg

Step 4

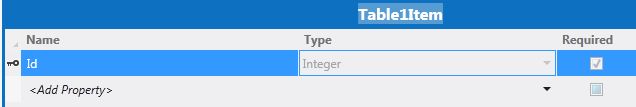

The Table Designer or Data Designer appears.

empty table.jpg

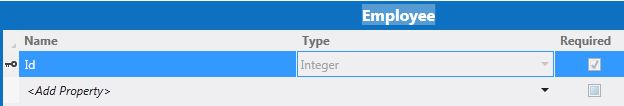

Provide a name for the table and press the "Enter" key.

Employee empty.jpg

Step 5

After pressing Enter we will see Table Name in the Solution Explorer under Application Data in the Data Source.

aol exp new.jpg

Note that Application Data represents an intrinsic database created in LightSwitch whereas Employee refers to the table in the database.

Step 6

In the table, the Id property is created by default that cannot be modified. Id is created as primary key by default. It should be unique, always required and of Integer type.

Employee empty.jpg

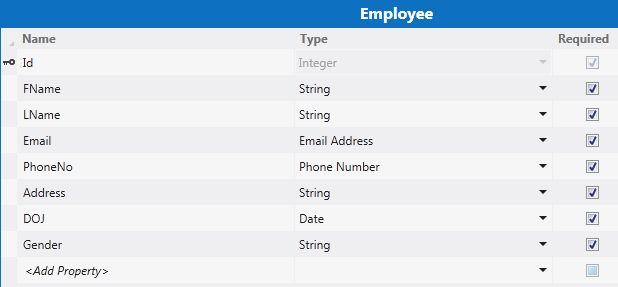

Now we provide the following fields for the table and the table will look like this:

Employee table.jpg

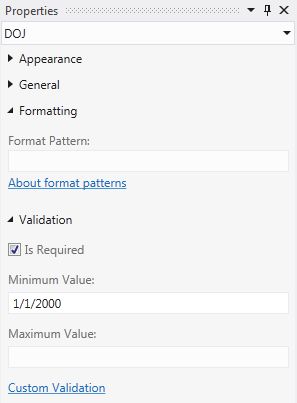

For the DOJ Field we set the minimum value for the date field.


In order to display the value to the person you can use a Choice List.

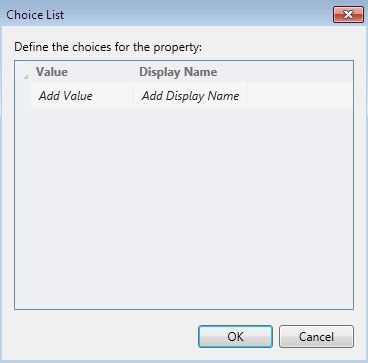

Click on the "Choice list" button in the property window. This will open a Choice List dialog box.

choice list.jpg

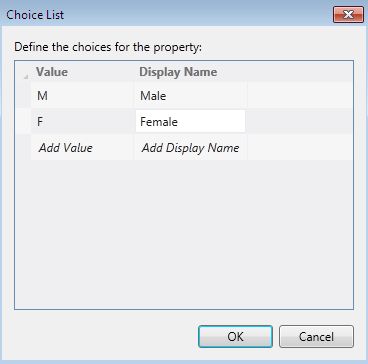

Define the Various types of choices.

c list.jpg

After clicking "OK" we will see:

choice appear.jpg
