Setting Permission For a Command Using LightSwitch in Visual Studio 2012

Introduction

This article describes how to create a permission and write code to set permissions for the command using LightSwitch in Visual Studio 2012.

Here, we will learned how to define a permission for our application. The permission can be assigned to a user or a group of users.

Permission in LightSwitch for Commands

1. Creating a permission in LightSwitch

Step 1

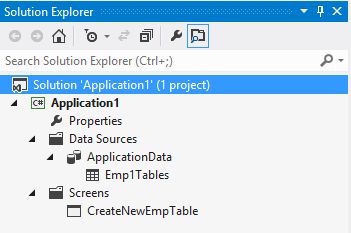

Open the Solution Explorer in LightSwitch Visual Studio 2012.

Image 1


Step 2

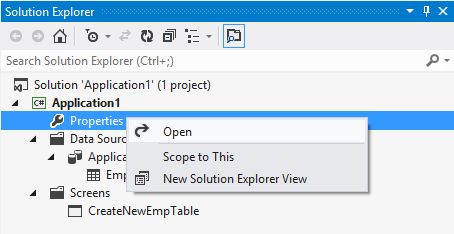

In the Solution Explorer double-click or right-click and select "Properties".

Image 2


Step 3

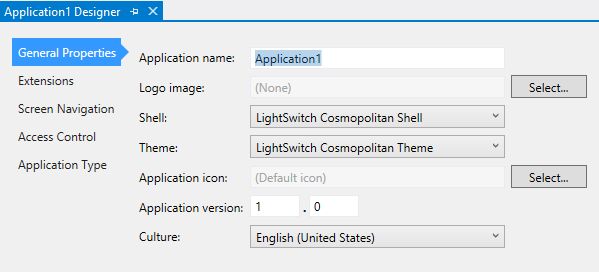

The Application Designer will appear.

Image 3


Step 4

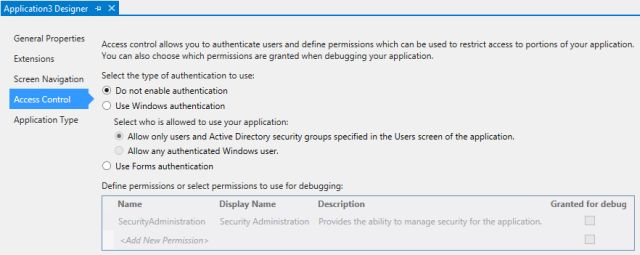

Choose the "Access control" option in the application designer.

Image 4


Step 5

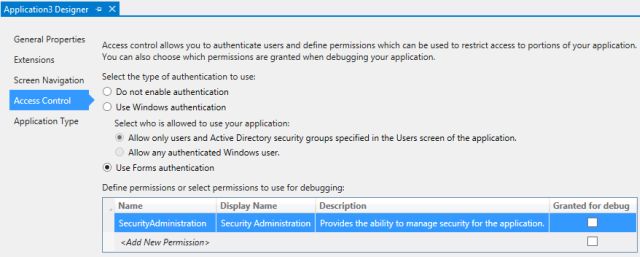

Select the type of authentication to use and in this "Use form authentication".

Image 5


Step 6

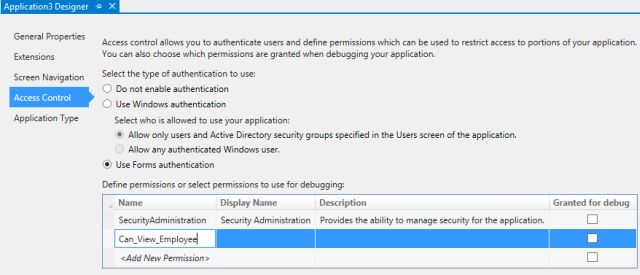

In the "Define permissions or select permissions to use for debugging" node click on "<Add New Permission>" and then type "Can_View_Employee" under "Name".

Image 6


Step 7

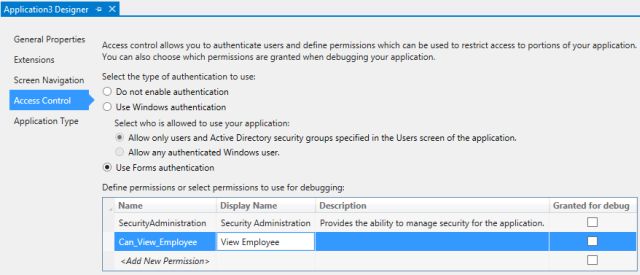

Similarily, under the "Display Name" column type "View Employee".

Image 7


Step 8

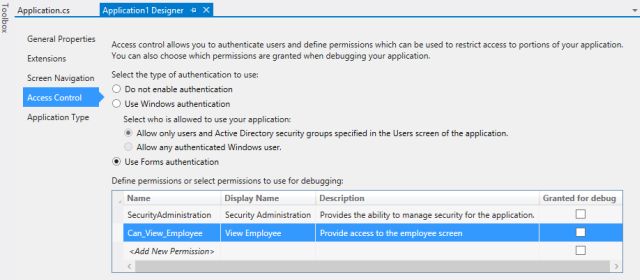

And in the same manner under the "Description column" type "Provide access to the employee screen".

Image 8

no permission.jpg

2. Writing code to set permissions for the command

Step 1

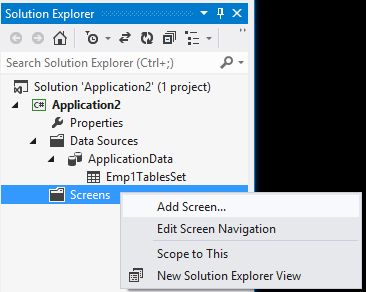

In the Solution Explorer we will "Add Screen".

Image 1


Step 2

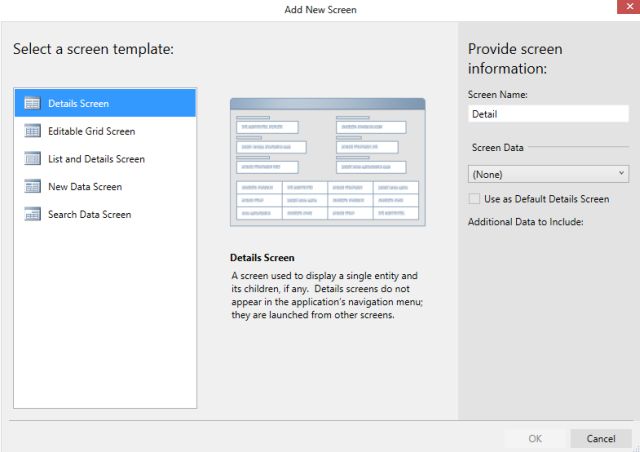

"Add New Screen" will appear.

Image 2


Step 3

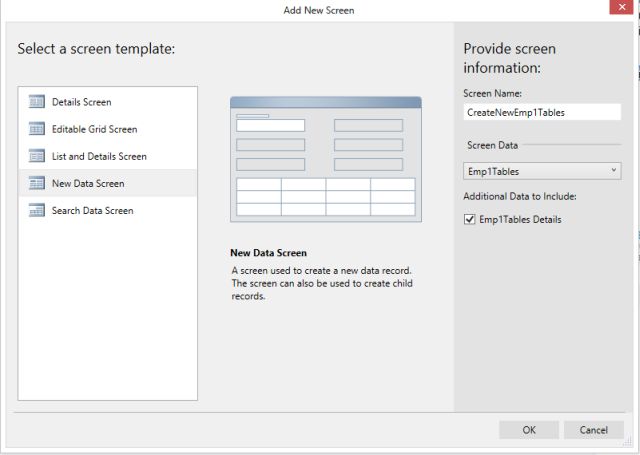

Now we will select a screen template as "New Data Screen" and in the screen data we will select "Emp1Tables" and click "OK".

Image 3

new screen.jpg

Step 4

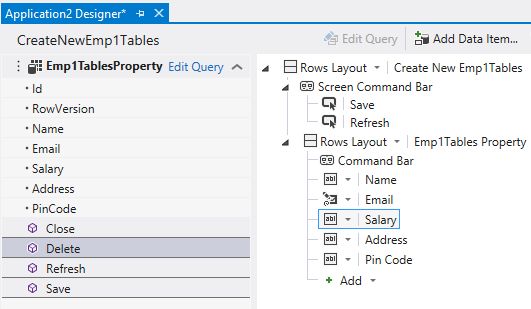

The Screen Designer will appear for the "Screen".

Image 4


Step 5

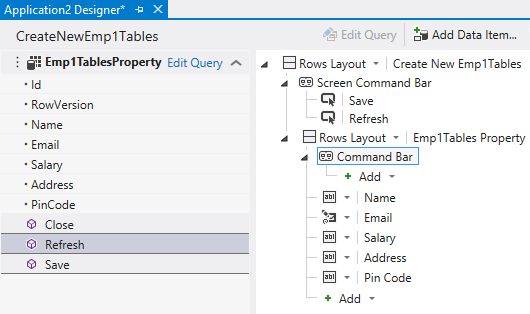

In the Screen Designer, expand "Command Bar". We will have an "Add" option under the Command Bar.

Image 5


Step 6

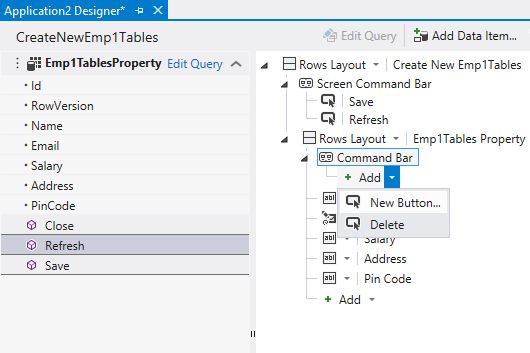

Click on the Add option to will see a drop down list consisting of an Add Button and Delete option.

Image 6


Step 7

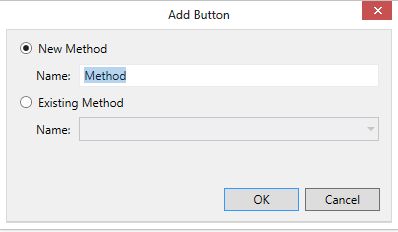

Click on "New Button" option, a Dialog Box will appear.

Image 7

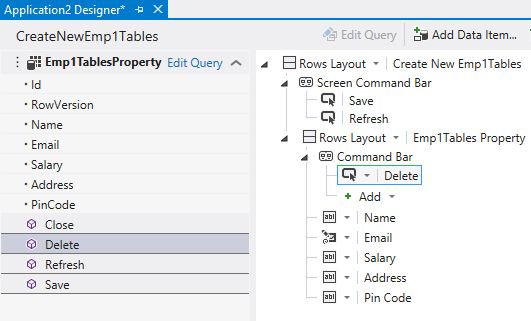

Step 8

Write the Name in "New Method" and click "OK." Here I have used "Delete" as Name.

Image 8


Step 9

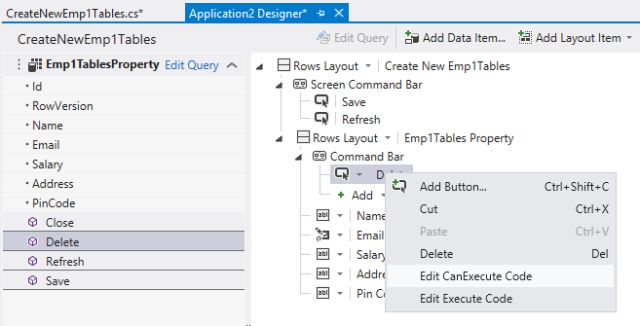

Right-click on the ButtonName (Delete) and then choose "ButtonName_CanExecute", where ButtonName is the name of the command.

Image 9


Step 10

In the "Delete_CanExecute" method write the code that you want to enter, as in the following:

using System;

using System.Linq;

using System.IO;

using System.IO.IsolatedStorage;

using System.Collections.Generic;

using Microsoft.LightSwitch;

using Microsoft.LightSwitch.Framework.Client;

using Microsoft.LightSwitch.Presentation;

using Microsoft.LightSwitch.Presentation.Extensions;



namespace LightSwitchApplication

{

    public partial class CreateNewEmp1Tables

    {

        partial void CreateNewEmp1Tables_InitializeDataWorkspace(global::System.Collections.Generic.List<global::Microsoft.LightSwitch.IDataService> saveChangesTo)

        {

            // Write your code here.

            this.Emp1TablesProperty = new Emp1Tables();

        }



        partial void CreateNewEmp1Tables_Saved()

        {

            // Write your code here.

            this.Close(false);

            Application.Current.ShowDefaultScreen(this.Emp1TablesProperty);

        }



        partial void Delete_CanExecute(ref bool result)

        {

            // Write your code here.



        }

    }

}
