Publishing an Application in LightSwitch Visual Studio 2012

Introduction

In this article I tell you how to publish an application using LightSwitch Visual Studio 2012.

Publishing an application in LightSwitch Visual Studio 2012

Step 1

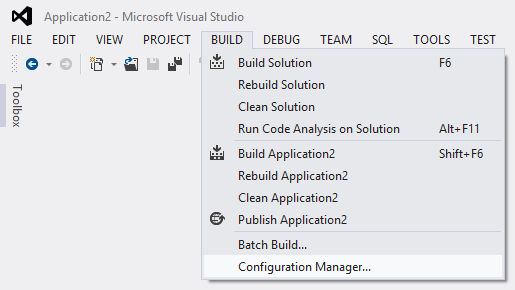

Open the "Build" menu in LightSwitch Visual Studio and choose "Configuration Manager".

Image 1

Step 2

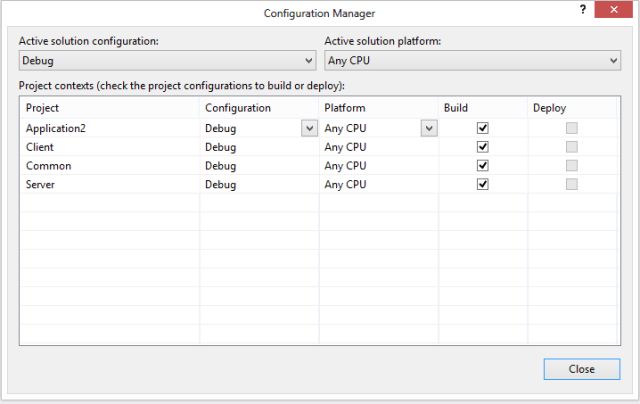

The Configuration Manager dialog box will appear.

Image 2

Step 3

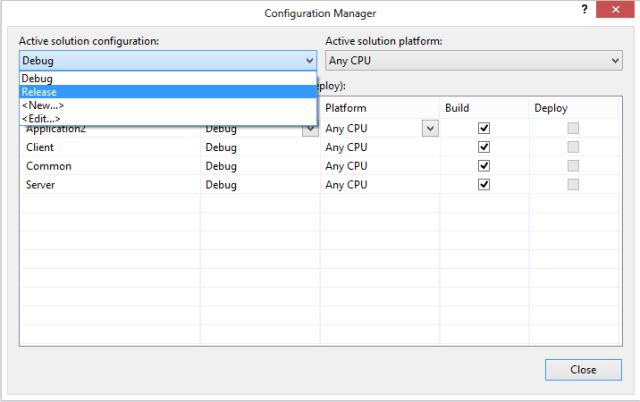

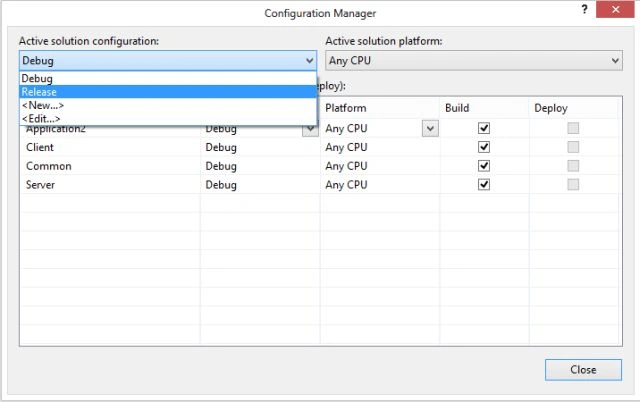

In the Configuration Manager dialog box,  choose "Active Solution Configuration" list, in that choose "Release".

Image 3

Step 4

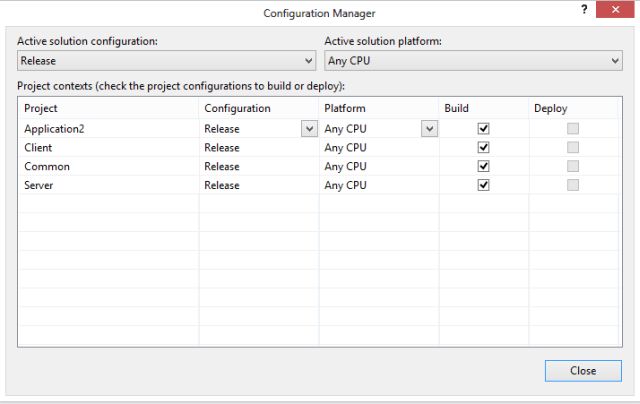

After choosing the Release option the  entire Configuration column contains Release and after that click the "Close" button.

Image 4

This step helps to prevent debugging from being distributed with our application.

Step 5

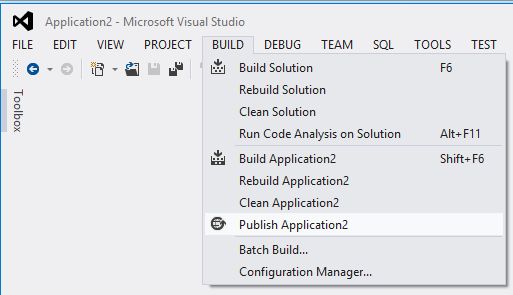

On the "Build" menu choose "Publish ApplicationName" (Publish Application2).

Image 5

Step 6

Now the LightSwitch Publish Application Wizard appears.

Image 6

Step 7

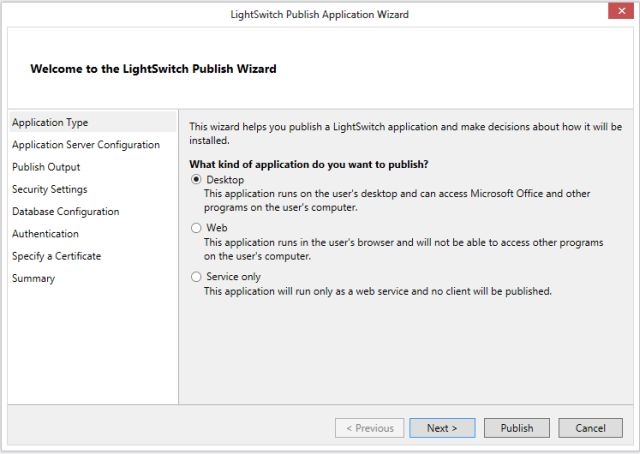

On the "Welcome to the LightSwitch Publish Wizard" page, choose Desktop, and then choose "Next".

Image 7

Step 8

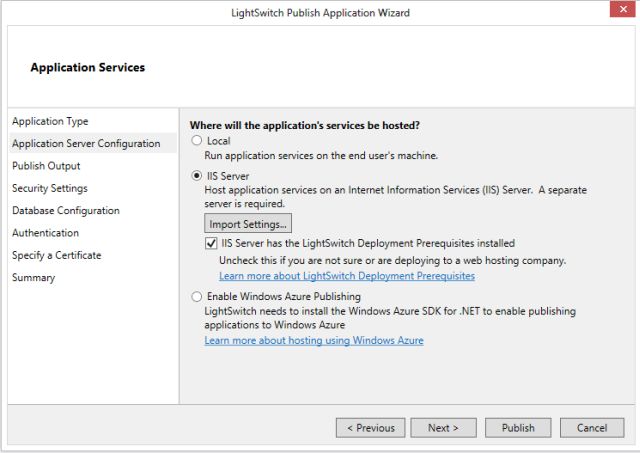

The "Application Services" page appears.

Image 8

Step 9

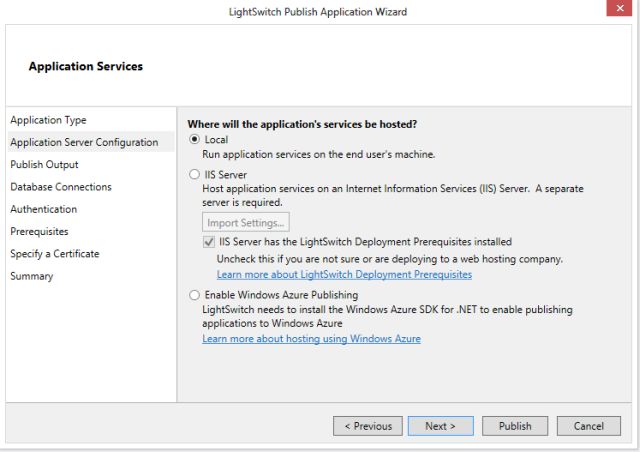

In the "Where will the application services be hosted" option, choose "Local" and then choose "Next".

Image 9

Step 10

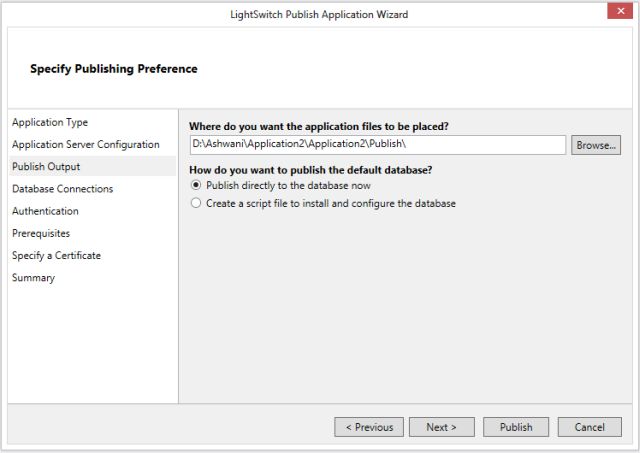

On the "Specify Publishing Preference Page" in the "Where do you want the application files to be placed?" select the default location (D:\Ashwani\Application2\Application2\Publish\).

This will publish the application to a Publish subdirectory in our project directory.

Image 10

Step 11

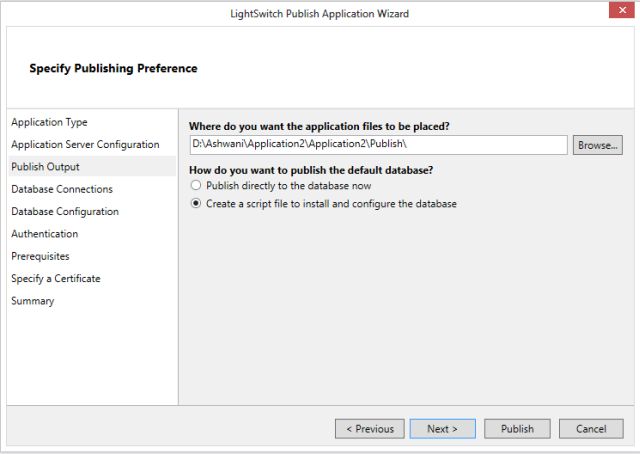

In the "How do you want to publish the default database?" option, choose "Create a script file to install and configure the database" and then choose "Next".

Image 11

Step 12

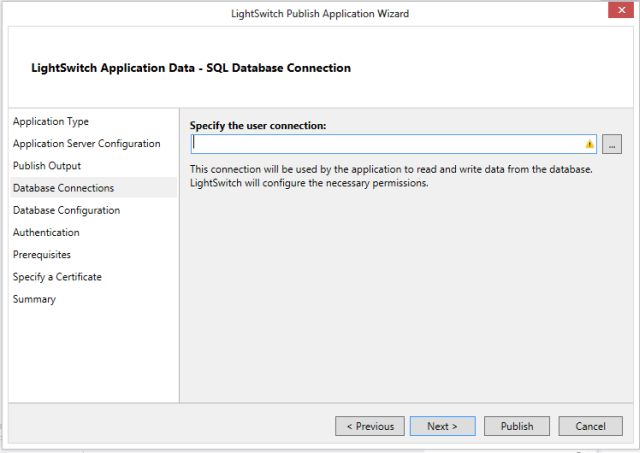

The "LightSwitch Application Data – SQL Database Connection" page appears.

Image 13

Step 14

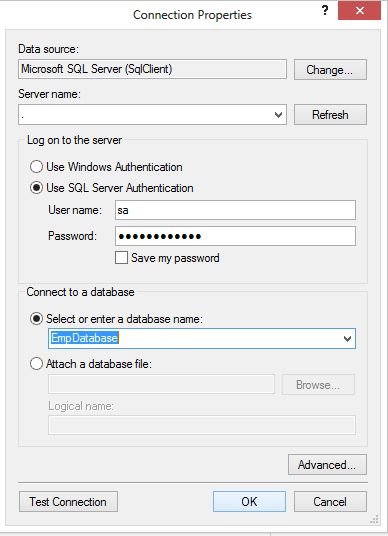

For accepting the Connection String, go to the connection properties then after submitting all the details click the "OK" button.

Image 14

Step 15

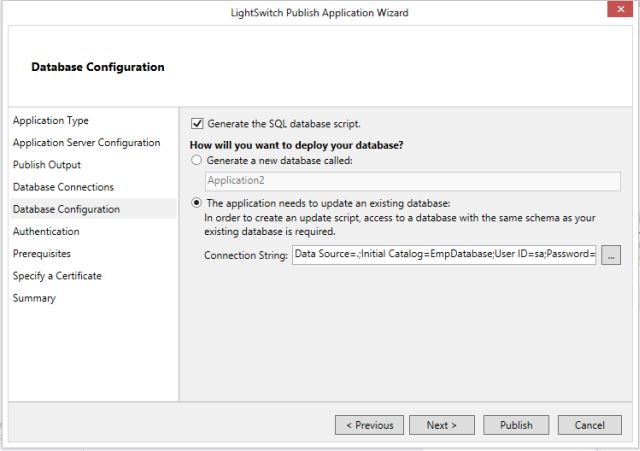

On the "Database Configuration" page, accept the default settings, and then click "Next".

Image 15

Step 16

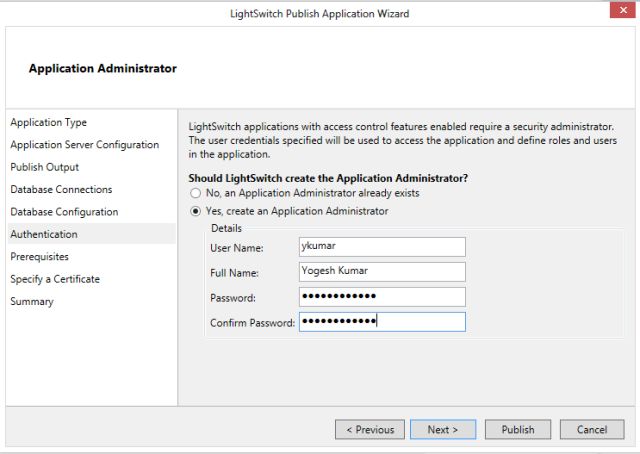

On the "Application Administrator" page, in the "Should LightSwitch create the Application Administrator" section, choose "Yes, create an Application Administrator" and type your Windows user name, and then choose "Next".

Image 16

Step 17

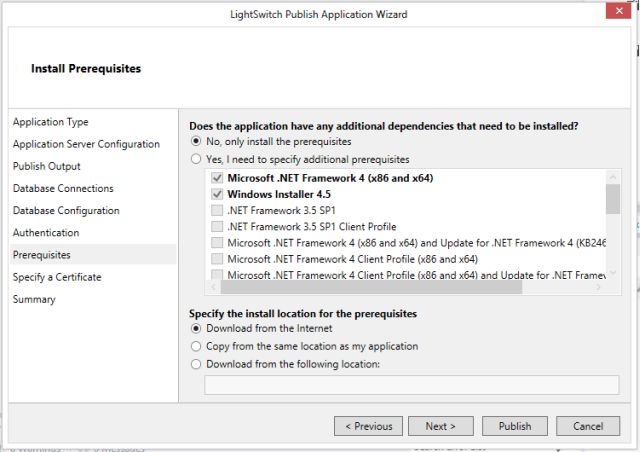

On the "Install Prerequisites" page, accept the default settings, and then click "Next".

Image 17

Step 18

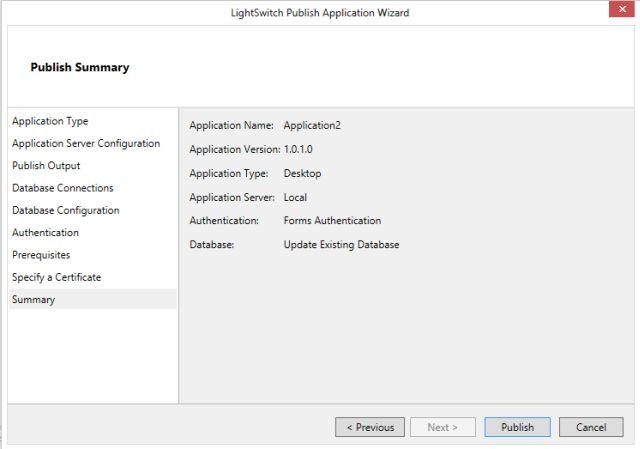

For the remaining pages accept the default settings and click "OK".

Image 18

Step 19

Choose the "Publish" command; we will see our application become published successfully.
