How to Modify and Delete a Relationship in LightSwitch Visual Studio 2012

How to Modify the Existing Relationship

In my previous article I described how to add a relationship between two tables in the LightSwitch internal database (http://tempuri.org/tempuri.html).

Now in this article I use the data designer in LightSwitch to modify or delete a relationship.

Use the following procedure to modify the exising relationship.

Step 1

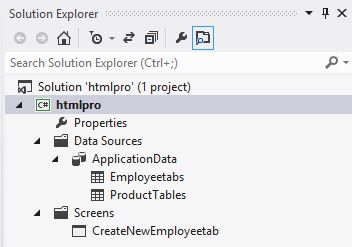

Open the Solution Explorer.

Image 1

relation solex.jpg

Step 2

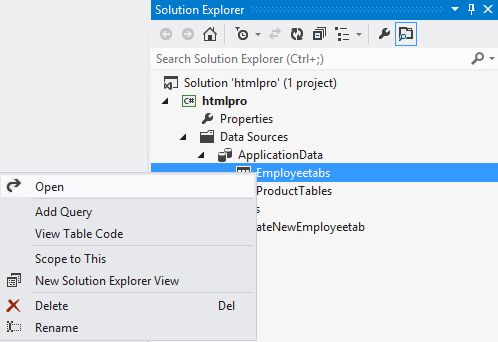

In the Solution Explorer, open one of the tables that we are using in the relationship, and then choose "Open".

Image 2


Step 3

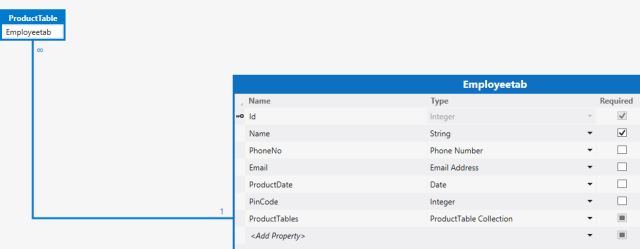

In the Data Designer, a relationship between the two tables appears.

Image 3


Step 4

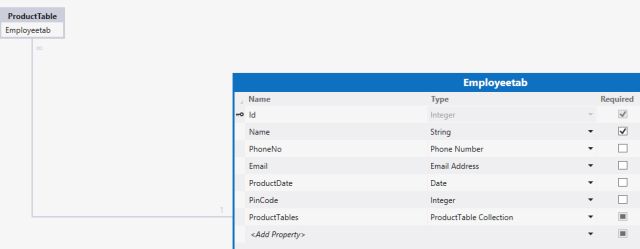

Choose the navigation property that represents the relationship to another table.

Image 4


Step 5

The Property Window appears.

Image 5


Step 6

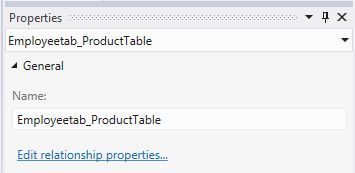

In the Property Window choose the Edit Relationship Property link.

Image 6


Step 7

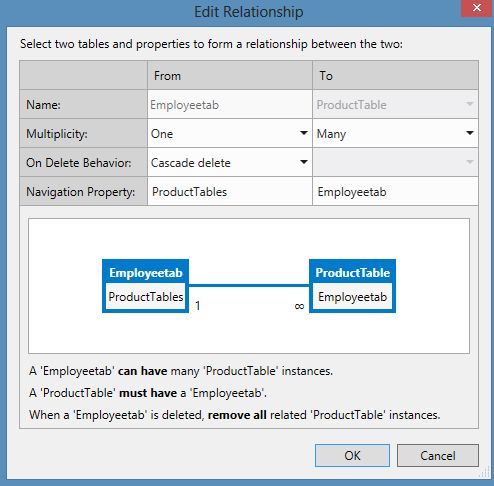

The Edit Relationship dialog box appears.

Image 7


Step 8

Now you can edit the relationship between the two tables and click "OK".

Deleting a Relationship

Step 1

Open the Solution Explorer.

Image 1

relation solex.jpg

Step 2

In Solution Explorer, open one of the tables that we are using in the relationship, and then choose "Open".

Image 2


Step 3

In the Data Designer, the relationship between the two tables appears.

Image 3


Step 4

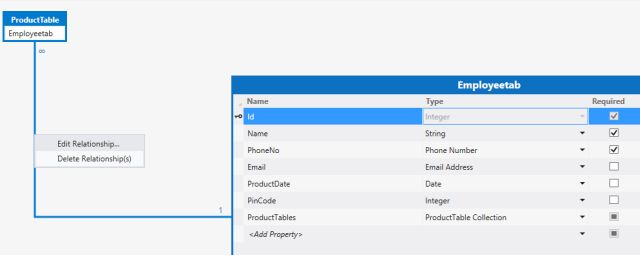

In the Data Designer, right-click on the connecting line that represents the relationship to another table.

Image 4


Step 5

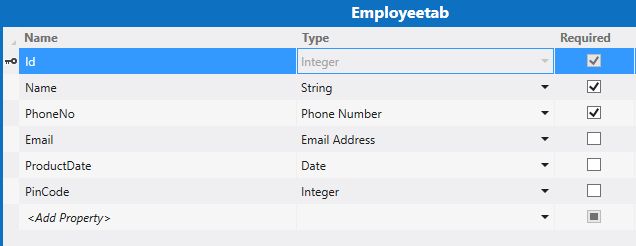

Choose "Delete Relationship" and we have the following output:

Image 5
