Difference Between Programmer Created Detail Screen and LightSwitch Generated Detail Screen

This article explains how a Detail Screen is created by a programmer as well as how a Detail Screen is generated in a LightSwitch Application (Visual C#) in Visual Studio 2012.

The following is the procedure for a programmer to create a LightSwitch Detail Screen.

Step 1

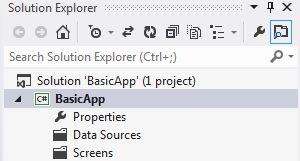

Open the Solution Explorer.



Step 2

In the Solution Explorer, right-click on the Server and choose "Add Table" option.



Step 3

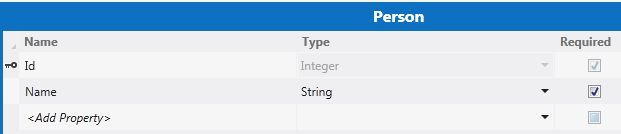

The Person Table appears.



Step 4

In the Solution Explorer, right-click on the Screens and choose "Add Screen".



Step 5

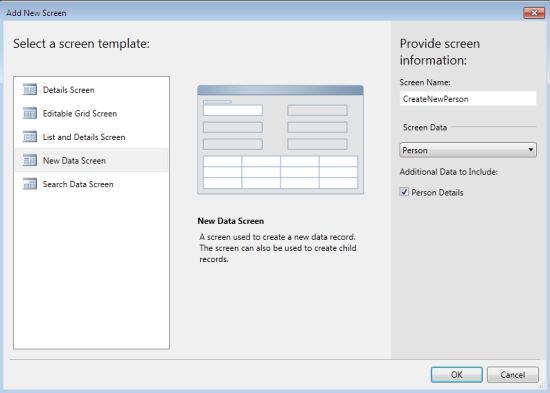

The Add New Screen dialog box appears. Select the "New Data Screen" from the Screen Template, under screen information, choose "Person" under screen data and provide a name to the Screen, and click the "OK" button.



The Screen Designer appears for the New Data Screen.



Step 6

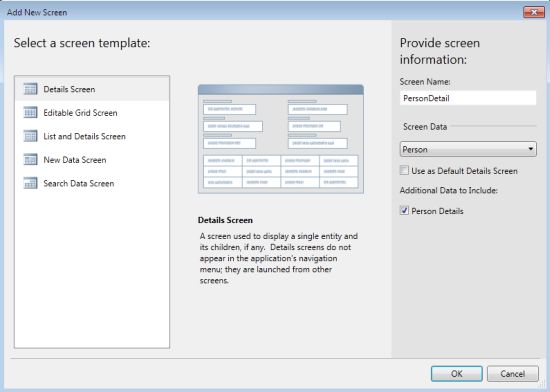

Add another screen. This time we will add a Detail Screen for the Person Table. Remember to uncheck the checkbox "Use as Default Detail Screen" when we add a Detail Screen.



The Screen Designer appears for the Details Screen.



Step 7

Open the Screen Designer for the New Data Screen and go to the menu bar and choose the "Write Code" drop down list item and then choose the "_Saved()" method.



The code designer appears. In this we need not change anything, the code will be added automatically.

using System;

using System.Linq;

using System.IO;

using System.IO.IsolatedStorage;

using System.Collections.Generic;

using Microsoft.LightSwitch;

using Microsoft.LightSwitch.Framework.Client;

using Microsoft.LightSwitch.Presentation;

using Microsoft.LightSwitch.Presentation.Extensions;



namespace LightSwitchApplication

{

    public partial class CreateNewPerson

    {

        partial void CreateNewPerson_InitializeDataWorkspace(global::System.Collections.Generic.List<global::Microsoft.LightSwitch.IDataService> saveChangesTo)

        {

            // Write your code here.

            this.PersonProperty = new Person();

        }



        partial void CreateNewPerson_Saved()

        {

            // Write your code here.

            this.Close(false);

            Application.Current.ShowDefaultScreen(this.PersonProperty);

        }

    }

}

Step 8

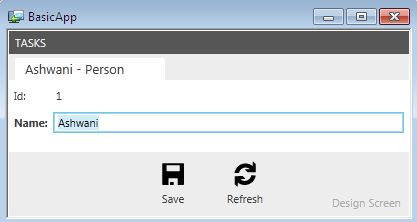

Press F5 to run the application.



Step 9

Now make some changes in the code as in the following:

using System;

using System.Linq;

using System.IO;

using System.IO.IsolatedStorage;

using System.Collections.Generic;

using Microsoft.LightSwitch;

using Microsoft.LightSwitch.Framework.Client;

using Microsoft.LightSwitch.Presentation;

using Microsoft.LightSwitch.Presentation.Extensions;



namespace LightSwitchApplication

{

    public partial class CreateNewPerson

    {

        partial void CreateNewPerson_InitializeDataWorkspace(global::System.Collections.Generic.List<global::Microsoft.LightSwitch.IDataService> saveChangesTo)

        {

            // Write your code here.

            this.PersonProperty = new Person();

        }



        partial void CreateNewPerson_Saved()

        {

            // Write your code here.

            this.Close(false);

            Application.Current.ShowPersonDetail(this.PersonProperty.Id);

        }

    }

}



Step 10

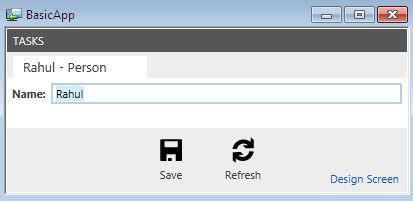

Now once again, press F5 to run the application.
