Adding Images in LightSwitch Using Visual Studio 2012

Adding Images in LightSwitch Using Visual Studio 2012

This article describes how to add images in LightSwitch using VisualStudio 2012.

Procedure for adding an image in LightSwitch 2012

Step 1

To begin our work with LightSwitch 2012 we will perform the following steps:

  • Open the Visual Studio 2012.
  • Go to "File" => "New" => "Project..."
  • In "New Project" => "Installed" => "Template"
  • In "Template" => "LightSwitch"
  • Select "LightSwitch Application (Visual C#)".
  • Enter the Name and choose the location.
  • Click "OK".

new pro.jpg

Step 2

Open the Solution Explorer.

sol explo.jpg

Step 3

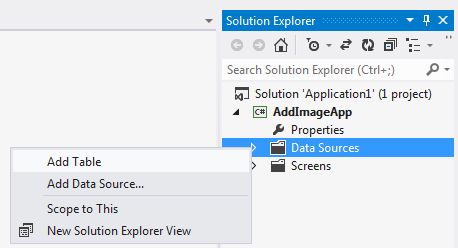

In the Solution Explorer, right-click on the data source to add a table.

add table.jpg

Step 4

The Table Designer appears.

mt tab.jpg

We add a table named "Faculty Tabs".

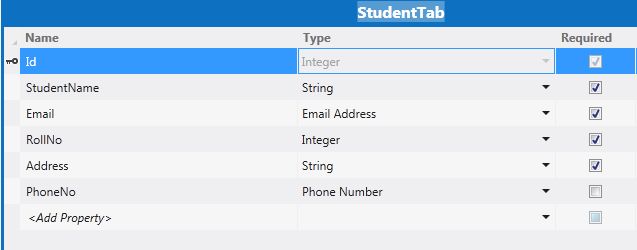

We add another table named "Student Tabs".

student tab.jpg

Step 5

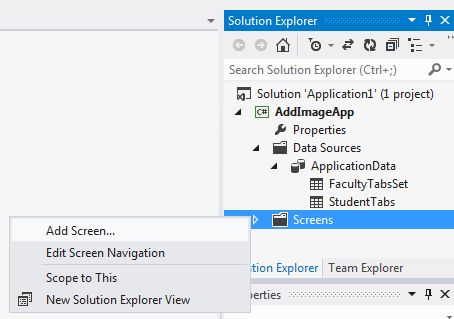

In the Solution Explorer, right-click on "Screens" to create a new screen in the application.

add src.jpg

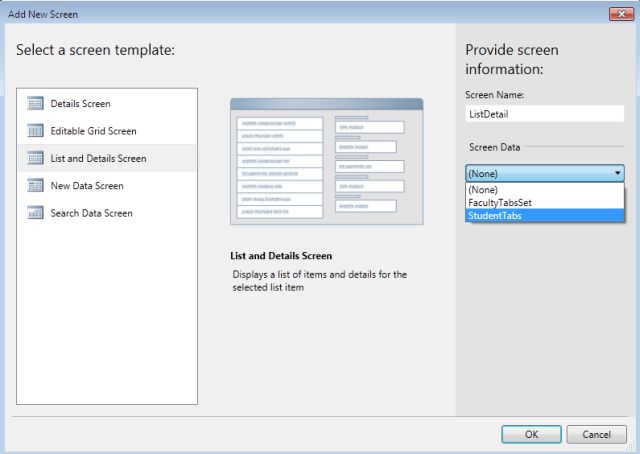

Now we select a Screen Template and provide the screen information.

add new src.jpg

When we click "OK", the Screen Designer appears.



Step 6

Now the Solution Explorer appears in such a manner as shown.


Step 7

Select "Add Image" by clicking on the drop-down arrow in the Add node at the bottom of the Rows Layout.


Step 8

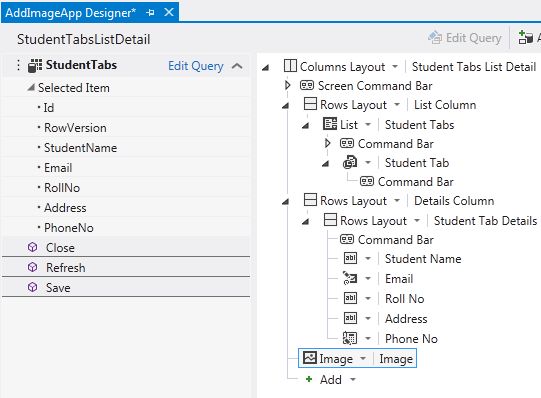

In the Screen Designer, the image is added at the bottom.

appdescontain img.jpg

Step 9

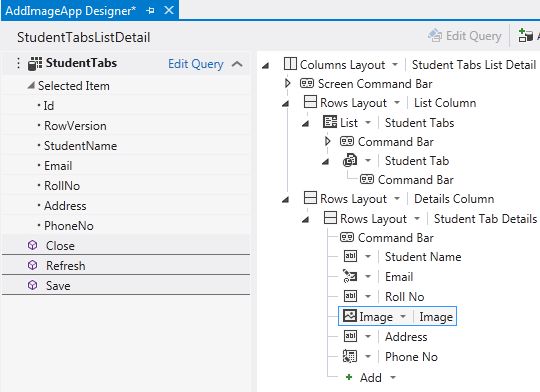

We can drag and drop the image to anywhere we want to.

drag drop.jpg

Step 10

Double-click on the Image option in the Screen Designer, or go to the property window. In the property window, click on "Choose image" to select an image.


Step 11

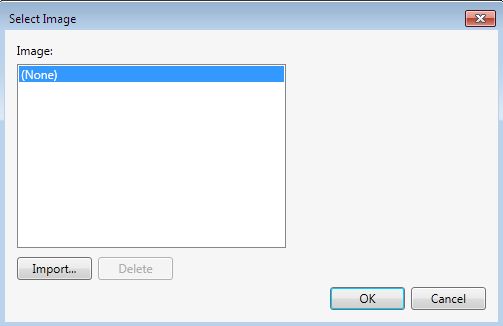

The Select Image dialog box appears.


Step 12

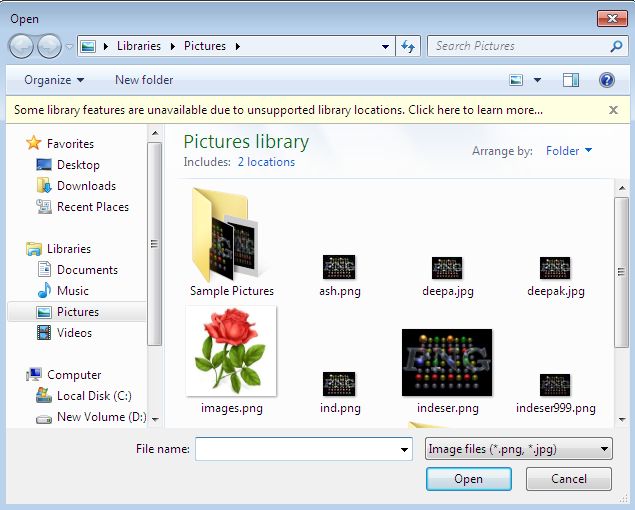

Click on the "Import" button, an open dialog box appears.

open dia box.jpg

Step 13

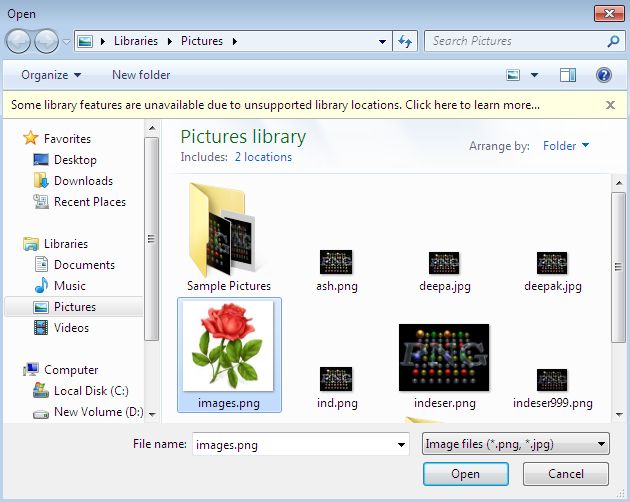

Select the image from the open dialog box and click on the "Open" button.

open dia.jpg

Step 14

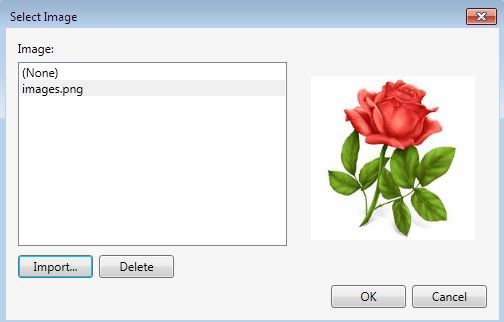

Now the Select Image dialog box appears in such a manner.

imgappear in selectimg.jpg

Finally click on the "OK" button.

Step 15

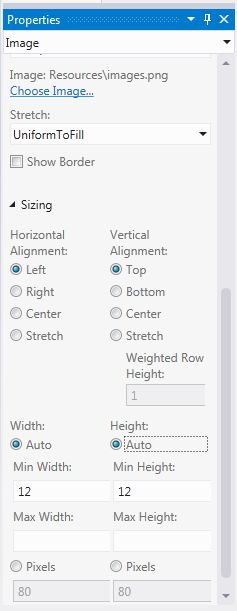

Go to the Property window to open it.

prop img.jpg

Step 16

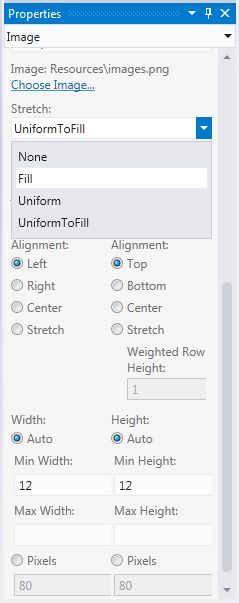

Select "Stretch field" for the image in the property window.

prop stretch.jpg

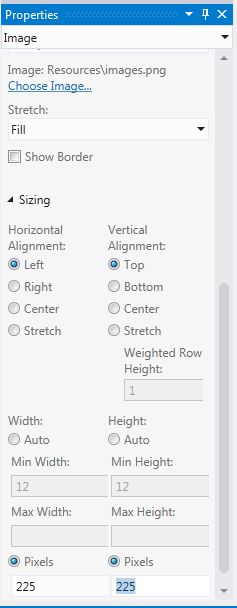

Similarly choose the width and height for the image.

prop width height.jpg

Step 17

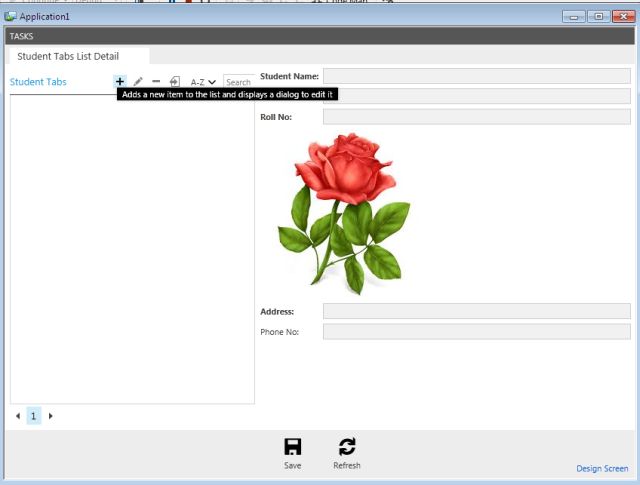

When we run the application we get the output as shown.


By selecting add ("+"), we can add a new item to the list.

output add symbol.jpg

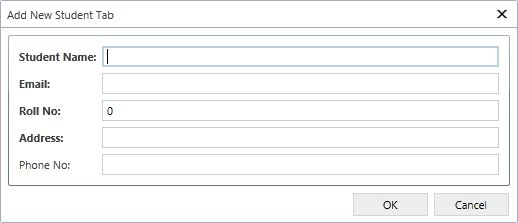

When we select the add symbol ("+"), the "Add New Student Tab" appears.

add new stutab in out.jpg

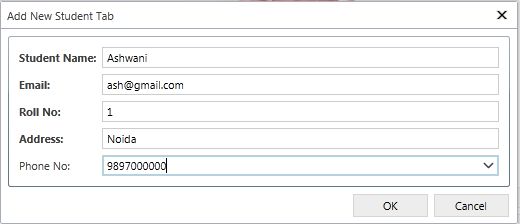

Insert data in the Add New Student Tab.


insert data.jpg

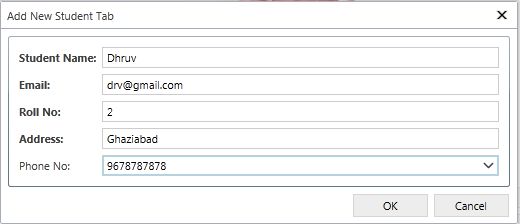

Insert more data into the Add New Student Tab.

insert another data.jpg

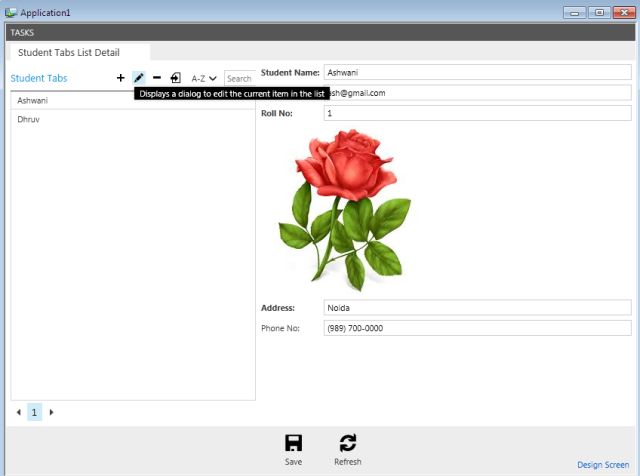

Click on the edit symbol (that looks like a pen) to display a dialog to edit the current item in the list.

edit tab.jpg

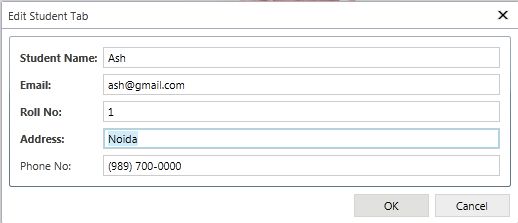

The Edit Student Tab appears. Perform the edit operation and click "Ok".

Edit stu tab.jpg

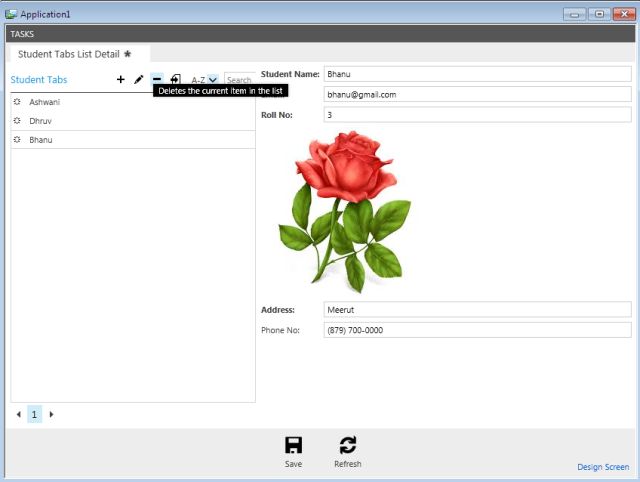

Click on delete ("-") in the Student Tab List Detail.


delete item.jpg

Delete 1 item from the list.

delete item.jpg

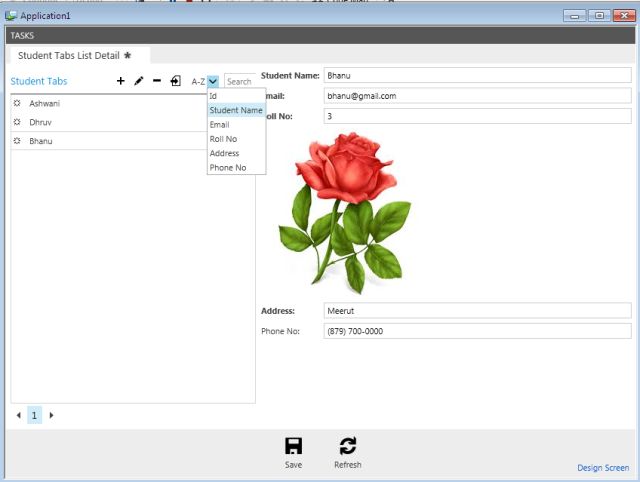

Click on A-Z to arrange the data in the ascending manner. If we click on A-Z option the "A" letter data will appear first or in the same manner if we click on Z-A then the "Z" letter data will appear first.

a-z list.jpg

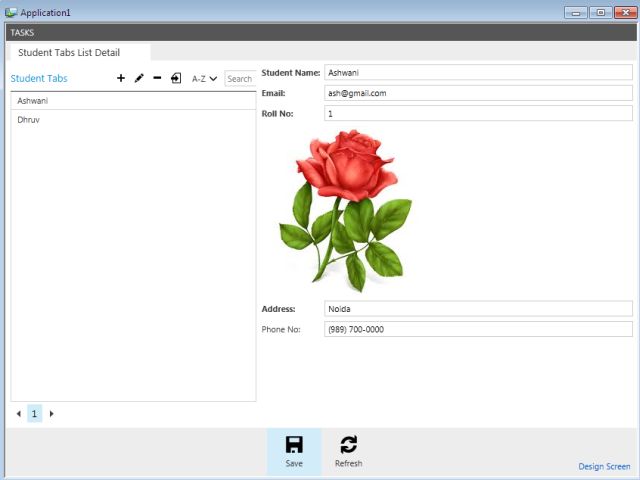

Finally we click on the "Save" button.

save button.jpg
