Adding Data to a Blank Screen in LightSwitch Visual Studio 2012

Adding Data to a Blank Screen in LightSwitch Visual Studio 2012

In this article I describe how to add data to a blank screen in LightSwitch using Visual Studio 2012.

The following is the procedure for adding data to a blank screen in LightSwitch using Visual Studio 2012.

Step 1

Open Solution Explorer.

Step 2

In Solution Explorer, right-click on the data source and choose "Add Table".

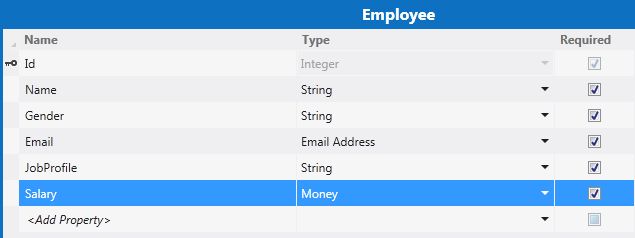

Step 3

The table appears.

Step 4

In Solution Explorer, right-click on the Screens and choose "Add Screen".

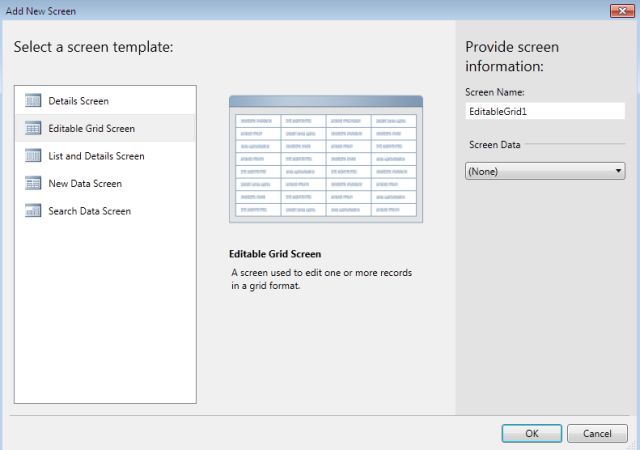

Step 5

Select the Editable Grid Screen from the Screen Template. Under Screen Information we provide the Screen Name but do not select any Screen Data. Then click "OK".

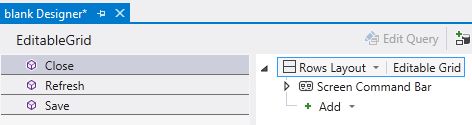

Step 6

The Editable Grid Designer (blank Designer) appears.

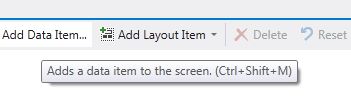

Step 7

In the Menu Bar click on "Add Data Item".

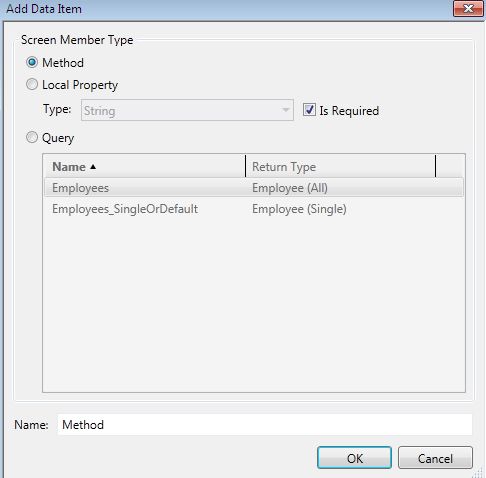

Step 8

The Add Data Item Dialog box appears.

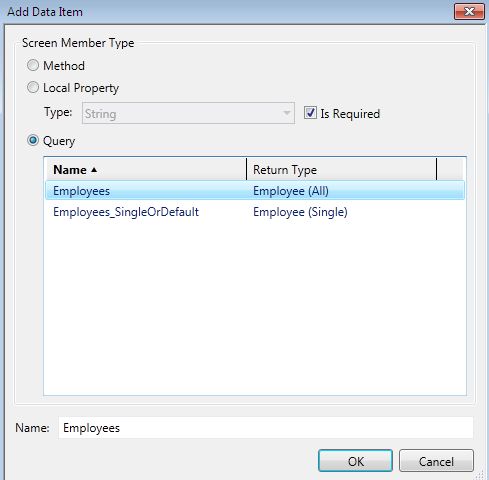

Step 9

Select the Query option from the Add Data Item.

Step 10

Select the Employee (Name) option under the Query and click "OK".

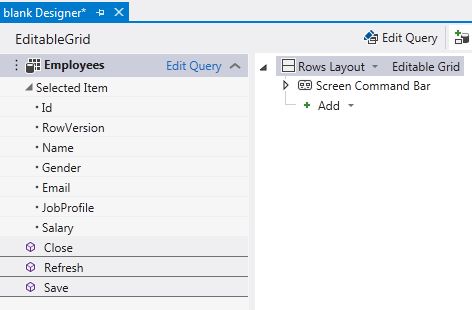

Step 11

Now we will see that the data has been added to the Screen Designer.
