Kagi Type Chart In ASP.Net

Background

The ASP.Net Chart is a powerful control that creates interactive charts. Today we will discuss the Kagi type chart of ASP.Net. So let us start to learn about these chart type controls step-by-step.

Now let us learn about the properties of the Kagi charts. A Kagi chart type has the following common properties:

  • AlternetText: Sets the alternate text when the image is not available.
  • Annotation: Stores the chart annotations.
  • AntiAliasing: Sets a value that determines whether anti-aliasing is used when text and graphics are drawn.
  • BackGradientStyle: Sets the orientation for the background gradient for the Chart control. Also determines whether a gradient is used, the default is None.
  • Backcolor: Sets the background color for a chart, the default color is White.
  • BackImage: Sets the background image for the chart control.
  • BackHatchStyle: Sets the hatching style for the chart control, the default is None.
  • Height: Sets the height for the chart control.
  • Width: Sets the width for the chart control.
  • Palette: Sets the style with the color for the chart control, the default style is Chocolate.
  • PaletteCustomColors: Sets the custom color for the chart control.
  • Series: Sets the series collection for the chart control.
  • Legends: Sets the series of legends to the chart.

Now let us show the preceding explanation with a practical example by creating a simple web application.

Step 1

Use the following script to create a table for the chart data:

CREATE TABLE [dbo].[orderdet](
    [id] [int] IDENTITY(1,1) NOT NULL,
    [Month] [varchar](50) NULL,
    [Orders] [int] NULL,
 CONSTRAINT [PK_Order Table] PRIMARY KEY CLUSTERED
(
    [id] ASC
)WITH (PAD_INDEX = OFF, STATISTICS_NORECOMPUTE = OFF, IGNORE_DUP_KEY = OFF, ALLOW_ROW_LOCKS = ON, ALLOW_PAGE_LOCKS = ON) ON [PRIMARY]
) ON [PRIMARY]

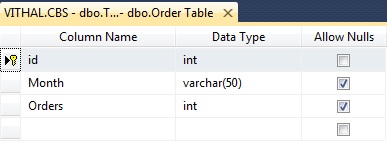

Now the design will look as follows:

Now insert the records using the following script:

SET IDENTITY_INSERT [dbo].[orderdet] ON

GO
INSERT [dbo].[orderdet] ([id], [Month], [Orders]) VALUES (1, N'Jan', 0)
GO
INSERT [dbo].[orderdet] ([id], [Month], [Orders]) VALUES (2, N'Feb', 5)
GO
INSERT [dbo].[orderdet] ([id], [Month], [Orders]) VALUES (3, N'March', 20)
GO
INSERT [dbo].[orderdet] ([id], [Month], [Orders]) VALUES (4, N'April', 40)
GO
INSERT [dbo].[orderdet] ([id], [Month], [Orders]) VALUES (5, N'May', 15)
GO
INSERT [dbo].[orderdet] ([id], [Month], [Orders]) VALUES (6, N'Jun', 60)
GO
INSERT [dbo].[orderdet] ([id], [Month], [Orders]) VALUES (7, N'July', 75)
GO
INSERT [dbo].[orderdet] ([id], [Month], [Orders]) VALUES (8, N'Aug', 80)
GO
INSERT [dbo].[orderdet] ([id], [Month], [Orders]) VALUES (9, N'Sep', 85)
GO
INSERT [dbo].[orderdet] ([id], [Month], [Orders]) VALUES (10, N'Oct', 100)
GO
INSERT [dbo].[orderdet] ([id], [Month], [Orders]) VALUES (11, N'Nov', 2)
GO
INSERT [dbo].[orderdet] ([id], [Month], [Orders]) VALUES (12, N'Dec', 90)
GO
SET IDENTITY_INSERT [dbo].[orderdet] OFF
Go

After running the preceding script the records in the table will look as follows:

Step 2

Create a Stored Procedure to fetch the records from the database.

Create procedure [dbo].[GetCharData]
(
@id int =null

)
as
begin
Select Month,Orders from Orderdet
End

Step 3

Create a Web Application. Create the website with:

  1. "Start" - "All Programs" - "Microsoft Visual Studio 2010".
  2. "File" - "New Project" - "C#" - "Empty Website" (to avoid adding a master page).
  3. Provide the project a name such as "UsingKagiChart" or another as you wish and specify the location.
  4. Then right-click on the Solution Explorer and select "Add New Item" then select Default.aspx page.
  5. Drag and Drop a Chart control from the ToolBox onto the Default.aspx page.

Now the Default.aspx source code will be as follows:

<%@ Page Language="C#" AutoEventWireup="true" CodeFile="Default.aspx.cs" Inherits="_Default" %>

<%@ Register Assembly="System.Web.DataVisualization, Version=4.0.0.0, Culture=neutral, PublicKeyToken=31bf3856ad364e35"
    Namespace="System.Web.UI.DataVisualization.Charting" TagPrefix="asp" %>
<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">
<html xmlns="http://www.w3.org/1999/xhtml">
<head runat="server">
    <title>Article by Vithal Wadje</title>
</head>
<body bgcolor="blue">
    <form id="form1" runat="server">
    <h4 style="color: White;">
        Article for C#Corner
    </h4>
    <asp:Chart ID="Chart1" runat="server" BackColor="128, 64, 0" BackGradientStyle="LeftRight"
        BorderlineWidth="0" Height="340px" Palette="None" PaletteCustomColors="64, 0, 64"
        Width="360px" BorderlineColor="192, 64, 0" BackHatchStyle="Percent10">
        <Series>
            <asp:Series Name="Series1"  YValuesPerPoint="1">
            </asp:Series>
        </Series>
        <ChartAreas>
            <asp:ChartArea Name="ChartArea1">
            </asp:ChartArea>
        </ChartAreas>
    </asp:Chart>
    </form>
</body>
</html>

Step 4

Create a method to bind the chart control.

Now, open the default.aspx.cs page and create the following function named Bindchart to bind the Chart Control as in the following:

private void Bindchart()
{
    connection();
    com = new SqlCommand("GetCharData", con);
    com.CommandType = CommandType.StoredProcedure;
    SqlDataAdapter da = new SqlDataAdapter(com);
    DataSet ds = new DataSet();
    da.Fill(ds);

    DataTable ChartData = ds.Tables[0];

    //storing total rows count to loop on each Record
    string[] XPointMember = new string[ChartData.Rows.Count];
    int[] YPointMember = new int[ChartData.Rows.Count];

    for (int count = 0; count < ChartData.Rows.Count; count++)
    {
        //storing Values for X axis
        XPointMember[count] = ChartData.Rows[count]["Month"].ToString();
        //storing values for Y Axis
        YPointMember[count] = Convert.ToInt32(ChartData.Rows[count]["Orders"]);
    }
    //binding chart control
    Chart1.Series[0].Points.DataBindXY(XPointMember, YPointMember);
    //Setting width of line
    Chart1.Series[0].BorderWidth = 4;
    //setting Chart type
    Chart1.Series[0].ChartType = SeriesChartType.Kagi;
    //Hide or show chart back GridLines
    //  Chart1.ChartAreas["ChartArea1"].AxisX.MajorGrid.Enabled = false;
    //Chart1.ChartAreas["ChartArea1"].AxisY.MajorGrid.Enabled = false;
    //Enabled 3D
    // Chart1.ChartAreas["ChartArea1"].Area3DStyle.Enable3D = true;
    con.Close();
}

Now, call the preceding function on page load as in the following

protected void Page_Load(object sender, EventArgs e)
{
    if (!IsPostBack)
    {
        Bindchart();
    }
}

The entire code of the default.aspx.cs page will look as follows:

using System;
using System.Collections.Generic;
using System.Linq;
using System.Web;
using System.Web.UI;
using System.Web.UI.WebControls;
using System.Data.SqlClient;
using System.Configuration;
using System.Data;
using System.Web.UI.DataVisualization.Charting;

public partial class _Default : System.Web.UI.Page
{
    private SqlConnection con;
    private SqlCommand com;
    private string constr, query;
    private void connection()
    {
        constr = ConfigurationManager.ConnectionStrings["getconn"].ToString();
        con = new SqlConnection(constr);
        con.Open();

    }
    protected void Page_Load(object sender, EventArgs e)
    {
        if (!IsPostBack)
        {
            Bindchart();

        }
    }
    private void Bindchart()
    {
        connection();
        com = new SqlCommand("GetCharData", con);
        com.CommandType = CommandType.StoredProcedure;
        SqlDataAdapter da = new SqlDataAdapter(com);
        DataSet ds = new DataSet();
        da.Fill(ds);
        DataTable ChartData = ds.Tables[0];
        //storing total rows count to loop on each Record
        string[] XPointMember = new string[ChartData.Rows.Count];
        int[] YPointMember = new int[ChartData.Rows.Count];
        for (int count = 0; count < ChartData.Rows.Count; count++)
        {
            //storing Values for X axis
            XPointMember[count] = ChartData.Rows[count]["Month"].ToString();
            //storing values for Y Axis
            YPointMember[count] = Convert.ToInt32(ChartData.Rows[count]["Orders"]);
        }
        //binding chart control
        Chart1.Series[0].Points.DataBindXY(XPointMember, YPointMember);
        //Setting width of line
        Chart1.Series[0].BorderWidth = 4;
        //setting Chart type
        Chart1.Series[0].ChartType = SeriesChartType.Kagi;
        //Hide or show chart back GridLines
        //  Chart1.ChartAreas["ChartArea1"].AxisX.MajorGrid.Enabled = false;
        //Chart1.ChartAreas["ChartArea1"].AxisY.MajorGrid.Enabled = false;
        //Enabled 3D
        // Chart1.ChartAreas["ChartArea1"].Area3DStyle.Enable3D = true;
        con.Close();
    }
}

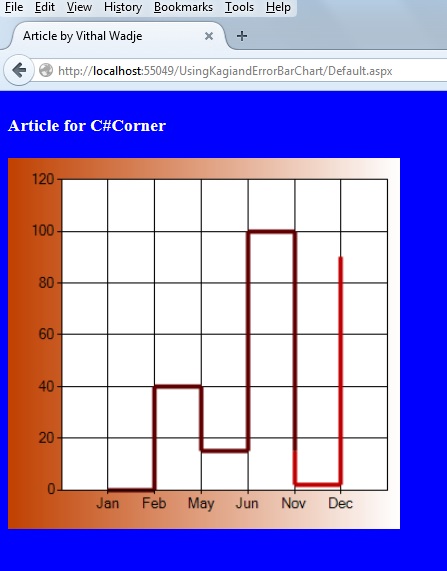

Now, we have the entire logic to bind the chart from the database, let us run the application, then the Kagi Chart will look as follows:

Now let us hide the Grid Lines as in the following:

//Hide or show chart back GridLines
Chart1.ChartAreas["ChartArea1"].AxisX.MajorGrid.Enabled = false;
Chart1.ChartAreas["ChartArea1"].AxisY.MajorGrid.Enabled = false;

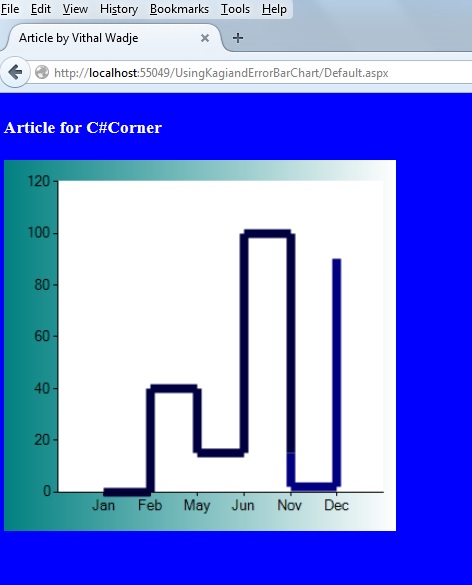

Now the Kagi chart will be as follows:

Now let us limit the Border width as compared to the preceding:

//Setting width of line
Chart1.Series[0].BorderWidth = 4;

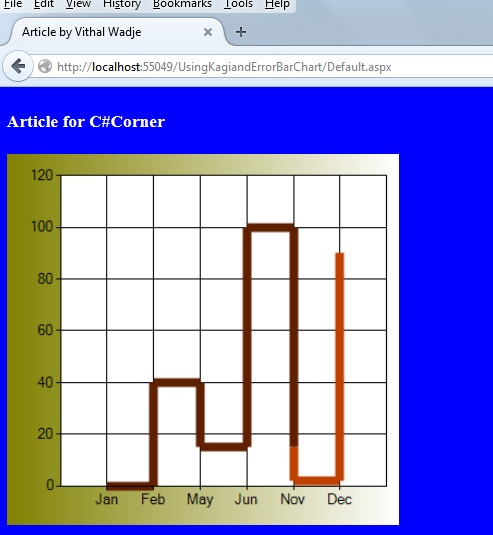

Now Kagi chart will look as follows:

The preceding is the Normal Kagi chart. Now let us enable the 3D style as in the following:

//Enabled 3D
Chart1.ChartAreas["ChartArea1"].Area3DStyle.Enable3D = true;

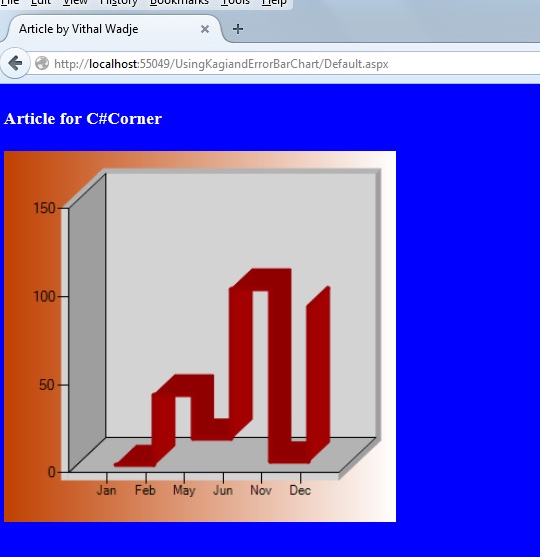

Now the 3D style Kagi chart will be as:

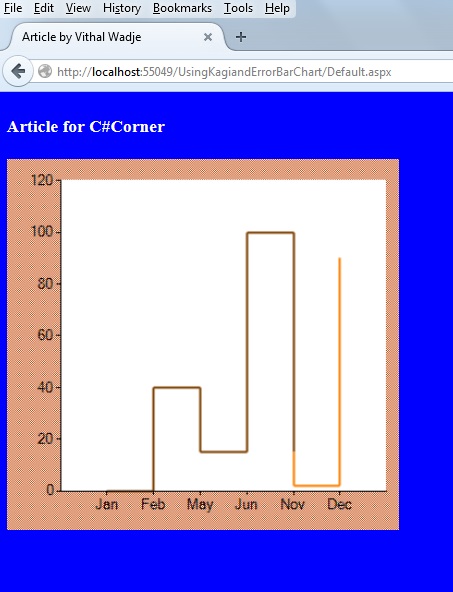

Now change the BackHatchStyle,then the chart will look as follows:

Now from all the preceding explanations we saw how to create and use a Kagi chart.

Notes

  • Download the Zip file from the attachment for the full source code of the application.
  • Change the connection string in the web.config file to specify your server location.

Summary

My next article explains another chart type of ASP.Net. I hope this article is useful for all readers, if you have any suggestion then please contact me including beginners also.
