My previous tutorial showed "How to add Ajax Toolkit in Visual Studio 2010". Based on it, I will show you "How to use an Ajax Control". Here, how to make a registration form inside an Ajax Accordion will also be described.
Initial Chamber
Step 1
Open Visual Studio 2010 and create an Empty Website. Name it Accordion_ demo.
Step 2
In Solution Explorer, you will get your empty website. Next, add a web form and SQL Database. Now use the following procedure.
To create a Web Form, right-click the Accordion_demo (your empty website), then select Add New Item -> Web Form. Name it Accordion_demo.aspx.
To create the SQL Server Database, right-click the Accordion_demo (your empty website), then select Add New Item -> SQL Server Database. (Add the database inside the App_Data_folder.)
Database Chamber
Step 3
In Server Explorer, click on the arrow sign of your database (“Database.mdf”). Right-click on the tables and select Add New Table.

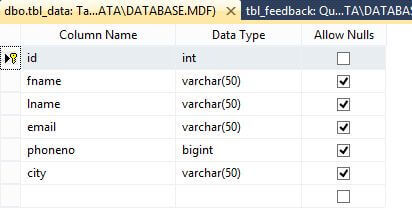

- tbl_data (Don't forgot IS INDENTITY = “TRUE”.)
![]()

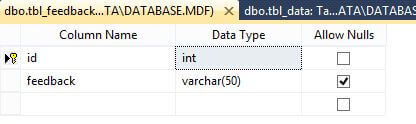

- tbl_feedback (Don't forgot IS INDENTITY = “TRUE”.)
![]()
If you are at the beginner level in ASP.NET and not aware of VS10, then check it out on Google or my previous tutorials will help you out. I am keeping this as simple as possible, so that you can understand it properly.

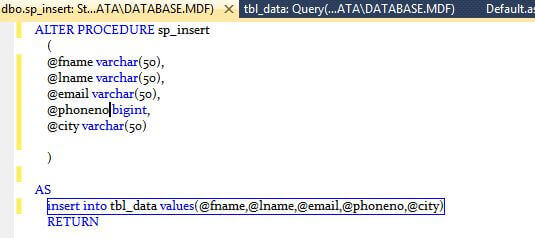

Now to make a Stored Procedure for inserting data from the registration form into your database. So, here we will make a Stored Procedure for inserting data.
![]()
I believe you will make your own Stored Procedure for the feedback form (Home Work).
Design Chamber
Step 4
Open your Accordion.aspx file from Solution Explorer and start designing your application.
Here is the code:
Don't forget to add ToolScriptManager for Ajax in VS10 after the form tag as in the following code.
- <form id="form1" runat="server">
- <asp:ToolkitScriptManager ID="ToolkitScriptManager1" runat="server">
- </asp:ToolkitScriptManager>
As you use this tag, you will see the namespace in the topmost part of your .aspx file as shown in the following code.
- <%@ Register Assembly="AjaxControlToolkit" Namespace="AjaxControlToolkit" TagPrefix="asp" %>
This is the namespace for Ajax from where we can get complete use of your AjaxToolkit.
Coding Chamber
Step 5

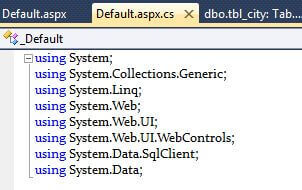

Now we are entering into our Code Zone. Let's begin by adding some namespaces into the Accordion.aspx.cs file.
![]()
Next, it's time for the real coding. Go through the following lines.
- protected void Page_Load(object sender, EventArgs e)
- {
- }
- protected void Button1_Click(object sender, EventArgs e)
- {
-
- SqlConnection con = new SqlConnection(@"Data Source=.\SQLEXPRESS;AttachDbFilename=|DataDirectory|\Database.mdf;Integrated Security=True;User Instance=True");
- SqlCommand cmd = new SqlCommand("sp_insert", con);
- cmd.CommandType = CommandType.StoredProcedure;
- cmd.Parameters.AddWithValue("fname", TextBox1.Text);
- cmd.Parameters.AddWithValue("lname", TextBox2.Text);
- cmd.Parameters.AddWithValue("email", TextBox3.Text);
- cmd.Parameters.AddWithValue("phoneno", TextBox4.Text);
- cmd.Parameters.AddWithValue("city", TextBox5.Text);
- con.Open();
- int i = cmd.ExecuteNonQuery();
- con.Close();
-
- }
-
-
- protected void Button2_Click(object sender, EventArgs e)
- {
-
- SqlConnection con = new SqlConnection(@"Data Source=.\SQLEXPRESS;AttachDbFilename=|DataDirectory|\Database.mdf;Integrated Security=True;User Instance=True");
- SqlCommand cmd = new SqlCommand("sp_feedback", con);
- cmd.CommandType = CommandType.StoredProcedure;
- cmd.Parameters.AddWithValue("feedback", TextBox6.Text);
-
-
- con.Open();
- int i = cmd.ExecuteNonQuery();
- con.Close();
-
- if (i != 0)
- {
- Response.Write("success");
- }
- else
- {
- Response.Write("Temporary Failure");
- }
- }
Output Chamber

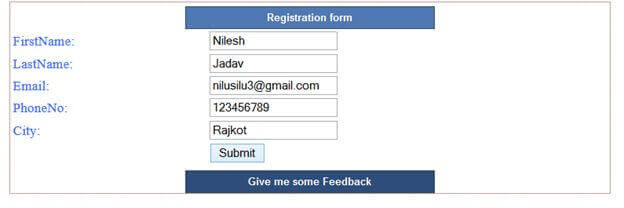

Here is your output.
![]()
I have attached a GIF image to give you a better idea of how to use your application. I hope you liked it. Have a good day and don't forget to do your homework and specify it in the comments (Stored Procedure of Feedback Form).
