How to Bind GridView and perform edit update and delete operation on gridview in 3 Tiers in ASP.Net Using C#

In this article I will show you how to Bind GridView in 3 tier in ASP.Net using C# with Stored Procedure. We will also edit, delete and update the data in GridView.

Initial Chamber

Step 1: Open Visual Studio 2010 and create an Empty Website. Give it a suitable name [GridView_demo].

Step 2: In Solution Explorer you will get your empty website. Add a web form, SQL database and 3 class files. By going like this:

For Web Form

GridView_demo (Your Empty Website) -> Right Click -> Add New Item -> Web Form. Name it as -> gridview_demo.aspx.

For SQL Server Database

GridView_demo (Your Empty Website) -> Right Click -> Add New Item -> SQL Server Database. [Add Database inside the App_Data_folder].

For 3 Class Files

GridView_demo (Your Empty Website) -> Right Click -> Add New Item -> Class [Add 3 Class files - -> Add your class file in App_code Folder] - -> Give name as the following:

  1. Commonfunctions.cs
  2. BAL_user_operation.cs
  3. DAL_user_operation.cs

Database Chamber

Step 3: In Server Explorer, Click on your Database [Database.mdf] - -> Tables - -> Add New Table -:- Make table like the following:

Table - -> tbl_data [Don’t Forget to make ID as IS Identity -- True]

Add some Stored procedure for Update, Insert and Delete Data by going to Database [Database.mdf] - -> Stored Procedures - -> Right Click - -> Add New Stored Procedures.

  1. sp_getdata()



  2. sp_insert()



  3. sp_update()



  4. sp_delete()

These all are the Stored Procedures that we will use for updating, deleting and editing data in GridView.

Design Code

Step 5: Now it’s time for serious design in GridView. Let’s begin by opening gridview_demo.aspx page and try the following code:

  1. <body>
  2.     <form id="form1" runat="server">
  3.
  4.     <table style="width:100%;">
  5.         <caption class="style3">
  6.             <strong>Bind Grid View Using 3Tier</strong></caption>
  7.         <tr>
  8.
  9.             <td  align="center">
  10.
  11.     <asp:GridView ID="GridView1" runat="server" AutoGenerateColumns="False"
  12.         BackColor="LightGoldenrodYellow" BorderColor="Tan" BorderWidth="1px"
  13.         CellPadding="2" DataKeyNames="id" ForeColor="Black" GridLines="None"
  14.                     AutoGenerateDeleteButton="True" AutoGenerateEditButton="True"
  15.                     onrowcancelingedit="GridView1_RowCancelingEdit"
  16.                     onrowdeleting="GridView1_RowDeleting" onrowediting="GridView1_RowEditing"
  17.                     onrowupdating="GridView1_RowUpdating">
  18.         <AlternatingRowStyle BackColor="PaleGoldenrod" />
  19.         <Columns>
  20.             <asp:TemplateField HeaderText="Name" SortExpression="name">
  21.                 <EditItemTemplate>
  22.                     <asp:TextBox ID="TextBox1" runat="server" Text='<%# Bind("name") %>'></asp:TextBox>
  23.                 </EditItemTemplate>
  24.                 <ItemTemplate>
  25.                     <asp:Label ID="Label1" runat="server" Text='<%# Bind("name") %>'></asp:Label>
  26.                 </ItemTemplate>
  27.             </asp:TemplateField>
  28.             <asp:TemplateField HeaderText="Email" SortExpression="email">
  29.                 <EditItemTemplate>
  30.                     <asp:TextBox ID="TextBox3" runat="server" Text='<%# Bind("email") %>'></asp:TextBox>
  31.                 </EditItemTemplate>
  32.                 <ItemTemplate>
  33.                     <asp:Label ID="Label3" runat="server" Text='<%# Bind("email") %>'></asp:Label>
  34.                 </ItemTemplate>
  35.             </asp:TemplateField>
  36.             <asp:TemplateField HeaderText="City" SortExpression="city">
  37.                 <EditItemTemplate>
  38.                     <asp:TextBox ID="TextBox2" runat="server" Text='<%# Bind("city") %>'></asp:TextBox>
  39.                 </EditItemTemplate>
  40.                 <ItemTemplate>
  41.                     <asp:Label ID="Label2" runat="server" Text='<%# Bind("city") %>'></asp:Label>
  42.                 </ItemTemplate>
  43.             </asp:TemplateField>
  44.         </Columns>
  45.         <FooterStyle BackColor="Tan" />
  46.         <HeaderStyle BackColor="Tan" Font-Bold="True" />
  47.         <PagerStyle BackColor="PaleGoldenrod" ForeColor="DarkSlateBlue"
  48.             HorizontalAlign="Center" />
  49.         <SelectedRowStyle BackColor="DarkSlateBlue" ForeColor="GhostWhite" />
  50.         <SortedAscendingCellStyle BackColor="#FAFAE7" />
  51.         <SortedAscendingHeaderStyle BackColor="#DAC09E" />
  52.         <SortedDescendingCellStyle BackColor="#E1DB9C" />
  53.         <SortedDescendingHeaderStyle BackColor="#C2A47B" />
  54.     </asp:GridView>
  55.             </td>
  56.
  57.         </tr>
  58.     </table>
  59.     </form>
  60. </body>

You can also manually create this design by dragging the GridView into .aspx page. Then click the arrow sign on GridView - -> GridView tasks will open - -> Edit Columns - -> A “Field” window will open (following image). Here you have to add three “BoundField” Button from - -> Available Fields. - -> Change the header text - -> Name, Email, City.

Unclick the Auto Generated Button at the bottom [Note: I forgot to unclick it.].

Get into Bound Field Properties - -> Data Fields - -> Change every Bound field’s Data field to - ->

Go to GridView [In design mode] - -> press F4 to open Property window of GridView and find - -> Data Keys Name - -> and write – id.

In Property Window find - -> Auto Generate Edit and Auto Generate Delete Button and make it - -> True.

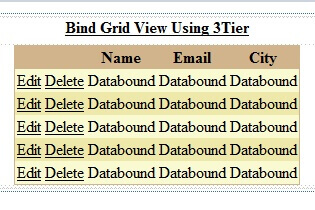

This is your actual Design.

Code Chamber

  1. Open Commonfunction.cs file and add this code:
    1. using System;
    2. using System.Collections.Generic;
    3. using System.Linq;
    4. using System.Web;
    5. using System.Configuration;
    6.
    7. /// <summary>
    8. /// Summary description for Commonfunctions
    9. /// </summary>
    10. public class Commonfunctions
    11. {
    12.     public Commonfunctions()
    13.     {
    14.         //
    15.         // TODO: Add constructor logic here
    16.         //
    17.     }
    18.     public static string getconstring()
    19.     {
    20.
    21.         return ConfigurationManager.ConnectionStrings["dbcon"].ToString();
    22.
    23.     }
    24. }
    The preceding code is written for SQL Connection String that we have to call again and again by going to the database property. This is a lengthy process, that’s why we made this class and now we will just call its method - ->getconstring() that will make our process shorter and comfortable.

  2. Open DAL_user_operation.cs file and code it as in the following code.
    1. using System;
    2. using System.Collections.Generic;
    3. using System.Linq;
    4. using System.Web;
    5. using System.Data;
    6. using System.Data.SqlClient;
    7.
    8. /// <summary>
    9. /// Summary description for DAL_user_operation
    10. /// </summary>
    11. public class DAL_user_operation
    12. {
    13.     public DAL_user_operation()
    14.     {
    15.         //
    16.         // TODO: Add constructor logic here
    17.         //
    18.     }
    19.     public bool user_insert(string name, string email,string city)
    20.     {
    21.         SqlConnection con = new SqlConnection(Commonfunctions.getconstring());
    22.         SqlCommand cmd = new SqlCommand("sp_insert", con);
    23.         cmd.CommandType = CommandType.StoredProcedure;
    24.         cmd.Parameters.AddWithValue("name", name);
    25.         cmd.Parameters.AddWithValue("email",email);
    26.         cmd.Parameters.AddWithValue("city", city);
    27.
    28.         con.Open();
    29.         int i = cmd.ExecuteNonQuery();
    30.        con.Close();
    31.         if (i != 0)
    32.         {
    33.             return true;
    34.         }
    35.         else
    36.         {
    37.
    38.             return false;
    39.
    40.         }
    41.
    42.     }
    43.     public void  user_delete(int id)
    44.     {
    45.
    46.         SqlConnection con = new SqlConnection(Commonfunctions.getconstring());
    47.         SqlCommand cmd = new SqlCommand("sp_delete", con);
    48.         cmd.CommandType = CommandType.StoredProcedure;
    49.         cmd.Parameters.AddWithValue("id", id);
    50.         con.Open();
    51.         int i = cmd.ExecuteNonQuery();
    52.         con.Close();
    53.
    54.     }
    55.
    56.     public void user_update(string name, string email,string city, int id)
    57.     {
    58.
    59.         SqlConnection con = new SqlConnection(Commonfunctions.getconstring());
    60.         SqlCommand cmd = new SqlCommand("sp_update", con);
    61.         cmd.CommandType = CommandType.StoredProcedure;
    62.         cmd.Parameters.AddWithValue("name", name);
    63.         cmd.Parameters.AddWithValue("email",email);
    64.         cmd.Parameters.AddWithValue("city", city);
    65.
    66.         cmd.Parameters.AddWithValue("id", id);
    67.         con.Open();
    68.         int i = cmd.ExecuteNonQuery();
    69.         con.Close();
    70.
    71.
    72.     }
    73.     public DataTable getdata()
    74.     {
    75.
    76.         SqlConnection con = new SqlConnection(@"Data Source=.\SQLEXPRESS;AttachDbFilename=|DataDirectory|\Database.mdf;Integrated Security=True;User Instance=True");
    77.         SqlCommand cmd = new SqlCommand("sp_getdata", con);
    78.         cmd.CommandType = CommandType.StoredProcedure;
    79.         SqlDataAdapter sda = new SqlDataAdapter(cmd);
    80.         DataTable dt = new DataTable();
    81.       sda.Fill(dt);
    82.
    83.         return dt;
    84.
    85.     }
    86. }
  3. Open your BAL_user_operation.cs File and code it like the following:
    1. using System;
    2. using System.Collections.Generic;
    3. using System.Linq;
    4. using System.Web;
    5. using System.Data;
    6. using System.Data.SqlClient;
    7.
    8. /// <summary>
    9. /// Summary description for BAL_user_operation
    10. /// </summary>
    11. public class BAL_user_operation
    12. {
    13.     DAL_user_operation du = new DAL_user_operation();
    14.     public BAL_user_operation()
    15.     {
    16.         //
    17.         // TODO: Add constructor logic here
    18.         //
    19.     }
    20.
    21.     public bool user_insert(string name, string email,string city)
    22.     {
    23.         return du.user_insert(name, email,city);
    24.     }
    25.
    26.     public void  user_delete(int id)
    27.     {
    28.          du.user_delete(id);
    29.
    30.     }
    31.
    32.     public void user_update(string name, string email,string city, int id)
    33.     {
    34.
    35.         du.user_update(name, email, city, id);
    36.     }
    37.
    38.     public DataTable getdata()
    39.    {
    40.        return du.getdata();
    41.     }
    42. }
  4. At last Open gridview_demo.aspx.cs file and code it like the following.
    1. using System;
    2. using System.Collections.Generic;
    3. using System.Linq;
    4. using System.Web;
    5. using System.Web.UI;
    6. using System.Web.UI.WebControls;
    7.
    8. public partial class _Default : System.Web.UI.Page
    9. {
    10.     BAL_user_operation bu = new BAL_user_operation();
    11.     protected void Page_Load(object sender, EventArgs e)
    12.     {
    13.         if (!Page.IsPostBack)
    14.         {
    15.             refreshdata();
    16.         }
    17.     }
    18.
    19.     public void refreshdata()
    20.     {
    21.
    22.         GridView1.DataSource = bu.getdata();
    23.         GridView1.DataBind();
    24.
    25.     }
    26.     protected void GridView1_RowDeleting(object sender, GridViewDeleteEventArgs e)
    27.     {
    28.         int id = Convert.ToInt16(GridView1.DataKeys[e.RowIndex].Values["id"].ToString());
    29.         bu.user_delete(id);
    30.         refreshdata();
    31.
    32.     }
    33.     protected void GridView1_RowEditing(object sender, GridViewEditEventArgs e)
    34.     {
    35.         GridView1.EditIndex = e.NewEditIndex;
    36.         refreshdata();
    37.
    38.     }
    39.     protected void GridView1_RowUpdating(object sender, GridViewUpdateEventArgs e)
    40.     {
    41.
    42.         TextBox txtname = GridView1.Rows[e.RowIndex].FindControl("TextBox1"as TextBox;
    43.         TextBox txtemail = GridView1.Rows[e.RowIndex].FindControl("TextBox3"as TextBox;
    44.         TextBox txtcity = GridView1.Rows[e.RowIndex].FindControl("TextBox2"as TextBox;
    45.
    46.        int id= Convert.ToInt16(GridView1.DataKeys[e.RowIndex].Values["id"].ToString());
    47.        bu.user_update(txtname.Text, txtemail.Text, txtcity.Text, id);
    48.        GridView1.EditIndex = -1;
    49.        refreshdata();
    50.     }
    51.     protected void GridView1_RowCancelingEdit(object sender, GridViewCancelEditEventArgs e)
    52.     {
    53.         GridView1.EditIndex = -1;
    54.         refreshdata();
    55.     }
    56. }

web.config file code

  1. <configuration>
  2.
  3.     <system.web>
  4.         <compilation debug="true" targetFramework="4.0" />
  5.     </system.web>
  6.   <connectionStrings>
  7.
  8.     <add name="dbcon" connectionString="Data Source=.\SQLEXPRESS;AttachDbFilename=|DataDirectory|\Database.mdf;Integrated Security=True;User Instance=True"/>
  9.
  10.   </connectionStrings>
  11.
  12. </configuration>

Output Chamber



Hope you liked this!
Have a nice day and enjoy this tutorial.
