Chapter 1: SQL Server 2008 R2 Editions and Enhancements

This chapter introduces the new SQL Server 2008 R2 features, capabilities, and editions from a DBA's perspective. It also discusses why Windows Server 2008 R2 is recommended as the underlying operating system for deploying SQL Server 2008 R2. Last, SQL Server 2008 R2 hardware and software requirements and installation strategies are also identified.

SQL Server 2008 R2 Enhancements for DBAs

Now more than ever, organizations require a trusted, cost-effective, and scalable database platform that offers efficiency and managed self-service BI. These organizations face ever-changing business conditions in the global economy, IT budget constraints, and the need to stay competitive by obtaining and utilizing the right information at the right time.

With SQL Server 2008 R2, they can meet the pressures head on to achieve these demanding goals. This release delivers an award-winning enterprise-class database platform with robust capabilities that improve efficiency through better resource utilization, end-user empowerment, and scaling out at lower costs. Enhancements to scalability and performance, high availability, enterprise security, enterprise manageability, data warehousing, reporting, self-service BI, collaboration, and tight integration with Microsoft Visual Studio 2010, Microsoft SharePoint 2010, and SQL Server PowerPivot for SharePoint make it the best database platform available.

SQL Server 2008 R2 is considered to be a minor version upgrade of SQL Server 2008. However, for a minor upgrade it offers a tremendous amount of new, breakthrough capabilities that DBAs can take advantage of. Microsoft has made major investments in the SQL Server product as a whole; however, the new features and breakthrough capabilities that should interest DBAs the most are the advancements in application and multi-server administration. This section introduces some of the new features and capabilities.

Application and Multi-Server Administration Enhancements

The SQL Server product group has made sizeable investments in improving application and multi-server management capabilities. Some of the main application and multi-server administration enhancements that allow organizations to better manage their SQL Server environments include

• The SQL Server Utility This is a new manageability feature used to centrally monitor and manage database applications and SQL Server instances from a single management interface known as a Utility Control Point (UCP). Instances of SQL Server, data-tier applications, database files, and volumes are managed and viewed within the SQL Server Utility.
• The Utility Control Point (UCP) As the central reasoning point for the SQL Server Utility, the Utility Control Point collects configuration and performance information from managed instances of SQL Server every 15 minutes. After data has been collected from the managed instances, the SQL Server Utility dashboard and viewpoints in SQL Server Management Studio (SSMS) provide DBAs with a health summary of SQL Server resources through policy evaluation and historical analysis. For more information on the SQL Server Utility, Utility Control Points, and managing instances of SQL Server, see Chapter 2, "Multi-Server Administration."
• Data-tier applications A data-tier application (DAC) is a single unit of deployment containing all of the database's schema, dependant objects, and deployment requirements used by an application. A DAC can be deployed in one of two ways: it can be authored by using the SQL Server data-tier application project in Visual Studio 2010, or it can be created by extracting a DAC definition from an existing database with the Extract Data-Tier Application Wizard in SSMS. Through the use of DACs, the deployment of data applications and the collaboration between data-tier developers and DBAs is significantly improved. For more information on authoring, deploying, and managing data-tier applications, see Chapter 3, "Data-Tier Applications."
• Utility Explorer dashboards The dashboards in the SQL Server Utility offer DBAs tremendous insight into resource utilization and health state for managed instances of SQL Server and deployed data-tier applications across the enterprise. Before the introduction of the SQL Server Utility, DBAs did not have a powerful tool included with SQL Server to assist them in monitoring resource utilization and health state. Most organizations purchased third-party tools, which resulted in additional costs associated with the total cost of ownership of their database environment. The new SQL Server Utility dashboards also assist with consolidation efforts. Figure 1-1 illustrates SQL Server Utility dashboard and viewpoints for providing superior insight into resource utilization and policy violations.

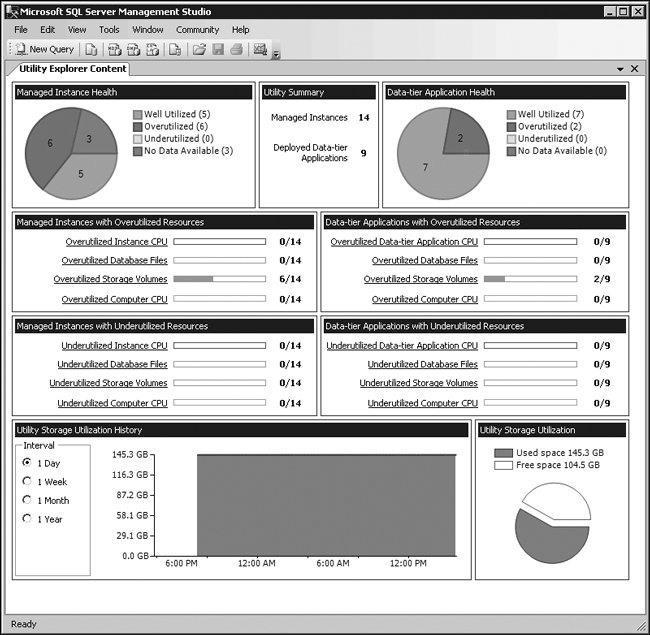

  FIGURE 1-1 Monitoring resource utilization with the SQL Server Utility dashboard and viewpoints

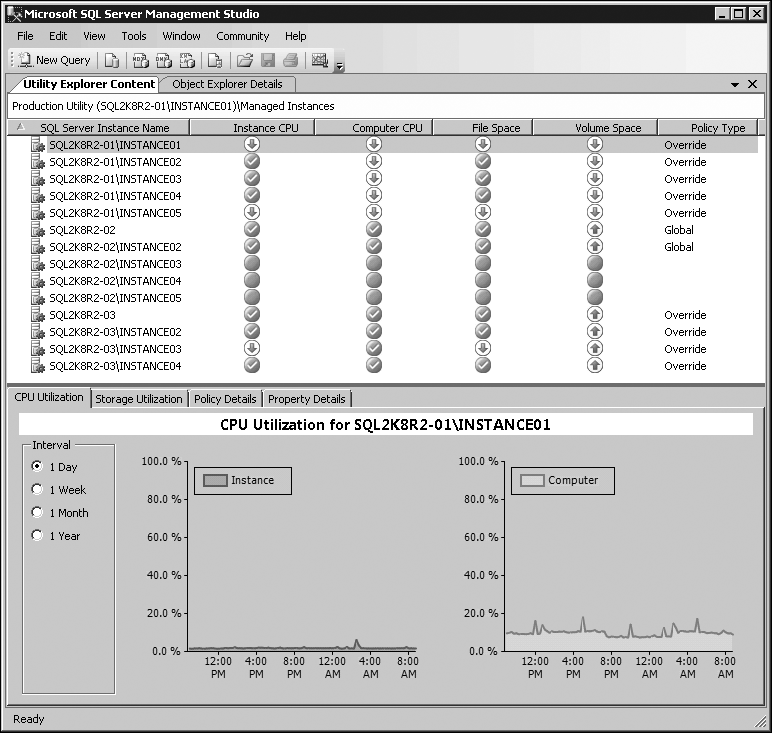

• Consolidation management Organizations can maximize their investments by consolidating SQL Server resources onto fewer systems. DBAs, in turn, can bolster their consolidation efforts through their use of SQL Server Utility dashboards and viewpoints, which easily identify underutilized and overutilized SQL Server resources across the SQL Server Utility. As illustrated in Figure 1-2, dashboards and viewpoints make it simple for DBAs to realize consolidation opportunities, start the process toward eliminating underutilization, and resolve overutilization issues to create healthier, pristine environments.




  FIGURE 1-2 Identifying consolidation opportunities with the SQL Server Utility dashboard and viewpoints


• Customization of utilization thresholds and policies DBAs can customize the utilization threshold and policies for managed instances of SQL Server and deployed data-tier applications to suit the needs of their environments. For example, DBAs can specify the CPU utilization policies, file space utilization policies, computer CPU utilization policies, and storage volume utilization policies for all managed instances of SQL Server. Furthermore, they can customize the global utilization policies for data-tier applications. For example, a DBA can specify the CPU utilization policies and file space utilization policies for all data-tier applications. The default policy setting for over utilization is 70 percent, whereas underutilization is set to 0 percent. By customizing the utilization threshold policies, DBAs can maintain higher service levels for their SQL Server environments.

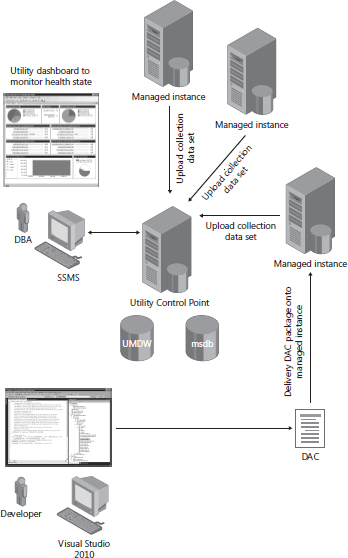

Figure 1-3 illustrates the SQL Server Utility. In this figure, a Utility Control Point has been deployed and is collecting health state and resource utilization data from managed instances of SQL Server and deployed data-tier applications. A DBA is making use of the SQL Server Utility dashboards and viewpoints included in SSMS to proactively and efficiently manage the database environment. This can be done at scale, with information on resource utilization throughout the managed database environment, as a result of centralized visibility. In addition, a data-tier developer is building a data-tier application with Visual Studio 2010; the newly created DAC package will be deployed to a managed instance of SQL Server through the Utility Control Point.



FIGURE 1-3 The SQL Server Utility, including a UPC, managed instances, and a DAC

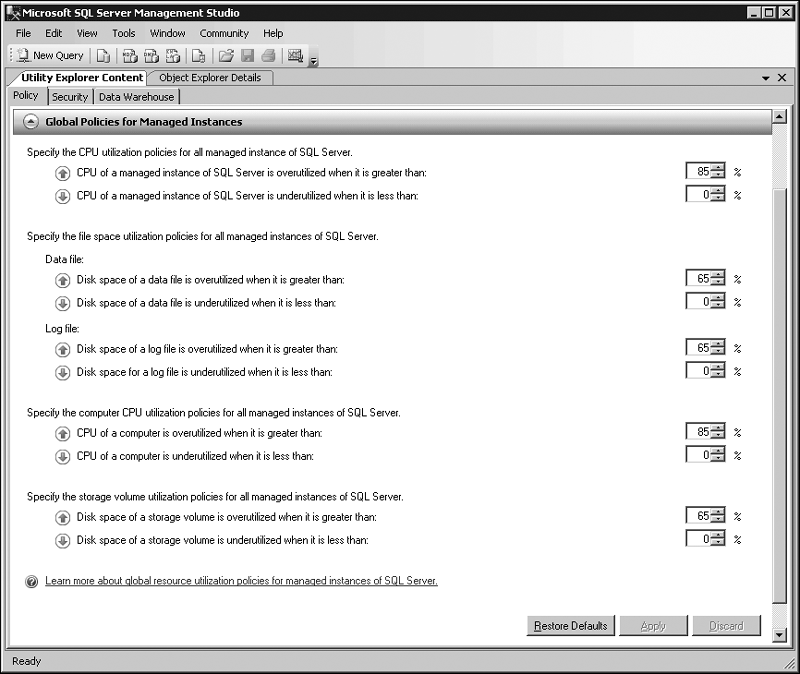

In the example in Figure 1-4, a DBA has optimized hardware resources within the environment by modifying the global utilization policies to meet the needs of the organization. For example, the global CPU over utilization policies of a managed instance of SQL Server and computer have been configured to be over utilized when the utilization is greater than 85 percent. In addition, the global file space and storage volume over utilization policies for all managed instances of SQL Server have been changed to 65 percent.

FIGURE 1-4 Configuring over utilization and underutilization global policies for managed instances

For more information on consolidation, monitoring, using the SQL Server Utility dashboards, and modifying policies, see Chapter 5, "Consolidation and Monitoring."

Additional SQL Server 2008 R2 Enhancements for DBAs

This section focuses on the SQL Server 2008 R2 enhancements that go above and beyond application and multi-server administration. DBAs should be aware of the following new capabilities:

• Parallel Data Warehouse Parallel Data Warehouse is a highly scalable appliance for enterprise data warehousing. It consists of both software and hardware designed to meet the needs of the largest data warehouses. This solution has the ability to massively scale to hundreds of terabytes with the use of new technology, referred to as massively parallel processing (MPP), and through inexpensive hardware configured in a hub-and spoke (control node and compute nodes) architecture. Performance improvements can be attained with Parallel Data Warehouse's design approach because it partitions large tables over several physical nodes, resulting in each node having its own CPU, memory, storage, and SQL Server instance. This design directly eliminates issues with speed and provides scale because a control node evenly distributes data to all compute nodes. The control node is also responsible for gathering data from all compute nodes when returning queries to applications. There isn't much a DBA needs to do from an implementation perspective-the deployment and maintenance is simplified because the solution comes preassembled from certified hardware vendors.
• Integration with Microsoft SQL Azure The client tools included with SQL Server 2008 R2 allow DBAs to connect to SQL Azure, a cloud-based service. SQL Azure is part of the Windows Azure platform and offers a flexible and fully relational database solution in the cloud. The hosted database is built on SQL Server technologies and is completely managed. Therefore, organizations do not have to install, configure, or deal with the day-to-day operations of managing a SQL Server infrastructure to support their database needs. Other key benefits offered by SQL Azure include simplification
  of the provisioning process, support for Transact-SQL, and transparent failover. Yet another enhancement affiliated with SQL Azure is the Generate And Publish Scripts Wizard, which now includes SQL Azure as both a source and a destination for publishing scripts. SQL Azure has something for businesses of all sizes. For example, startups and medium-sized businesses can use this service to create scalable, custom applications, and larger businesses can use SQL Azure to build corporate departmental applications.
• Installation of SQL Server with Sysprep Organizations have been using the System Preparation tool (Sysprep) for many years now to automate the deployment of operating systems. SQL Server 2008 R2 introduces this technology to SQL Server. Installing SQL Server with Sysprep involves a two-step procedure that is typically conducted by using wizards on the Advanced page of the Installation Center. In the first step, a stand-alone instance of SQL Server is prepared. This step prepares the image; however, it stops the installation process after the binaries of SQL Server are installed. To initiate this step, select the Image Preparation Of A Stand-Alone Instance For Sys-Prep Deployment option on the Advanced page of the Installation Center. The second step completes the configuration of a prepared instance of SQL Server by providing the machine, network, and account-specific information for the SQL Server instance. This task can be carried out by selecting the Image Completion Of A Prepared Stand-Alone Instance step on the Advanced page of the Installation Center. SQL Server 2008 R2 Sysprep is recommended for DBAs seeking to automate the deployment of SQL Server while investing the least amount of their time.
• Analysis Services integration with SharePoint SQL Server 2008 R2 introduces a new option to individually select which feature components to install. SQL Server PowerPivot for SharePoint is a new role-based installation option in which PowerPivot for SharePoint will be installed on a new or existing SharePoint 2010 server to support PowerPivot data access in the farm. This new approach promises better integration with SharePoint while also enhancing SharePoint's support of PowerPivot workbooks published to SharePoint. Chapter 10, "Self-Service Analysis with PowerPivot," discusses PowerPivot for SharePoint.
  NOTE In order to use this new installation feature option, SharePoint 2010 must be installed but not configured prior to installing SQL Server 2008 R2.
• Premium Editions SQL Server 2008 R2 introduces two new premium editions to meet the needs of large-scale data centers and data warehouses. The new editions, Datacenter and Parallel Data Warehouse, will be discussed in the "SQL Server 2008 R2 Editions" section later in this chapter.
• Unicode Compression SQL Server 2008 R2 supports compression for Unicode data types. The data types that support compression are the unicode compression and the fixed-length nchar(n) and nvarchar(n) data types. Unfortunately, values stored off row or in nvarchar(max) columns are not compressed. Compression rates of up to 50 percent in storage space can be achieved.
• Extended Protection SQL Server 2008 R2 introduces support for connecting to the Database Engine by using Extended Protection for Authentication. Authentication is achieved by using channel binding and service binding for operating systems that support Extended Protection.
