Introduction
This article shows how to create a custom template inside the report.
Custom Template in SSRS Report
Step 1

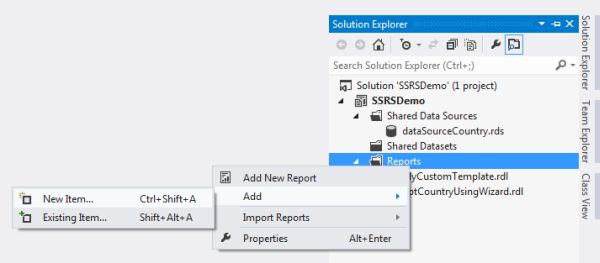

- Right-click on "Reports", select "Add" and click on "New Item".
Step 2

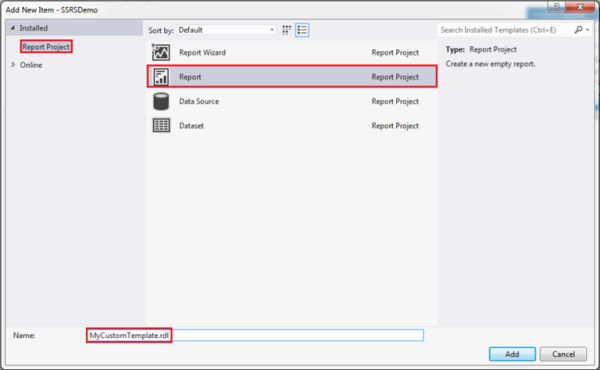

- Select "Report Project" from the left panel and select "Report".
- Provide an appropriate name to the RDL.
- Press the "Add" button.
Step 3

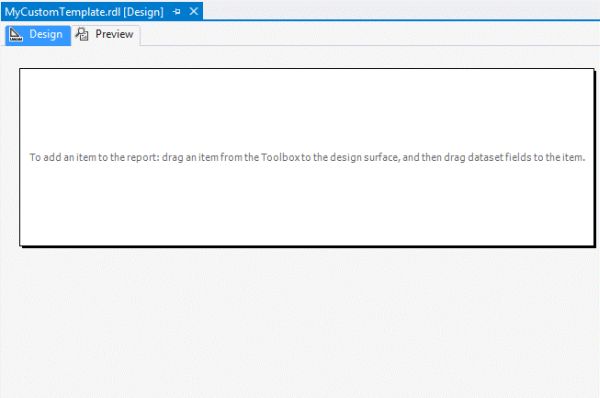

- The RDL file is created and we have the design surface to design the report.
Step 4

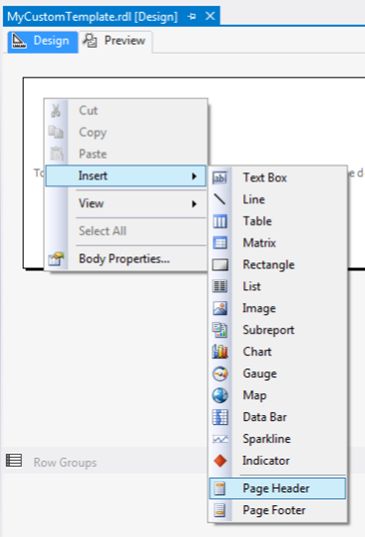

- Right-click on the design surface then select "Insert" and click on "Page Header".
Step 5

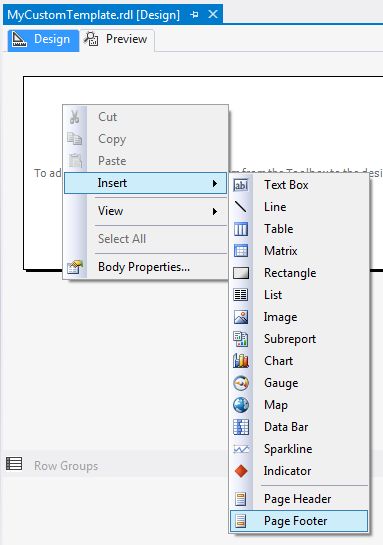

- Right-click on the design surface then select "Insert" and click on "Page Footer".

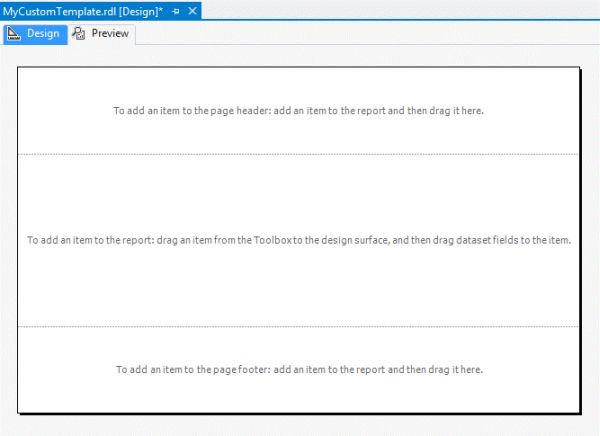

Step 6
- The page header and page footer is created in the RDL file.
Step 7

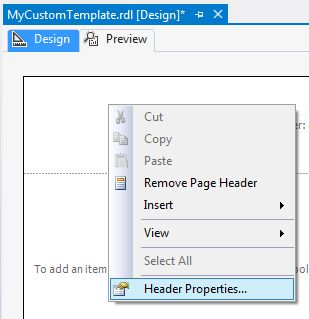

- Right-click on the header portion and select "Header Properties" to design the header.

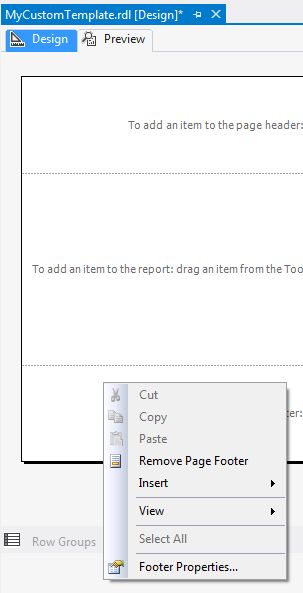

Step 8
- In the same way right-click on the footer portion and select "Footer Properties" to design the footer.
Step 9
- In general properties we have the option to print on the first page and / or the last page. Also we can set the height of the header or footer.
*Print on the first page.
Step 10

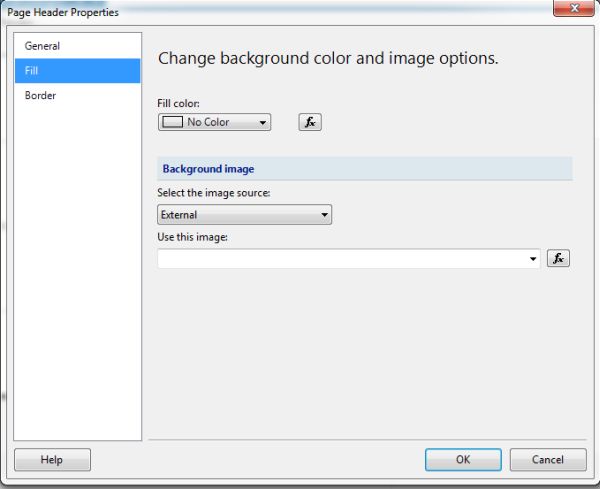

- In the fill properties we can set the background color or set the background image.
Step 11
- We can also select the border style, width and color using the border properties.
Step 12

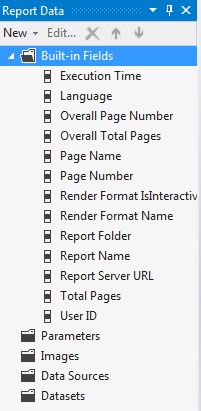

- We can use built-in-fields for the header and footer, like the page name, page number and so on.
Step 13
- Here in our example we set Grey as the background color in the header and footer.
- We set the execution time and page number from the built-in fields for the footer.
Step 14
- Our custom template is ready, now we need to save it.
- Click on "File" >> "Save MyCustomTemplate.rdl As".

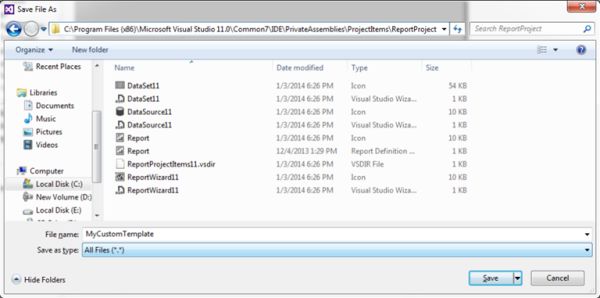

Step 15
- Provide an appropriate name and save it on the following path.
Step 16
- Now let's design a report using the created template.
- Right-click on "Reports", select "Add" and click on "New Item".

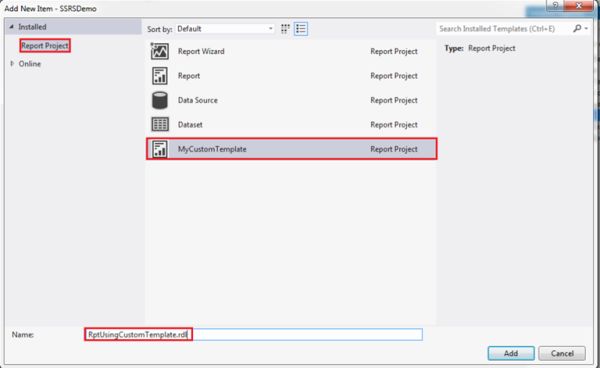

Step 17
- Select "Report Project" from the left panel.
- Select "MyCustomTemplate" rather than "Report" to implement the template.
- Provide an appropriate name to the report.

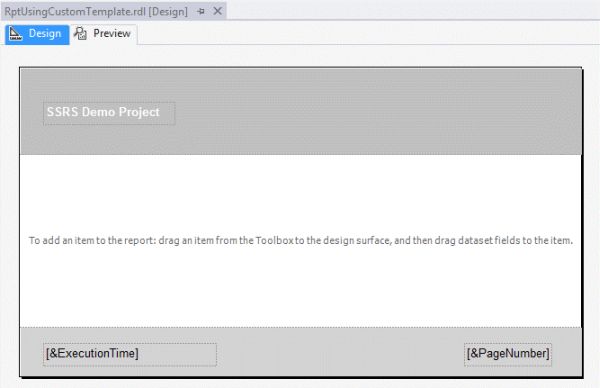

Step 18
- Now you can see, our custom template is automatically added to the report design surface.
