Hour 4: Report with Parameters

Introduction


This article shows how to create a report that expects a parameter, in other words, a parameterized report. We pass CountryRowId as the parameter and we get all the states of that country.

SSRS Report with Parameter


Step 1
  • In order to create a shared dataset, right-click on "Shared Datasets" and click on "Add New Dataset".

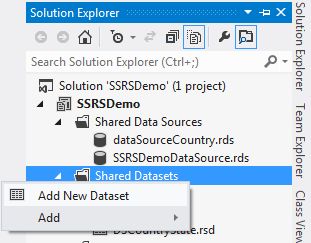

    add new dataset
Step 2
  • Provide an appropriate name of dataset.
  • Select the data source.
  • Select the "Stored Procedure" radio button and provide the Stored Procedure name.

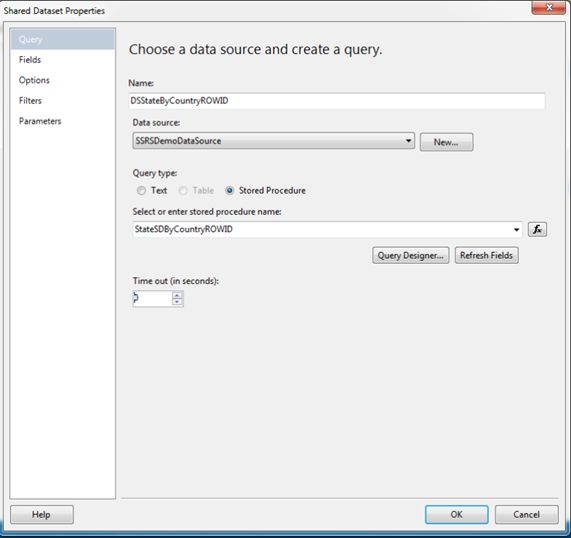

    choose datasource
Step 3
  • Now let's add the report. Right-click on "Reports", select "Add" and click on "New Item…".

    add report
Step 4

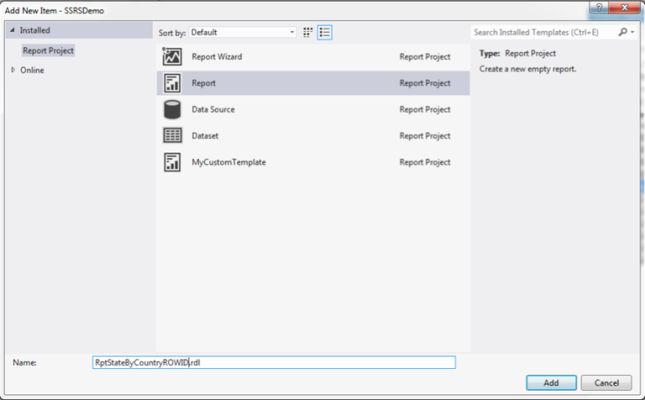

  • Select Report and provide an appropriate report name.

    report name
Step 5

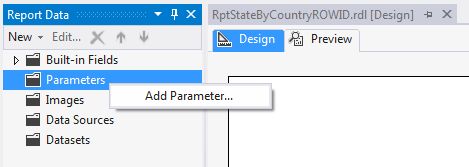

  • To add a parameter, right-click on "Parameters" in Report Data and click on "Add Parameter…".

    adding parameter
Step 6

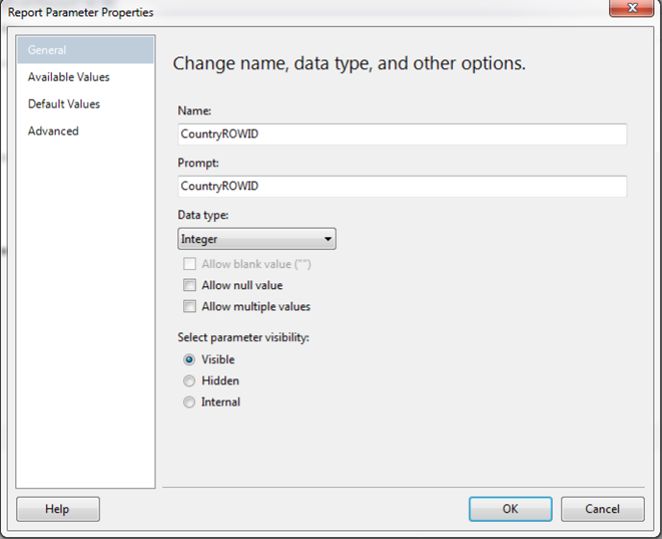

  • Provide a parameter name and change its visibility to visible.

    report parameter properties
Step 7
  • Add a data source in the report data.
  • Right-click on "Data Sources" and click on "Add Data Source…".

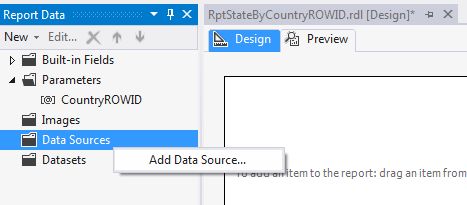

    adding datasource
Step 8

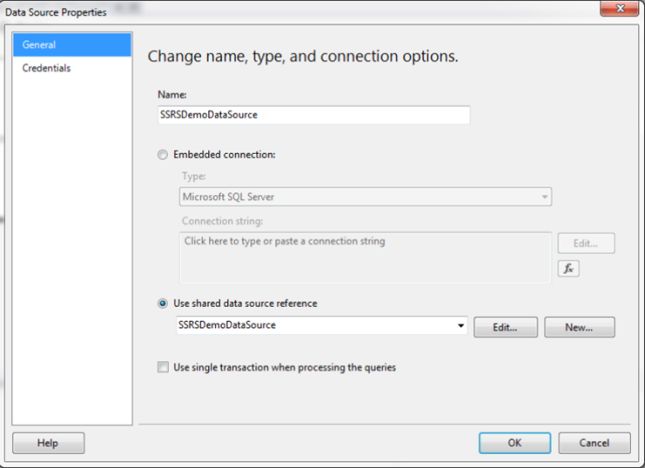

  • Provide a data source name and select a data source reference.

    datasource reference
Step 9
  • Add the data set to the report data.
  • Right-click on "Datasets" and click on "Add Dataset…".

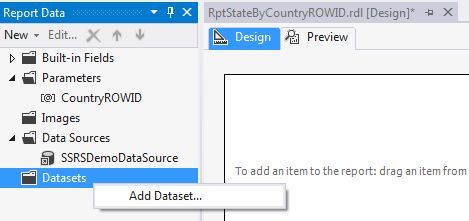

    dataset adding
Step 10

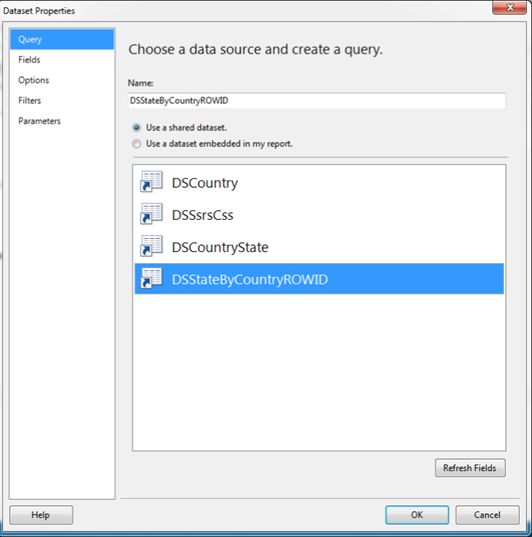

  • Provide the data set name and select shared data set.

    shared dataset
Step 11
  • Open the report file.
  • Right-click on the design surface, select "Insert" and click on "Table".

    inserting table
Step 12
  • It will add a table to the report design surface.
  • Set "State Row ID" and "State Name" in two different column headers.

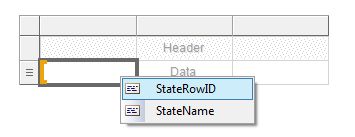

  • Map "StateRowID" in the first column.

    StateRowID
Step 13

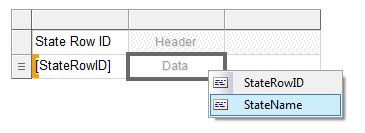

  • Map "StateName" in the second column.

    StateName
Step 14

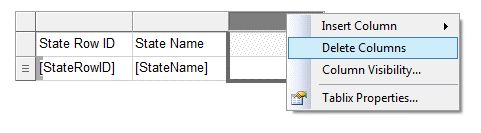

  • Select and delete the third column.

    delete column
Step 15
  • Now the report design is ready.

    report design
Step 16
  • Click on preview to check the report.
  • Pass a parameter value.

    report preview
Step 17
  • You can see the list of states for the country you passed in the parameter.

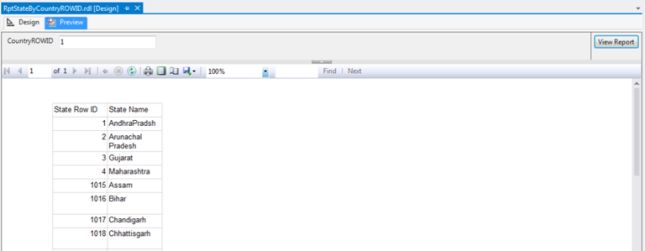

    states report
