what are the diffrenace between the application pipline and reuest pip

Part - 1
Yes, you're absolutely correct!

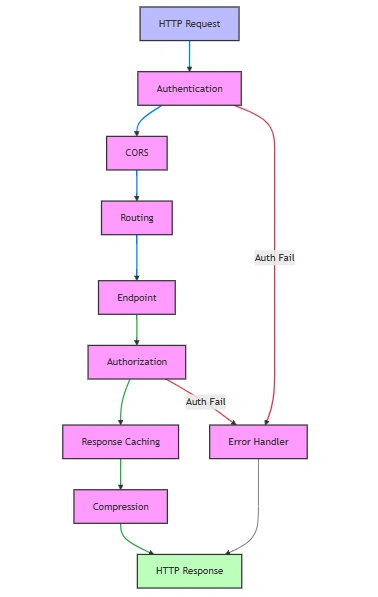

• Request Starts:

  • When an HTTP request is received by the ASP.NET Core application, it enters the request pipeline.
  • This pipeline is essentially composed of a series of middleware components that process the request sequentially.

• Middleware Role:

  • Each middleware acts as a building block in the request pipeline.
  • A middleware can:
    • Process the request and pass it to the next middleware using a request delegate (next()).
    • Handle the request entirely (e.g., static file middleware) and not pass it further.

• Request Delegate:

  • The next() delegate in middleware is what passes the request to the next component in the pipeline.
  • If there are no more middleware components, the request is eventually handled by the endpoint (e.g., a controller action).

• End of Pipeline:

  • Once the request reaches the terminal middleware (e.g., MapControllers() or a static file handler), the response is generated and flows back through the pipeline for post-processing by earlier middleware.

 @Tuhin Paul   So this means it is the request pipeline starts when the request comes and being handled by the request delegate in case of middlewear

The request pipeline is a part of the broader application pipeline but is focused on the processing logic at a specific endpoint. It starts after the middleware chain and ends when the controller/action processes the request and returns a response.

Key Characteristics:

1. Specific to Endpoints: Applies only to the endpoint handling the request.
2. Scoped Logic: The controller or handler processes the request data and performs specific tasks, such as consuming a Kafka topic or sending messages to Kafka producers.
3. Request Delegate: It is essentially the logic within the controller/action method that processes the request.

 Talking about the same project , let's say you have a controller that consumes messages from a Kafka topic and processes them,

[ApiController]
[Route("api/[controller]")]
public class KafkaController : ControllerBase
{
    private readonly IKafkaConsumer _kafkaConsumer;

    public KafkaController(IKafkaConsumer kafkaConsumer)
    {
        _kafkaConsumer = kafkaConsumer;
    }

    [HttpGet("consume")]
    public async Task ConsumeMessages()
    {
        try
        {
            var messages = await _kafkaConsumer.ConsumeAsync("example-topic");
            return Ok(messages);
        }
        catch (Exception ex)
        {
            // Handle request-specific errors
            return StatusCode(500, new { Error = ex.Message });
        }
    }
}

• The request pipeline begins when the endpoint api/kafka/consume is invoked.
• The action ConsumeMessages processes the request by:
  • Calling a Kafka consumer service (IKafkaConsumer).
  • Returning a list of Kafka messages as the response.

Role of Request Pipeline: It handles the request logic specific to consuming Kafka messages and prepares the response.

The application pipeline and request pipeline in ASP.NET Core are closely related but distinct concepts.

The application pipeline is the global pipeline configured in the Program.cs (or previously, Startup.cs) file. It defines the middleware components that process all incoming requests before reaching the target endpoint. Middleware is executed in the order in which it is added to the pipeline.

Key Characteristics:

1. Global Configuration: Applies to all incoming requests in the application.
2. Handles Cross-Cutting Concerns: Middleware is often responsible for logging, authentication, authorization, error handling, etc.
3. Sequential Execution: The request flows through the middleware sequentially in the order they are registered.

Say you are building a real-time Kafka processing API where messages are consumed, processed, and returned to a client.

In the Program.cs, your application pipeline might have

var builder = WebApplication.CreateBuilder(args);
var app = builder.Build();

// Application pipeline configuration
app.UseRouting();
app.UseAuthentication();
app.UseAuthorization();
app.UseMiddleware();
app.UseMiddleware();

app.MapControllers();

app.Run();

• UseRouting: Matches the incoming request to the appropriate controller/action.
• UseAuthentication and UseAuthorization: Ensure secure access to the Kafka endpoints.
• LoggingMiddleware: Logs details about the Kafka message request.
• ExceptionHandlingMiddleware: Catches and handles any exceptions, ensuring clean error messages for Kafka API clients.

Role of Application Pipeline: It prepares and secures the app before the request is handed over to the request pipeline for endpoint-specific processing.
