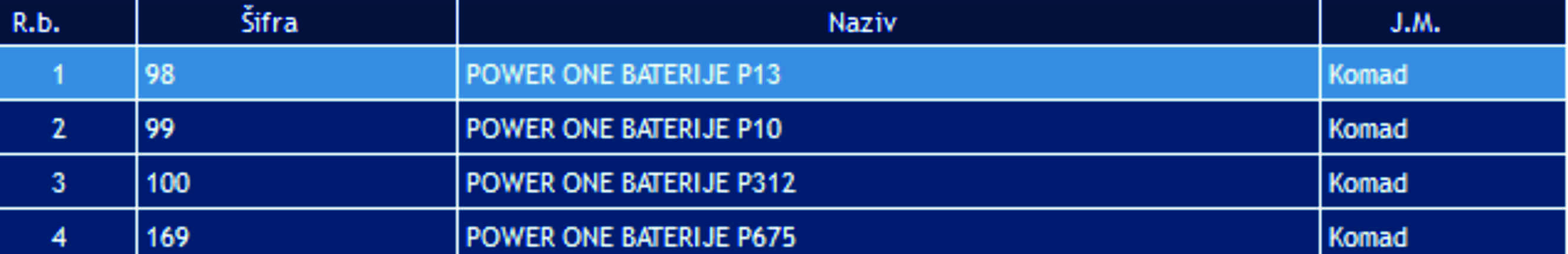

My datagrid

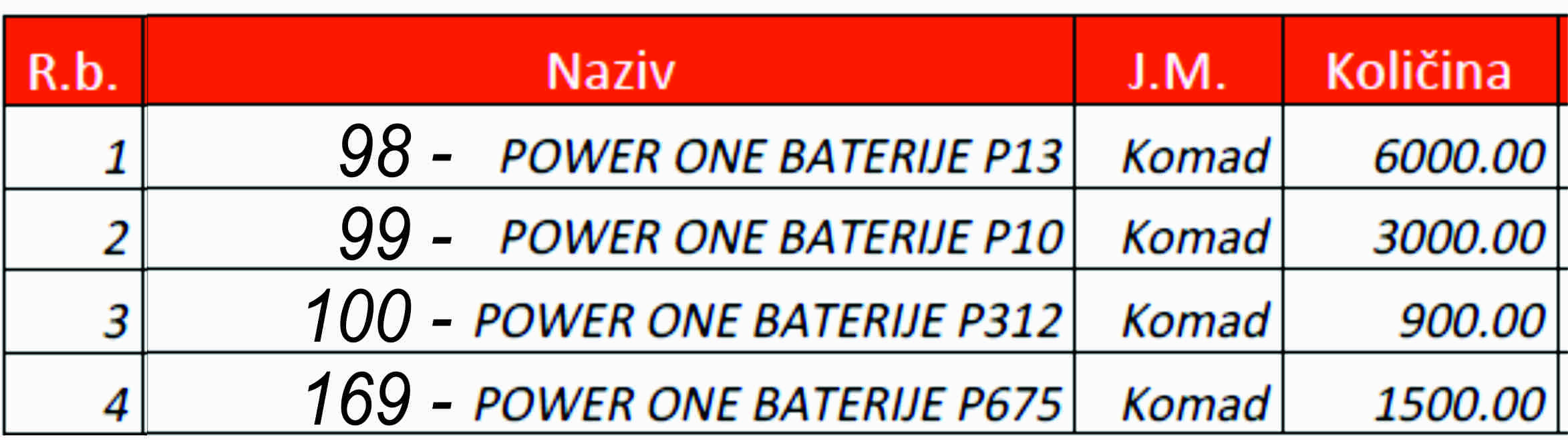

Result:
MY part code need to modify:
//Adding Header row foreach (DataGridViewColumn column in ItemsDataGridView.Columns) { PdfPCell cell = new PdfPCell(new Phrase(column.HeaderText, calibri10bold3)); cell.HorizontalAlignment = Element.ALIGN_CENTER; cell.VerticalAlignment = Element.ALIGN_CENTER; cell.BackgroundColor = new iTextSharp.text.BaseColor(243, 70, 5); //255, 165, 61 //243, 70, 5 pdfTable.AddCell(cell); } //Adding DataRow foreach (DataGridViewRow row in ItemsDataGridView.Rows) { foreach (DataGridViewCell cell in row.Cells) { PdfPCell cell2 = new PdfPCell(new Phrase(cell.Value.ToString(), calibri2)); cell2.HorizontalAlignment = Element.ALIGN_RIGHT; cell2.VerticalAlignment = Element.ALIGN_MIDDLE; pdfTable.AddCell(cell2); } }
Complete code:
//Creating iTextSharp Table from the DataTable data //Console.WriteLine(drzaveDataGridView.ColumnCount); test za itext sharp PdfPTable pdfTable = new PdfPTable(ItemsDataGridView.ColumnCount); pdfTable.DefaultCell.Padding = 2; //odstojanje od linija unutar tabele pdfTable.WidthPercentage = 100; pdfTable.HorizontalAlignment = Element.ALIGN_LEFT; //datagreed tabela pdfTable.DefaultCell.BorderWidth = 1; float[] sirina = new float[] { 0f, 20f, 35f, 0f, 0f, 135f, 30f, 40f, 0f, 50f, 42f, 40f, 35f, 40f, 40f, 50f, 50f, 0f, 0f, 0f, 0f, 0f, 0f, 0f, 0f }; pdfTable.SetWidths(sirina); BaseFont bfCalibri = BaseFont.CreateFont("c:\\windows\\fonts\\calibri.ttf", BaseFont.IDENTITY_H, BaseFont.EMBEDDED); iTextSharp.text.Font calibri = new iTextSharp.text.Font(bfCalibri, 9, iTextSharp.text.Font.BOLD); iTextSharp.text.Font calibrinormal = new iTextSharp.text.Font(bfCalibri, 9, iTextSharp.text.Font.NORMAL); iTextSharp.text.Font calibri10bold2 = new iTextSharp.text.Font(bfCalibri, 9, iTextSharp.text.Font.BOLD, iTextSharp.text.BaseColor.BLACK); iTextSharp.text.Font calibri10bold3 = new iTextSharp.text.Font(bfCalibri, 8, iTextSharp.text.Font.NORMAL, iTextSharp.text.BaseColor.WHITE); iTextSharp.text.Font calibri2 = new iTextSharp.text.Font(bfCalibri, 7, iTextSharp.text.Font.ITALIC); //Adding Header row foreach (DataGridViewColumn column in ItemsDataGridView.Columns) { PdfPCell cell = new PdfPCell(new Phrase(column.HeaderText, calibri10bold3)); cell.HorizontalAlignment = Element.ALIGN_CENTER; cell.VerticalAlignment = Element.ALIGN_CENTER; cell.BackgroundColor = new iTextSharp.text.BaseColor(243, 70, 5); //255, 165, 61 //243, 70, 5 pdfTable.AddCell(cell) } //Adding DataRow foreach (DataGridViewRow row in ItemsDataGridView.Rows) { foreach (DataGridViewCell cell in row.Cells) { PdfPCell cell2 = new PdfPCell(new Phrase(cell.Value.ToString(), calibri2)); cell2.HorizontalAlignment = Element.ALIGN_RIGHT; cell2.VerticalAlignment = Element.ALIGN_MIDDLE; pdfTable.AddCell(cell2); } } PdfPTable pdfTable2 = new PdfPTable(2); pdfTable2.SetWidths(new int[] { 1, 2 }); // kolone pdfTable2.DefaultCell.Padding = 1; //odstojanje od linija unutar tabele pdfTable2.WidthPercentage = 29.62f; pdfTable2.HorizontalAlignment = Element.ALIGN_RIGHT; pdfTable2.DefaultCell.BorderWidth = .5f; // float[] sirina2 = new float[] { 75.59f, 85f }; float[] sirina2 = new float[] { 80f, 100f }; pdfTable2.SetWidths(sirina2); // Next we need to add rows and columns to the above table object.This can be added by using the AddCell method of the above table object. //pdfTable2.AddCell("IZNOS BEZ PDV:"); // pdfTable2.AddCell(iznos_bez_pdvTextBox.Text.ToString() + " KM"); // pdfTable2.AddCell("IZNOS PDV"); //pdfTable2.AddCell(pdvTextBox1.Text.ToString() + " KM"); // pdfTable2.AddCell("UKUPNO"); // pdfTable2.AddCell(iznos_sa_pdvTextBox1.Text.ToString() + " KM"); // PdfPCell cellid = new PdfPCell(new Phrase("ID", calibri)); // pdfTable2.AddCell(cellid); // cellid.HorizontalAlignment = Element.ALIGN_RIGHT; // cellid.BackgroundColor = BaseColor.LIGHT_GRAY; // cellid.BorderWidth = 1; // cellid.BorderColor = BaseColor.BLUE; // cellid.Padding = 5; // pdfTable2.AddCell(cellid); // PdfPCell pdv_cell_pdf = new PdfPCell(new Phrase("PDV: ", calibri)); // pdfTable2.AddCell(pdv_cell_pdf); // pdv_cell_pdf.HorizontalAlignment = Element.ALIGN_RIGHT; // pdv_cell_pdf.BackgroundColor = BaseColor.GREEN; // pdv_cell_pdf.BorderWidth = 0.5f; // pdv_cell_pdf.BorderColor = BaseColor.BLUE; // pdv_cell_pdf.Padding = 5; // pdfTable2.AddCell("Ukupno bez PDV"); PdfPCell ukupno_bez_pdv_cell2_pdf = new PdfPCell(new Phrase("Ukupno bez PDV:", calibri10bold2)); PdfPCell ukupno_bez_pdv_cell_pdf = new PdfPCell(new Phrase(IznosSaRabatomBezPdvTextBox.Text.ToString() + " KM", calibri10bold2)); ukupno_bez_pdv_cell2_pdf.HorizontalAlignment = Element.ALIGN_RIGHT; ukupno_bez_pdv_cell_pdf.HorizontalAlignment = Element.ALIGN_RIGHT; // ukupno_bez_pdv_cell_pdf.BackgroundColor = new iTextSharp.text.BaseColor(41, 128, 185); // ukupno_bez_pdv_cell2_pdf.BackgroundColor = new iTextSharp.text.BaseColor(41, 128, 185); // ukupno_bez_pdv_cell2_pdf.BorderWidth = 1; //ukupno_bez_pdv_cell_pdf.BorderColor = BaseColor.BLACK; //ukupno_bez_pdv_cell2_pdf.Padding = 5; // pdfTable2.AddCell(ukupno_bez_pdv_cell_pdf); pdfTable2.AddCell(ukupno_bez_pdv_cell2_pdf); pdfTable2.AddCell(ukupno_bez_pdv_cell_pdf); PdfPCell pdv_cell5_pdf = new PdfPCell(new Phrase("PDV: ", calibri10bold2)); PdfPCell pdv_cell6_pdf = new PdfPCell(new Phrase(PdvTextBox.Text.ToString() + " KM", calibri10bold2)); pdv_cell5_pdf.HorizontalAlignment = Element.ALIGN_RIGHT; pdv_cell6_pdf.HorizontalAlignment = Element.ALIGN_RIGHT; // pdv_cell5_pdf.BackgroundColor = new iTextSharp.text.BaseColor(41, 128, 185); // pdv_cell6_pdf.BackgroundColor = new iTextSharp.text.BaseColor(41, 128, 185); // pdv_cell6_pdf.BorderWidth = 3; // pdv_cell6_pdf.BorderColor = BaseColor.BLUE; // pdv_cell6_pdf.Padding = 5; // pdfTable2.AddCell(pdv_cell6_pdf); pdfTable2.AddCell(pdv_cell5_pdf); pdfTable2.AddCell(pdv_cell6_pdf); PdfPCell ukupno_sa_pdv_cell3_pdf = new PdfPCell(new Phrase("UKUPNO: ", calibri10bold2)); PdfPCell ukupno_sa_pdv_cell4_pdf = new PdfPCell(new Phrase(IznosSaPdvTextBox.Text.ToString() + " KM", calibri10bold2)); ukupno_sa_pdv_cell3_pdf.HorizontalAlignment = Element.ALIGN_RIGHT; ukupno_sa_pdv_cell3_pdf.VerticalAlignment = Element.ALIGN_MIDDLE; ukupno_sa_pdv_cell4_pdf.HorizontalAlignment = Element.ALIGN_RIGHT; ukupno_sa_pdv_cell4_pdf.VerticalAlignment = Element.ALIGN_MIDDLE; // ukupno_sa_pdv_cell3_pdf.BackgroundColor = new iTextSharp.text.BaseColor(41, 128, 185); // ukupno_sa_pdv_cell4_pdf.BackgroundColor = new iTextSharp.text.BaseColor(41, 128, 185); // ukupno_sa_pdv_cell4_pdf.BorderWidth = 3; ukupno_sa_pdv_cell4_pdf.BorderColor = BaseColor.BLACK; ukupno_sa_pdv_cell3_pdf.Padding = 1; ukupno_sa_pdv_cell4_pdf.Padding = 1; pdfTable2.AddCell(ukupno_sa_pdv_cell3_pdf); pdfTable2.AddCell(ukupno_sa_pdv_cell4_pdf); // tabela za obracun poreza PdfPTable pdvTable = new PdfPTable(2); pdvTable.SetWidths(new int[] { 1, 2 }); // kolone pdvTable.DefaultCell.Padding = 1; //odstojanje od linija unutar tabele pdvTable.WidthPercentage = 30f; pdvTable.HorizontalAlignment = Element.ALIGN_LEFT; pdvTable.DefaultCell.BorderWidth = .5f; float[] sirinapdv = new float[] { 75.59f, 85f }; pdvTable.SetWidths(sirinapdv); //header PdfPCell cellpdv = new PdfPCell(new Phrase("Kalkulacija poreza", calibri10bold3)); cellpdv.BackgroundColor = new iTextSharp.text.BaseColor(41, 128, 185); //255, 165, 61 //243, 70, 5 cellpdv.Colspan = 2; cellpdv.HorizontalAlignment = 1; //0=Left, 1=Centre, 2=Right cellpdv.VerticalAlignment = 1; //0=Left, 1=Centre, 2=Right pdvTable.AddCell(cellpdv); // Next we need to add rows and columns to the above table object.This can be added by using the AddCell method of the above table object. //pdvTable.AddCell("IZNOS BEZ PDV:"); // pdvTable.AddCell(iznos_bez_pdvTextBox.Text.ToString() + " KM"); // pdvTable.AddCell("IZNOS PDV"); //pdvTable.AddCell(pdvTextBox1.Text.ToString() + " KM"); // pdvTable.AddCell("UKUPNO"); // pdvTable.AddCell(iznos_sa_pdvTextBox1.Text.ToString() + " KM"); // PdfPCell cellid = new PdfPCell(new Phrase("ID", calibri)); // pdvTable.AddCell(cellid); // cellid.HorizontalAlignment = Element.ALIGN_RIGHT; // cellid.BackgroundColor = BaseColor.LIGHT_GRAY; // cellid.BorderWidth = 1; // cellid.BorderColor = BaseColor.BLUE; // cellid.Padding = 5; // pdvTable.AddCell(cellid); // PdfPCell pdv_cell_pdf = new PdfPCell(new Phrase("PDV: ", calibri)); // pdvTable.AddCell(pdv_cell_pdf); // pdv_cell_pdf.HorizontalAlignment = Element.ALIGN_RIGHT; // pdv_cell_pdf.BackgroundColor = BaseColor.GREEN; // pdv_cell_pdf.BorderWidth = 0.5f; // pdv_cell_pdf.BorderColor = BaseColor.BLUE; // pdv_cell_pdf.Padding = 5; // pdvTable.AddCell("Ukupno bez PDV"); PdfPCell ukupno_bez_pdv_cell_pdf_pdv23 = new PdfPCell(new Phrase("Osnovica PDV:", calibri2)); PdfPCell ukupno_bez_pdv_cell_pdf_pdv24 = new PdfPCell(new Phrase(IznosSaRabatomBezPdvTextBox.Text.ToString() + " KM", calibri2)); ukupno_bez_pdv_cell_pdf_pdv23.HorizontalAlignment = Element.ALIGN_CENTER; ukupno_bez_pdv_cell_pdf_pdv24.HorizontalAlignment = Element.ALIGN_CENTER; // ukupno_bez_pdv_cell_pdf_pdv.BackgroundColor = new iTextSharp.text.BaseColor(41, 128, 185); // ukupno_bez_pdv_cell_pdf_pdv2.BackgroundColor = new iTextSharp.text.BaseColor(41, 128, 185); // ukupno_bez_pdv_cell_pdf_pdv.BorderWidth = 1; //ukupno_bez_pdv_cell_pdf_pdv.BorderColor = BaseColor.BLACK; //ukupno_bez_pdv_cell_pdf_pdv.Padding = 5; // pdvTable.AddCell(ukupno_bez_pdv_cell_pdf); pdvTable.AddCell(ukupno_bez_pdv_cell_pdf_pdv23); pdvTable.AddCell(ukupno_bez_pdv_cell_pdf_pdv24); PdfPCell pdv_cell7_pdf = new PdfPCell(new Phrase("Iznos PDV: ", calibri2)); PdfPCell pdv_cell8_pdf = new PdfPCell(new Phrase(PdvTextBox.Text.ToString() + " KM", calibri2)); pdv_cell7_pdf.HorizontalAlignment = Element.ALIGN_CENTER; pdv_cell8_pdf.HorizontalAlignment = Element.ALIGN_CENTER; // pdv_cell5_pdf.BackgroundColor = new iTextSharp.text.BaseColor(41, 128, 185); // pdv_cell6_pdf.BackgroundColor = new iTextSharp.text.BaseColor(41, 128, 185); // pdv_cell6_pdf.BorderWidth = 3; // pdv_cell6_pdf.BorderColor = BaseColor.BLUE; // pdv_cell6_pdf.Padding = 5; // pdfTable2.AddCell(pdv_cell6_pdf); pdvTable.AddCell(pdv_cell7_pdf); pdvTable.AddCell(pdv_cell8_pdf); PdfPCell ukupno_sa_pdv_cell9_pdf = new PdfPCell(new Phrase("Ukupno sa PDV: ", calibri2)); PdfPCell ukupno_sa_pdv_cell10_pdf = new PdfPCell(new Phrase(IznosSaPdvTextBox.Text.ToString() + " KM", calibri2)); ukupno_sa_pdv_cell9_pdf.HorizontalAlignment = Element.ALIGN_CENTER; ukupno_sa_pdv_cell10_pdf.VerticalAlignment = Element.ALIGN_CENTER; ukupno_sa_pdv_cell10_pdf.HorizontalAlignment = Element.ALIGN_CENTER; ukupno_sa_pdv_cell9_pdf.VerticalAlignment = Element.ALIGN_CENTER; // ukupno_sa_pdv_cell3_pdf.BackgroundColor = new iTextSharp.text.BaseColor(41, 128, 185); // ukupno_sa_pdv_cell4_pdf.BackgroundColor = new iTextSharp.text.BaseColor(41, 128, 185); // ukupno_sa_pdv_cell4_pdf.BorderWidth = 3; ukupno_sa_pdv_cell10_pdf.BorderColor = BaseColor.BLACK; ukupno_sa_pdv_cell10_pdf.Padding = 1; ukupno_sa_pdv_cell9_pdf.Padding = 1; pdvTable.AddCell(ukupno_sa_pdv_cell9_pdf); pdvTable.AddCell(ukupno_sa_pdv_cell10_pdf); string korisnik_programa = ""; using (SqlConnection openCon = new SqlConnection(Con)) { SqlDataReader reader; SqlCommand cmd = new SqlCommand(); cmd.CommandText = "select puno_ime from podaci_o_korisniku"; cmd.Connection = openCon; openCon.Open(); reader = cmd.ExecuteReader(); while (reader.Read()) { korisnik_programa = reader[0].ToString(); } openCon.Close(); } string adresa = ""; using (SqlConnection openCon = new SqlConnection(Con)) { SqlDataReader reader; SqlCommand cmd2 = new SqlCommand(); cmd2.CommandText = "select adresa from podaci_o_korisniku"; cmd2.Connection = openCon; openCon.Open(); reader = cmd2.ExecuteReader(); while (reader.Read()) { adresa = reader[0].ToString(); } openCon.Close(); } string jib2 = ""; using (SqlConnection openCon = new SqlConnection(Con)) { SqlDataReader reader; SqlCommand cmd3 = new SqlCommand(); cmd3.CommandText = "select jib2 from podaci_o_korisniku"; cmd3.Connection = openCon; openCon.Open(); reader = cmd3.ExecuteReader(); while (reader.Read()) { jib2 = reader[0].ToString(); } openCon.Close(); } string pib2 = ""; using (SqlConnection openCon2 = new SqlConnection(Con)) { SqlDataReader reader2; SqlCommand cmd4 = new SqlCommand(); cmd4.CommandText = "select pib2 from podaci_o_korisniku"; cmd4.Connection = openCon2; openCon2.Open(); reader2 = cmd4.ExecuteReader(); while (reader2.Read()) { pib2 = reader2[0].ToString(); } openCon2.Close(); } string mesto = ""; using (SqlConnection openCon3 = new SqlConnection(Con)) { SqlDataReader reader3; SqlCommand cmd5 = new SqlCommand(); cmd5.CommandText = "select mesto from podaci_o_korisniku"; cmd5.Connection = openCon3; openCon3.Open(); reader3 = cmd5.ExecuteReader(); while (reader3.Read()) { mesto = reader3[0].ToString(); } openCon3.Close(); } string ziro_racun2 = ""; using (SqlConnection openCon6 = new SqlConnection(Con)) { SqlDataReader reader6; SqlCommand cmd6 = new SqlCommand(); cmd6.CommandText = "select ziro_racun2 from podaci_o_korisniku"; cmd6.Connection = openCon6; openCon6.Open(); reader6 = cmd6.ExecuteReader(); while (reader6.Read()) { ziro_racun2 = reader6[0].ToString(); } openCon6.Close(); } string e_mail = ""; using (SqlConnection openCon7 = new SqlConnection(Con)) { SqlDataReader reader7; SqlCommand cmd7 = new SqlCommand(); cmd7.CommandText = "select e_mail from podaci_o_korisniku"; cmd7.Connection = openCon7; openCon7.Open(); reader7 = cmd7.ExecuteReader(); while (reader7.Read()) { e_mail = reader7[0].ToString(); } openCon7.Close(); } string redni_broj = ""; using (SqlConnection openCon8 = new SqlConnection(Con)) { SqlDataReader reader8; SqlCommand cmd8 = new SqlCommand(); cmd8.CommandText = "select FORMAT(redni_broj, '00000') from dbo.mp_ulazni_racun_roba_lista where id=" + id_fakture; cmd8.Connection = openCon8; openCon8.Open(); reader8 = cmd8.ExecuteReader(); while (reader8.Read()) { redni_broj = reader8[0].ToString(); } openCon8.Close(); } string kupac = ""; using (SqlConnection openCon9 = new SqlConnection(Con)) { SqlDataReader reader9; SqlCommand cmd9 = new SqlCommand(); cmd9.CommandText = "select poslovni_partner from dbo.mp_ulazni_racun_roba_lista where id=" + id_fakture; cmd9.Connection = openCon9; openCon9.Open(); reader9 = cmd9.ExecuteReader(); while (reader9.Read()) { kupac = reader9[0].ToString(); } openCon9.Close(); } string datum = ""; using (SqlConnection openCon10 = new SqlConnection(Con)) { SqlDataReader reader10; SqlCommand cmd10 = new SqlCommand(); // cmd10.CommandText = "select datum from mp_racun_lista where id=" + id_fakture; cmd10.CommandText = "SELECT CONVERT(VARCHAR(10), datum , 104) from dbo.mp_ulazni_racun_roba_lista where id=" + id_fakture; cmd10.Connection = openCon10; openCon10.Open(); reader10 = cmd10.ExecuteReader(); while (reader10.Read()) { datum = reader10[0].ToString(); } openCon10.Close(); } string valuta_placanja_pdf = ""; using (SqlConnection openCon11 = new SqlConnection(Con)) { SqlDataReader reader11; SqlCommand cmd11 = new SqlCommand(); cmd11.CommandText = "SELECT CONVERT(VARCHAR(10), valuta_placanja , 104) AS [DD.MM.YYYY] from .mp_ulazni_racun_roba_lista where id=" + id_fakture; cmd11.Connection = openCon11; openCon11.Open(); reader11 = cmd11.ExecuteReader(); while (reader11.Read()) { valuta_placanja_pdf = reader11[0].ToString(); } openCon11.Close(); } //string mesto_izdavanja_pdf = ""; //using (SqlConnection openCon12 = new SqlConnection(con)) //{ // SqlDataReader reader12; // SqlCommand cmd12 = new SqlCommand(); // cmd12.CommandText = "select mesto_izdavanja from dbo.mp_ulazni_racun_roba_lista where id=" + id_fakture; // cmd12.Connection = openCon12; // openCon12.Open(); // reader12 = cmd12.ExecuteReader(); // while (reader12.Read()) // { // mesto_izdavanja_pdf = reader12[0].ToString(); // } // openCon12.Close(); //} //string fakturisao_pdf = ""; //using (SqlConnection openCon13 = new SqlConnection(con)) //{ // SqlDataReader reader13; // SqlCommand cmd13 = new SqlCommand(); // cmd13.CommandText = "select fakturisao from dbo.mp_ulazni_racun_roba_lista where id=" + id_fakture; // cmd13.Connection = openCon13; // openCon13.Open(); // reader13 = cmd13.ExecuteReader(); // while (reader13.Read()) // { // fakturisao_pdf = reader13[0].ToString(); // } // openCon13.Close(); //} string slogan_korisnika = ""; using (SqlConnection openCon14 = new SqlConnection(Con)) { SqlDataReader reader14; SqlCommand cmd14 = new SqlCommand(); cmd14.CommandText = "select slogan_korisnika from podaci_o_korisniku"; cmd14.Connection = openCon14; openCon14.Open(); reader14 = cmd14.ExecuteReader(); while (reader14.Read()) { slogan_korisnika = reader14[0].ToString(); } openCon14.Close(); } string jib_pdf = ""; using (SqlConnection openCon15 = new SqlConnection(Con)) { SqlDataReader reader15; SqlCommand cmd15 = new SqlCommand(); cmd15.CommandText = "select jib from dbo.mp_ulazni_racun_roba_lista where id=" + id_fakture; cmd15.Connection = openCon15; openCon15.Open(); reader15 = cmd15.ExecuteReader(); while (reader15.Read()) { jib_pdf = reader15[0].ToString(); } openCon15.Close(); } string pib_pdf = ""; using (SqlConnection openCon16 = new SqlConnection(Con)) { SqlDataReader reader16; SqlCommand cmd16 = new SqlCommand(); cmd16.CommandText = "select pib from dbo.mp_ulazni_racun_roba_lista where id=" + id_fakture; cmd16.Connection = openCon16; openCon16.Open(); reader16 = cmd16.ExecuteReader(); while (reader16.Read()) { pib_pdf = reader16[0].ToString(); } openCon16.Close(); } //string postanski_broj_kupca_pdf = ""; //using (SqlConnection openCon17 = new SqlConnection(con)) //{ // SqlDataReader reader17; // SqlCommand cmd17 = new SqlCommand(); // cmd17.CommandText = "select postanski_broj_kupca from dbo.mp_ulazni_racun_roba_lista where id=" + id_fakture; // cmd17.Connection = openCon17; // openCon17.Open(); // reader17 = cmd17.ExecuteReader(); // while (reader17.Read()) // { // postanski_broj_kupca_pdf = reader17[0].ToString(); // } // openCon17.Close(); //} string adresa_kupca_pdf = ""; using (SqlConnection openCon18 = new SqlConnection(Con)) { SqlDataReader reader18; SqlCommand cmd18 = new SqlCommand(); cmd18.CommandText = "select adresa from dbo.mp_ulazni_racun_roba_lista where id=" + id_fakture; cmd18.Connection = openCon18; openCon18.Open(); reader18 = cmd18.ExecuteReader(); while (reader18.Read()) { adresa_kupca_pdf = reader18[0].ToString(); } openCon18.Close(); } string mesto_kupca_pdf = ""; using (SqlConnection openCon19 = new SqlConnection(Con)) { SqlDataReader reader19; SqlCommand cmd19 = new SqlCommand(); cmd19.CommandText = "select mesto from dbo.mp_ulazni_racun_roba_lista where id=" + id_fakture; cmd19.Connection = openCon19; openCon19.Open(); reader19 = cmd19.ExecuteReader(); while (reader19.Read()) { mesto_kupca_pdf = reader19[0].ToString(); } openCon19.Close(); } string drzava_kupca_pdf = ""; using (SqlConnection openCon20 = new SqlConnection(Con)) { SqlDataReader reader20; SqlCommand cmd20 = new SqlCommand(); cmd20.CommandText = "select drzava from dbo.mp_ulazni_racun_roba_lista where id=" + id_fakture; cmd20.Connection = openCon20; openCon20.Open(); reader20 = cmd20.ExecuteReader(); while (reader20.Read()) { drzava_kupca_pdf = reader20[0].ToString(); } openCon20.Close(); } byte[] Memorandum = null; using (SqlConnection openCon21 = new SqlConnection(Con)) using (SqlCommand cmd21 = new SqlCommand()) { cmd21.CommandText = "select memorandum from podaci_o_korisniku"; cmd21.Connection = openCon21; openCon21.Open(); using (SqlDataReader reader21 = cmd21.ExecuteReader()) { if (reader21.Read() && !reader21.IsDBNull(0)) { Memorandum = (byte[])reader21[0]; } else { Memorandum = null; } } } if (Memorandum == null) { MessageBox.Show("Ucitajte zaglavlje kako biste odštampali dokument!" + "\n" + "Zaglavlje možete ucitati u:" + "\n" + "Šifarnici /1500 Osnovni podaci / 1501 Podaci o korisniku ", "Informacija", MessageBoxButtons.OK, MessageBoxIcon.Information); } else { iTextSharp.text.Image logo = iTextSharp.text.Image.GetInstance(Memorandum); //Exporting to PDF //drzava_kupca string folderPath = "C:\\Program files\\BSS\\PDFs\\"; if (!Directory.Exists(folderPath)) { Directory.CreateDirectory(folderPath); } using (FileStream stream = new FileStream(folderPath + "Ulazni racun - ROBA.pdf", FileMode.Create)) { iTextSharp.text.Font calibriTitle = new iTextSharp.text.Font(bfCalibri, 14, iTextSharp.text.Font.BOLD); iTextSharp.text.Font calibriSubTitle = new iTextSharp.text.Font(bfCalibri, 12); iTextSharp.text.Font calibriSubTitle2 = new iTextSharp.text.Font(bfCalibri, 10); iTextSharp.text.Font calibriSubTitlebold = new iTextSharp.text.Font(bfCalibri, 14, iTextSharp.text.Font.BOLD); iTextSharp.text.Font calibri10bold = new iTextSharp.text.Font(bfCalibri, 10, iTextSharp.text.Font.BOLD); iTextSharp.text.Font calibri22bold = new iTextSharp.text.Font(bfCalibri, 22, iTextSharp.text.Font.BOLDITALIC); Document pdfDoc = new Document(PageSize.A4, 20f, 15f, 10f, 130f); PdfWriter writer = PdfWriter.GetInstance(pdfDoc, stream); // PdfWriter.GetInstance(pdfDoc, stream, writer); pdfDoc.Open(); logo.ScaleAbsolute(550, 110); logo.SetAbsolutePosition(25, 700); pdfDoc.Add(logo); //pdfDoc.Add(new ListItem(" ")); //pdfDoc.Add(new ListItem(" ")); //pdfDoc.Add(new ListItem(korisnik_programa, calibriTitle)); //pdfDoc.Add(new ListItem(adresa, calibriSubTitle)); //pdfDoc.Add(new ListItem(mesto, calibriSubTitle)); //pdfDoc.Add(new ListItem("JIB:" + " " + jib2, calibriSubTitle)); //pdfDoc.Add(new ListItem("PIB:" + " " + pib2, calibriSubTitle)); //pdfDoc.Add(new ListItem("Žiro-racun:" + " " + ziro_racun2, calibriSubTitle)); //pdfDoc.Add(new ListItem("E-mail:" + " " + e_mail, calibriSubTitle)); // pdfDoc.Add(new ListItem(" ")); // pdfDoc.Add(new ListItem(" ")); pdfDoc.Add(new ListItem(" ")); pdfDoc.Add(new ListItem(" ")); pdfDoc.Add(new ListItem(" ")); pdfDoc.Add(new ListItem(" ")); pdfDoc.Add(new ListItem(" ")); pdfDoc.Add(new ListItem(" ")); pdfDoc.Add(new ListItem(" ")); pdfDoc.Add(new ListItem(" ")); pdfDoc.Add(new ListItem(" Ulazni racun - ROBA Broj: " + DateTime.Now.Year + " - 2101 - " + redni_broj, calibriSubTitlebold)); // pdfDoc.Add(new ListItem(" ")); pdfDoc.Add(new ListItem(" ")); pdfDoc.Add(new ListItem(" Dokument - 2101 Dobavljac: " + kupac, calibri10bold)); pdfDoc.Add(new ListItem(" Datum: " + datum + " JIB: " + jib_pdf, calibriSubTitle2)); pdfDoc.Add(new ListItem(" Valuta placanja: " + valuta_placanja_pdf + " PIB: " + pib_pdf, calibriSubTitle2)); pdfDoc.Add(new ListItem(" Adresa: " + adresa_kupca_pdf, calibriSubTitle2)); pdfDoc.Add(new ListItem(" Mesto: " + mesto_kupca_pdf, calibriSubTitle2)); pdfDoc.Add(new ListItem(" " + drzava_kupca_pdf, calibriSubTitle2)); // pdfDoc.Add(new ListItem(" Ugovor: " + ugovorTextBox.Text + " ", calibriSubTitle2)); // pdfDoc.Add(new ListItem(" ")); pdfDoc.Add(new ListItem(" ")); pdfDoc.Add(new ListItem(" ")); // pdfDoc.Add(new ListItem(" ")); // pdfDoc.Add(pdfTable); //pdfDoc.Add(pdfTable); //pdfDoc.Add(pdfTable2); //pdfDoc.Add(pdvTable); // pdfDoc.Add(new ListItem("Broj fiskalnog racuna: " + fiskalni_brojTextBox.Text, calibri)); pdfDoc.Add(new ListItem("", calibri)); //pdfDoc.Add(new ListItem("Napomena: NISMO U SISTEMU PDV-a.", calibri)); // pdfDoc.Add(new ListItem("Napomena: " + ugovorTextBox.Text, calibri)); PdfContentByte cb = writer.DirectContent; PdfContentByte cb1 = writer.DirectContent; cb.SetColorStroke(new BaseColor(41, 128, 185));// boja linija iTextSharp.text.Rectangle fakturisao = new iTextSharp.text.Rectangle(pdfDoc.PageSize.Width - 140f, 120f, pdfDoc.PageSize.Width - 520f, 50f); iTextSharp.text.Rectangle primio = new iTextSharp.text.Rectangle(pdfDoc.PageSize.Width - 140f, 120f, pdfDoc.PageSize.Width - 60f, 50f); iTextSharp.text.Rectangle otpremio = new iTextSharp.text.Rectangle(pdfDoc.PageSize.Width - 40f, 17f, pdfDoc.PageSize.Width - 130f, 50f); //vedran mocic iTextSharp.text.Rectangle mp = new iTextSharp.text.Rectangle(pdfDoc.PageSize.Width - 140f, 75f, pdfDoc.PageSize.Width - 235f, 50f); //mp iTextSharp.text.Rectangle ukupno_za_uplatu = new iTextSharp.text.Rectangle(pdfDoc.PageSize.Width - 140f, 120f, pdfDoc.PageSize.Width - 462f, 590f); // iTextSharp.text.Rectangle slogan_korisnika2 = new iTextSharp.text.Rectangle(pdfDoc.PageSize.Width - 340f, 10f, pdfDoc.PageSize.Width - 20f, 10f); // iTextSharp.text.Rectangle jib_pdf_ispis= new iTextSharp.text.Rectangle(pdfDoc.PageSize.Width - 140f, 120f, pdfDoc.PageSize.Width - 289f, 620f); // iTextSharp.text.Rectangle pib_pdf_ispis = new iTextSharp.text.Rectangle(pdfDoc.PageSize.Width - 100f, 120f, pdfDoc.PageSize.Width - 40f, 620f); cb1.SetLineWidth(2); cb1.RoundRectangle(17f, 548f, 260f, 100f, 10f); // podaci o placanju rectangle cb1.Stroke(); cb1.SetLineWidth(2); cb1.RoundRectangle(320f, 548f, 260f, 100f, 10f); // kupac rectangle cb1.Stroke(); //cb1.SetLineWidth(2); // cb1.RoundRectangle(130f, 548f, 150f, 30f, 10f); // ukupno za uplatu rectangle // cb1.Stroke(); //cb.SetColorStroke(new CMYKColor(1f, 0f, 0f, 0f));// boja linija // cb.SetColorStroke(new BaseColor(41,128,185));// boja linija // cb.SetColorFill(new CMYKColor(0f, 0f, 1f, 0f)); cb1.SetLineWidth(2); cb1.RoundRectangle(10f, 691f, 570f, 140f, 10f); // zaglavlje rectangle cb1.Stroke(); cb.SetLineWidth(1); cb.MoveTo(10f, 683f); //linija gornja zaglavlje cb.LineTo(580f, 683f); cb.Stroke(); cb.SetLineWidth(1); cb.MoveTo(10f, 659f); // linija donja zaglavlje cb.LineTo(580f, 659f); cb.Stroke(); cb.SetLineWidth(0.5); cb1.RoundRectangle(415f, 30f, 160f, 60f, 10f);// primio rectangle cb1.Stroke(); cb.SetLineWidth(1); cb.MoveTo(15f, 535f);// linija izmedju kupac rectangle i tabele cb.LineTo(585f, 535f); cb.Stroke(); pdfDoc.Add(pdfTable); pdfDoc.Add(pdfTable2); pdfDoc.Add(pdvTable); //cb.SetLineWidth(0.5); //cb1.RoundRectangle(220f, 30f, 160f, 60f, 10f);// otpremio rectangle //cb1.Stroke(); //cb.SetLineWidth(0.5); //cb.RoundRectangle(20f, 30f, 160f, 60f, 10f); // fakturisao rectangle //cb.Stroke(); // You can add text inside this rectangle like this: ColumnText ct = new ColumnText(cb); ct.SetSimpleColumn(primio); ct.AddElement(new Paragraph(" Primio: ", calibri10bold)); ct.Go(); //ct.SetSimpleColumn(jib_pdf_ispis); //ct.AddElement(new Paragraph(" JIB:" + jib_pdf, calibri10bold)); // ct.Go(); //ct.SetSimpleColumn(pib_pdf_ispis); // ct.AddElement(new Paragraph(" PIB:" + pib_pdf, calibri10bold)); // ct.Go(); // ColumnText ct2 = new ColumnText(cb); // ct.SetSimpleColumn(fakturisao); // ct.AddElement(new Paragraph("Fakturisao: ", calibri10bold)); // ct.AddElement(new Paragraph("Fakturisao: " + fakturisao_pdf, calibriSubTitle)); // ct.Go(); // ct.SetSimpleColumn(slogan_korisnika2); //slogan_korisnika text // ct.AddElement(new Paragraph(slogan_korisnika, calibri10bold)); // ct.Go(); //ct.SetSimpleColumn(otpremio);// Vedran Mocic //ct.AddElement(new Paragraph(fakturisaoComboBox.Text, calibri10bold)); //ct.Go(); ct.SetSimpleColumn(mp);// Vedran Mocic ct.AddElement(new Paragraph("M.P.", calibri10bold)); ct.Go(); //ct.SetSimpleColumn(ukupno_za_uplatu);// otpremio text // ct.AddElement(new Paragraph(iznos_sa_pdvTextBox.Text.ToString(), calibri22bold)); //ct.Go(); // pdfDoc.Add(pdfTable); // pdfDoc.Add(pdfTable2); //cb.SetColorStroke(new BaseColor(41, 128, 185));// boja linija //pdfDoc.Add(pdfTable2); //cb.MoveTo(30f, 45f); // linija donja fakturisao // cb.LineTo(170f, 45f); // cb.Stroke(); cb.MoveTo(425f, 45f); // linija donja primio cb.LineTo(565f, 45f); cb.Stroke(); //cb.MoveTo(230f, 45f); // linija donja otpremio //cb.LineTo(370f, 45f); //cb.Stroke(); cb.SetLineWidth(0.5); cb.MoveTo(20f, 20f); // linija donja slogan firme cb.LineTo(580f, 20f); cb.Stroke(); // cb.SetLineWidth(0.5); // cb.MoveTo(5f, 5f); //linija korisnik programa // cb.LineTo(5f, 820f); // cb.Stroke(); pdfDoc.Close(); stream.Close(); System.Diagnostics.Process.Start(folderPath + "Ulazni racun - ROBA.pdf"); } }

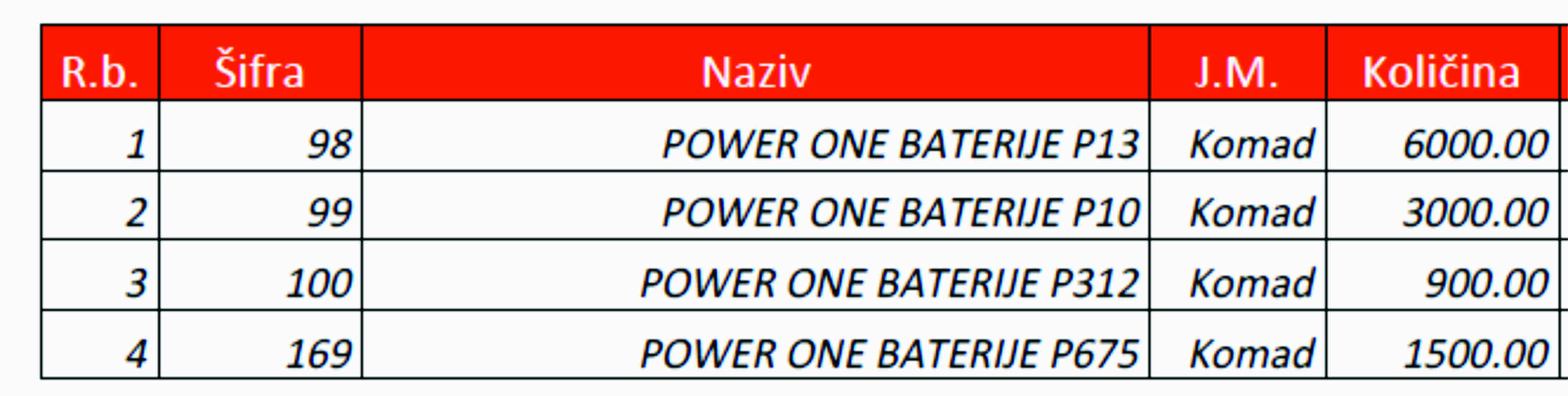

Result I need:
Thank you
