RSA create PublicKey and PrivateKey in xml or pub

Part - 2

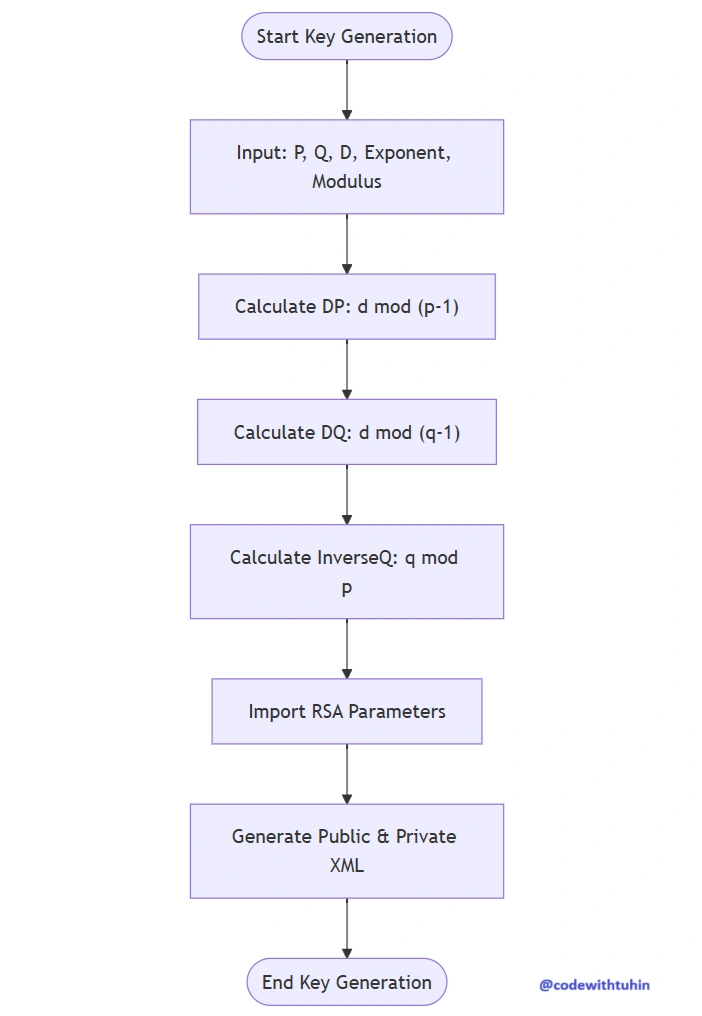

The flowchart will show:

1. Start of key generation.
2. Input parameters (P, Q, D, Exponent, Modulus).
3. Calculation of derived parameters (DP, DQ, InverseQ).
4. Importing RSA parameters.
5. Generating XML for public and private keys.
6. End process.

Part - 1

using System;
using System.Security.Cryptography;
using System.Xml;

public class CustomRSAKeyGenerator
{
    public static void GenerateCustomRSAKey(
        byte[] p,
        byte[] q,
        byte[] d,
        byte[] exponent,
        byte[] modulus,
        out string publicKeyXml,
        out string privateKeyXml)
    {
        // Create RSA parameters manually
        RSAParameters rsaParameters = new RSAParameters
        {
            P = p,
            Q = q,
            D = d,
            Exponent = exponent,
            Modulus = modulus,

            // Calculate additional required parameters
            DP = CalculateDP(d, p),
            DQ = CalculateDQ(d, q),
            InverseQ = CalculateInverseQ(p, q)
        };

        // Create RSA instance with custom parameters
        using (RSACryptoServiceProvider rsa = new RSACryptoServiceProvider())
        {
            rsa.ImportParameters(rsaParameters);

            // Generate XML representations
            publicKeyXml = rsa.ToXmlString(false);
            privateKeyXml = rsa.ToXmlString(true);
        }
    }

    private static byte[] CalculateDP(byte[] d, byte[] p)
    {
        // d mod (p-1)
        return ModularReduction(d, SubtractOne(p));
    }

    private static byte[] CalculateDQ(byte[] d, byte[] q)
    {
        // d mod (q-1)
        return ModularReduction(d, SubtractOne(q));
    }

    private static byte[] CalculateInverseQ(byte[] p, byte[] q)
    {
        // Compute modular multiplicative inverse of q mod p
        return ComputeModularInverse(q, p);
    }

    private static byte[] SubtractOne(byte[] number)
    {
        byte[] result = (byte[])number.Clone();
        for (int i = result.Length - 1; i >= 0; i--)
        {
            if (result[i] > 0)
            {
                result[i]--;
                break;
            }
            result[i] = 255;
        }
        return result;
    }

    private static byte[] ModularReduction(byte[] dividend, byte[] divisor)
    {
        // Simple modular reduction (you might want to use a more robust BigInteger implementation)
        // This is a simplified example
        System.Numerics.BigInteger dividendBI = new System.Numerics.BigInteger(dividend);
        System.Numerics.BigInteger divisorBI = new System.Numerics.BigInteger(divisor);

        return (dividendBI % divisorBI).ToByteArray();
    }

    private static byte[] ComputeModularInverse(byte[] a, byte[] m)
    {
        // Simplified modular multiplicative inverse calculation
        // In practice, use a more robust algorithm
        System.Numerics.BigInteger aBI = new System.Numerics.BigInteger(a);
        System.Numerics.BigInteger mBI = new System.Numerics.BigInteger(m);

        for (System.Numerics.BigInteger x = 1; x < mBI; x++)
        {
            if ((aBI * x) % mBI == 1)
            {
                return x.ToByteArray();
            }
        }

        throw new Exception("Modular inverse does not exist");
    }

    // Example usage method
    public static void Example()
    {
        // Your specific values
        byte[] P = BitConverter.GetBytes(5);      // P value
        byte[] Q = BitConverter.GetBytes(17);     // Q value
        byte[] D = BitConverter.GetBytes(13);     // Private exponent
        byte[] E = BitConverter.GetBytes(5);      // Public exponent
        byte[] N = BitConverter.GetBytes(85);     // Modulus

        string publicXml, privateXml;
        GenerateCustomRSAKey(P, Q, D, E, N, out publicXml, out privateXml);

        Console.WriteLine("Public Key XML:");
        Console.WriteLine(publicXml);
        Console.WriteLine("\nPrivate Key XML:");
        Console.WriteLine(privateXml);
    }
}

1. The GenerateCustomRSAKey method allows you to manually input your RSA key parameters:
   • P: Prime factor p (5)
   • Q: Prime factor q (17)
   • D: Private exponent (13)
   • Exponent: Public exponent (5)
   • Modulus: N (85)
2. It calculates additional required RSA parameters:
   • DP: d mod (p-1)
   • DQ: d mod (q-1)
   • InverseQ: Modular multiplicative inverse of q mod p
3. The method generates both PublicKey.xml and PrivateKey.xml using rsa.ToXmlString()
4. An example usage method Example() demonstrates how to use the key generation with your specific values

Caveats:

• The modular arithmetic methods are simplified. For production use, consider more robust BigInteger implementations.
• Check your input parameters are mathematically consistent for a valid RSA key pair.

To use in your existing code, replace the key generation logic with a call to CustomRSAKeyGenerator.GenerateCustomRSAKey(), passing your specific byte arrays for each parameter.
