Rendering Labels with TranslateTransform

Mar 27 2021 1:06 PM
Hello,
i do have the following Code:
  1. private static void AddElements(Canvas canvas)
  2. {
  3.     double canvasHeight = canvas.Height;
  4.     double canvasWidth = canvas.Width;
  5.     double y0 = canvasHeight / 2;
  6.     double x0 = canvasWidth / 2;
  7.
  8.     // Defining the new Coordinate-Point (0,0) to mid auf Canvas
  9.     TranslateTransform tt = new TranslateTransform(x0, y0);
  10.
  11.     Line line1 = new Line();
  12.     line1.X1 = -350;
  13.     line1.Y1 = 0;
  14.     line1.X2 = 350;
  15.     line1.Y2 = 0;
  16.     line1.Stroke = Brushes.Black;
  17.     line1.StrokeThickness = 2.0;
  18.     line1.RenderTransform = tt;
  19.     canvas.Children.Add(line1);
  20.
  21.     Line line2 = new Line();
  22.     line2.X1 = 0;
  23.     line2.Y1 = -350;
  24.     line2.X2 = 0;
  25.     line2.Y2 = 350;
  26.     line2.Stroke = Brushes.Black;
  27.     line2.StrokeThickness = 2.0;
  28.     line2.RenderTransform = tt;
  29.     canvas.Children.Add(line2);
  30.
  31.
  32.     Label lblN = new Label();
  33.     lblN.Width = 50;
  34.     lblN.Background = Brushes.Red;
  35.     lblN.Margin = new System.Windows.Thickness(0, -300, 0, 0);
  36.     lblN.Content = $"N";
  37.     lblN.HorizontalContentAlignment = System.Windows.HorizontalAlignment.Center;
  38.     lblN.VerticalContentAlignment = System.Windows.VerticalAlignment.Center;
  39.     lblN.RenderTransform = tt;
  40.     lblN.Padding = new System.Windows.Thickness(0);
  41.     lblN.BorderBrush = Brushes.Black;
  42.     lblN.BorderThickness = new System.Windows.Thickness(2.0);
  43.     lblN.RenderTransform = tt;
  44.     canvas.Children.Add(lblN);
  45.
  46.     Label lblS = new Label();
  47.     lblS.Width = 50;
  48.     lblS.Background = Brushes.Red;
  49.     lblS.Margin = new System.Windows.Thickness(0, 300, 0, 0);
  50.     lblS.Content = $"S";
  51.     lblS.HorizontalContentAlignment = System.Windows.HorizontalAlignment.Center;
  52.     lblS.VerticalContentAlignment = System.Windows.VerticalAlignment.Center;
  53.     lblS.RenderTransform = tt;
  54.     lblS.Padding = new System.Windows.Thickness(0);
  55.     lblS.BorderBrush = Brushes.Black;
  56.     lblS.BorderThickness = new System.Windows.Thickness(2.0);
  57.     lblS.RenderTransform = tt;
  58.     canvas.Children.Add(lblS);
  59. }
this method is called on an Menu-Eventhandler and it shows an coordinate system with (0,0) in the mid of the canvas. It should show a label with "N" at the top and a label with "S" at the bottom.

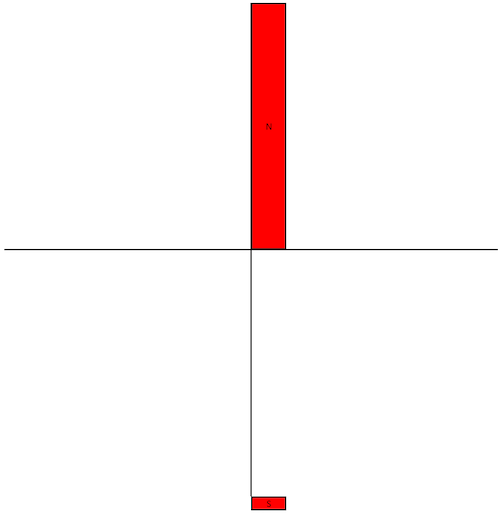

But i shows the attached image



Does anyone know, why lblN looks different than lblS ?

best regards

Volkhard
