Recursive Parent Child hierarchy with checkbox MVC 5

Feb 23 2017 6:58 AM
Hello everyone,

I want to bind Html like recursive Parent Child hierarchy with checkbox.


I have tried by foreach loop but showing only one productcategoryname.
  1. @model List<Rebox.BIL.DataModel.ProductCategoryDM>
  2. @{
  3. Layout = "~/Views/Shared/_Layout.cshtml";
  4. }
  5. <!DOCTYPE html>
  6. <html>
  7. <body>
  8. <div class="board-canvas m-t-20">
  9.                     @foreach (var item in Model)
  10.                     {
  11.                             if (item.idParentCategoryProduct == 0)
  12.                             {
  13.                                 <div id="board" class="u-fancy-scrollbar js-no-higher-edits js-list-sortable ui-sortable">
  14.                                     <div class="js-list list-wrapper list-padding u-fancy-scrollbar">
  15.                                         <ul class="offered-list">
  16.                                             <li>
  17.                                                 <div class="checkbox ">
  18.                                                     <label class="hd-txt"><input type="checkbox" value="">@item.ProductCategoryName</label>
  19.                                                 </div>
  20.                                             </li>
  21.                                             @if (item.idParentCategoryProduct != 0)
  22.                                             {
  23.                                                 <li>
  24.                                                     <div class="checkbox ">
  25.                                                         <label><input type="checkbox" value="">@item.ProductCategoryName</label>
  26.                                                     </div>
  27.                                                     @Html.Partial("_productOffered", item)
  28.                                                 </li>
  29.                                             }
  30.                                         </ul>
  31.                                     </div>
  32.                                 </div>
  33.                             }
  34.                     }
  35.                 </div>
  36. </body>
  37. </html>
It is the child partial view page,
  1. @model Rebox.BIL.DataModel.ProductCategoryDM
  2. @{
  3.
  4. }
  5. @foreach (var item in Model.productCategory)
  6. {
  7.     <ul class="offered-sub-list">
  8.         @if (item != null)
  9.         {
  10.             <li>
  11.                 <div class="checkbox ">
  12.                     <label><input type="checkbox" value="">@item.ProductCategoryName</label>
  13.                     @if (item.productCategory.Count > 0)
  14.                     {
  15.                         @Html.Partial("_productOffered", item)
  16.                     }
  17.                 </div>
  18.             </li>
  19.         }
  20.     </ul>
  21. }

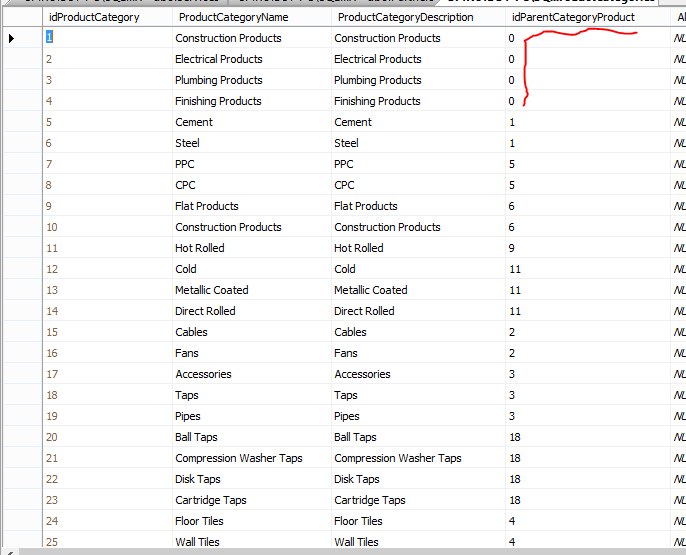

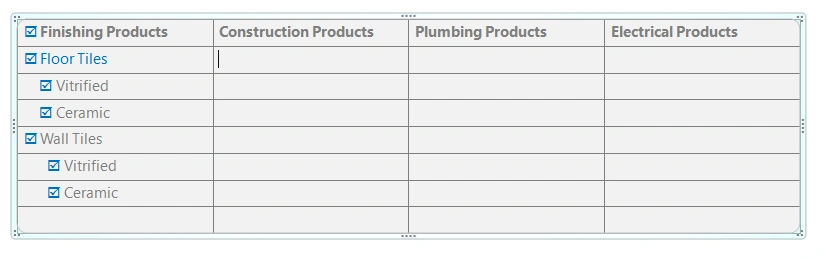

And this table structure. I want to show 0 idparentcategoryproduct name at top heading by each seperated coloums like above image showing.



How can I manage foreach loop at View page?

Please help me...
