How to design UI wpf control as followed from the mock-up?

Question

Hi Team

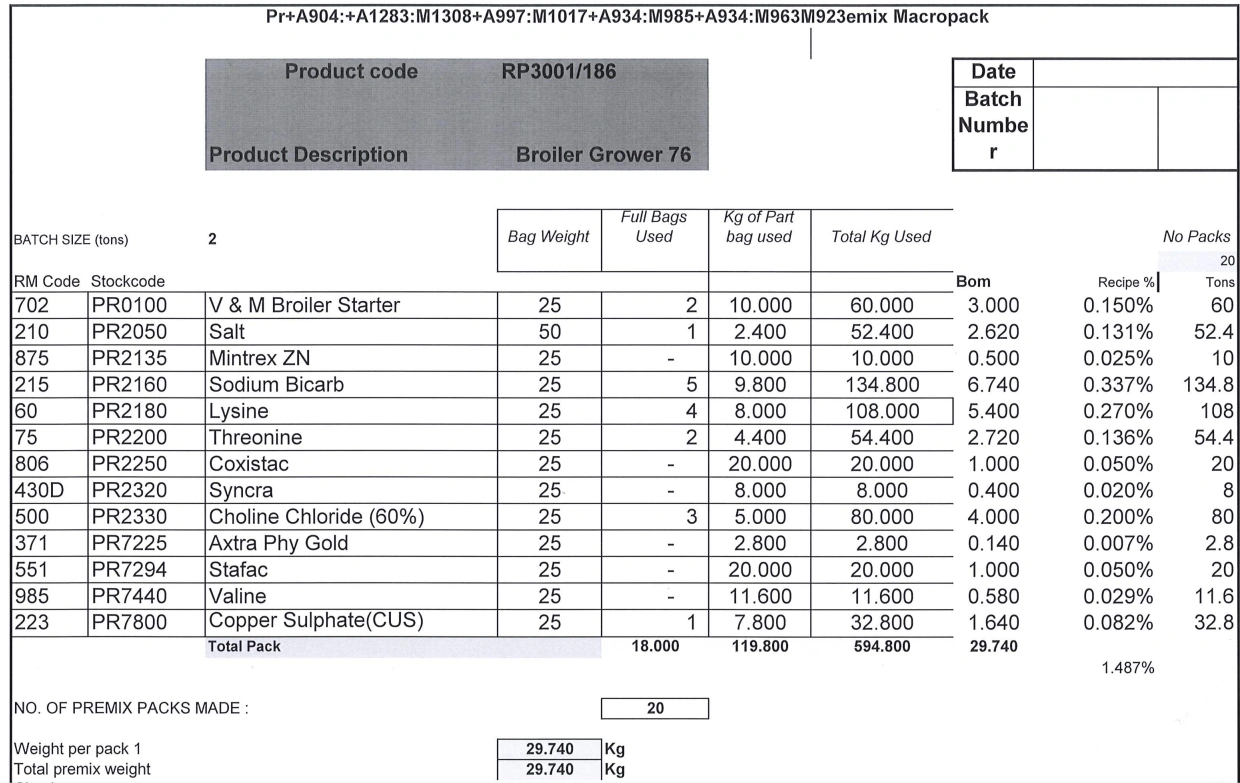

I have this excel and want to design this using wpf control i only need front end logic not the back end, need somehelp to achieve it.

<UserControl.Resources>
        <CollectionViewSource x:Key="StockCode" Source="{Binding StockCodes}"/>
        <CollectionViewSource x:Key="StockDescription" Source="{Binding StockDescriptions}"/>
    </UserControl.Resources>

    <Grid Background="White" VerticalAlignment="Stretch" HorizontalAlignment="Stretch" Margin="0,29,0,10" Width="1766">

        <!-- Label for Premix Packs Management -->
        <Label Content="Premix Packs Management" BorderThickness="1.5" BorderBrush="#FF0B0B0B" Background="#FF383838" Foreground="White" FontSize="18" HorizontalContentAlignment="Center" VerticalAlignment="Top" Margin="10,10,0,0" FontWeight="SemiBold" />

        <!-- StackPanel for Recipe label and ComboBox with added space below Premix Packs Management -->
        <StackPanel Orientation="Vertical" VerticalAlignment="Top" HorizontalAlignment="Left" Margin="10,50,0,0">
            <StackPanel Orientation="Horizontal">
                <Label x:Name="lblRecipe" FontSize="10" FontWeight="SemiBold" Visibility="Visible" Content="Recipe:" Background="#FFE3E3E3" Margin="0,0,10,0" BorderThickness="1" BorderBrush="#FFBEBEBE" Width="100" HorizontalContentAlignment="Right"/>
                <ComboBox x:Name="cbxRecipe" TabIndex="1" IsTextSearchEnabled="True" IsEditable="True" IsTextSearchCaseSensitive="False" Foreground="Black" Width="214" SelectionChanged="cbxRecipe_SelectionChanged"/>
            </StackPanel>

            <StackPanel Orientation="Horizontal" Margin="0,10,0,0">
                <Label x:Name="lblBatchSize" FontSize="10" FontWeight="SemiBold" Visibility="Visible" Content="Batch Size:" Background="#FFE3E3E3" Margin="0,0,10,0" BorderThickness="1" BorderBrush="#FFBEBEBE" Width="100" HorizontalContentAlignment="Right"/>
                <TextBox x:Name="txtBatchSize" TabIndex="3" Width="214" Foreground="Black"/>
            </StackPanel>

            <StackPanel Orientation="Horizontal" Margin="0,10,0,0">
                <Label x:Name="lblTotal" FontSize="10" FontWeight="SemiBold" Visibility="Visible" Content="Total:" Background="#FFE3E3E3" Margin="0,0,10,0" BorderThickness="1" BorderBrush="#FFBEBEBE" Width="100" HorizontalContentAlignment="Right"/>
                <TextBox x:Name="txtTotal" TabIndex="2" Width="214" Foreground="Black"/>
            </StackPanel>

            <StackPanel Orientation="Horizontal" Margin="0,10,0,0">
                <Label x:Name="lblRecipeText" FontSize="10" FontWeight="SemiBold" Visibility="Visible" Content="Recipe Text:" Background="#FFE3E3E3" Margin="0,0,10,0" BorderThickness="1" BorderBrush="#FFBEBEBE" Width="100" HorizontalContentAlignment="Right"/>
                <TextBox x:Name="txtRecipe" TabIndex="4" Width="214" Foreground="Black"/>
            </StackPanel>
        </StackPanel>

        <!-- DataGrid moved down -->
        <DataGrid x:Name="dgvMacroRecipe" VerticalScrollBarVisibility="Visible"  CellEditEnding="dgvMacroRecipe_CellEditEnding" VerticalAlignment="Top" HorizontalGridLinesBrush="#FFBBBBBB" AutoGenerateColumns="False" CanUserDeleteRows="False" HeadersVisibility="Column" GridLinesVisibility="Horizontal" FontWeight="Normal" BorderBrush="#FF767676" Margin="10,200,10,0" HorizontalAlignment="Left" FontSize="12" Width="780">
            <DataGrid.Resources>
                <Style TargetType="{x:Type DataGridCell}">
                    <Style.Triggers>
                        <Trigger Property="IsSelected" Value="True">
                            <Setter Property="Background" Value="Blue" />
                            <Setter Property="BorderBrush" Value="Blue"/>
                        </Trigger>
                    </Style.Triggers>
                </Style>
            </DataGrid.Resources>
            <DataGrid.ColumnHeaderStyle>
                <Style TargetType="{x:Type DataGridColumnHeader}">
                    <Setter Property="FontWeight" Value="SemiBold"/>
                    <Setter Property="TextElement.FontSize" Value="14"/>
                    <Setter Property="Background" Value="#FF383838"/>
                    <Setter Property="Foreground" Value="White"/>
                    <Setter Property="HorizontalContentAlignment" Value="Center"/>
                    <Setter Property="Height" Value="30"/>
                    <Setter Property="SeparatorVisibility" Value="Visible"/>
                </Style>
            </DataGrid.ColumnHeaderStyle>
            <DataGrid.Columns>
                <DataGridTextColumn Binding="{Binding idx}" Header="IDX" Width="80" IsReadOnly="True">
                    <DataGridTextColumn.ElementStyle>
                        <Style TargetType="{x:Type TextBlock}">
                            <Setter Property="HorizontalAlignment" Value="Center"/>
                            <Setter Property="VerticalAlignment" Value="Center"/>
                            <Setter Property="Padding" Value="5,0"/>
                        </Style>
                    </DataGridTextColumn.ElementStyle>
                </DataGridTextColumn>

                <DataGridTextColumn Binding="{Binding RM_Code}" Header="RM Code" Width="100" IsReadOnly="True" FontSize="8">
                    <DataGridTextColumn.ElementStyle>
                        <Style TargetType="{x:Type TextBlock}">
                            <Setter Property="HorizontalAlignment" Value="Left"/>
                            <Setter Property="VerticalAlignment" Value="Center"/>
                            <Setter Property="Padding" Value="5,0"/>
                        </Style>
                    </DataGridTextColumn.ElementStyle>
                </DataGridTextColumn>
                <DataGridTemplateColumn Header="Stock Code" Width="150">
                    <DataGridTemplateColumn.CellTemplate>
                        <DataTemplate>
                            <TextBlock x:Name="txtStockCode" Text="{Binding StockCode}" Padding="5,0"/>
                        </DataTemplate>
                    </DataGridTemplateColumn.CellTemplate>
                    <DataGridTemplateColumn.CellEditingTemplate>
                        <DataTemplate>
                            <ComboBox Height="22" Width="auto" x:Name="cbxMacroStockType" ItemsSource="{Binding Source={StaticResource StockCode}}" DisplayMemberPath="Code" SelectedValue="{Binding StockCode}" SelectedValuePath="Code" IsSynchronizedWithCurrentItem="True" DropDownClosed="cbxMacroStockType_DropDownClosed"/>
                        </DataTemplate>
                    </DataGridTemplateColumn.CellEditingTemplate>
                </DataGridTemplateColumn>
                <DataGridTextColumn Binding="{Binding StockDescription}" Header="Stock Description" Width="200" IsReadOnly="True" FontWeight="SemiBold">
                    <DataGridTextColumn.ElementStyle>
                        <Style TargetType="{x:Type TextBlock}">
                            <Setter Property="TextAlignment" Value="Center"/>
                            <Setter Property="VerticalAlignment" Value="Center"/>
                            <Setter Property="Padding" Value="5,0"/>
                            <Style.Triggers>
                                <Trigger Property="Text" Value="Yes">
                                    <Setter Property="Background" Value="LightGreen"/>
                                </Trigger>
                                <Trigger Property="Text" Value="No">
                                    <Setter Property="Background" Value="#FFFF6969"/>
                                </Trigger>
                            </Style.Triggers>
                        </Style>
                    </DataGridTextColumn.ElementStyle>
                </DataGridTextColumn>
                <DataGridTextColumn Binding="{Binding Percentage}" Header="Percentage" Width="100" FontWeight="SemiBold">
                    <DataGridTextColumn.ElementStyle>
                        <Style TargetType="{x:Type TextBlock}">
                            <Setter Property="TextAlignment" Value="Center"/>
                            <Setter Property="VerticalAlignment" Value="Center"/>
                            <Setter Property="Padding" Value="5,0"/>
                            <Style.Triggers>
                                <Trigger Property="Text" Value="Yes">
                                    <Setter Property="Background" Value="LightGreen"/>
                                </Trigger>
                                <Trigger Property="Text" Value="No">
                                    <Setter Property="Background" Value="#FFFF6969"/>
                                </Trigger>
                            </Style.Triggers>
                        </Style>
                    </DataGridTextColumn.ElementStyle>
                </DataGridTextColumn>
                <DataGridTextColumn Binding="{Binding Kilograms}" Header="Kilograms" Width="100" IsReadOnly="True" FontWeight="SemiBold">
                    <DataGridTextColumn.ElementStyle>
                        <Style TargetType="{x:Type TextBlock}">
                            <Setter Property="HorizontalAlignment" Value="Left"/>
                            <Setter Property="VerticalAlignment" Value="Center"/>
                            <Setter Property="Padding" Value="5,0"/>
                        </Style>
                    </DataGridTextColumn.ElementStyle>
                </DataGridTextColumn>
            </DataGrid.Columns>
        </DataGrid>
    </Grid>
</UserControl>
