DevExpress Gridcontrol shows empty column...

Question

DevExpress Gridcontrol shows empty column after adding repositoryItemLookUpEdit.

I have created windows VB.Net application using 'Visual Studio Express 2015 for windows' with .Net Framework 4.6. In that I have used Devexpress 19.1.6.0 Gridcontrol on the form. I want to bind Student details to gridcontrol. In 'Name' column of gridview, I want to show combobox to select any Name to update particular cell.

For that purpose I have used repositoryItemLookUpEdit.

'Name' column must contain Name of sutdent. But when I will run the program, then 'Name' column shows empty cells. Why? How to overcome this issue?

Also If I will implement same program Without using repositoryItemLookUpEdit, then all column's correct data will get bind to the gridview and 'Name' column will also not showing empty.

Form1.vb

Imports System.Data.SqlClient

Public Class Form1
    Dim cn As SqlConnection = New SqlConnection("Data Source=PC161\SQLEXPRESS;Database=Student;Integrated Security=true")
    Dim da As New SqlDataAdapter

    Private Sub Form1_Load(sender As Object, e As EventArgs) Handles MyBase.Load
        LoadGrid()
    End Sub

    Private Function FetchAllDetails() As DataTable
        Dim dt As New DataTable
        da = New SqlDataAdapter("select * from StudentInfo", cn)
        da.Fill(dt)
        Return dt
    End Function

    Private Function FetchIdName() As DataTable
        Dim dt As New DataTable
        da = New SqlDataAdapter("select ID, NAME from StudentInfo", cn)
        da.Fill(dt)
        Return dt
    End Function

    Private Sub LoadGrid()
        Try
            GridControl1.DataSource = FetchAllDetails()
            RepositoryItemLookUpEdit1.DataSource = FetchIdName()
            RepositoryItemLookUpEdit1.ValueMember = "ID"
            RepositoryItemLookUpEdit1.DisplayMember = "NAME"
            RepositoryItemLookUpEdit1.NullText = ""
            RepositoryItemLookUpEdit1.PopulateColumns()
        Catch ex As Exception
            MessageBox.Show(ex.Message)
        End Try
    End Sub
End Class

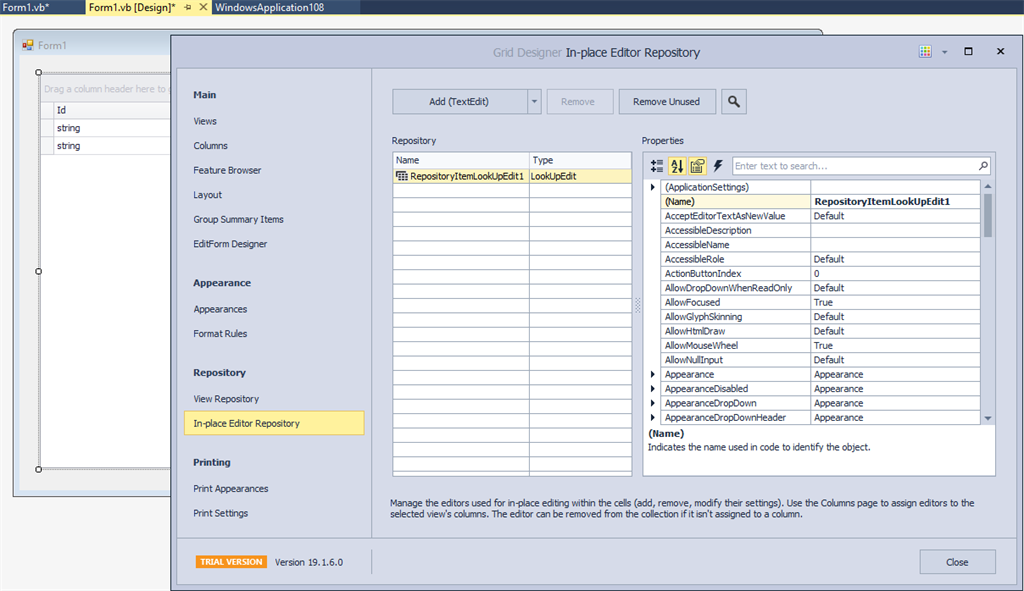

 In-place Editor Repository option to add RepositoryItemLookupEdit







Added columns after click on Run Design option on Gridcontrol







 Form1_Design



 Output window after click on cell







 Output_after_running_the_project
