Bar code instead text in column c#

Jul 1 2020 7:38 AM
Itextsharp

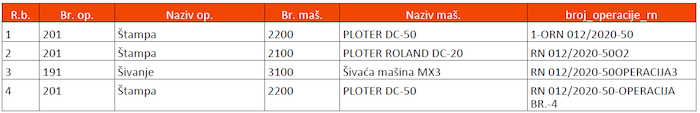

Need in last column instead text need to be bar code 128 from that text



Or can be image to be  paste across text in column

Bar code c# code:

  1. //Adding DataRow
  2.            foreach (DataGridViewRow row in OperacijeDataGridView.Rows)
  3.            {
  4.                foreach (DataGridViewCell cell in row.Cells)
  5.                {
  6.                    PdfPCell cell2 = new PdfPCell(new Phrase(cell.Value.ToString(), calibri));
  7.                    cell2.HorizontalAlignment = Element.ALIGN_LEFT;
  8.
  9.                    Barcode128 code128 = new Barcode128();
  10.                    code128.CodeType = Barcode.CODE128_RAW;
  11.                    code128.ChecksumText = true;
  12.                    code128.GenerateChecksum = true;
  13.                    code128.Code = Barcode128.GetRawText(row.Cells[1].Value.ToString(), false, Barcode128.Barcode128CodeSet.AUTO);
  14.                    System.Drawing.Bitmap bm = new System.Drawing.Bitmap(code128.CreateDrawingImage(System.Drawing.Color.Black, System.Drawing.Color.White));
  15.                    iTextSharp.text.Image barCode = iTextSharp.text.Image.GetInstance(bm, System.Drawing.Imaging.ImageFormat.Png);
  16.                    //PdfPCell pdfCell = new PdfPCell();
  17.                    PdfPTable tmpTable = new PdfPTable(1);
  18.                    tmpTable.WidthPercentage = 100;
  19.                    PdfPCell tmpCell = new PdfPCell(barCode);
  20.                    tmpTable.AddCell(new Paragraph(row.Cells[12].Value.ToString().ToUpper(), calibri));
  21.                    barCode.ScaleAbsolute(70, 30); //100x40
  22.                    tmpCell.FixedHeight = 40;//60
  23.                    tmpCell.HorizontalAlignment = Element.ALIGN_CENTER;
  24.                    tmpCell.VerticalAlignment = Element.ALIGN_MIDDLE;
  25.                    tmpCell.BorderWidth = 0;
  26.                    tmpTable.AddCell(tmpCell);
  27.                    tmpTable.DefaultCell.BorderWidth = 0;
  28.                    tmpTable.DefaultCell.VerticalAlignment = Element.ALIGN_TOP;
  29.                    tmpTable.DefaultCell.HorizontalAlignment = Element.ALIGN_CENTER;
  30.                    //tmpTable.AddCell(new Paragraph(row.Cells[4].Value.ToString().ToUpper(), calibri6));
  31.                    //tmpTable.AddCell(new Paragraph(row.Cells[12].Value.ToString().ToUpper(), calibri));
  32.                   // pdfCell.AddElement(tmpTable);
  33.                    tmpCell.AddElement(tmpTable);
  34.                    pdfTable.AddCell(tmpCell);
  35.
  36.                    pdfTable.AddCell(cell2);
  37.                }
  38.            }


Answers (2)
