Adding Image using image path in datatable

Feb 11 2020 11:50 PM

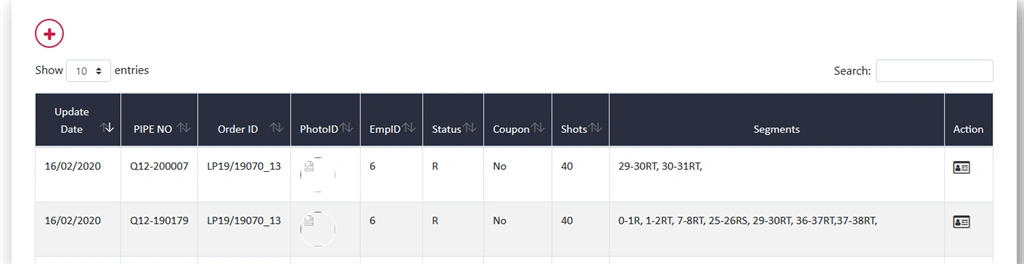

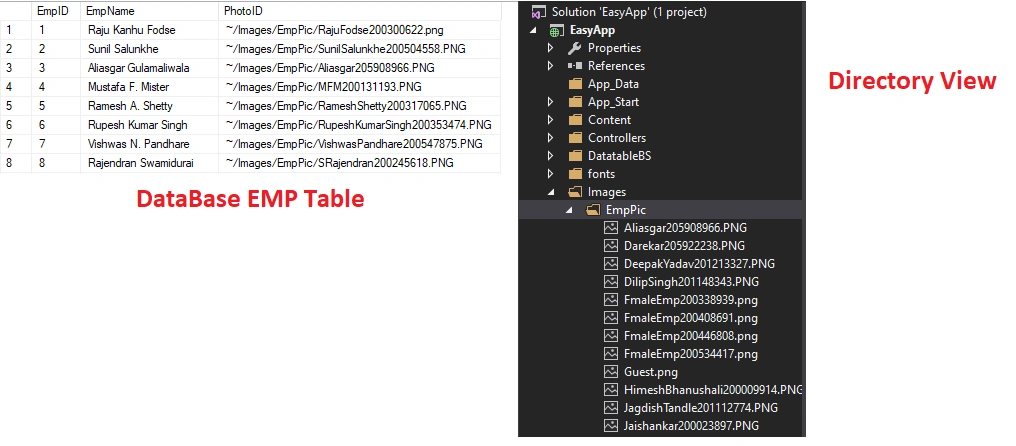

I am using MVC. I want render image in server side datatable. My employee table saves files path of image and i want display that image in datatable. My Datatable working but unable to display image I am getting following error

GEThttp://192.168.1.110/easyappnew/RTEntry/~/Images/EmpPic/RupeshKumarSingh200353474.PNG[HTTP/1.1 404 Not Found 88ms]
GEThttp://192.168.1.110/easyappnew/RTEntry/~/Images/EmpPic/Jaishankar200023897.PNG[HTTP/1.1 404 Not Found 66ms]
GEThttp://192.168.1.110/easyappnew/RTEntry/~/Images/EmpPic/RupeshKumarSingh200353474.PNG[HTTP/1.1 404 Not Found 3ms]
GEThttp://192.168.1.110/easyappnew/RTEntry/~/Images/EmpPic/Jaishankar200023897.PNG[HTTP/1.1 404 Not Found 1ms]


Following is my View Code
  1. <title>WTC List</title>
  2.
  3. <div class="EasyViewHeader">WTC List</div>
  4. <div class="EasyViewDiv">
  5.     <div class="form-group">
  6.         <button title="Add WTC" data-toggle="tooltip" class="button button3" onclick="location.href='@Url.Action("CreateWTC", "WTC")';return false;">
  7.             <span class="fa fa-plus" />
  8.         </button>
  9.     </div>
  10.     <div class="table-responsive">
  11.         <table style="width:100%" id="mytable" class="table table-bordered">
  12.             <thead>
  13.                 <tr>
  14.                     <th>
  15.                         Update Date
  16.                     </th>
  17.                     <th>
  18.                         PIPE NO
  19.                     </th>
  20.                     <th>
  21.                         Order ID
  22.                     </th>
  23.                     <th>
  24.                         PhotoID
  25.                     </th>
  26.                     <th>
  27.                        EmpID
  28.                     </th>
  29.                     <th>
  30.                         Status
  31.                     </th>
  32.                     <th>
  33.                         Coupon
  34.                     </th>
  35.                     <th>
  36.                         Shots
  37.                     </th>
  38.                     <th>
  39.                         Segments
  40.                     </th>
  41.                     <th>
  42.                         Action
  43.                     </th>
  44.
  45.                 </tr>
  46.             </thead>
  47.         </table>
  48.     </div>
  49. </div>
  50.
  51. <link href="~/DatatableBS/datatables.min.css" rel="stylesheet" />
  52. <script src="~/DatatableBS/datatables.min.js"></script>
  53. <link href="~/Content/TablesStyle.css" rel="stylesheet" />
  54. <script src="~/DatatableBS/datetime-moment.js"></script>
  55. <script src="~/DatatableBS/moment.min.js"></script>
  56.
  57. <script>
  58.     $(document).ready(function () {
  59.
  60.         $('#mytable').dataTable({
  61.             "processing": true, // for show progress bar
  62.             "serverSide": true, // for process server side
  63.             "filter": true, // this is for disable filter (search box)
  64.             "order": [[0, "desc"]],
  65.             "orderMulti": false, // for disable multiple column at once
  66.             "language": {
  67.                 processing: "Please Wait........"
  68.             },
  69.             "ajax": {
  70.                 "url": "@Url.Action("LoadData", "RTEntry")",
  71.                 //"url":"Easyapplocal/RTEntry/LoadRTList",
  72.                 "type": "POST",
  73.                 "datatype":"json"
  74.
  75.             },
  76.             "columns": [
  77.                 {
  78.                     "data": "UpdateDate", "name": "UpdateDate", "autowidth": true,
  79.
  80.                     "render": function (value) {
  81.                         if (value === null) return "";
  82.                         return moment(value).format('DD/MM/YYYY');
  83.                     }
  84.                 },
  85.                 { "data": "PIPENO", "name": "PIPENO", "autowidth": true },
  86.                 { "data": "OrderID", "name": "OrderID", "autowidth": true },
  87.                 {
  88.                     "data": "PhotoID",
  89.                     "render": function (url, type, full) {
  90.                         return '<img src="'+ url + '" class="img-circle"/>';
  91.                     }
  92.                 },
  93.                 { "data": "EmpID", "name": "EmpID", "autowidth": true },
  94.                 { "data": "Status", "name": "Status", "autowidth": true },
  95.                 { "data": "ISCoupon", "name": "ISCoupon", "autowidth": true },
  96.                 { "data": "TotalShots", "name": "TotalShots", "autowidth": true },
  97.                 {
  98.                     "data": "Flex1", "name": "Flex1", "searchable": false,
  99.                     "sortable": false, "autowidth": true
  100.                 },
  101.                 {
  102.                     "data": "Action", "name": "Action", "searchable": false,
  103.                     "sortable": false,
  104.                     "render": function (data, type, full, meta)
  105.                     {
  106.                         return '<a class="EasyUIBtn EasyUIBtnDtl" href="@Url.Action("DetailsWTC", "WTC")' + "/" + full.WTCID + ' "target="_self" ><span class="fa fa-id-card-o"></span></a>';
  107.                     }
  108.
  109.
  110.                 }
  111.
  112.                 ]
  113.
  114.             });
  115.         });
  116.
  117.
  118. </script>
How can I display image in datatable
