Web service in ASP.NET

A. How to create web-service in ASP.NET?

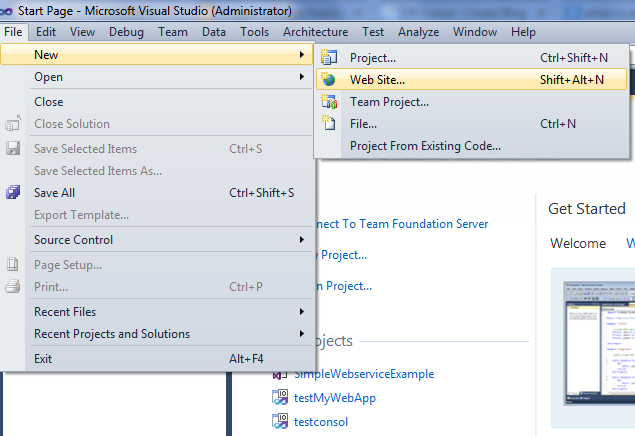

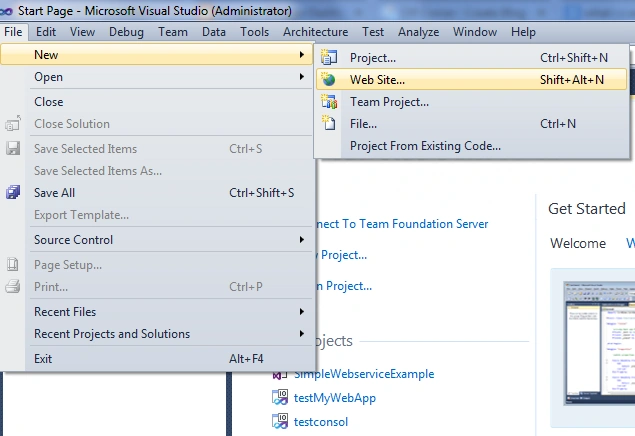

Step 1: Go to=>File=>New=>WebSite

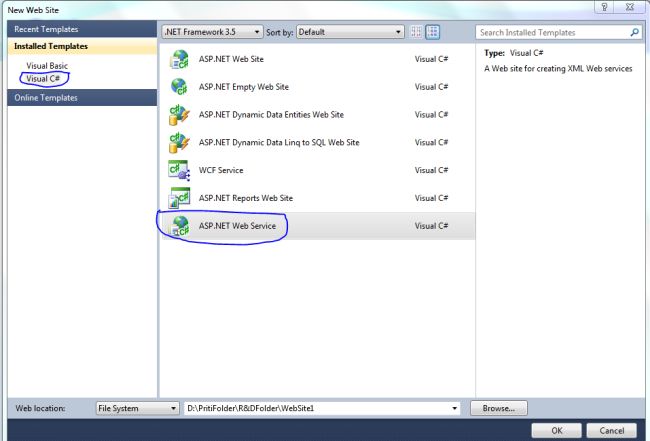

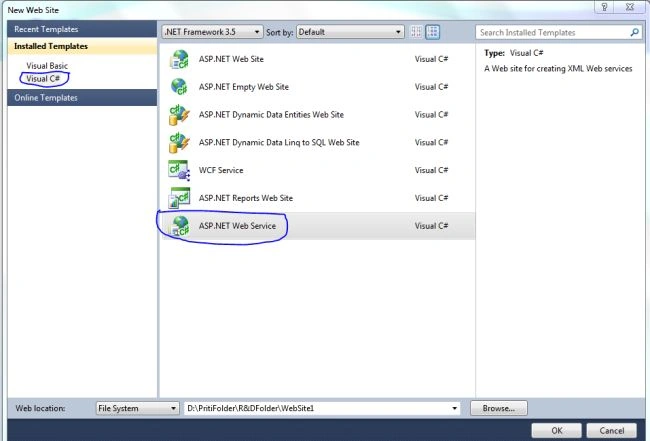

Step 2: Select Asp.New Web service

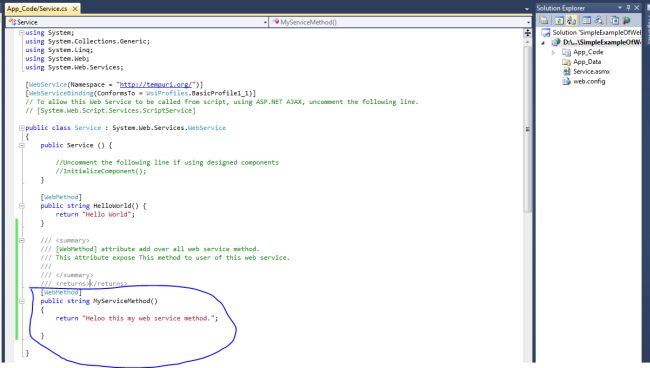

Step 3: Write Method in your web service class file.

My method name is: MyServiceMethod

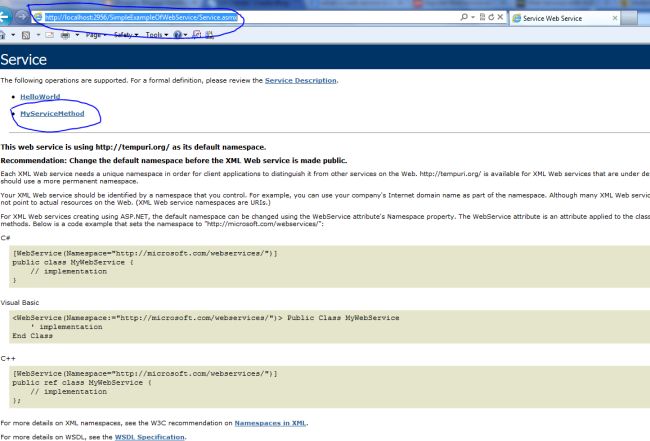

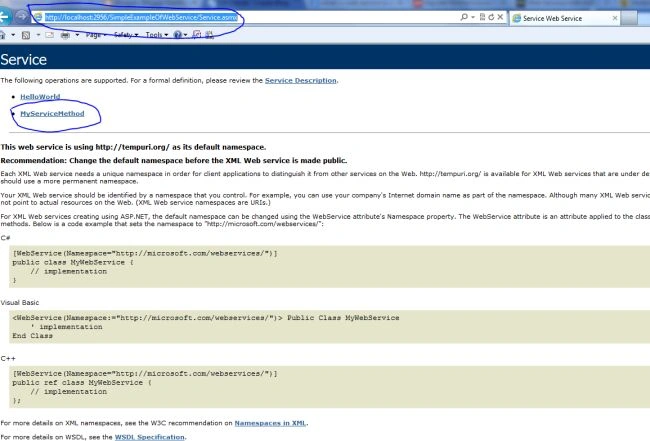

Step 4: Then Run This Application and watch this window in your browser. And also look at the method that has been created by me. Here you can test whether your method works properly or not.


B. Publish This service on your local IIS server.

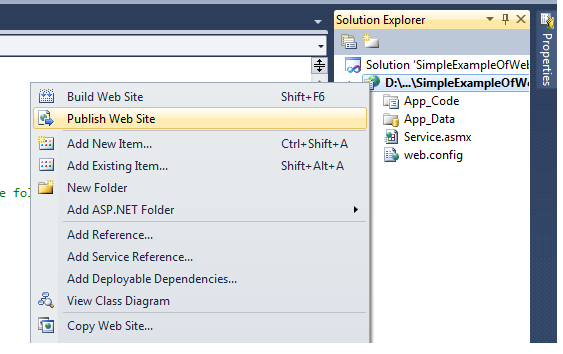

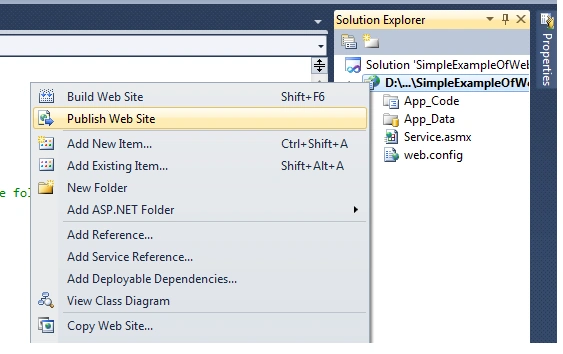

Step 1: Right click on your application=>Publish Web site

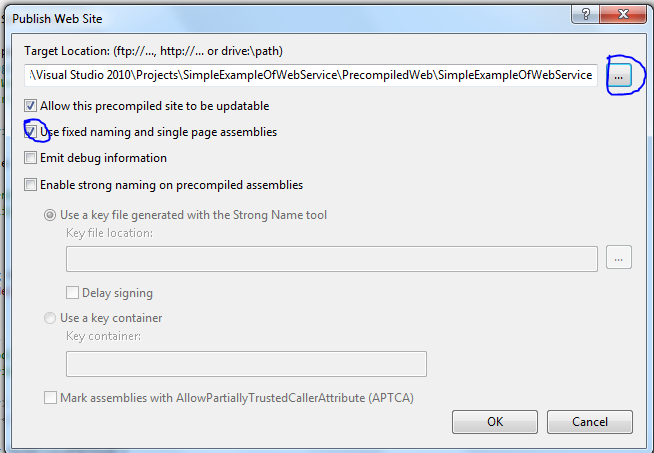

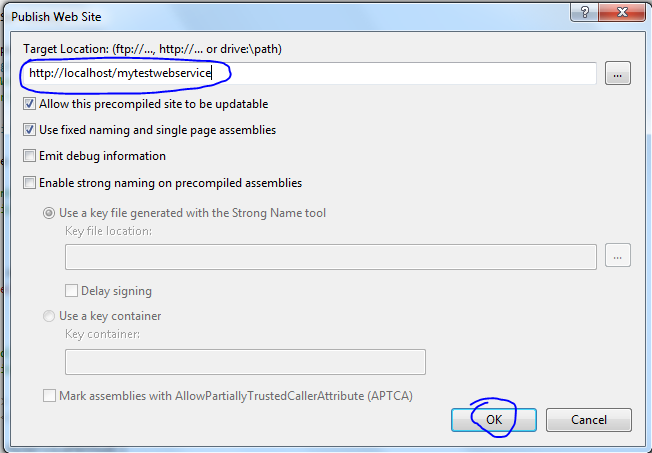

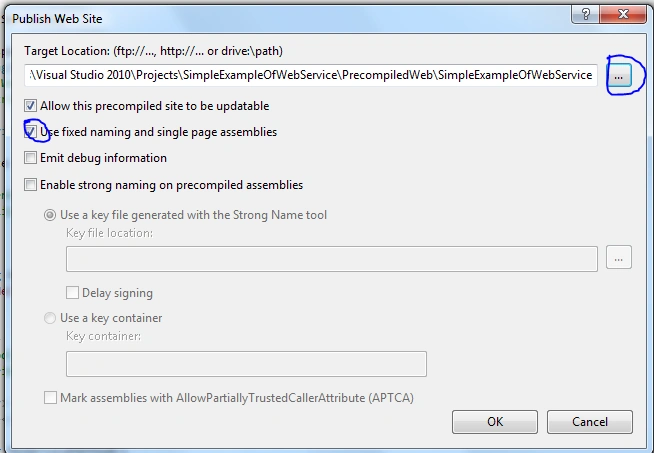

Step 2: Checked =>Use Fixed Naming and single page assemblies and browse target location.

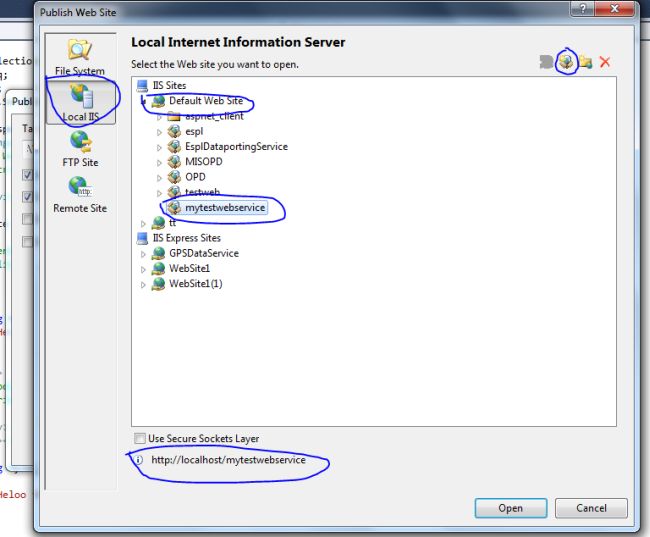

Step 3: Select=>Local IIS=>Default Website=>Create New Web Application by clicking on the small icon located at the above of this Screen shot.=>write name of your application.and click on Open button.

=>You can access this web service using=>  http://localhost/mytestwebservice URL


Step 4=> After that click OK button.


Step 5=> After that you can access the the web service using this URL http://localhost/mytestwebservice/Service.asmx

C. How to consume Web service in Web Application?

Consuming Web service :

=>Using WSDL generated Proxy class.=>How to generate proxy class?

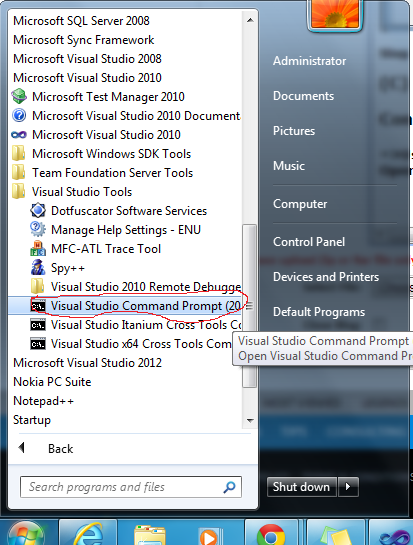

Step 1=>Open Command Prompt.From=>Start=>

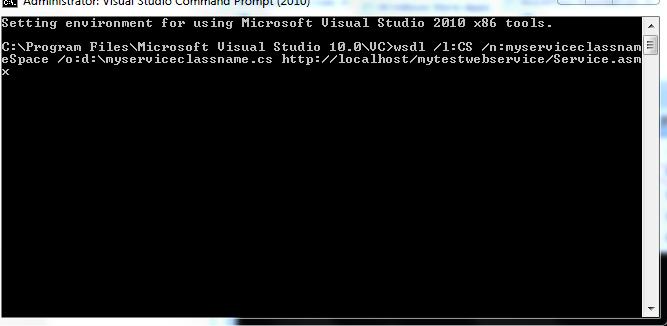

Step 2=> Write this command on Command Prompt.

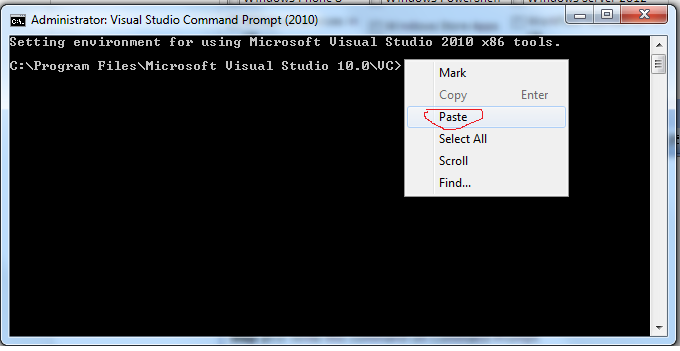

  Open=>Command prompt=>right click=>paste below written command
Formate of command=>wsdl /l:CS /n:namespace /o:DriveName:\classname.cs Service URL

wsdl /l:CS /n:myserviceclassnameSpace /o:d:\myserviceclassname.cs http://localhost/mytestwebservice/Service.asmx

After that Press enter.
Using this command generate the proxy class file of the web service.you can use this class in in your web and window application.

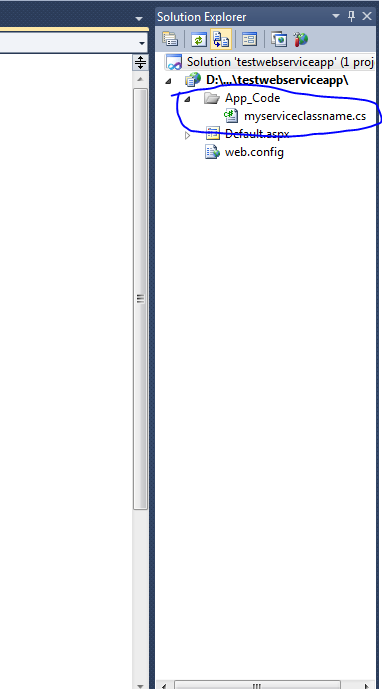

Step 3=>Add myserviceclassname.cs file in your application and consume service in your application.

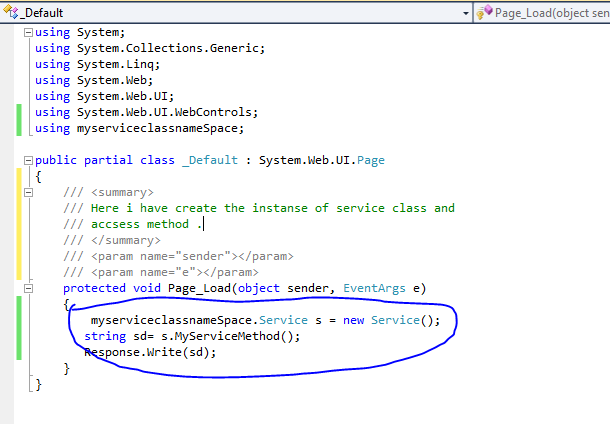

Step 4=>Call method of service class like this:

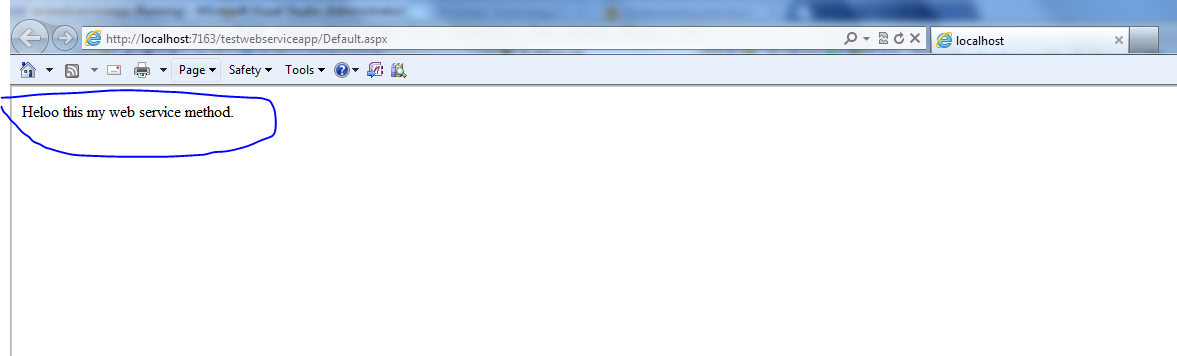

Step 5=> Out put is=>
