Show Checkbox on Crystal Report

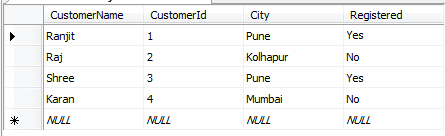

Consider the following Customer table.

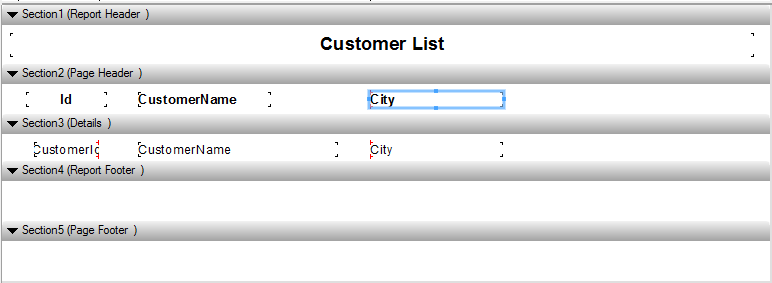

Step 1:  Design report as below:

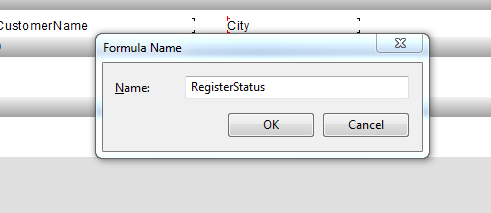

Step 2: To show checkbox add one formula field “RegisterStatus” like below.



Step 3: In formula editor write below code.

  1. IF({Customers.Registered}='Yes')THEN
  2.
  3. Chr(254)
  4.
  5. ELSE
  6.
  7. Chr(168)

Step 4: Now add this formula field to report. And set “Wingdings” font for this formula field.

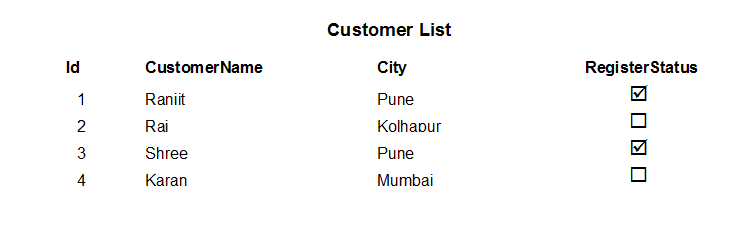

Step 5: Preview report and check output.
