Kendo Radial Gauge in jQuery

Introduction

Kendo Radial gauge is a powerful control to give a better user experience in order to understand a given range of values.

Kendo Radial Gauge

KendoRadialGauge is a function which is used to initialize the radial Gauge.

KendoRadialGauge.html
  1. <!DOCTYPE html>
  2. <html>
  3. <head>
  4.   <meta charset="utf-8">
  5.   <title>Untitled</title>
  6.
  7.   <link rel="stylesheet" href="https://kendo.cdn.telerik.com/2018.1.221/styles/kendo.common.min.css">
  8.   <link rel="stylesheet" href="https://kendo.cdn.telerik.com/2018.1.221/styles/kendo.rtl.min.css">
  9.   <link rel="stylesheet" href="https://kendo.cdn.telerik.com/2018.1.221/styles/kendo.default.min.css">
  10.   <link rel="stylesheet" href="https://kendo.cdn.telerik.com/2018.1.221/styles/kendo.mobile.all.min.css">
  11.
  12.   <script src="https://code.jquery.com/jquery-1.12.3.min.js"></script>
  13.   <script src="https://kendo.cdn.telerik.com/2018.1.221/js/angular.min.js"></script>
  14.   <script src="https://kendo.cdn.telerik.com/2018.1.221/js/jszip.min.js"></script>
  15.   <script src="https://kendo.cdn.telerik.com/2018.1.221/js/kendo.all.min.js"></script></head>
  16. <body>
  17.   <div id="radial-gauge"></div>
  18. </body>
  19. </html>
  20. <script>
  21.   $("#radial-gauge").kendoRadialGauge();
  22. </script>

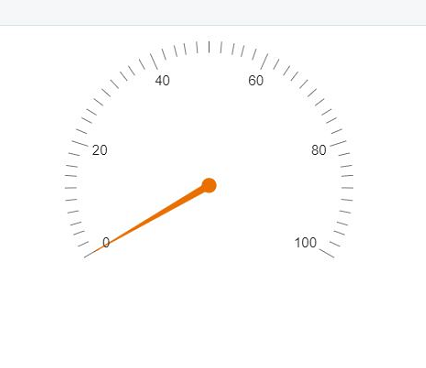

Radial Gauge in Browser


Let’s play by adding sample data to the control.

KendoRadialGauge.html
  1. <!DOCTYPE html>
  2. <html>
  3. <head>
  4.   <meta charset="utf-8">
  5.   <title>Untitled</title>
  6.
  7.   <link rel="stylesheet" href="https://kendo.cdn.telerik.com/2018.1.221/styles/kendo.common.min.css">
  8.   <link rel="stylesheet" href="https://kendo.cdn.telerik.com/2018.1.221/styles/kendo.rtl.min.css">
  9.   <link rel="stylesheet" href="https://kendo.cdn.telerik.com/2018.1.221/styles/kendo.default.min.css">
  10.   <link rel="stylesheet" href="https://kendo.cdn.telerik.com/2018.1.221/styles/kendo.mobile.all.min.css">
  11.
  12.   <script src="https://code.jquery.com/jquery-1.12.3.min.js"></script>
  13.   <script src="https://kendo.cdn.telerik.com/2018.1.221/js/angular.min.js"></script>
  14.   <script src="https://kendo.cdn.telerik.com/2018.1.221/js/jszip.min.js"></script>
  15.   <script src="https://kendo.cdn.telerik.com/2018.1.221/js/kendo.all.min.js"></script></head>
  16. <body>
  17.   <div id="radial-gauge"></div>
  18. </body>
  19. </html>
  20. <script>
  21.   $("#radial-gauge").kendoRadialGauge({
  22.   pointer: [{
  23.                   value: 20,
  24.                   color: "#c20000",
  25.                   cap: { size: 0.15 }
  26.               }, {
  27.                   value: 60,
  28.                   color: "#ff7a00",
  29.                   cap: { size: 0.1 }
  30.               }, {
  31.                   value: 120,
  32.                   color: "#ffc700"
  33.               }],
  34.               scale: {
  35.                   minorUnit: 5,
  36.                   startAngle: -30,
  37.                   endAngle: 210,
  38.                   max: 180,
  39.                   labels: {
  40.                       position: "inside"
  41.                   },
  42.                   ranges: [
  43.                       {
  44.                           from: 80,
  45.                           to: 120,
  46.                           color: "black"
  47.                       }, {
  48.                           from: 120,
  49.                           to: 150,
  50.                           color: "#b8b8b8"
  51.                       }, {
  52.                           from: 150,
  53.                           to: 180,
  54.                           color: "#f3ac32"
  55.                       }
  56.                   ]
  57.               }
  58.
  59.   });
  60. </script>

Pointer defines the data for the pointer in the gauge, scale defines the scale ranges in the gauge.

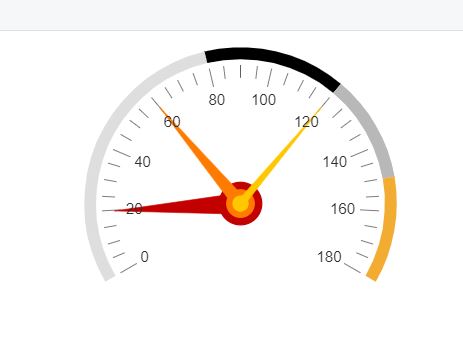

 Radial Gauge in Browser


I hope you have learned from this blog. Your valuable feedback, questions, or comments about this blog are always welcome.
