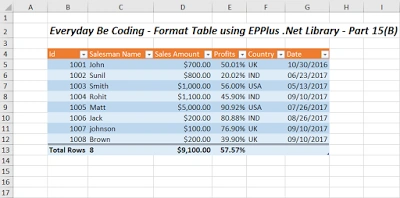

How To Format Excel Table Using EPPlus Library Part Fifteen - C#

Video Tutorial - Click Here
Suggested Video - How to Create & Insert data into an Excel Tables Part-14(A)
Source Code - Click to download [463 KB]


We need to attach two more namespaces.
  • OfficeOpenXml.Table (for Excel Table)
  • OfficeOpenXml.Style (for Excel Table Style)
"Column Filter" in an Excel table

ShowFilter

This property is responsible for applying a filter to every column of Excel table. It is a boolean property. By default, this property is false.
  1. using(ExcelRange Rng = wsSheet1.Cells["B4:F12"]) {
  2.     ExcelTableCollection tblcollection = wsSheet1.Tables;
  3.     ExcelTable table = tblcollection.Add(Rng, "tblSalesman");
  4.     table.ShowFilter = true;
  5. }
"Show Header" in an Excel table

This property is responsible for showing the table header in every column of the Excel table. By default, this property is true. It is a boolean property.
  1. using(ExcelRange Rng = wsSheet1.Cells["B4:F12"]) {
  2.     ExcelTableCollection tblcollection = wsSheet1.Tables;
  3.     ExcelTable table = tblcollection.Add(Rng, "tblSalesman");
  4.     table.ShowHeader = false;
  5. }
"Show Total" in an Excel Table?

This property is responsible for showing the table footer of Excel table. By default, this property is false. It is a boolean property.
  1. using(ExcelRange Rng = wsSheet1.Cells["B4:F12"]) {
  2.     ExcelTableCollection tblcollection = wsSheet1.Tables;
  3.     ExcelTable table = tblcollection.Add(Rng, "tblSalesman");
  4.     table.ShowTotal = true;
  5. }
"Totals Row Formula" & "Total Row Label" in an Excel Table?

These two properties are applied in Excel table footer position & applicable to specific column index. Both properties are of string type.
  • TotalRowLabel: Showing a label or text under the excel table footer position.
  • TotalRowFormula: Applying SUBTOTAL() function in excel table footer position.
Excel SUBTOTAL() function syntax has the following arguments.


Here, the first argument function_num is defined as specific numbers & these numbers are pointing to a specific mathematical function. See this below table.

function_num function Name
  • 101 AVERAGE
  • 102 COUNT
  • 103 COUNTA
  • 104 MAX
  • 105 MIN
  • 106 PRODUCT
  • 107 STDEV
  • 108 STDEVP
  • 109 SUM
  • 110 VAR
  • 111 VARP
For more information, please go through this link.
  1. using (ExcelRange Rng = wsSheet1.Cells["B4:F12"])
  2. {
  3. ExcelTableCollection tblcollection = wsSheet1.Tables;
  4. ExcelTable table = tblcollection.Add(Rng, "tblSalesman");
  5.
  6. //Add TotalsRowLabel into Excel table Columns
  7. table.Columns[0].TotalsRowLabel = "Total Rows";
  8.
  9. //Add TotalsRowFormula into Excel table Columns
  10. table.Columns[1].TotalsRowFormula = "SUBTOTAL(102,[Id])"; //102 = Count
  11. table.Columns[2].TotalsRowFormula = "SUBTOTAL(109,[Sales Amount])"; //109 = Sum
  12. table.Columns[3].TotalsRowFormula = "SUBTOTAL(101,[Profits])"; //101 = Average
  13. }

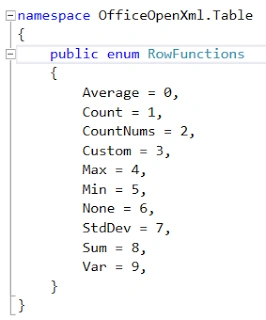

"Totals Row Function" in an Excel Table

TotalsRowFunction: Does the same thing as SUBTOTAL() Excel function, but in this case, we use RowFunctions enum for mathematical function.
  1. using(ExcelRange Rng = wsSheet1.Cells["B4:F12"]) {
  2.     ExcelTableCollection tblcollection = wsSheet1.Tables;
  3.     ExcelTable table = tblcollection.Add(Rng, "tblSalesman");
  4.     //Add TotalsRowFunction into Excel table Columns
  5.     table.Columns[0].TotalsRowLabel = "Total Rows";
  6.     table.Columns[1].TotalsRowFunction = RowFunctions.Count;
  7.     table.Columns[2].TotalsRowFunction = RowFunctions.Sum;
  8.     table.Columns[3].TotalsRowFunction = RowFunctions.Average;
  9. }
"Table Style" in an Excel Table

Applying for predefined colorful themes in Excel table.  Here, TableStyles.Dark9 is 59 number in an enumerator list.

  1. using(ExcelRange Rng = wsSheet1.Cells["B4:F12"]) {
  2.     ExcelTableCollection tblcollection = wsSheet1.Tables;
  3.     ExcelTable table = tblcollection.Add(Rng, "tblSalesman");
  4.     table.TableStyle = TableStyles.Dark9;
  5. }
"Cell Formatting" in an Excel Table

This is a special type of format pattern for the specific data type in an Excel cell. The Numberformat property is the type of ExcelNumberFormat class. This ExcelNumberFormat class has Format property.


Column: "Id"
  1. string IntCellFormat = "###0;";
  2. using(ExcelRange Rng = wsSheet1.Cells["B5"]) {
  3.     Rng.Style.Numberformat.Format = IntCellFormat; //for integer
  4.     Rng.Value = Convert.ToInt32("1001");
  5. }
Column: "Salesman Name"
  1. using (ExcelRange Rng = wsSheet1.Cells["C5"])
  2. {
  3.    Rng.Value = "John";
  4. }
Column: "Sales Amount"
  1. string CurrencyCellFormat = "$###,###,##0.00";
  2. using(ExcelRange Rng = wsSheet1.Cells["D5"]) {
  3.     Rng.Style.Numberformat.Format = CurrencyCellFormat;
  4.     Rng.Value = Convert.ToDecimal("700.00");
  5. }
Column: "Country"
  1. using (ExcelRange Rng = wsSheet1.Cells["E5"])
  2. {
  3.    Rng.Value = "UK";
  4. }
Column : "Profits"
  1. string PersentageCellFormat = "#0\\.00%";
  2. using(ExcelRange Rng = wsSheet1.Cells["E5"]) {
  3.     Rng.Style.Numberformat.Format = PersentageCellFormat;
  4.     Rng.Value = Convert.ToDecimal(39.9);
  5. }
Column: "Date"
  1. string DateCellFormat = "mm/dd/yyyy";
  2. using(ExcelRange Rng = wsSheet1.Cells["F5"]) {
  3.     Rng.Style.Numberformat.Format = DateCellFormat;
  4.     Rng.Value = Convert.ToDateTime("08/26/2017");
  5. }
Full Source Code
  1. using OfficeOpenXml;
  2. using System.IO;
  3. using OfficeOpenXml.Table;
  4. using System;
  5. using OfficeOpenXml.Style;
  6. namespace EpplusDemo {
  7.     class Program {
  8.         static void Main(string[] args) {
  9.             ExcelPackage ExcelPkg = new ExcelPackage();
  10.             ExcelWorksheet wsSheet1 = ExcelPkg.Workbook.Worksheets.Add("Sheet1");
  11.             using(ExcelRange Rng = wsSheet1.Cells["B2:I2"]) {
  12.                 Rng.Value = "Everyday Be Coding - Format Table using EPPlus .Net Library - Part 15(B)";
  13.                 Rng.Merge = true;
  14.                 Rng.Style.Font.Size = 16;
  15.                 Rng.Style.Font.Bold = true;
  16.                 Rng.Style.Font.Italic = true;
  17.             }
  18.             using(ExcelRange Rng = wsSheet1.Cells["B4:G12"]) {
  19.                 ExcelTableCollection tblcollection = wsSheet1.Tables;
  20.                 ExcelTable table = tblcollection.Add(Rng, "tblSalesman");
  21.                 //Set Columns position & name
  22.                 table.Columns[0].Name = "Id";
  23.                 table.Columns[1].Name = "Salesman Name";
  24.                 table.Columns[2].Name = "Sales Amount";
  25.                 table.Columns[3].Name = "Profits";
  26.                 table.Columns[4].Name = "Country";
  27.                 table.Columns[5].Name = "Date";
  28.                 //table.ShowHeader = false;
  29.                 table.ShowFilter = true;
  30.                 table.ShowTotal = true;
  31.                 //Add TotalsRowFormula into Excel table Columns
  32.                 table.Columns[0].TotalsRowLabel = "Total Rows";
  33.                 table.Columns[1].TotalsRowFormula = "SUBTOTAL(102,[Id])"; //102 = Count
  34.                 table.Columns[2].TotalsRowFormula = "SUBTOTAL(109,[Sales Amount])"; //109 = Sum
  35.                 table.Columns[3].TotalsRowFormula = "SUBTOTAL(101,[Profits])"; //101 = Average
  36.                 //Add TotalsRowFunction into Excel table Columns
  37.                 //table.Columns[0].TotalsRowLabel = "Total Rows";
  38.                 //able.Columns[1].TotalsRowFunction = RowFunctions.Count;
  39.                 //table.Columns[2].TotalsRowFunction = RowFunctions.Sum;
  40.                 //table.Columns[3].TotalsRowFunction = RowFunctions.Average;
  41.                 table.TableStyle = TableStyles.Dark9;
  42.             }
  43.             //Insert data into the Excel Table Cells
  44.             //"ID" Column
  45.             string IntCellFormat = "###0;";
  46.             using(ExcelRange Rng = wsSheet1.Cells["B5"]) {
  47.                 Rng.Style.Numberformat.Format = IntCellFormat;
  48.                 Rng.Value = Convert.ToInt32("1001");
  49.             }
  50.             using(ExcelRange Rng = wsSheet1.Cells["B6"]) {
  51.                 Rng.Style.Numberformat.Format = IntCellFormat;
  52.                 Rng.Value = Convert.ToInt32("1002");
  53.             }
  54.             using(ExcelRange Rng = wsSheet1.Cells["B7"]) {
  55.                 Rng.Style.Numberformat.Format = IntCellFormat;
  56.                 Rng.Value = Convert.ToInt32("1003");
  57.             }
  58.             using(ExcelRange Rng = wsSheet1.Cells["B8"]) {
  59.                 Rng.Style.Numberformat.Format = IntCellFormat;
  60.                 Rng.Value = Convert.ToInt32("1004");
  61.             }
  62.             using(ExcelRange Rng = wsSheet1.Cells["B9"]) {
  63.                 Rng.Style.Numberformat.Format = IntCellFormat;
  64.                 Rng.Value = Convert.ToInt32("1005");
  65.             }
  66.             using(ExcelRange Rng = wsSheet1.Cells["B10"]) {
  67.                 Rng.Style.Numberformat.Format = IntCellFormat;
  68.                 Rng.Value = Convert.ToInt32("1006");
  69.             }
  70.             using(ExcelRange Rng = wsSheet1.Cells["B11"]) {
  71.                 Rng.Style.Numberformat.Format = IntCellFormat;
  72.                 Rng.Value = Convert.ToInt32("1007");
  73.             }
  74.             using(ExcelRange Rng = wsSheet1.Cells["B12"]) {
  75.                 Rng.Style.Numberformat.Format = IntCellFormat;
  76.                 Rng.Value = Convert.ToInt32("1008");
  77.             }
  78.             //"Salesman Name" Column
  79.             using(ExcelRange Rng = wsSheet1.Cells["C5"]) {
  80.                 Rng.Value = "John";
  81.             }
  82.             using(ExcelRange Rng = wsSheet1.Cells["C6"]) {
  83.                 Rng.Value = "Sunil";
  84.             }
  85.             using(ExcelRange Rng = wsSheet1.Cells["C7"]) {
  86.                 Rng.Value = "Smith";
  87.             }
  88.             using(ExcelRange Rng = wsSheet1.Cells["C8"]) {
  89.                 Rng.Value = "Rohit";
  90.             }
  91.             using(ExcelRange Rng = wsSheet1.Cells["C9"]) {
  92.                 Rng.Value = "Matt";
  93.             }
  94.             using(ExcelRange Rng = wsSheet1.Cells["C10"]) {
  95.                 Rng.Value = "Jack";
  96.             }
  97.             using(ExcelRange Rng = wsSheet1.Cells["C11"]) {
  98.                 Rng.Value = "johnson";
  99.             }
  100.             using(ExcelRange Rng = wsSheet1.Cells["C12"]) {
  101.                 Rng.Value = "Brown";
  102.             }
  103.             using(ExcelRange Rng = wsSheet1.Cells["C12"]) {
  104.                 Rng.Value = "Brown";
  105.             }
  106.             using(ExcelRange Rng = wsSheet1.Cells["C13"]) {
  107.                 Rng.Style.HorizontalAlignment = ExcelHorizontalAlignment.Left;
  108.             }
  109.             //"Sales Amount" Column
  110.             string CurrencyCellFormat = "$###,###,##0.00";
  111.             using(ExcelRange Rng = wsSheet1.Cells["D5"]) {
  112.                 Rng.Style.Numberformat.Format = CurrencyCellFormat;
  113.                 Rng.Value = Convert.ToDecimal("700.00");
  114.             }
  115.             using(ExcelRange Rng = wsSheet1.Cells["D6"]) {
  116.                 Rng.Style.Numberformat.Format = CurrencyCellFormat;
  117.                 Rng.Value = Convert.ToDecimal("800.00");
  118.             }
  119.             using(ExcelRange Rng = wsSheet1.Cells["D7"]) {
  120.                 Rng.Style.Numberformat.Format = CurrencyCellFormat;
  121.                 Rng.Value = Convert.ToDecimal("1000.00");
  122.             }
  123.             using(ExcelRange Rng = wsSheet1.Cells["D8"]) {
  124.                 Rng.Style.Numberformat.Format = CurrencyCellFormat;
  125.                 Rng.Value = Convert.ToDecimal("1100.00");
  126.             }
  127.             using(ExcelRange Rng = wsSheet1.Cells["D9"]) {
  128.                 Rng.Style.Numberformat.Format = CurrencyCellFormat;
  129.                 Rng.Value = Convert.ToDecimal("5000.00");
  130.             }
  131.             using(ExcelRange Rng = wsSheet1.Cells["D10"]) {
  132.                 Rng.Style.Numberformat.Format = CurrencyCellFormat;
  133.                 Rng.Value = Convert.ToDecimal("200.00");
  134.             }
  135.             using(ExcelRange Rng = wsSheet1.Cells["D11"]) {
  136.                 Rng.Style.Numberformat.Format = CurrencyCellFormat;
  137.                 Rng.Value = Convert.ToDecimal("100.00");
  138.             }
  139.             using(ExcelRange Rng = wsSheet1.Cells["D12"]) {
  140.                 Rng.Style.Numberformat.Format = CurrencyCellFormat;
  141.                 Rng.Value = Convert.ToDecimal("200.00");
  142.             }
  143.             using(ExcelRange Rng = wsSheet1.Cells["D13"]) {
  144.                 Rng.Style.Numberformat.Format = CurrencyCellFormat;
  145.                 Rng.Style.HorizontalAlignment = ExcelHorizontalAlignment.Right;
  146.             }
  147.             //"Profits" Column
  148.             string PersentageCellFormat = "#0\\.00%";
  149.             using(ExcelRange Rng = wsSheet1.Cells["E5"]) {
  150.                 Rng.Style.Numberformat.Format = PersentageCellFormat;
  151.                 Rng.Value = Convert.ToDecimal(50.01);
  152.             }
  153.             using(ExcelRange Rng = wsSheet1.Cells["E6"]) {
  154.                 Rng.Style.Numberformat.Format = PersentageCellFormat;
  155.                 Rng.Value = Convert.ToDecimal(20.02);
  156.             }
  157.             using(ExcelRange Rng = wsSheet1.Cells["E7"]) {
  158.                 Rng.Style.Numberformat.Format = PersentageCellFormat;
  159.                 Rng.Value = Convert.ToInt32(56.30);
  160.             }
  161.             using(ExcelRange Rng = wsSheet1.Cells["E8"]) {
  162.                 Rng.Style.Numberformat.Format = PersentageCellFormat;
  163.                 Rng.Value = Convert.ToDecimal(45.90);
  164.             }
  165.             using(ExcelRange Rng = wsSheet1.Cells["E9"]) {
  166.                 Rng.Style.Numberformat.Format = PersentageCellFormat;
  167.                 Rng.Value = Convert.ToDecimal(90.92);
  168.             }
  169.             using(ExcelRange Rng = wsSheet1.Cells["E10"]) {
  170.                 Rng.Style.Numberformat.Format = PersentageCellFormat;
  171.                 Rng.Value = Convert.ToDecimal(80.88);
  172.             }
  173.             using(ExcelRange Rng = wsSheet1.Cells["E11"]) {
  174.                 Rng.Style.Numberformat.Format = PersentageCellFormat;
  175.                 Rng.Value = Convert.ToDecimal(76.90);
  176.             }
  177.             using(ExcelRange Rng = wsSheet1.Cells["E12"]) {
  178.                 Rng.Style.Numberformat.Format = PersentageCellFormat;
  179.                 Rng.Value = Convert.ToDecimal(39.9);
  180.             }
  181.             using(ExcelRange Rng = wsSheet1.Cells["E13"]) {
  182.                 Rng.Style.Numberformat.Format = PersentageCellFormat;
  183.                 Rng.Style.HorizontalAlignment = ExcelHorizontalAlignment.Right;
  184.             }
  185.             //"Country" Column
  186.             using(ExcelRange Rng = wsSheet1.Cells["F5"]) {
  187.                 Rng.Value = "UK";
  188.             }
  189.             using(ExcelRange Rng = wsSheet1.Cells["F6"]) {
  190.                 Rng.Value = "IND";
  191.             }
  192.             using(ExcelRange Rng = wsSheet1.Cells["F7"]) {
  193.                 Rng.Value = "USA";
  194.             }
  195.             using(ExcelRange Rng = wsSheet1.Cells["F8"]) {
  196.                 Rng.Value = "IND";
  197.             }
  198.             using(ExcelRange Rng = wsSheet1.Cells["F9"]) {
  199.                 Rng.Value = "USA";
  200.             }
  201.             using(ExcelRange Rng = wsSheet1.Cells["F10"]) {
  202.                 Rng.Value = "IND";
  203.             }
  204.             using(ExcelRange Rng = wsSheet1.Cells["F11"]) {
  205.                 Rng.Value = "UK";
  206.             }
  207.             using(ExcelRange Rng = wsSheet1.Cells["F12"]) {
  208.                 Rng.Value = "UK";
  209.             }
  210.             //"Date" Column
  211.             string DateCellFormat = "mm/dd/yyyy";
  212.             using(ExcelRange Rng = wsSheet1.Cells["G5"]) {
  213.                 Rng.Style.Numberformat.Format = DateCellFormat;
  214.                 Rng.Value = Convert.ToDateTime("10/30/2016");
  215.             }
  216.             using(ExcelRange Rng = wsSheet1.Cells["G6"]) {
  217.                 Rng.Style.Numberformat.Format = DateCellFormat;
  218.                 Rng.Value = Convert.ToDateTime("06/23/2017");
  219.             }
  220.             using(ExcelRange Rng = wsSheet1.Cells["G7"]) {
  221.                 Rng.Style.Numberformat.Format = DateCellFormat;
  222.                 Rng.Value = Convert.ToDateTime("05/13/2017");
  223.             }
  224.             using(ExcelRange Rng = wsSheet1.Cells["G8"]) {
  225.                 Rng.Style.Numberformat.Format = DateCellFormat;
  226.                 Rng.Value = Convert.ToDateTime("09/10/2017");
  227.             }
  228.             using(ExcelRange Rng = wsSheet1.Cells["G9"]) {
  229.                 Rng.Style.Numberformat.Format = DateCellFormat;
  230.                 Rng.Value = Convert.ToDateTime("07/26/2017");
  231.             }
  232.             using(ExcelRange Rng = wsSheet1.Cells["G10"]) {
  233.                 Rng.Style.Numberformat.Format = DateCellFormat;
  234.                 Rng.Value = Convert.ToDateTime("08/26/2017");
  235.             }
  236.             using(ExcelRange Rng = wsSheet1.Cells["G11"]) {
  237.                 Rng.Style.Numberformat.Format = DateCellFormat;
  238.                 Rng.Value = Convert.ToDateTime("09/10/2017");
  239.             }
  240.             using(ExcelRange Rng = wsSheet1.Cells["G12"]) {
  241.                 Rng.Style.Numberformat.Format = DateCellFormat;
  242.                 Rng.Value = Convert.ToDateTime("09/10/2017");
  243.             }
  244.             wsSheet1.Cells[wsSheet1.Dimension.Address].AutoFitColumns();
  245.             ExcelPkg.SaveAs(new FileInfo(@ "D:\FormatExcelTable.xlsx"));
  246.         }
  247.     }
  248. }
Now, build and execute this code. The file is (ExcelTable.xlsx) stored on D: drive of the computer.
Next Recommended Reading How To Create An Excel File (Development) Using EPPlus .NET Library (C#) - Part One
